AM-1 Pebble

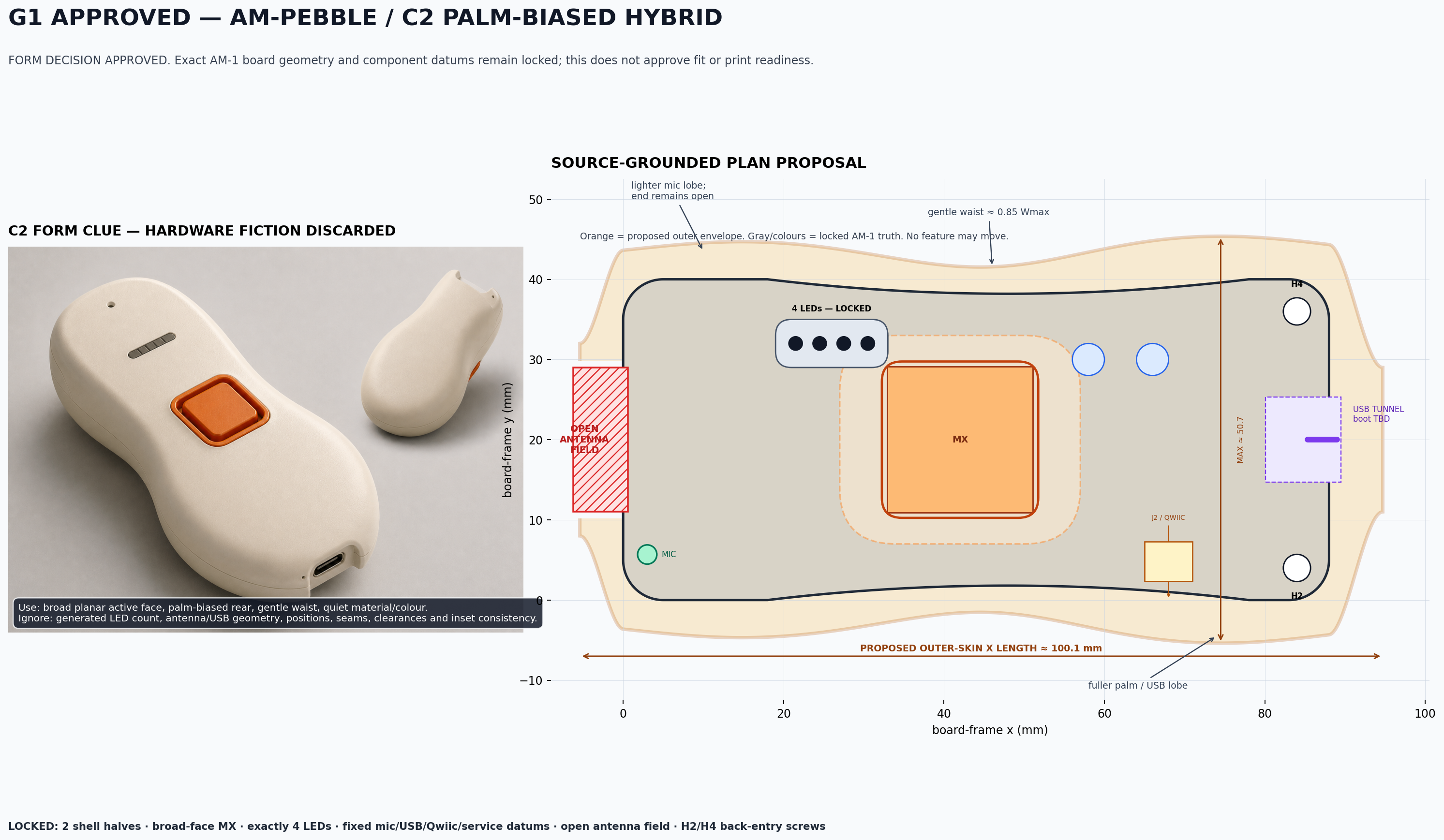

Create a Pebble-like organic handheld enclosure around the existing AM-1 custom PCB while preserving the board's real function, component placement, service paths, antenna keepout, and physically meaningful evidence boundaries.

v0.3design wip

v0.2 carrier is the frozen physical-test baseline (the geometry these viewers show); v0.3 is the longitudinal organic massing rework after the first v0.3 set was rejected as blocky. Human form, real-PCB fit and print evidence all pending.

Specs & BOM

Envelope: 100.1 × 50.75 × 41 mm

AM-Pebble v0.2 carrier + exact AM-1 envelopes1.0 MB

drag to orbit · scroll or pinch to zoom

composed of: am pebble carrier coupon, hw am1 board, hw am1 back components, hw am1 front components

AM-Pebble v0.2 carrier insertion / exploded1.0 MB

drag to orbit · scroll or pinch to zoom

composed of: am pebble carrier coupon, hw am1 board, hw am1 back components, hw am1 front components

AM-Pebble v0.2 printable carrier coupon754 KB

drag to orbit · scroll or pinch to zoom

AM-Pebble v0.1 retained digital plan/datum proof761 KB

drag to orbit · scroll or pinch to zoom
