concept locked; Phase 1 drivetrain software-verified, awaiting print

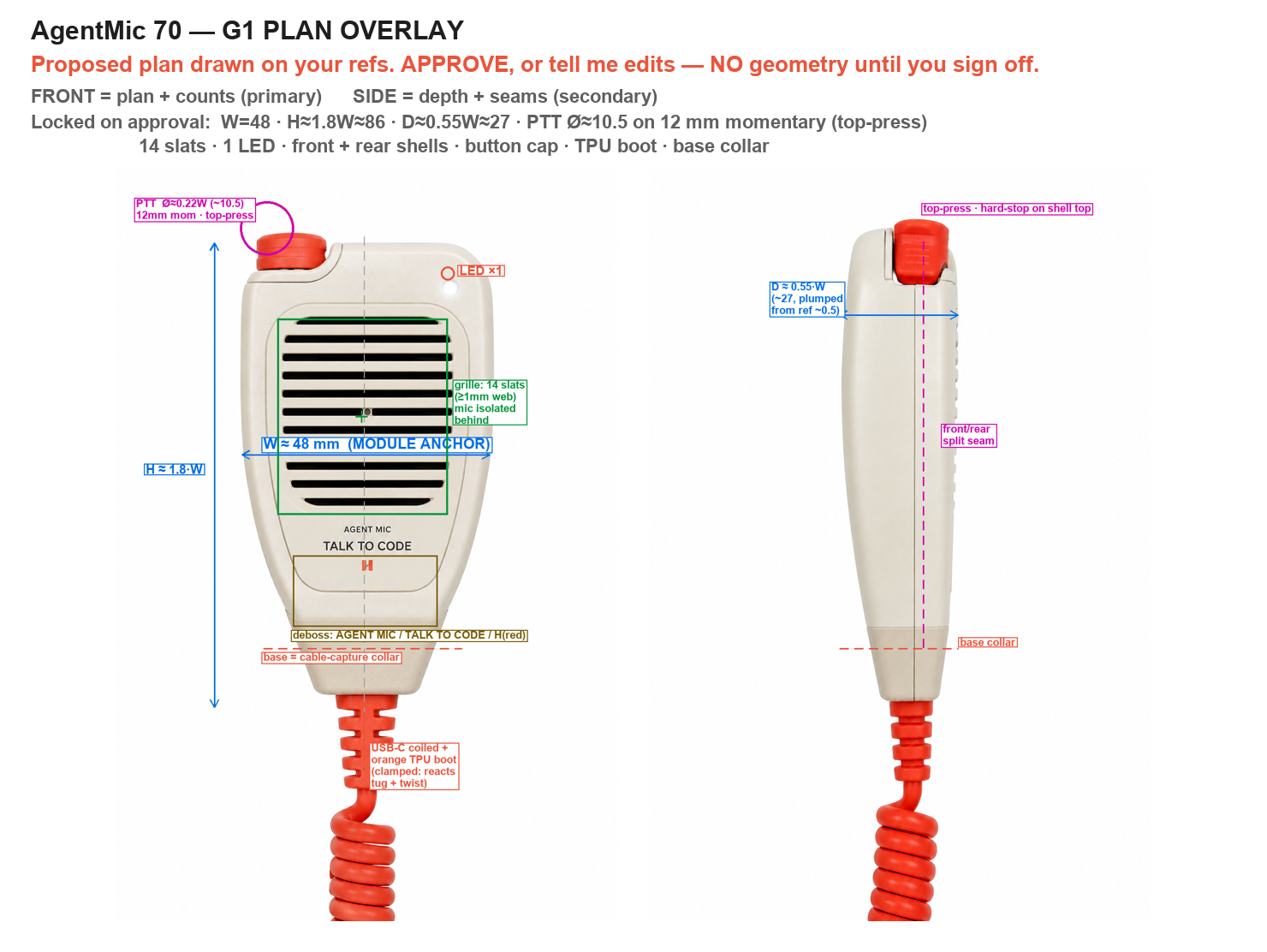

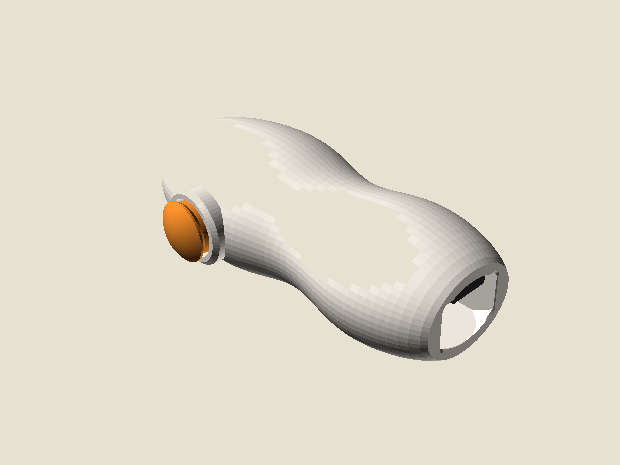

AM-70 is the rounded-rect original, AM-002 the peanut re-body; see each child for its own print/fit state

v0.2 carrier is the frozen physical-test baseline (the geometry these viewers show); v0.3 is the longitudinal organic massing rework after the first v0.3 set was rejected as blocky. Human form, real-PCB fit and print evidence all pending.

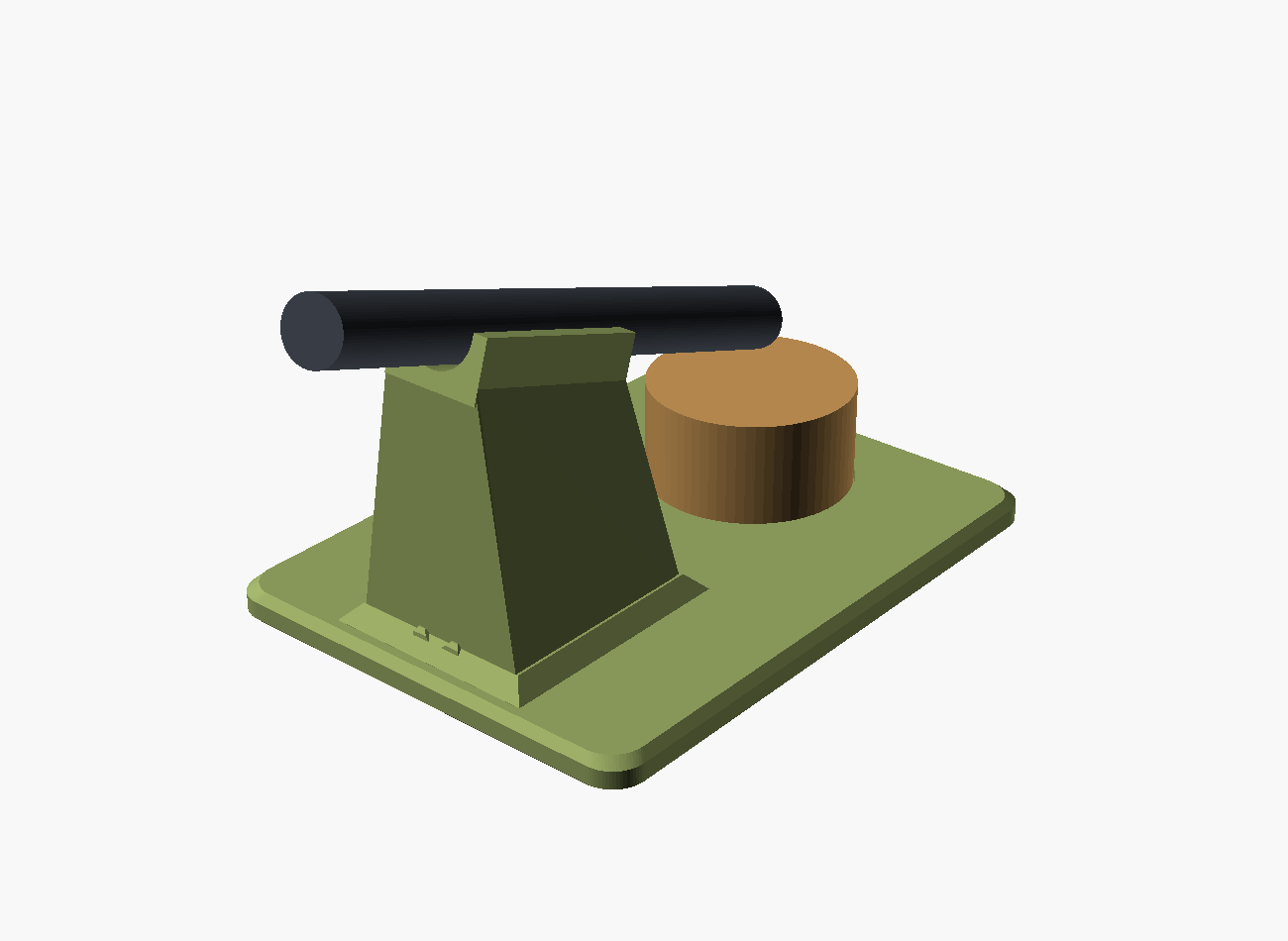

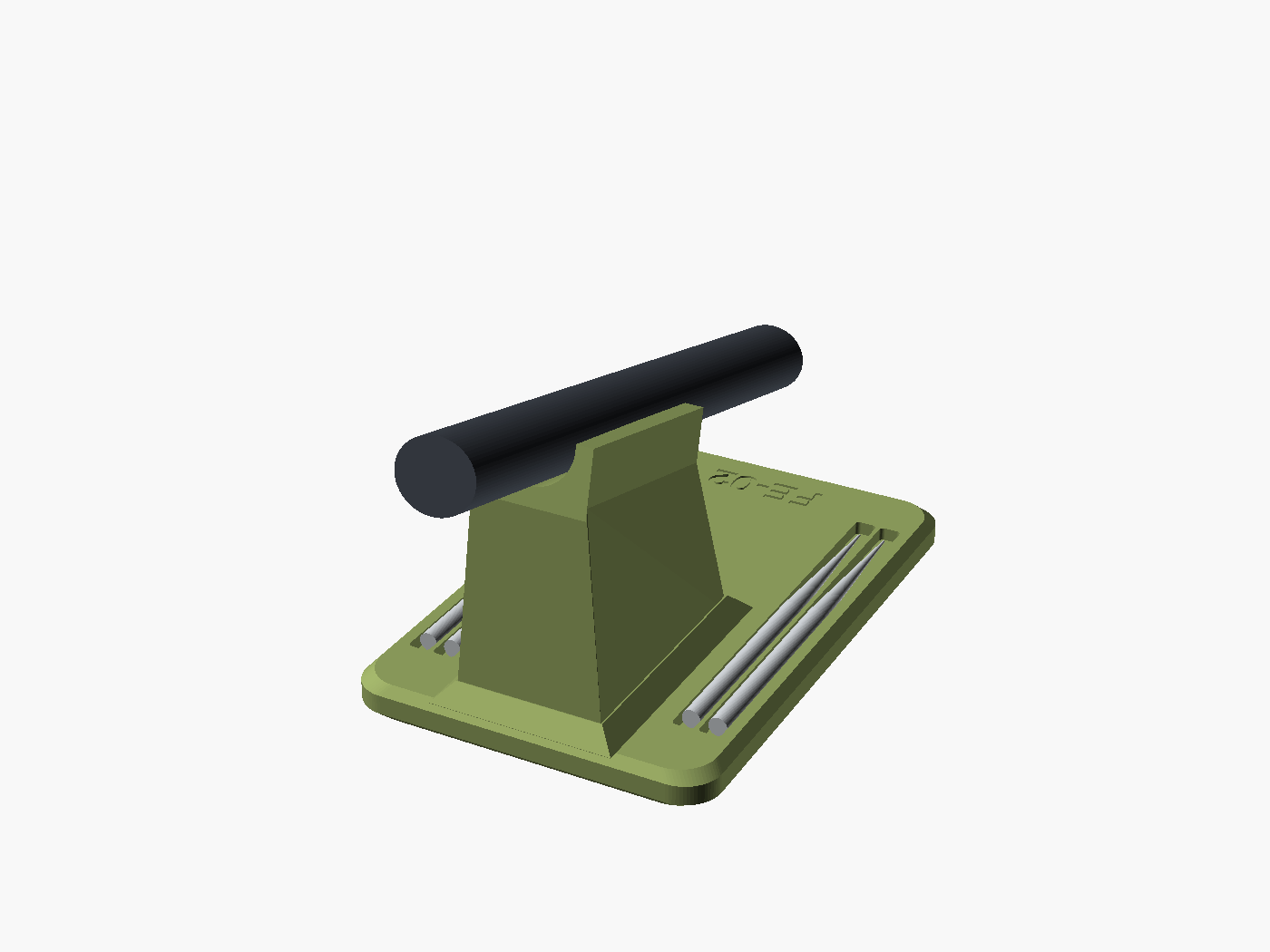

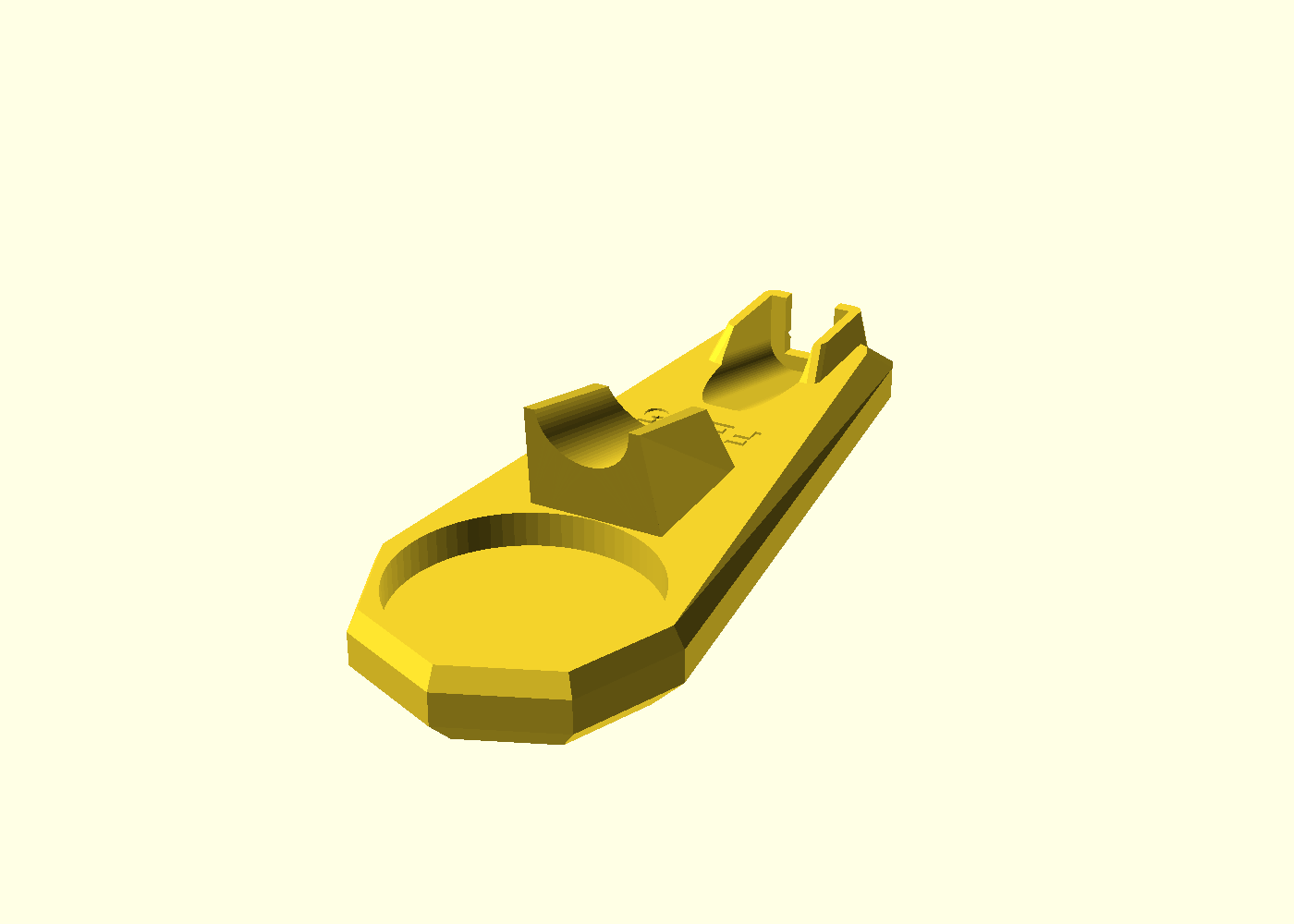

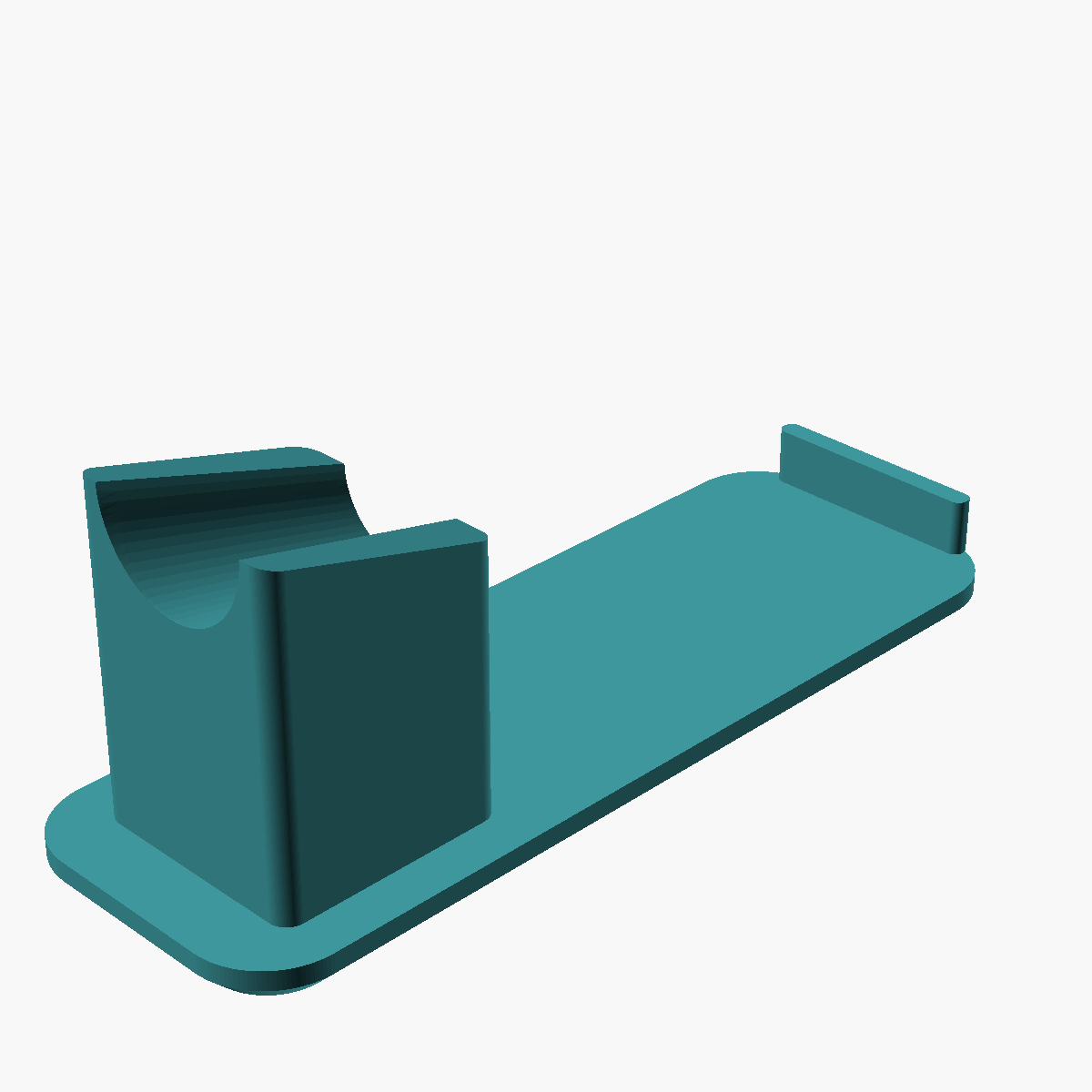

first working print; 2026-06-07) — the iron seats well in the rate-A tapered wedge cradle; form + fit work physically. Remaining: stability (add ~170 g ballast + anti-slip feet) and thermal in-use test. The poor first layers were a bed-

cg_stability) — accepted as a finding, NOT printed (2026-06-07

2026-06-13); three STLs exported, NOT printed, no fit evidence

v4 reshapes both seats into clean tapers that parallel the stock profile (deep grip kept: body ~Ø20.9, nose follows stock); simplifies the geometry off v3's imposed cylinders; awaiting a print + fit-test of v4

PRINTED; bench fit/comfort verdict pending

2026-09-20): the grip-neck self-tap HOLDS in matte PLA (deck to both wedges, 2 M3 per side) and the ctl_encoder_plate PRINTED AND WORKS -- the KY-040 no longer levers out. The clip saddle FAILED to print: its sealed STL was a solid block (channel cut missed the body) and its bore was sized from a flat span -- both fixed here, UNPRINTED at this revision. The 4 MAX7219 brackets have never been printed either, and no display, board, cell or switch has been seated. Button / switch / charge plates and the TPU feet are NOT MODELLED -- hardware unchosen.

rear skin split into a screwed LID so the two speaker bays open; geometry + gates only, NOTHING printed or fit-tested

v6.1 encoder-fit fix after print feedback; software-verified, awaiting re-print

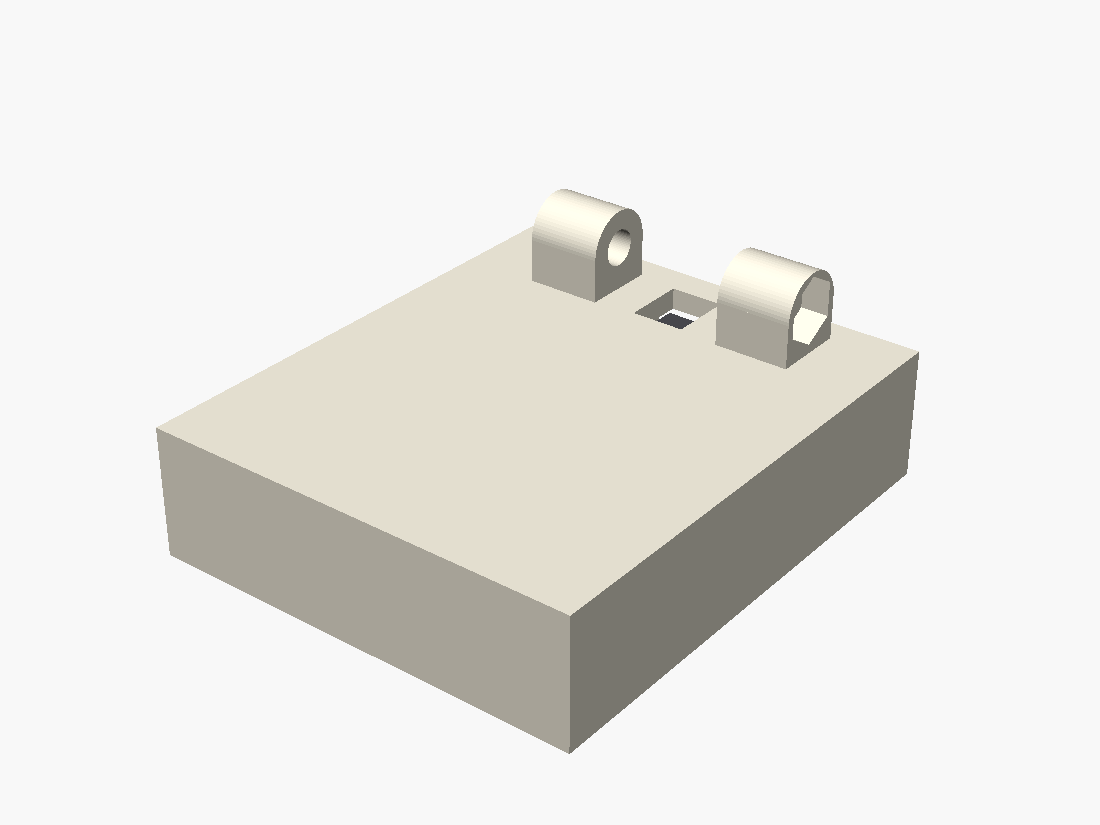

micro_tilt_display v0.2, hinge+wire coupon built, unproven until bench

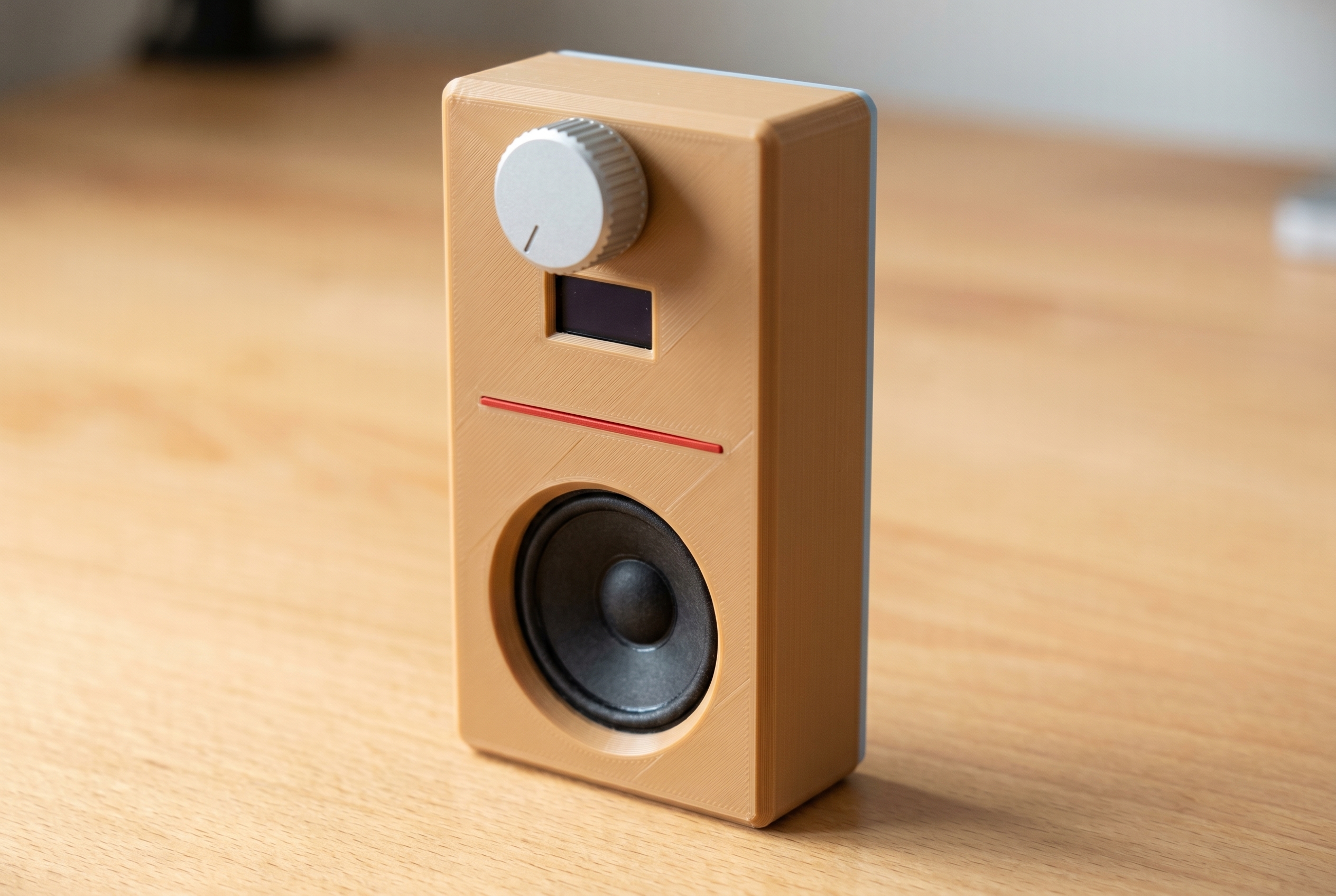

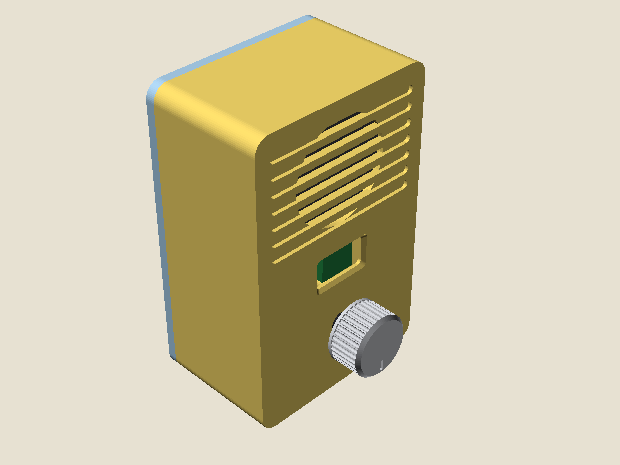

floor-mounted USB breakout + rear-lid fat-cover port; fully-seating plug; both parts version-stamped; first body/lid print warped despite 5mm brim; CAD fixed to full bed contact and gated; assembly bench then showed a USB panel-cable/lid-closure jam blocker; v0.5 replaced the lid USB panel cable with a measured USB-C breakout; v0.6 corrected the wall-mounted OLED boss spacing from the generic ±11/±11 datasheet read to the physically fitted radio_enclosure pattern; v0.7 rotates/lowers the measured KY-040 footprint so the encoder PCB clears the OLED PCB in the front-face plane; v0.8 moves the speaker frame forward from 13.0mm to 8.5mm, uses M3x5 speaker screws, and lowers the OLED/module lane for soldered OLED pigtails; v0.9 fattened the OLED bosses; v1.0–v1.2 first pivoted the breakout to rear-lid bosses, which fouled lid closure (protrusions into the body); v1.3 relocated the breakout to the body inner-bottom FLOOR and ran the USB plug out through the rear lid, so the lid carries no protrusions and closes clean; v1.4 shifted the floor bosses ~6mm toward the lid after a bench print showed the male plug could not reach the female socket (measured 10mm too deep); v1.5 opened the rear-lid port into a straight recess sized to the fat USB-C cover (11.5×7.2 overmold, 7mm neck) so the cover recesses and the plug fully seats with zero gap, and stamped both body ("B v1.5") and lid ("L v1.5") with the auto-injected version. v1.5 geometry is gated CLEAN but UNPRINTED — reprint body+lid to validate full seating.

v2.3 — modernization pass: anti-warp chamfer on both lids + JST-XH speaker-disconnect socket captured in the acoustic mating wall; awaiting print test

carrier spun 180° (USB-C exits the top); USB female thin-wall male-reach fix; controls at lower-middle. Reprint usb_lid_coupon + bench-fit next

first mini assembly; bench fixes applied (USB female moved below the speaker, straps removed, larger anti-warp chamfers, USB-screw countersinks

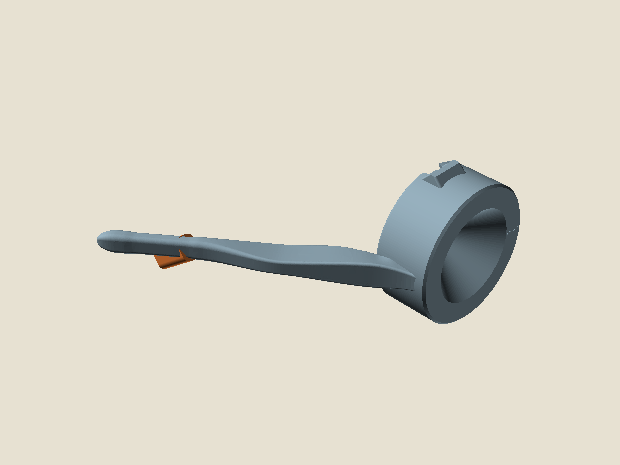

OpenSCAD + BOSL2) — WINNER. arm_printable is the ship arm; arm_organic and arm_pin are ALTERNATIVES of it, never built together.

v1 — phase0 coaster process coupon scaffolded; lid not started

body, grip sleeve and junction coupon exported, 15 of 19 gates passing (the 4 failures are version-prefixed gates for superseded v0.3/v0.4a/v0.5 revisions). NOTHING PRINTED: evidence/print_log.md still reads "Pending (v0.2, nothing printed yet)", so there is no fit, cold-oil or hot-soak evidence.

user reports good print and appearance; fit/load unverified

no print of I02 yet

user approved; measured fit/load unverified

the prior mechanism is physically proven across coupons and v5.x prints

SG-01 at Stage 3, contract and gates PROVISIONAL, geometry held for calipers; three coupons printed, the part itself unprinted

tag pill_box-v0.9.1-bench-baseline). Reference model only; superseded by pill_box_mk2.

body + bezel ring); v0.1 three-part stack superseded 2026-09-13

v0.1 coupon
