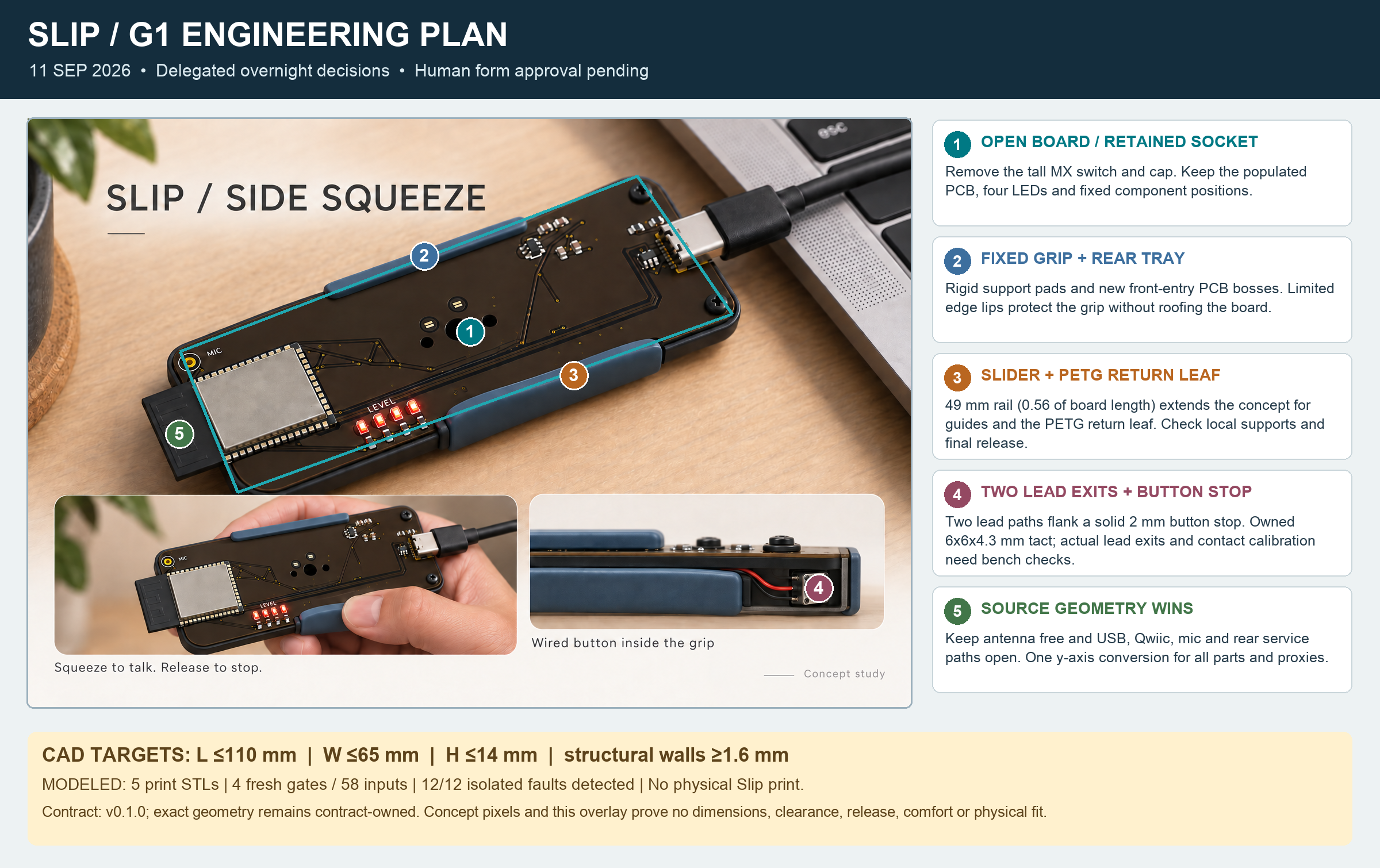

Slip — exposed AM-1 with a side squeeze rail

Physical assembly is incomplete: Daniel confirms the correctly oriented keeper fits, including its switch opening, and the5 mm switch actuates with an M3 contact screw.
v0.5.0replacement leaf/keeper modeled; base/grip reused; new return behavior unprinted and unproven

Specs & BOM

Envelope
92.2 × 54.3 × 11.2 mm

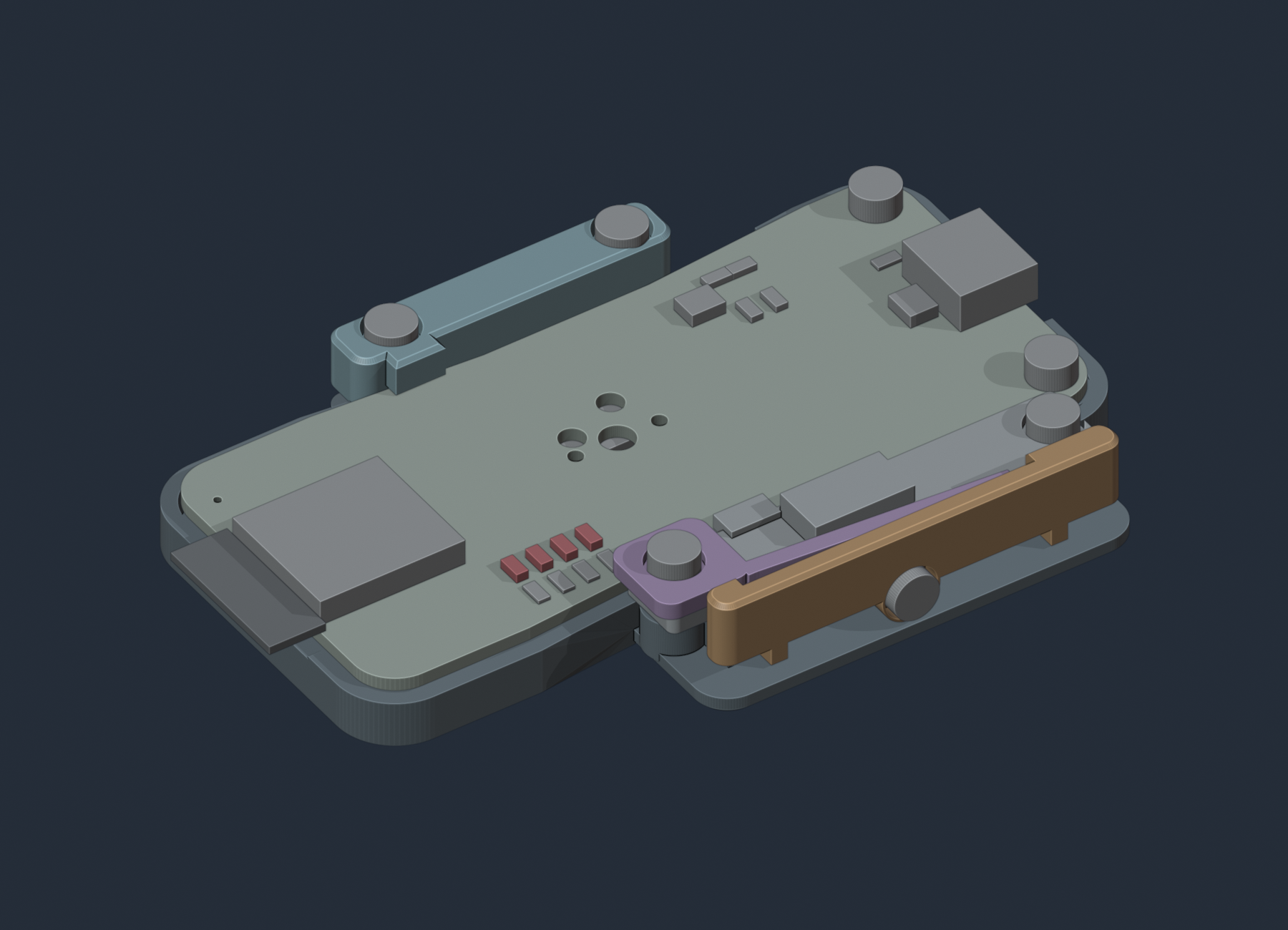

Slip side-squeeze assembly1.3 MB

drag to orbit · scroll or pinch to zoom
composed of: slip base, slip squeeze rail, slip keeper, slip return leaf, hw am1 pcb, hw C5, hw C6, hw C7, hw C8, hw J2, hw MK1, hw R3, hw R4, hw R5, hw R6, hw SW1, hw SW2, hw SW3, hw C1, hw C2, hw C3, hw C4, hw D1, hw D2, hw D3, hw D4, hw J1, hw R1, hw R10, hw R2, hw R7, hw R8, hw R9, hw U1, hw U2, hw U3, hw antenna, hw button body, hw button actuator, hw pcb screw 0, hw pcb screw 1, hw leaf screw, hw keeper screw, hw plunger screw

base - print pose473 KB

drag to orbit · scroll or pinch to zoom

squeeze rail - print pose367 KB

drag to orbit · scroll or pinch to zoom

keeper - print pose90 KB

drag to orbit · scroll or pinch to zoom

return leaf - print pose66 KB

drag to orbit · scroll or pinch to zoom

Screenshots
