KIL Inward — DBH-01-IN

desk_bag_hook_inward-v0.3

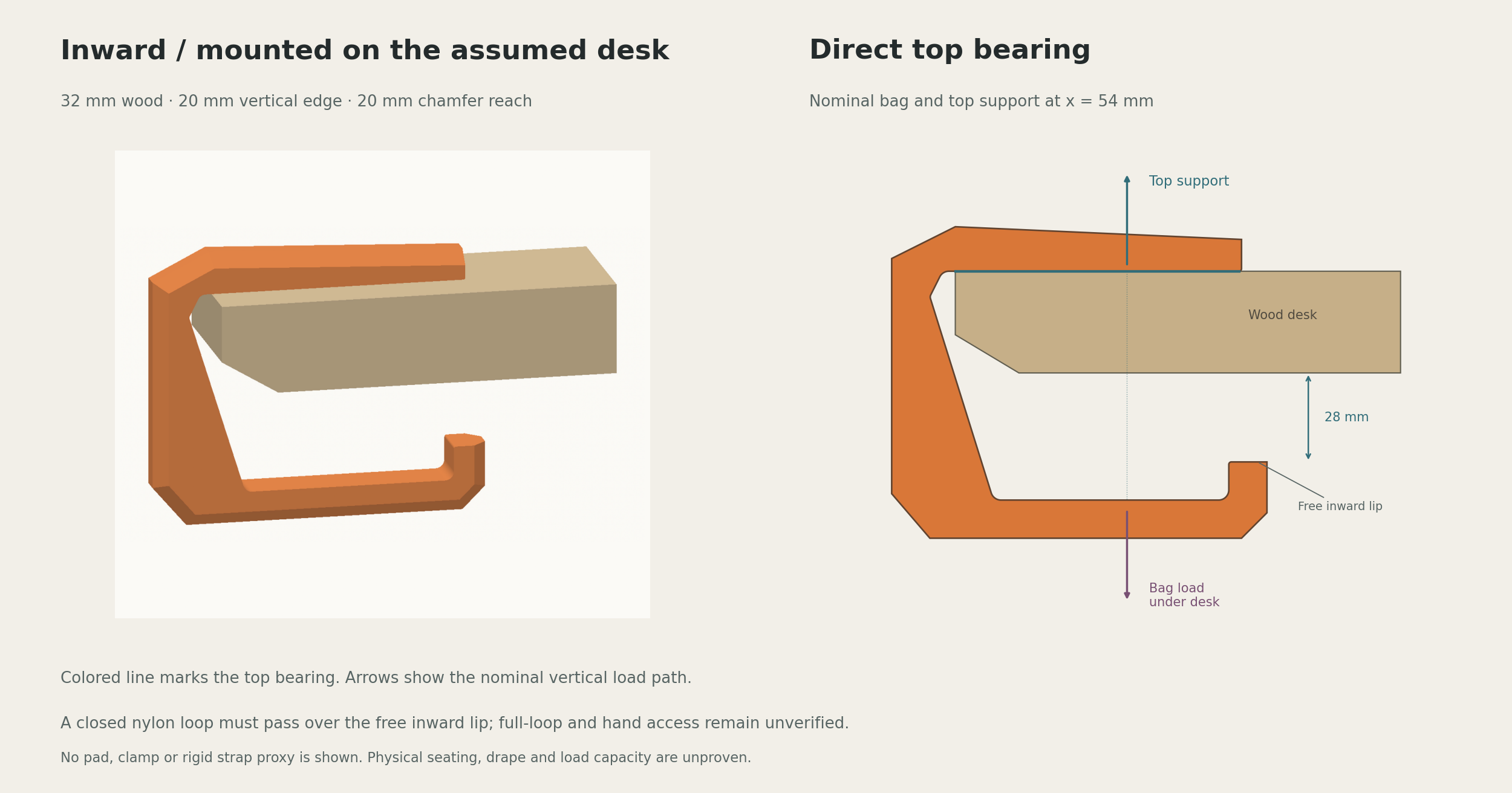

KIL Inward: the desk-edge bag hook, turned to hang the bag under the desk.

printed prototypev0.3
user reports good print and appearance; fit/load unverified
Field note KIL — two ways to hang a bag →

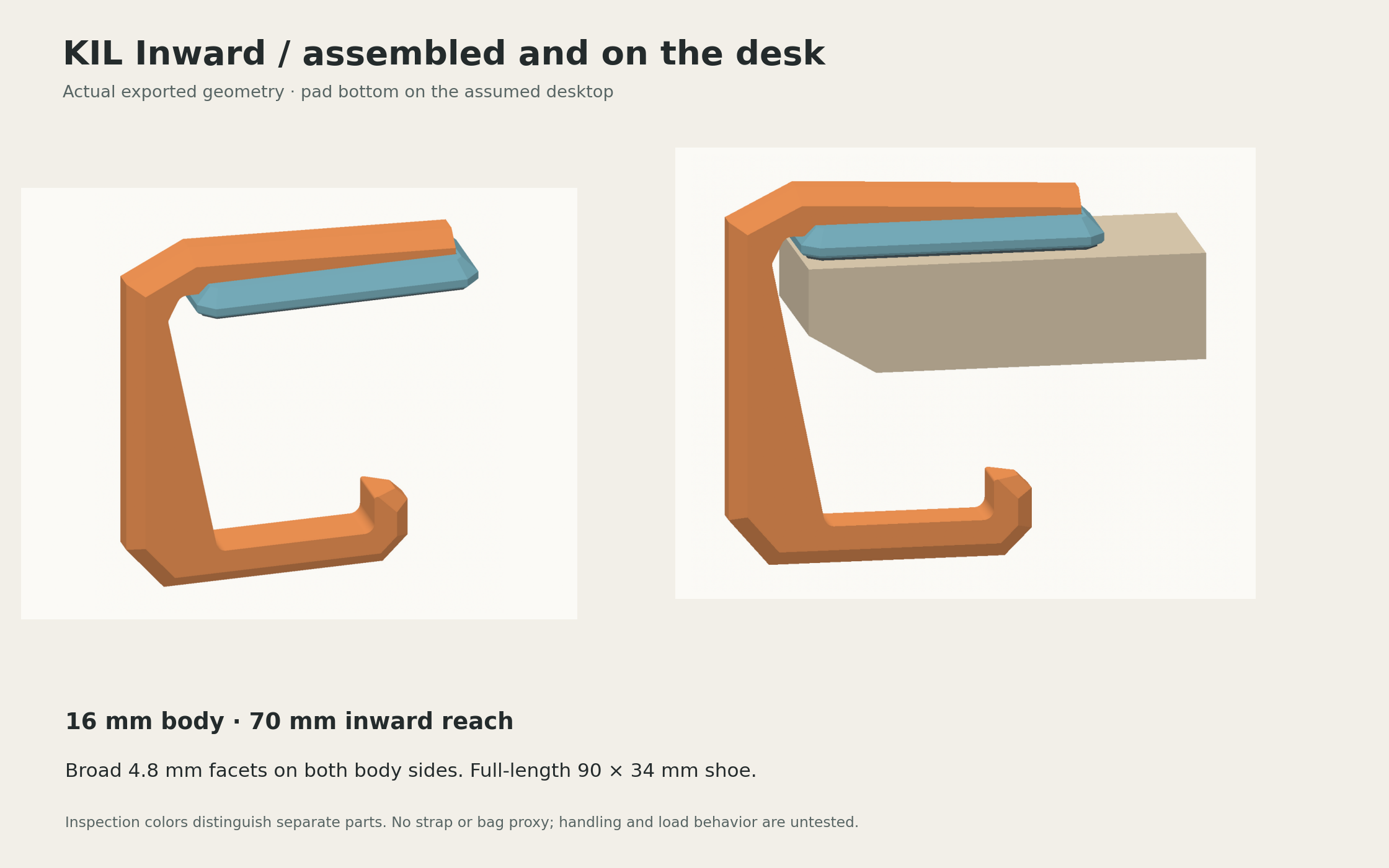

v0.3 in use — one rigid hook plus cut-sheet pad reference55 KB

drag to orbit · scroll or pinch to zoom

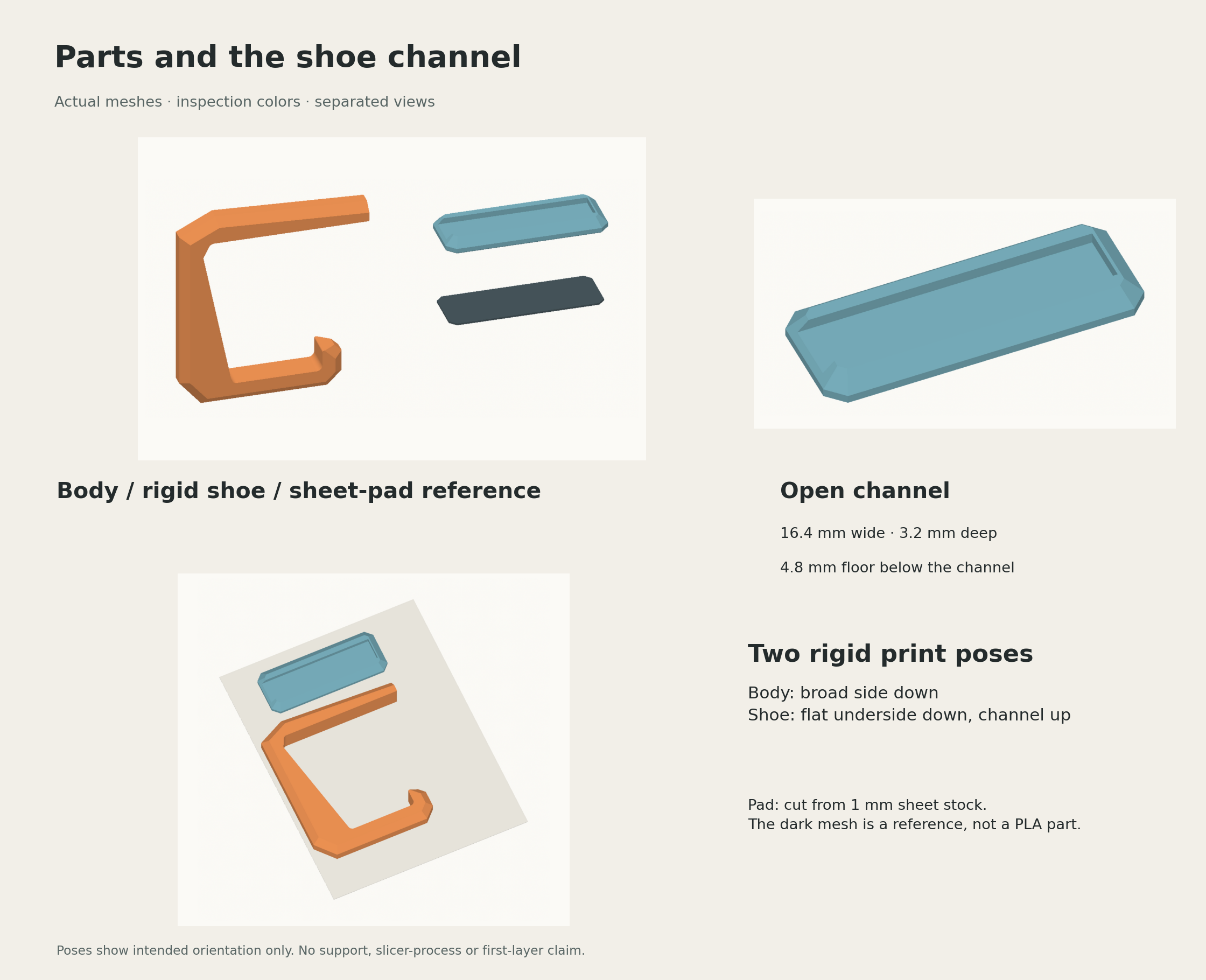

composed of: kil inward hook, hw grip pad

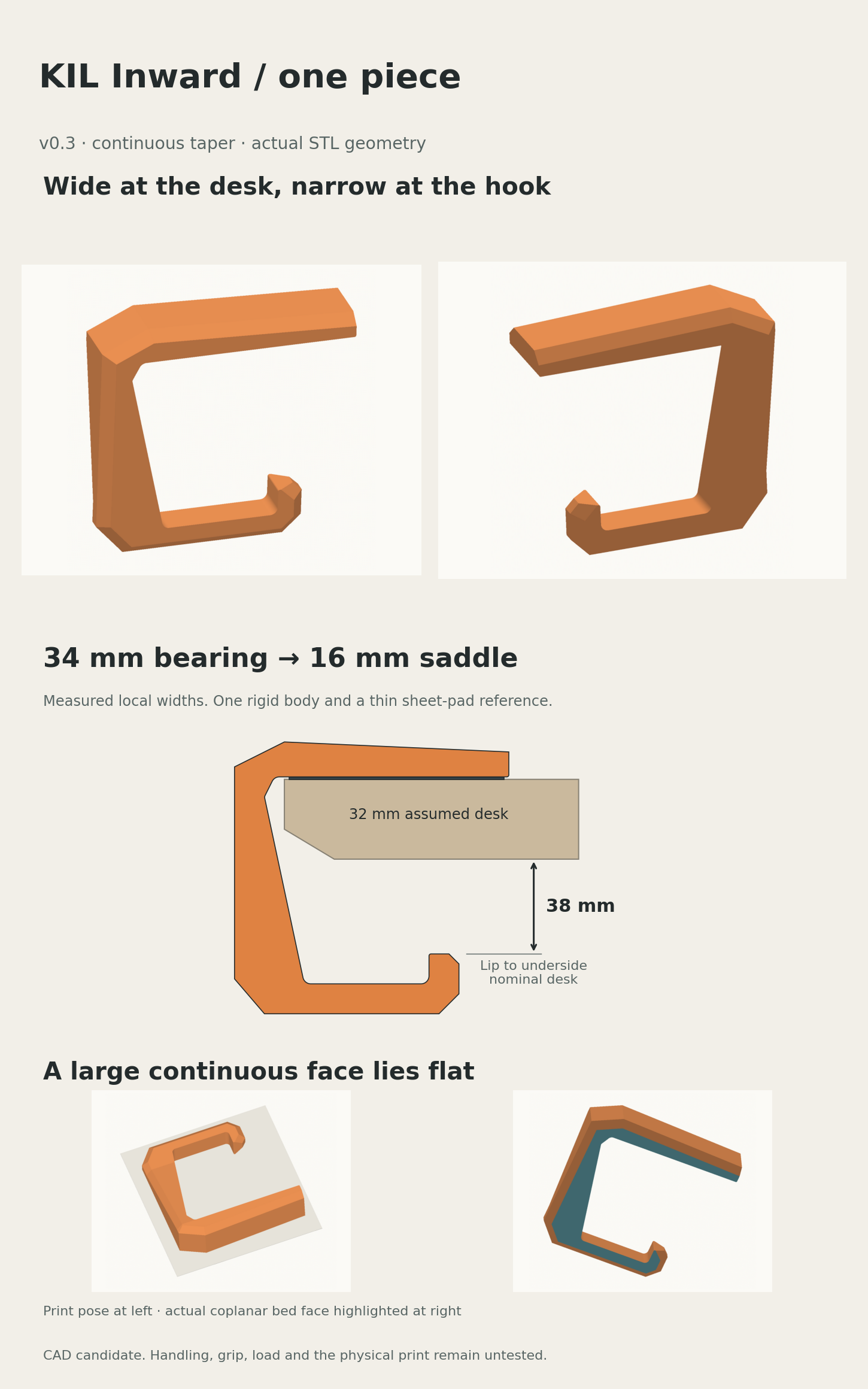

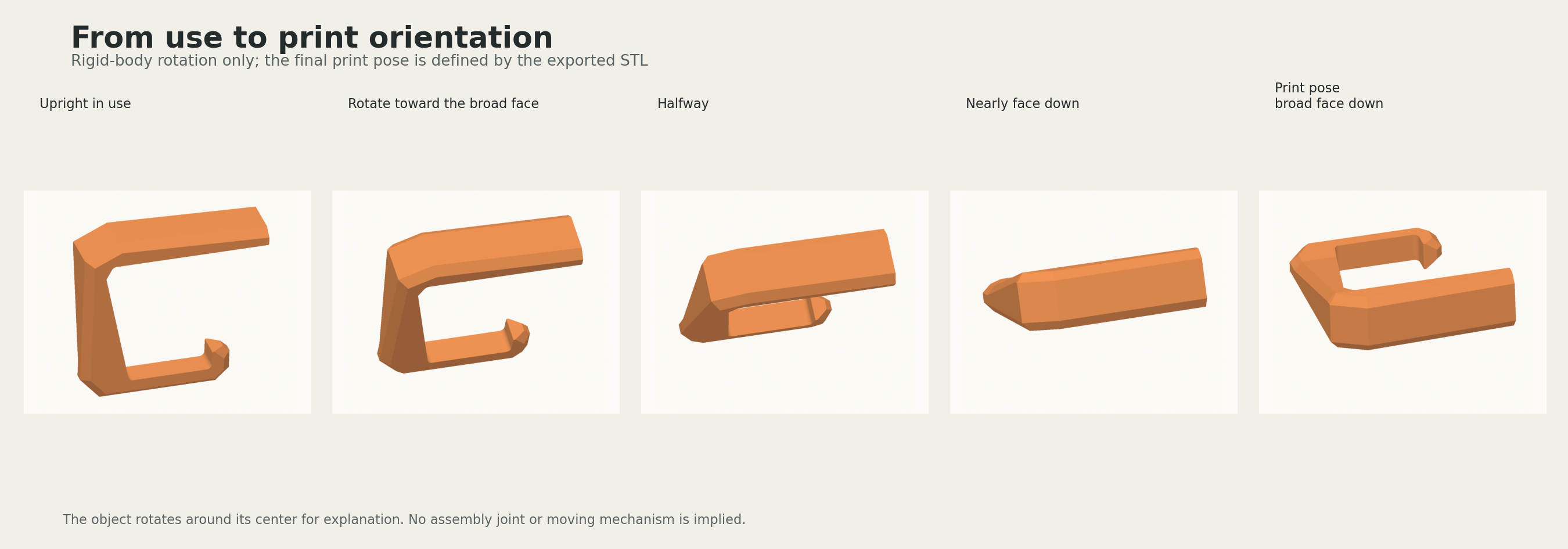

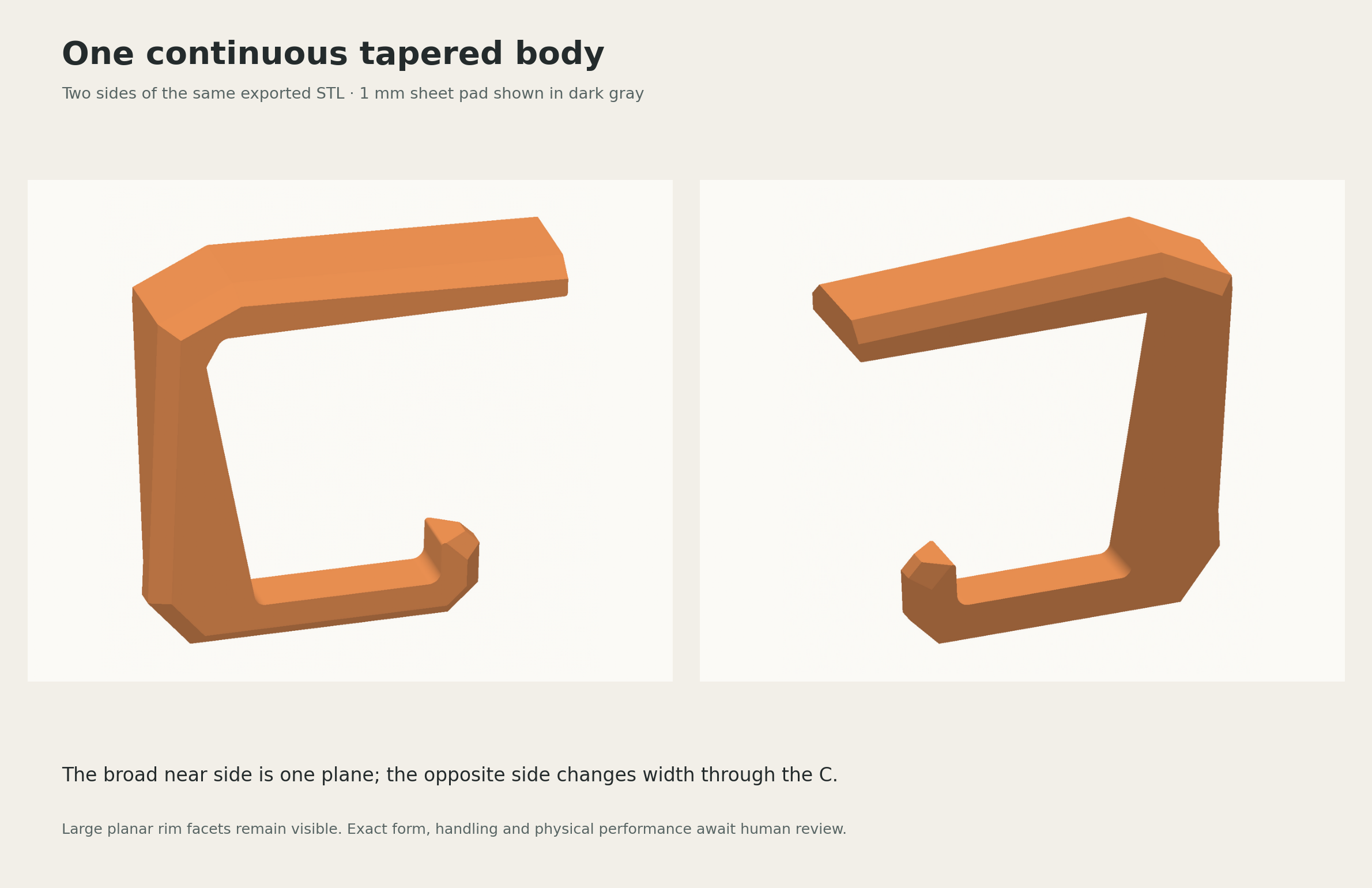

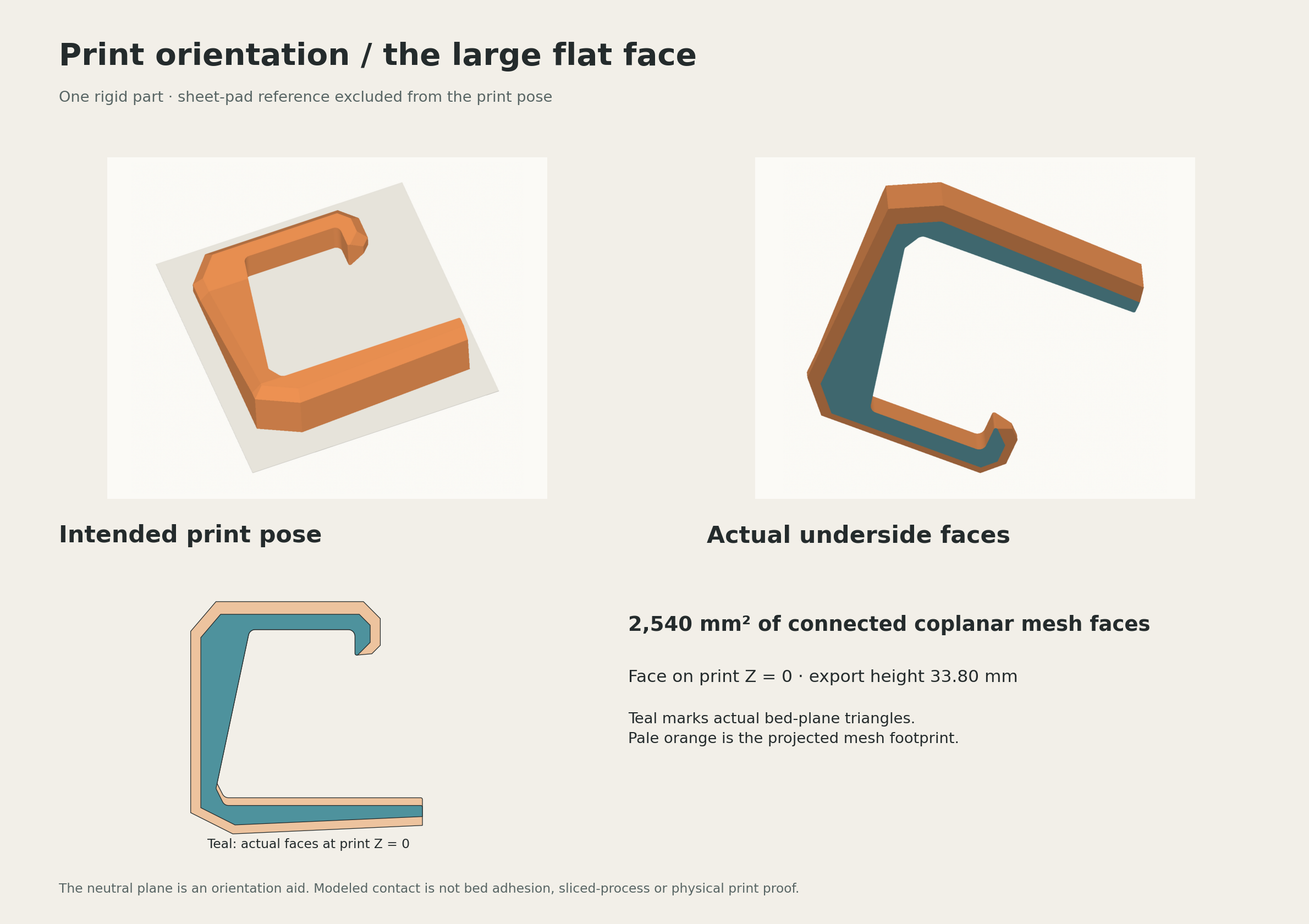

One rigid print — planar side facet on the bed53 KB

drag to orbit · scroll or pinch to zoom

Specs & BOM

ParameterValueUnit
Envelope110 × 110.24 × 33.8mm
↓ Print plate (.3mf) · all parts

Concept art

Early AI concept images: direction, not the design.

Evidence

All evidence (18)
