FE-01

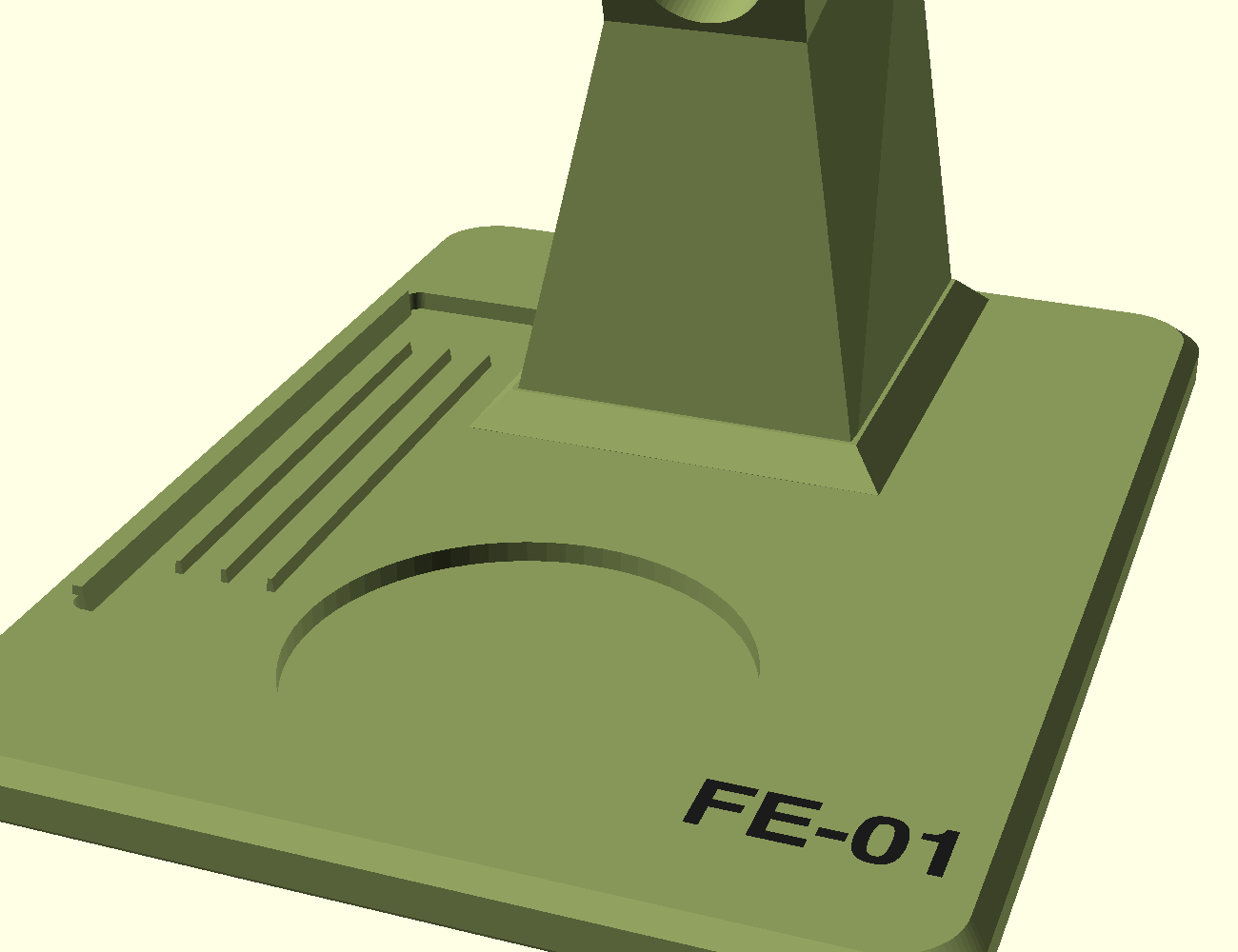

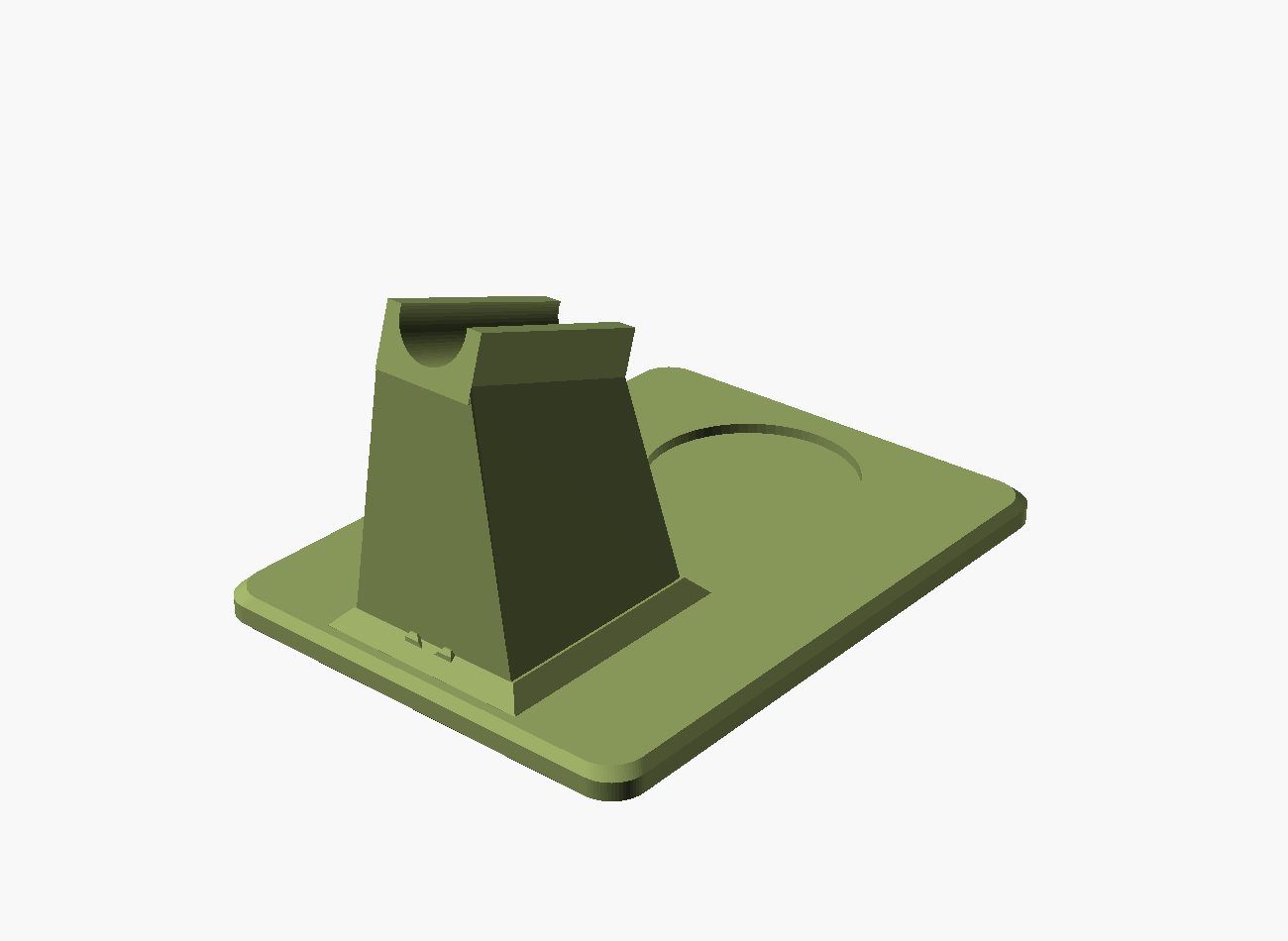

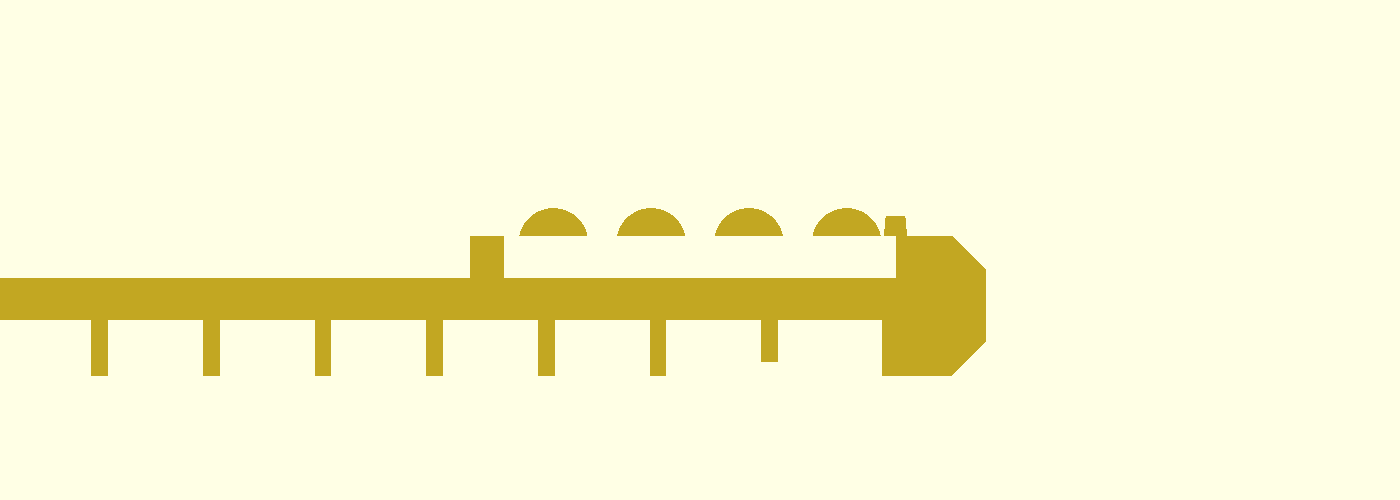

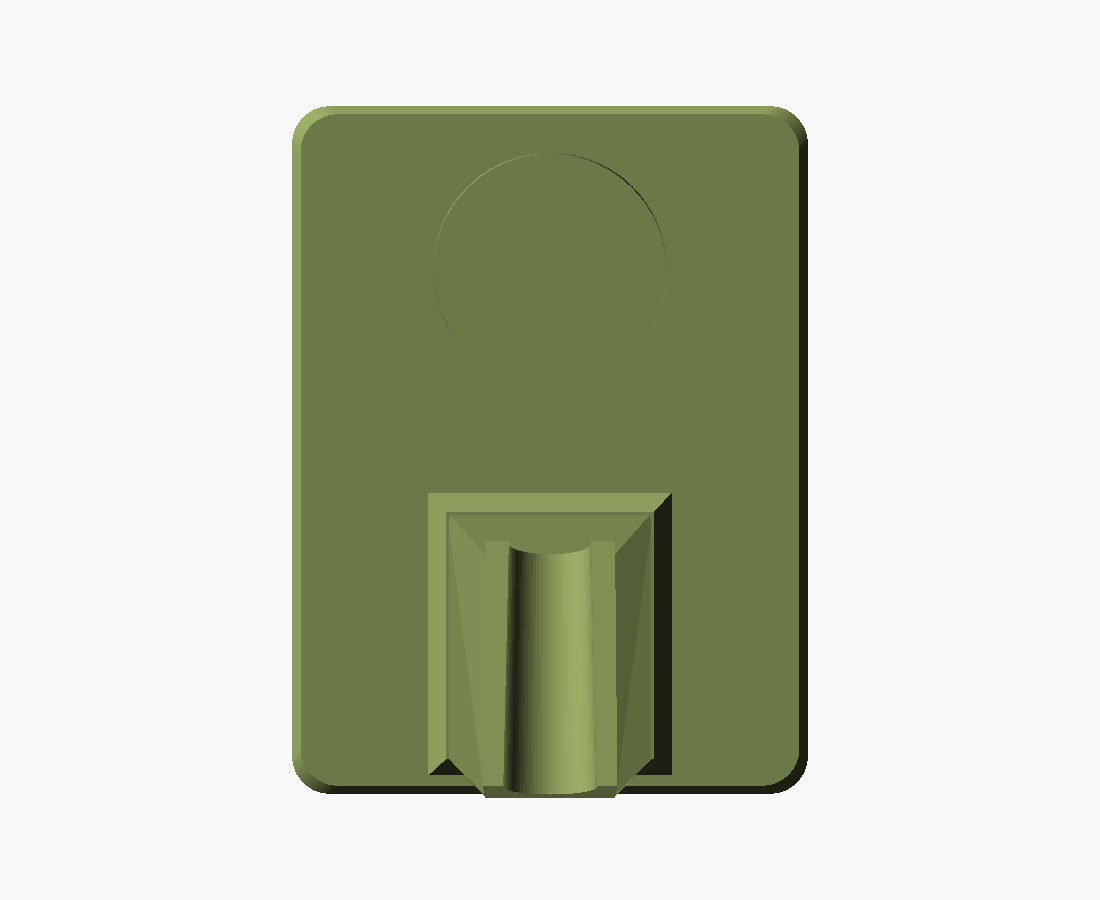

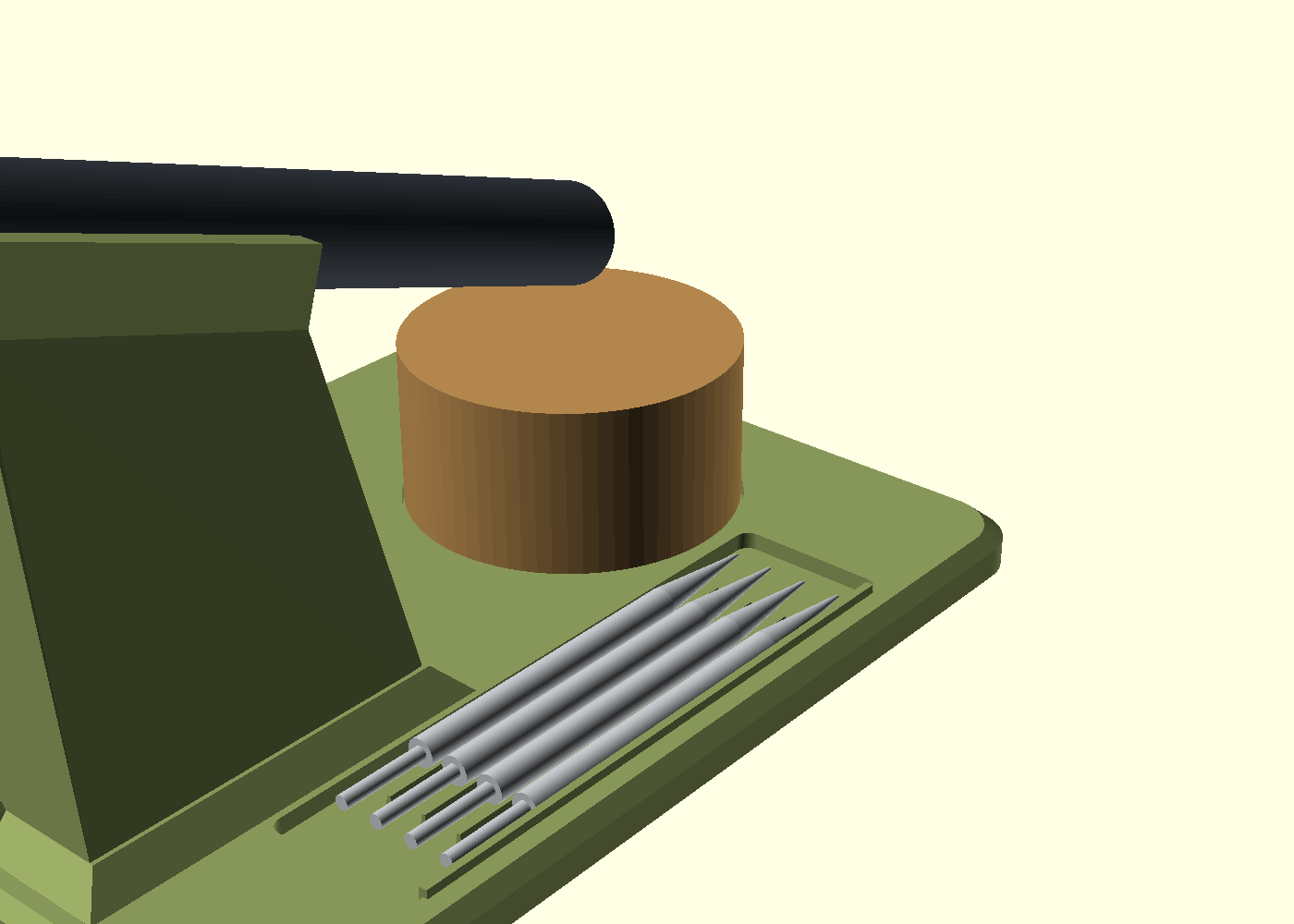

A bench station for the FNIRSI HS-02A: a holder that cradles the iron by its cool body, tip pointing down over a base carrying a brass-ball cleaner, a sponge, and tip storage.

v1.0printed + fit-validated

first working print; 2026-06-07) — the iron seats well in the rate-A tapered wedge cradle; form + fit work physically. Remaining: stability (add ~170 g ballast + anti-slip feet) and thermal in-use test. The poor first layers were a bed-level problem, not the design.

Specs & BOM

Envelope: 135 × 180 × 100.18 mm

fe1664 KB

drag to orbit · scroll or pinch to zoom

fe1_saddle_coupon771 KB

drag to orbit · scroll or pinch to zoom

fe1_taper_coupon798 KB

drag to orbit · scroll or pinch to zoom

fe1_taper_coupon_angled883 KB

drag to orbit · scroll or pinch to zoom
