Grid Platform

grid_platform-v0.1

A general-purpose rover platform: 8 mm / M3 hole-grid plates plus a motor plate with four N20 stations.

v0.1

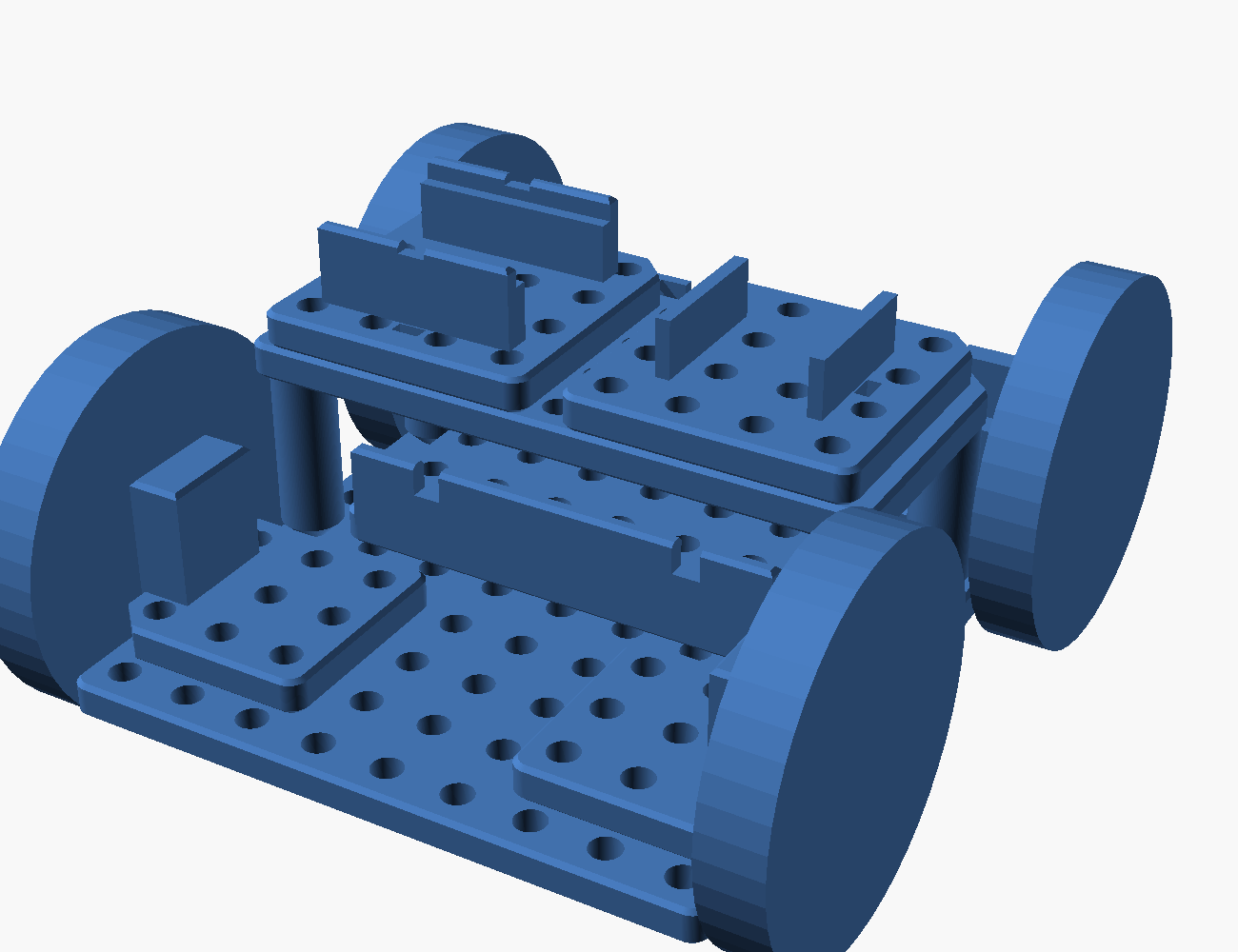

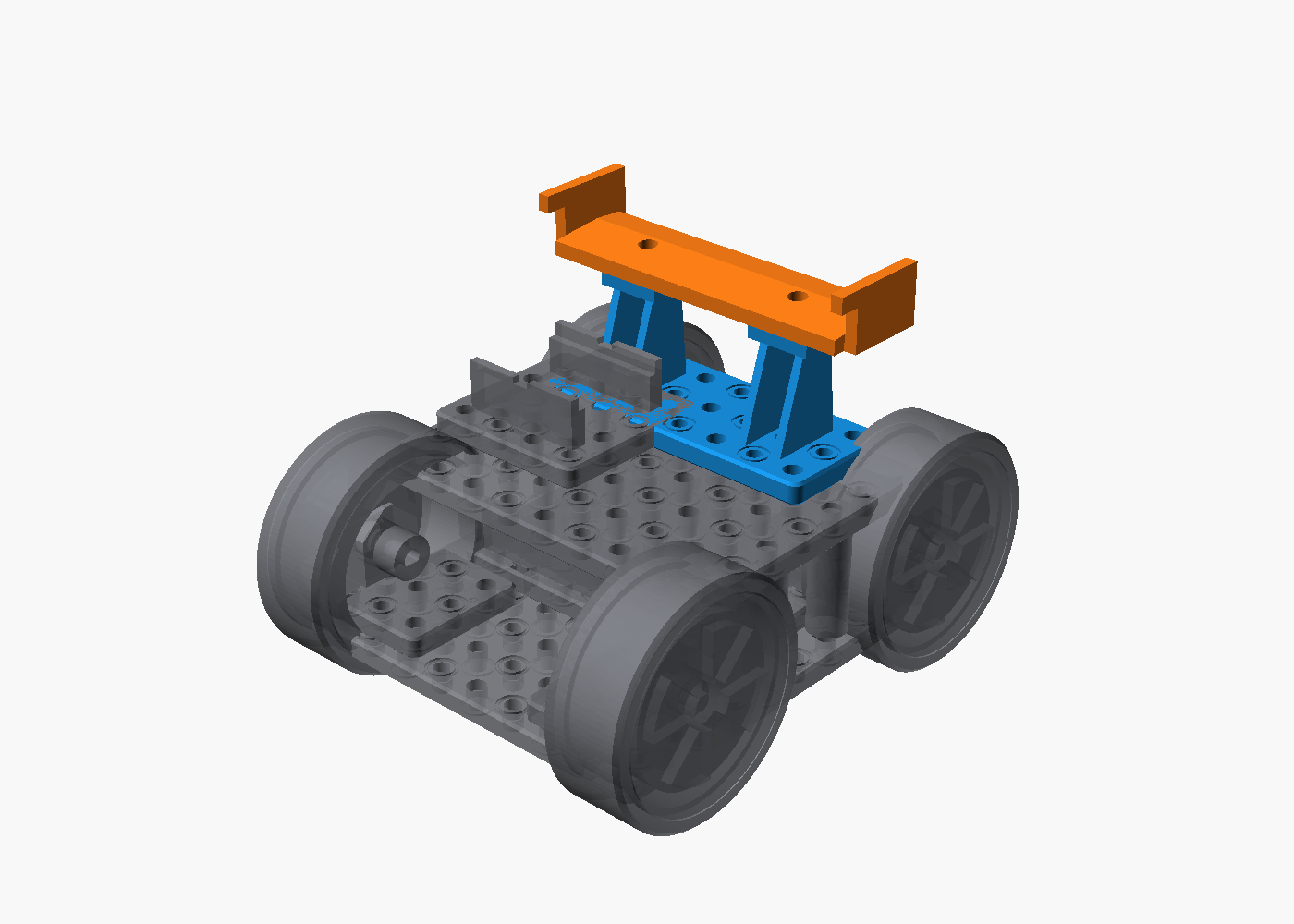

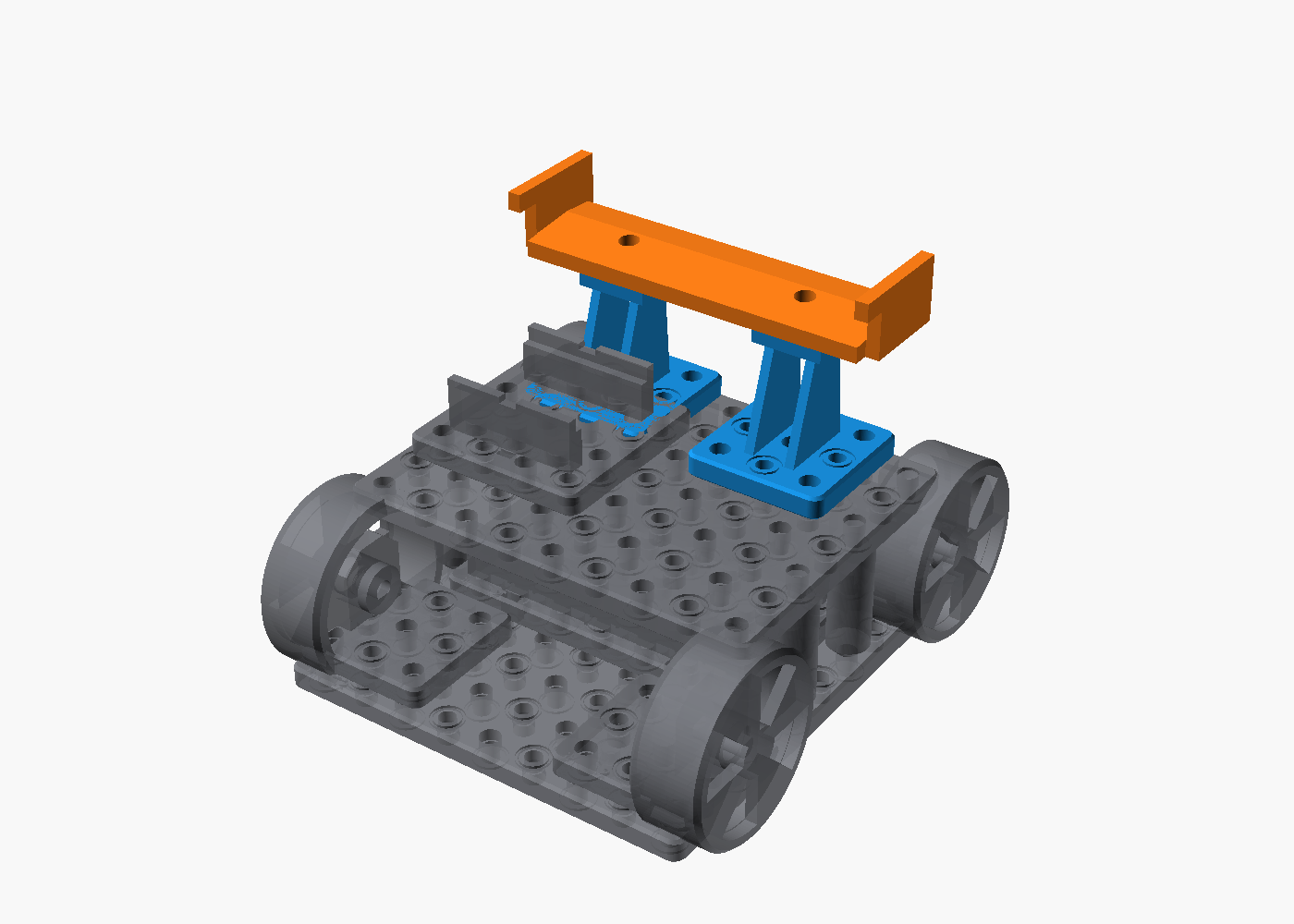

CASTER-TRIKE REFERENCE BUILD ASSEMBLED + DRIVING -- needs finetuning. SPEC v3 (2026-07-03) + the mount family and two-deck rover (2026-07-04) established the system; the current reference build is now the caster trike, assembled and iterated through the latest part versions by Daniel. Gate P1b bench PASSED (bearing seat flush, zip holds), PETG fit was redialed, caster clearance PASSED, and the rover works/drives. This is not yet a polished kit/ship claim: the display does not sit well, batteries do not have a proper home and are sitting on top of the build, wiring is ugly, and the trike needs packaging/fit refinement. The full grid-citizen kit exists: base plates (chassis / plate_s / motor_plate / trike_plate), driven N20 cradle (bracket_cradle) + driver-less idler (bracket_idler), new 55 mm H2C integrated wheel family (PETG HF core + mechanically captured TPU tire), a PLA-only 55 mm integrated-wheel fallback with raised ribs for blocked TPU feeding, board/display carriers, battery holders (lipo + 18650 + the level-2 battery_deck for the rv-1-card config), deck standoffs (grid_standoff / standoff_bolt), optional rover wing accessory (rover_wing_panel + rover_wing_bracket), and loose pins + splice. Plate combining = PRINT-TO-SIZE (grid_plate(nx,ny)); tiling retired, grid_splice kept for field joins. Firmware grid_rover v0.2.0 (T-Display-S3 brain) drives from the web joystick + an M5 StackChan ESP-NOW remote; steering calibrated. NEXT: refine the caster-trike reference build: display mount, battery home, wiring/strain relief, and any drive/ride-height tuning.

motor_plate (4WD base)3.4 MB

drag to orbit · scroll or pinch to zoom

wheel Ø55 integrated (driven)1.1 MB

drag to orbit · scroll or pinch to zoom

wheel Ø55 PLA (driven, ribbed)1.8 MB

drag to orbit · scroll or pinch to zoom

standoff_bolt (20 mm gap)98 KB

drag to orbit · scroll or pinch to zoom

bracket_cradle (driven N20)1.5 MB

drag to orbit · scroll or pinch to zoom

bracket_caster (ball caster)895 KB

drag to orbit · scroll or pinch to zoom

bracket_idler (passive wheel)1.4 MB

drag to orbit · scroll or pinch to zoom

chassis (plain base plate)3.3 MB

drag to orbit · scroll or pinch to zoom

breadboard_tray535 KB

drag to orbit · scroll or pinch to zoom

Specs & BOM

ParameterValueUnit
Envelope72 × 88 × 28.11mm
