Design Brief

A printed head that turns a ~25 mm round pole plus a 36 mm neodymium cup magnet into a reach tool for retrieving small ferrous items (screws, steel balls, washers, drill bits) that fall into the ~60 mm gap behind Daniel's workbench.

v5.13proof print pending

Specs & BOM

Envelope: 122.6 × 113.34 × 16 mm

#	Item	Qty	Spec	Goes
1	Cup magnet	1	LOVIMAG Ø36 x 7 mm cup magnet, Ø4.2 through / countersunk center hole	working face down inside the cup
2	Steel dowel followers	2	Ø3 x 10 mm smooth dowels	through the side slots into the puck pilots
3	Magnet screw	1	M3 countersunk/flat head, ~10-12 mm, plus 1 M3 nut	up through the magnet into the puck captive nut
4	Round pole / broomstick	1	~25 mm dia wood dowel or broom handle	handle
5	Pole pinch hardware, screw variant	1	M3 screw ~16 mm plus 1 M3 nut	closes collar around the pole
6	Zip tie, zip-tie variant	1	~2.5-4 mm	closes collar_ziptie around the pole

↓ Print plate (.3mf) — all parts

MW-01 - assembled reference (grab state)8.1 MB

drag to orbit · scroll or pinch to zoom

composed of: head shell, carrier, twist collar, collar

MW-01 - ghosted hardware stack (grab)8.3 MB

drag to orbit · scroll or pinch to zoom

composed of: head shell, carrier, hw magnet, hw dowels, twist collar, collar, hw pole

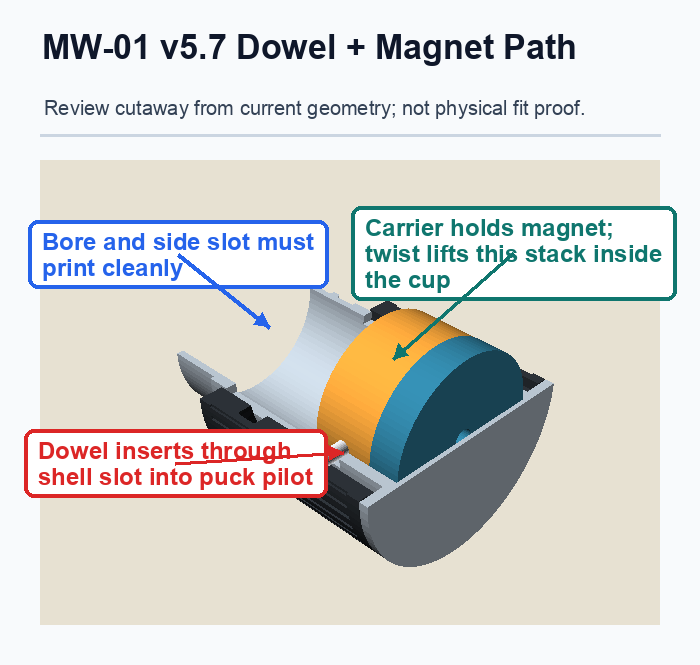

MW-01 - cutaway: dowels insert through shell slots2.9 MB
