Specs & BOM
- Envelope
- 135.71 × 46 × 14.5 mm

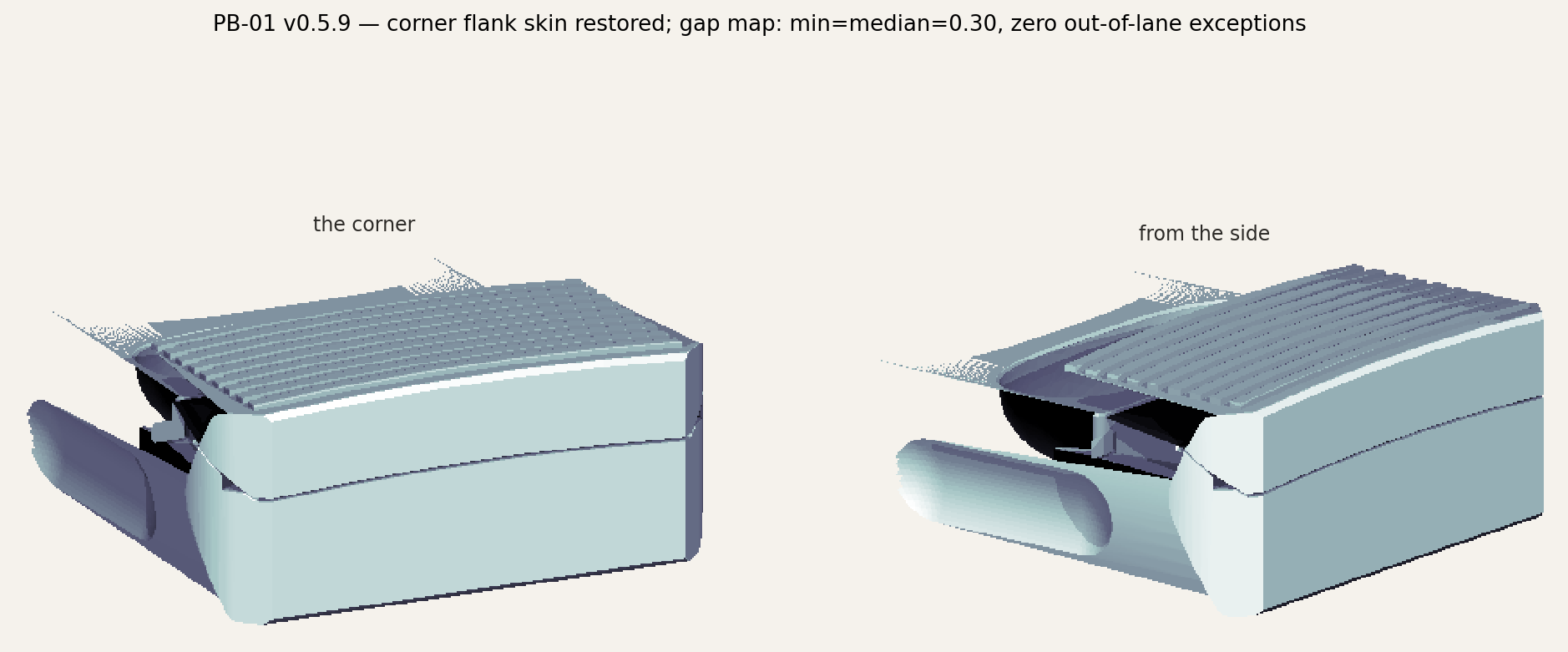

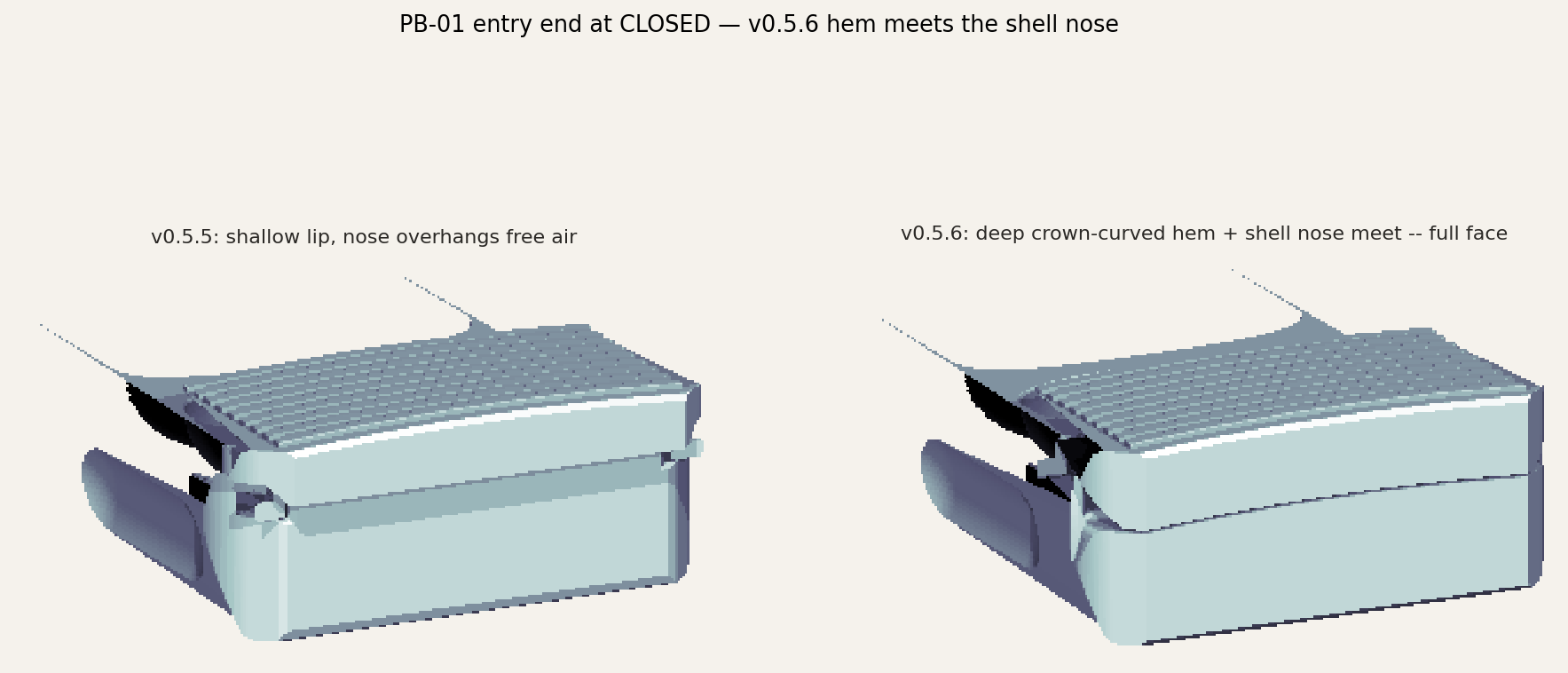

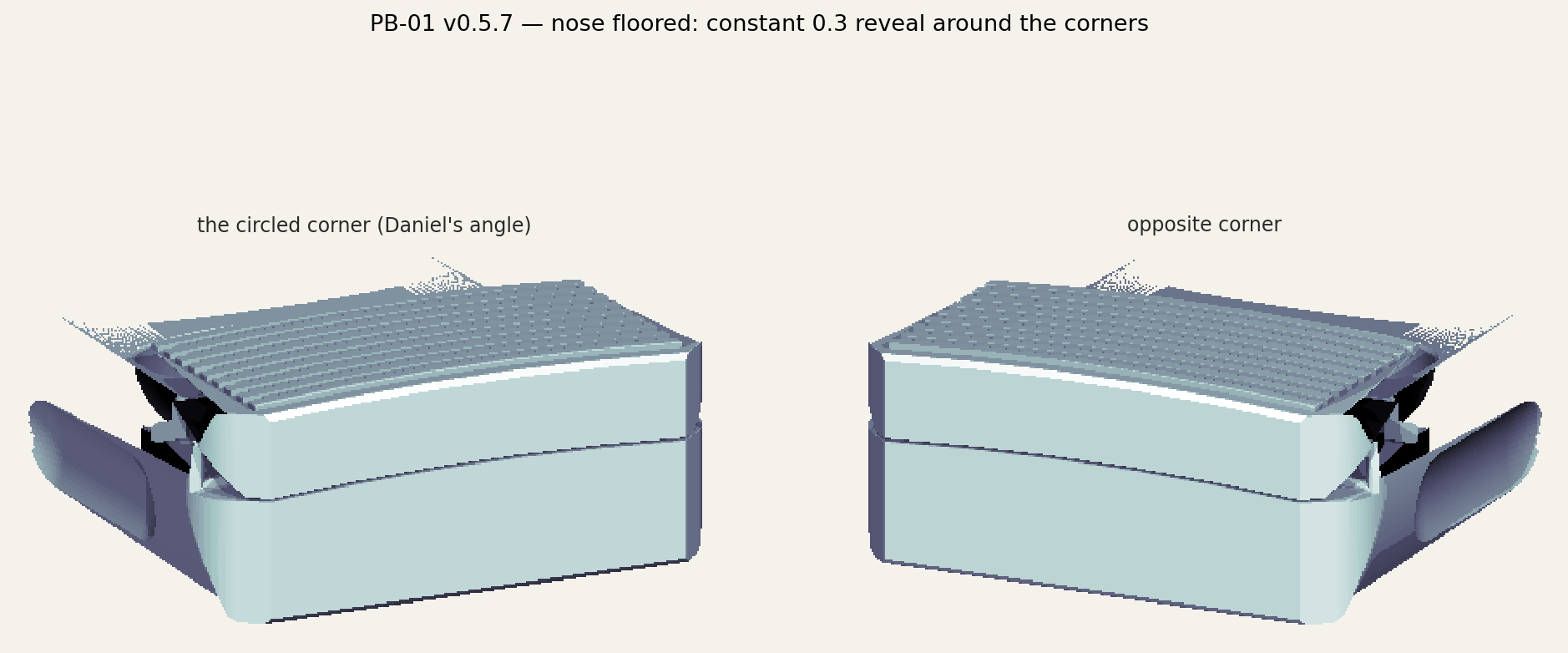

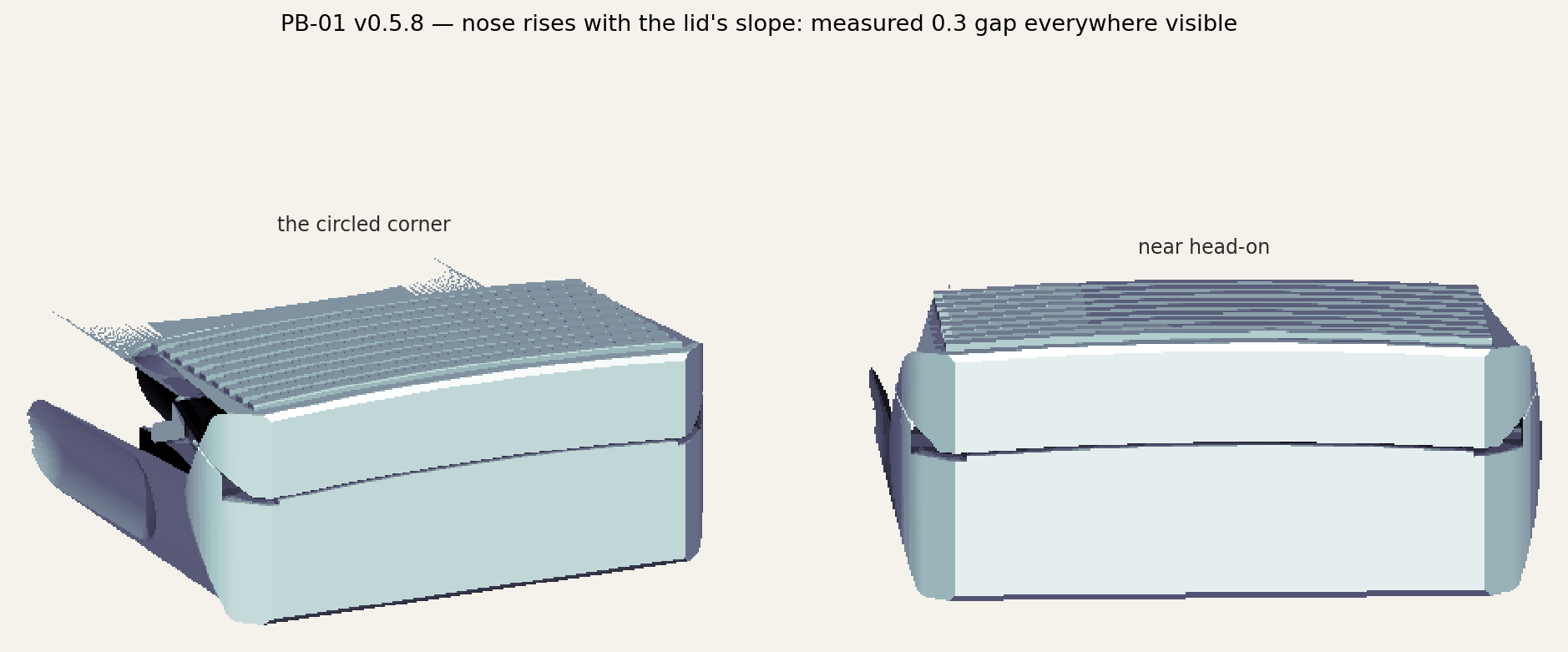

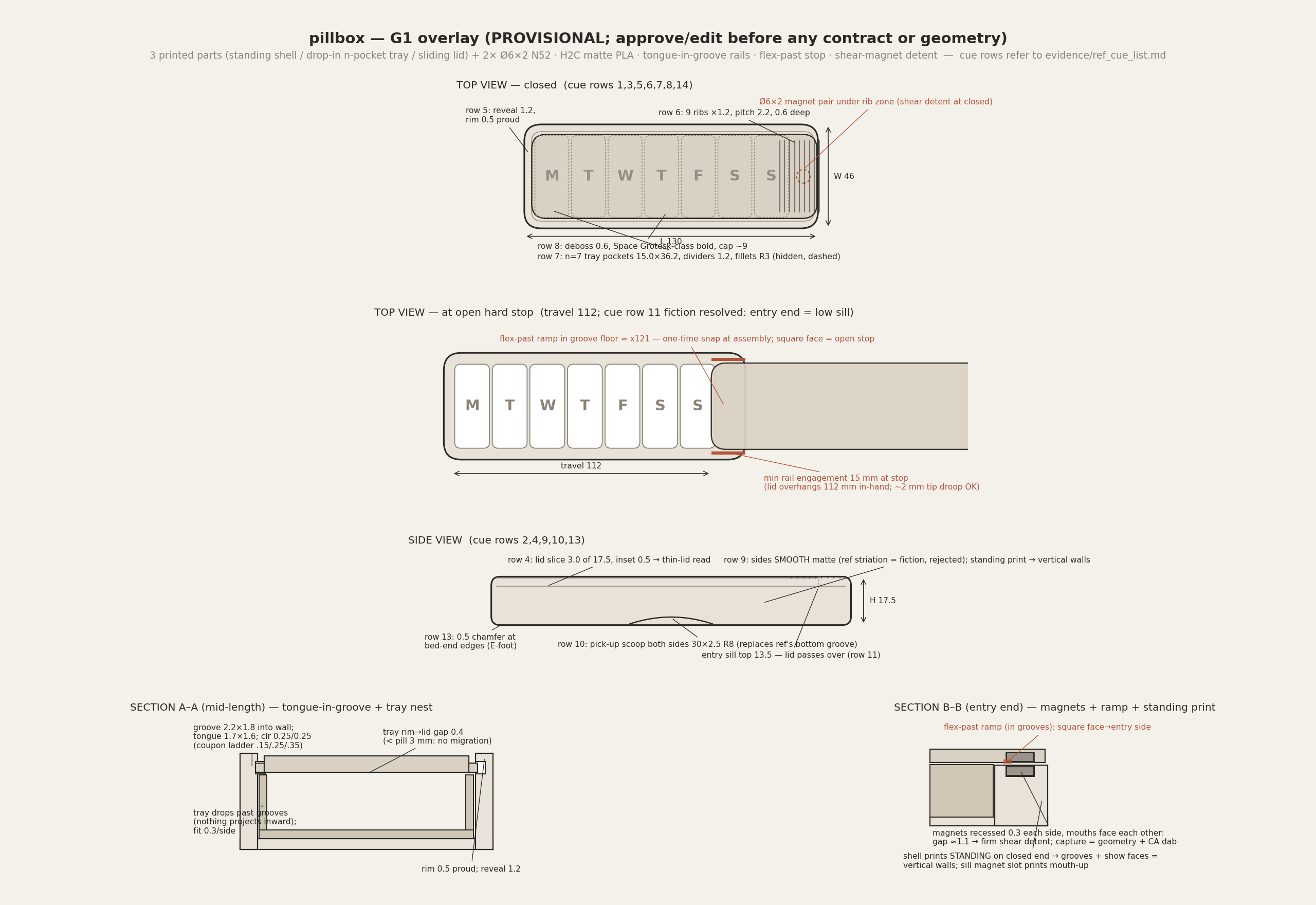

PB-01 closed assembly (shell + tray + lid, at assembled offsets)5.6 MB
drag to orbit · scroll or pinch to zoom
composed of: pill box shell, pill box tray n7, pill box tray n7 letters, pill box lid

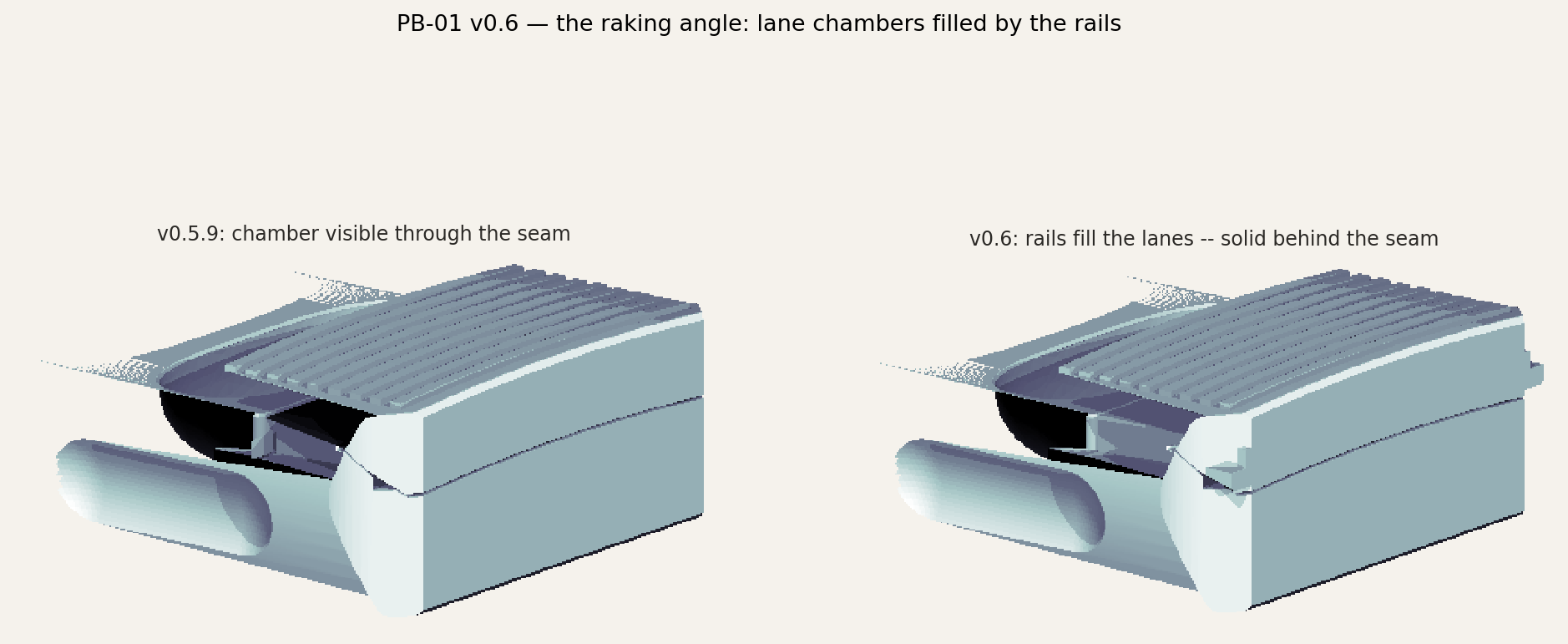

PB-01 lid off — tray seated in the shell5.5 MB
drag to orbit · scroll or pinch to zoom
composed of: pill box shell, pill box tray n7, pill box tray n7 letters

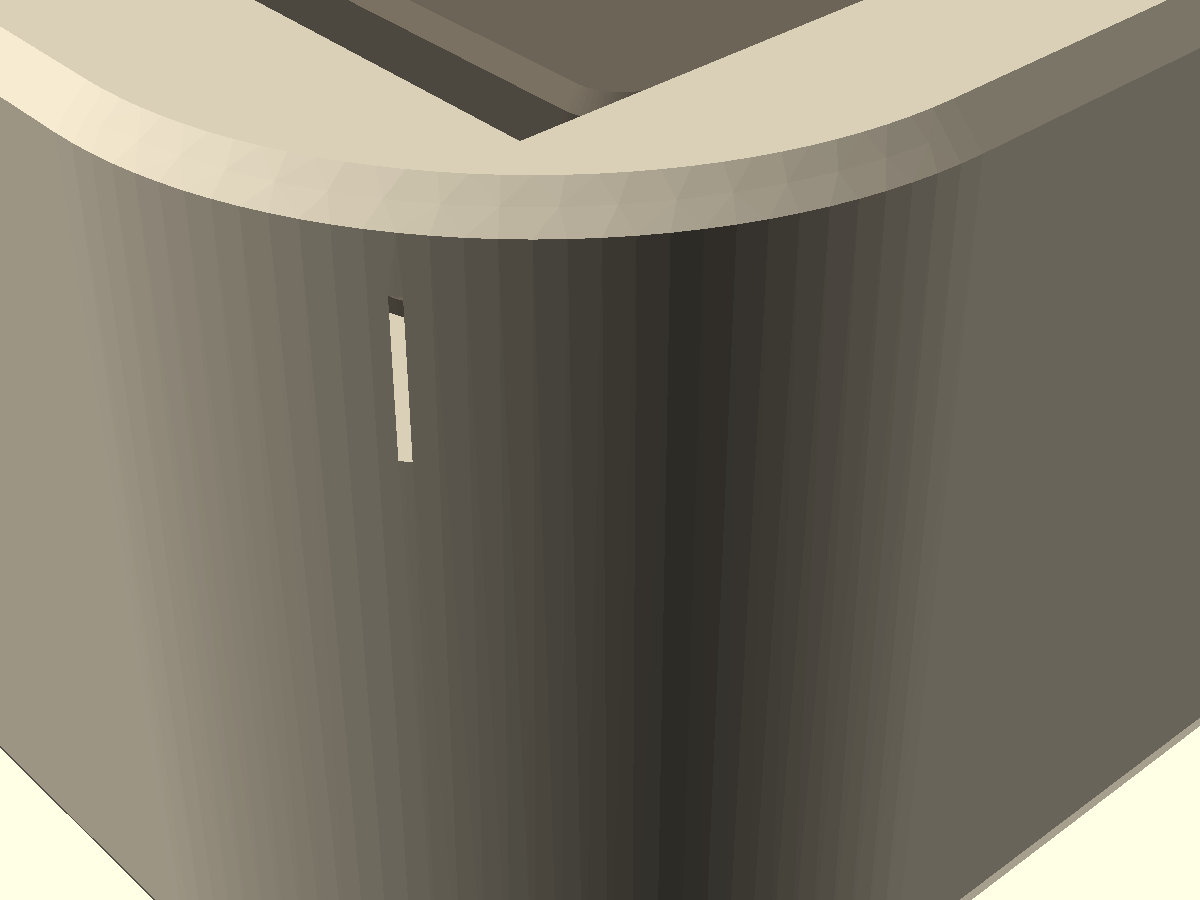

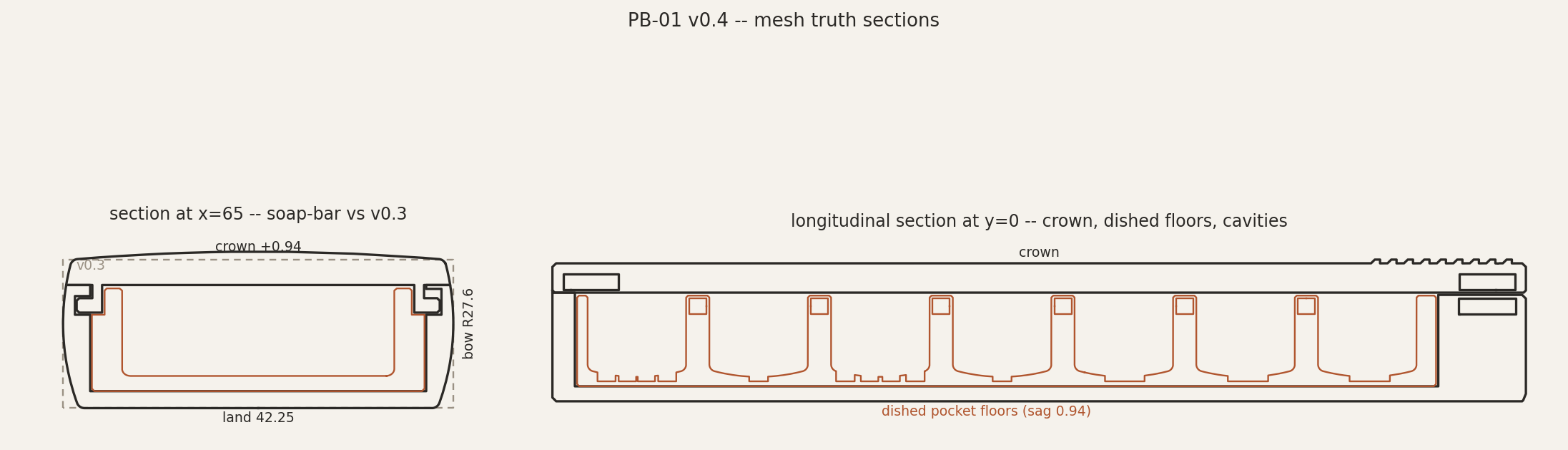

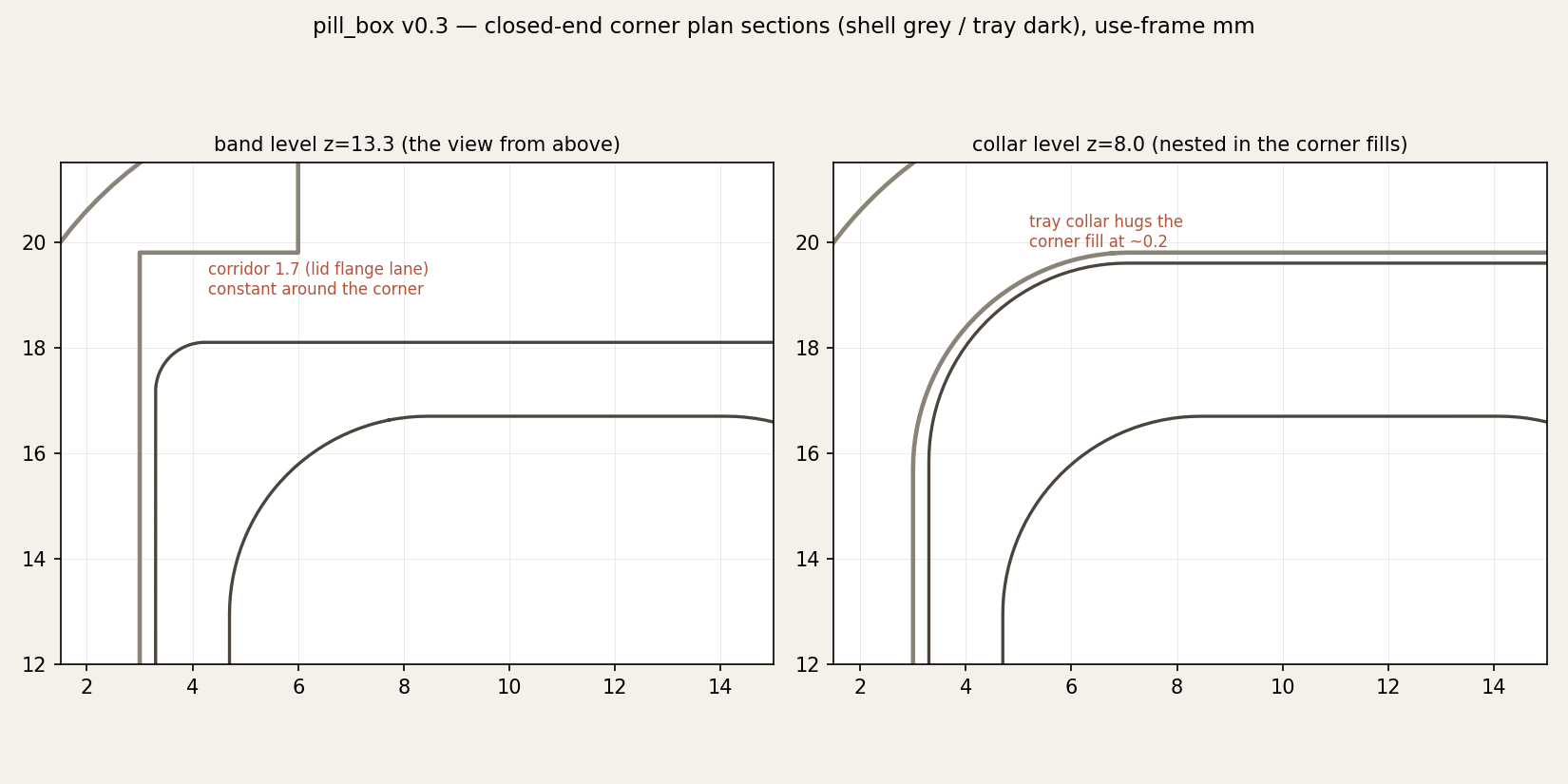

Shell (print frame — stands on the closed end)152 KB
drag to orbit · scroll or pinch to zoom

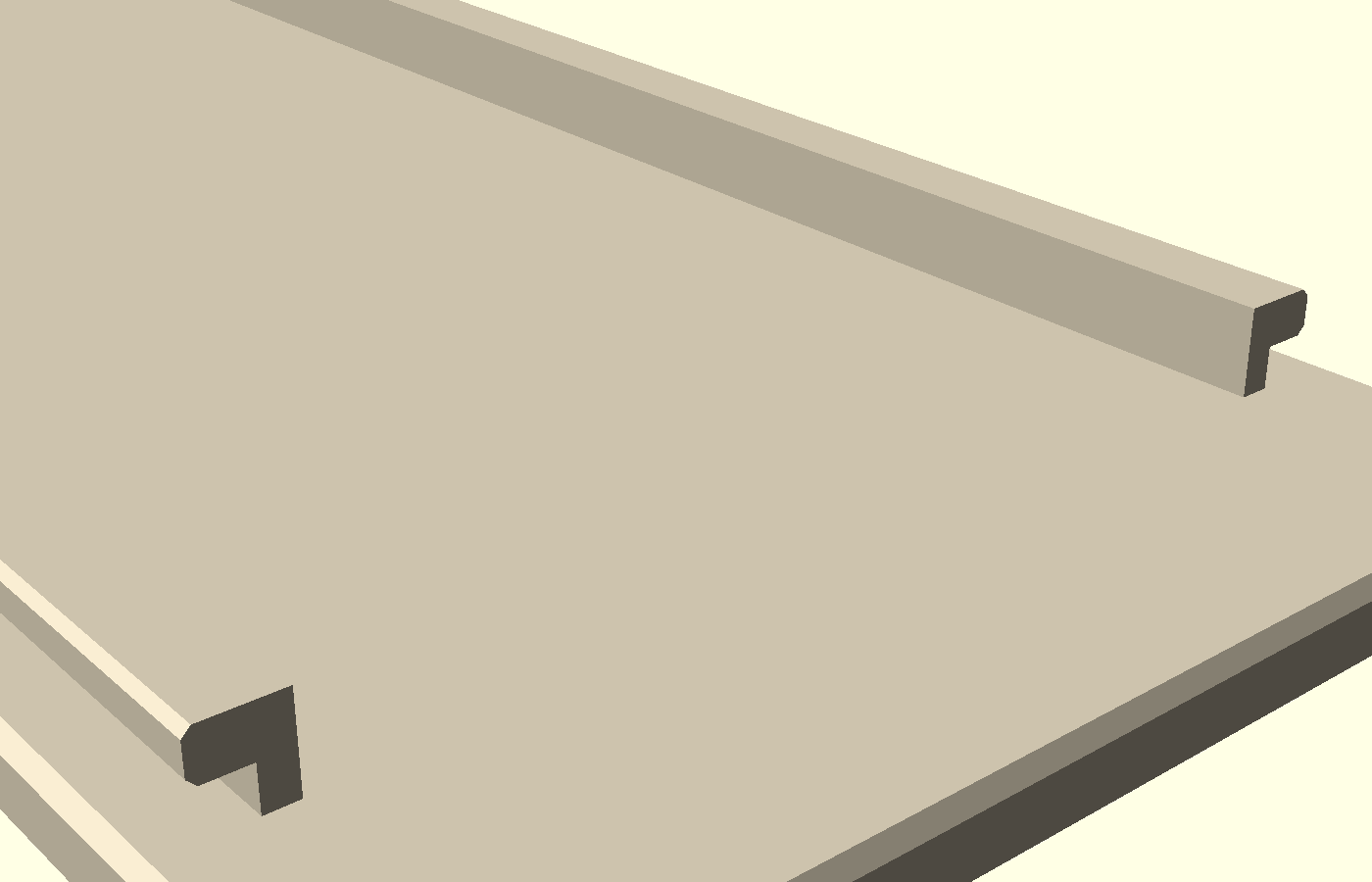

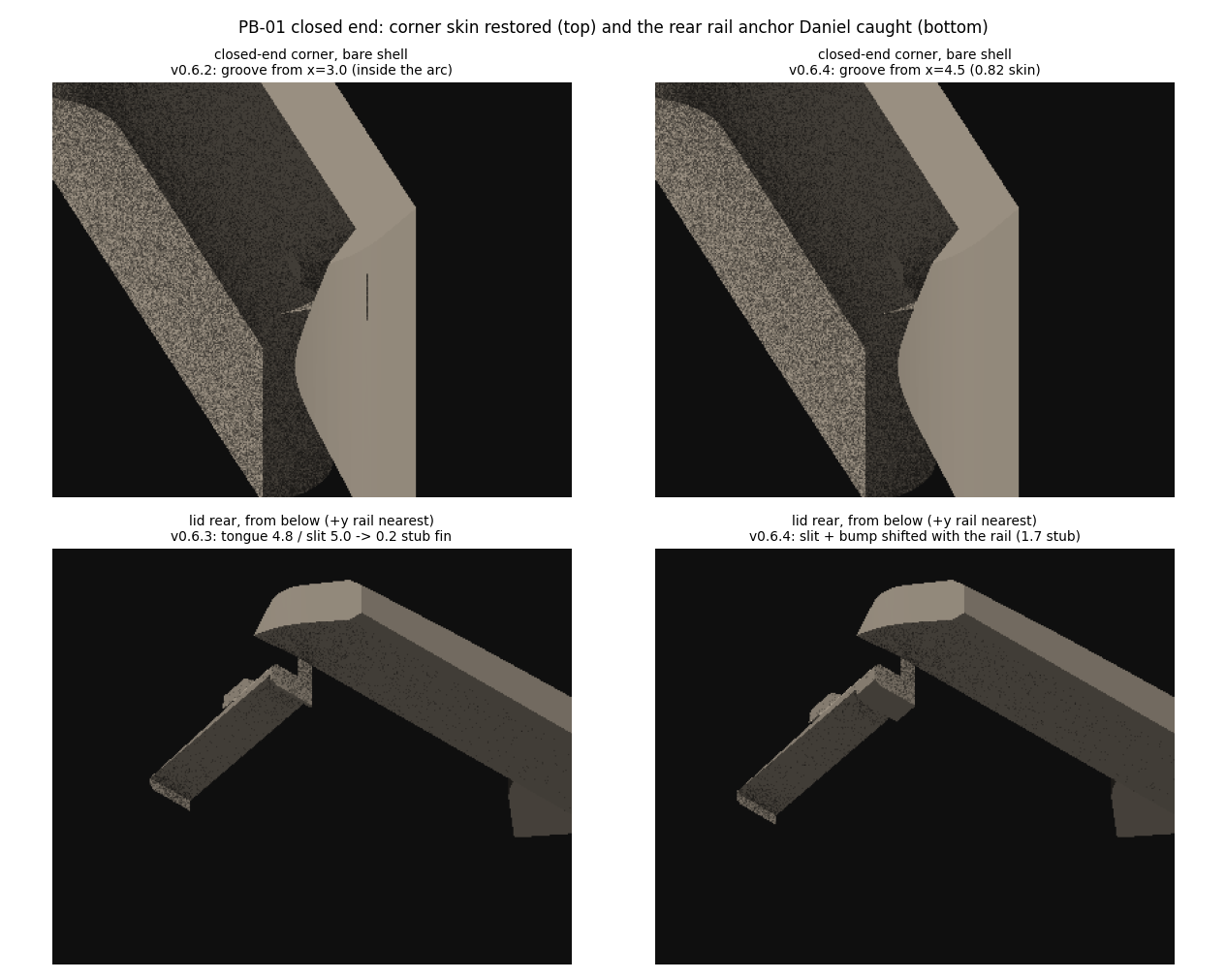

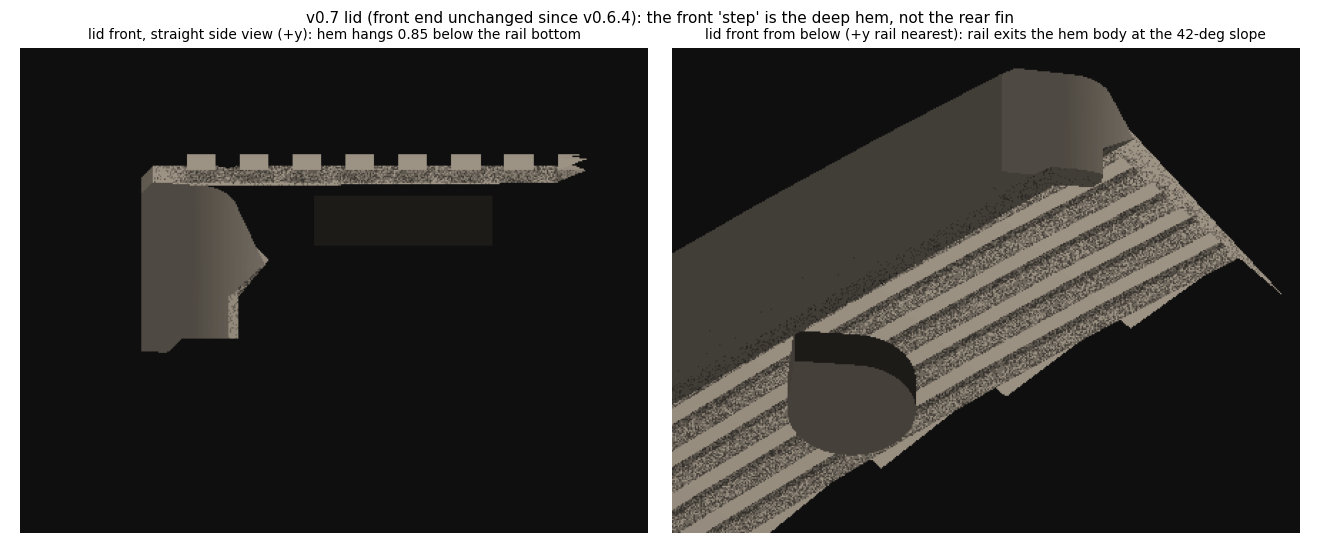

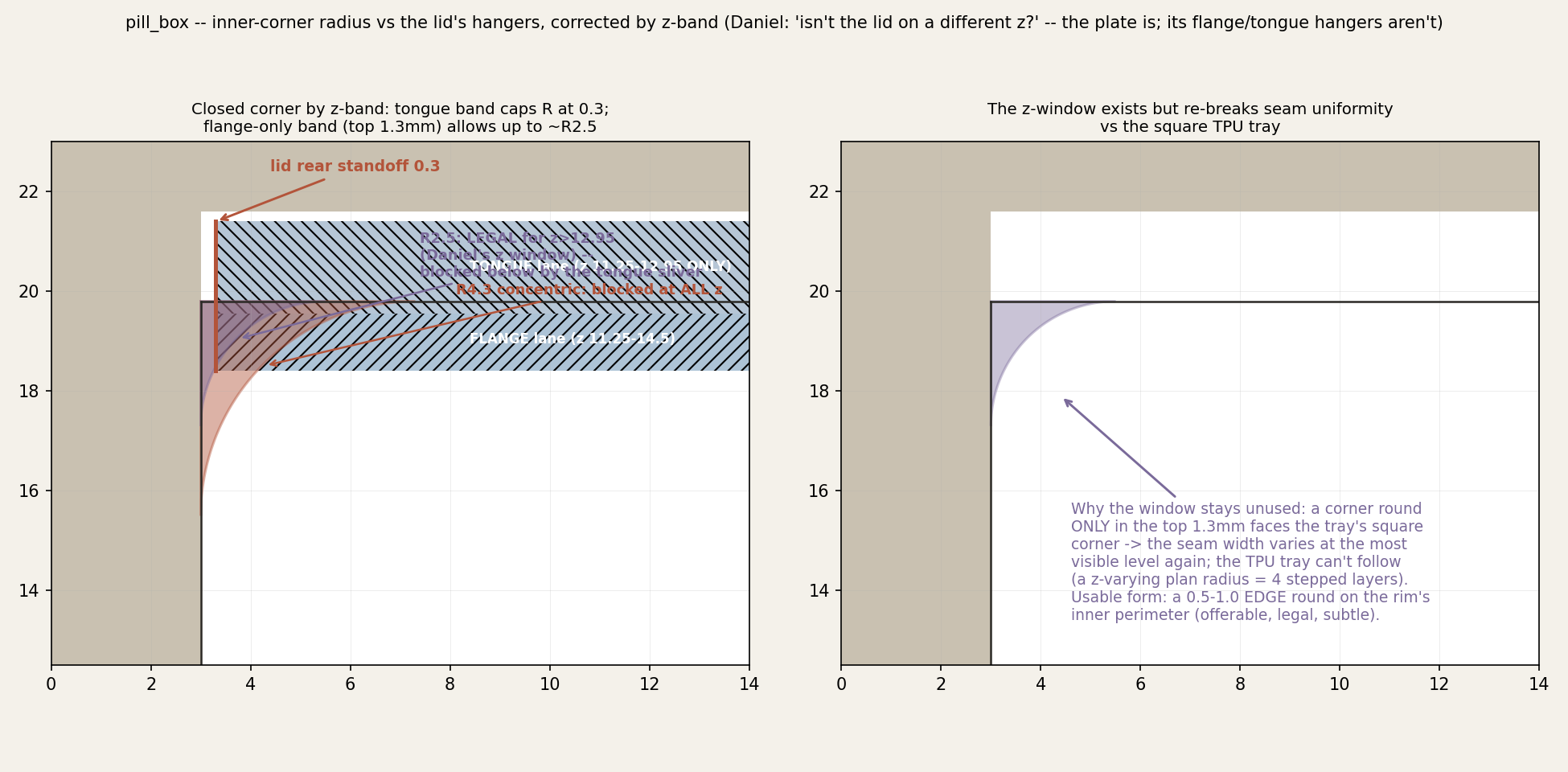

Lid (print frame — stands on the closed end)88 KB
drag to orbit · scroll or pinch to zoom

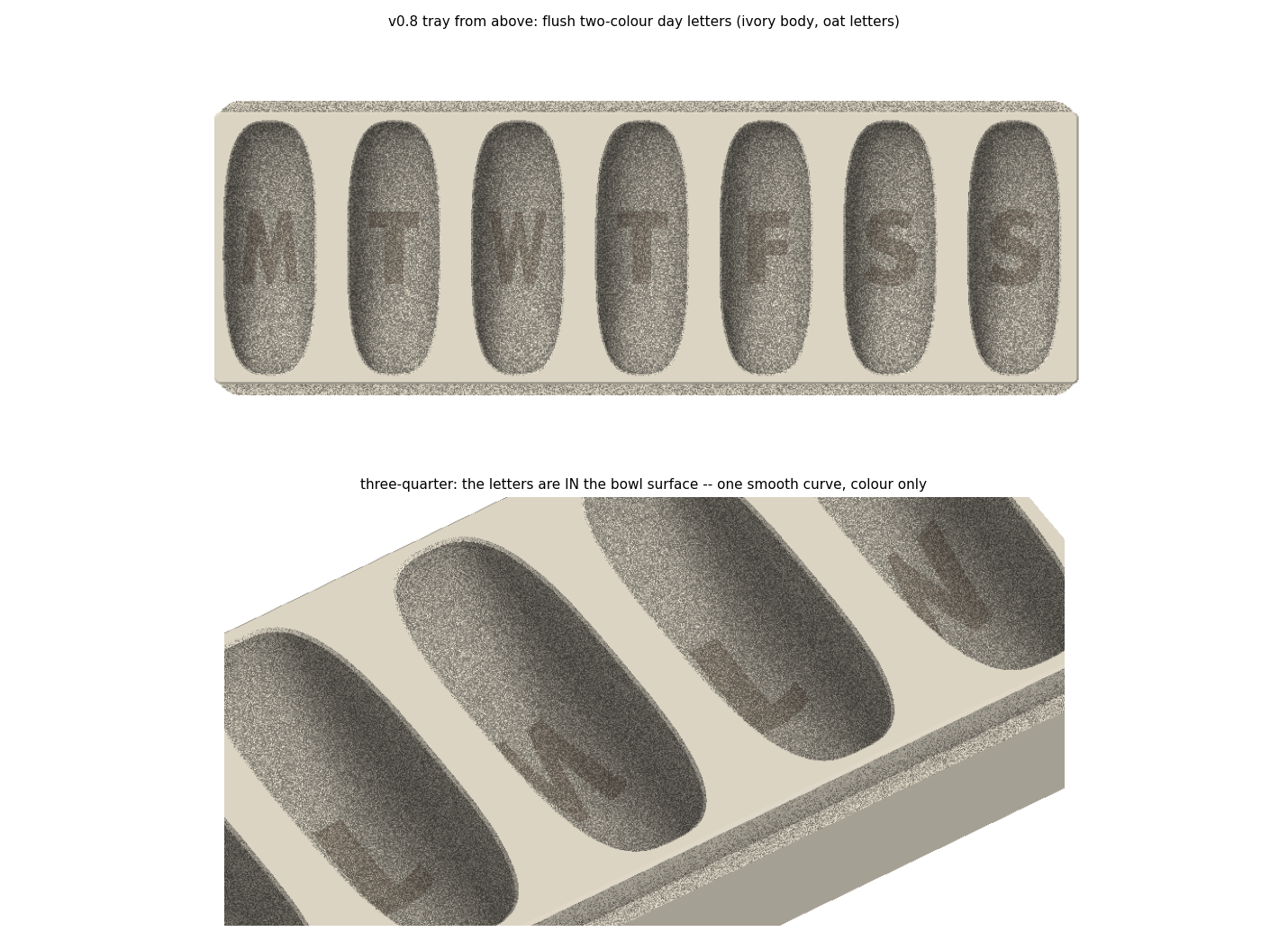

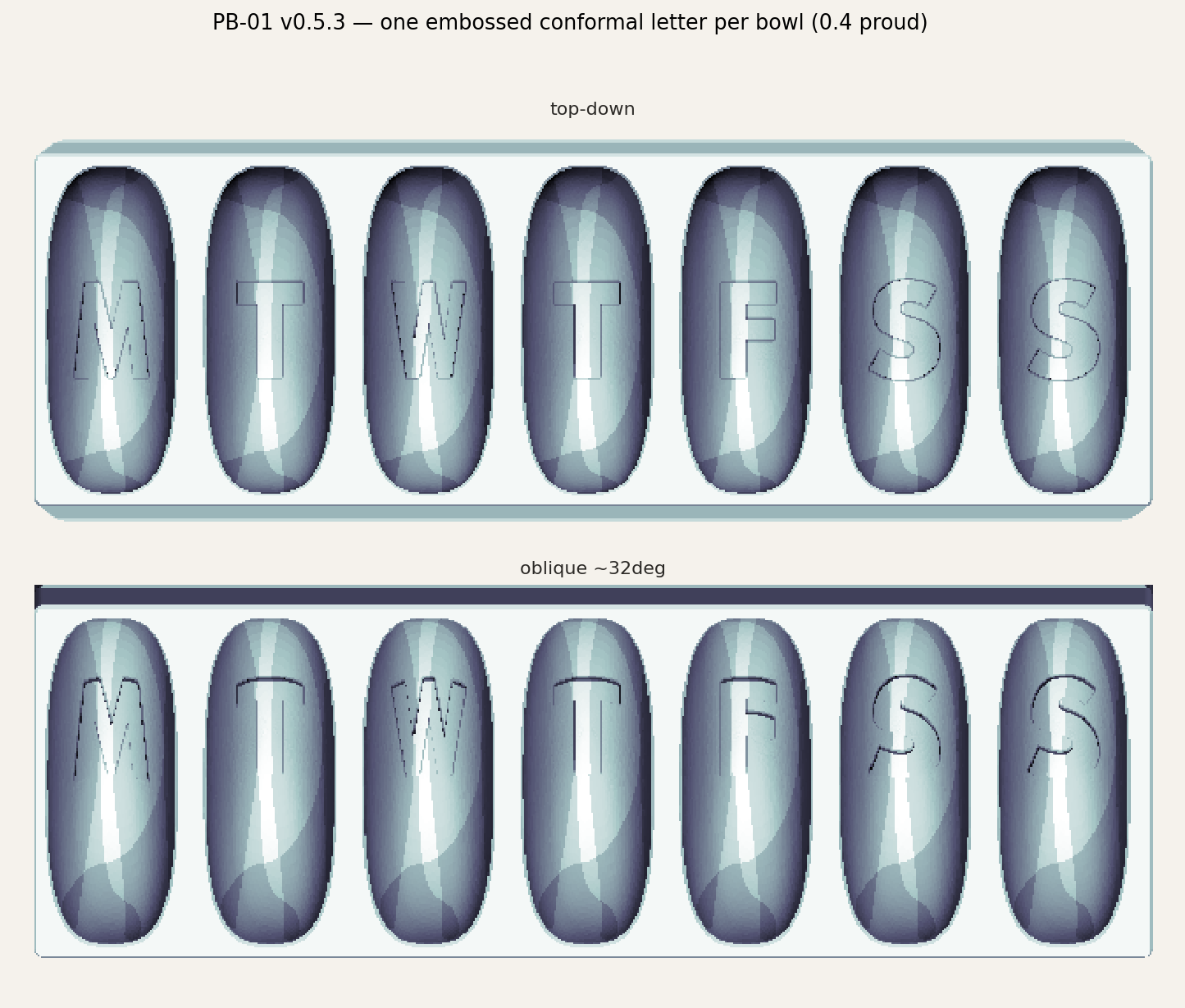

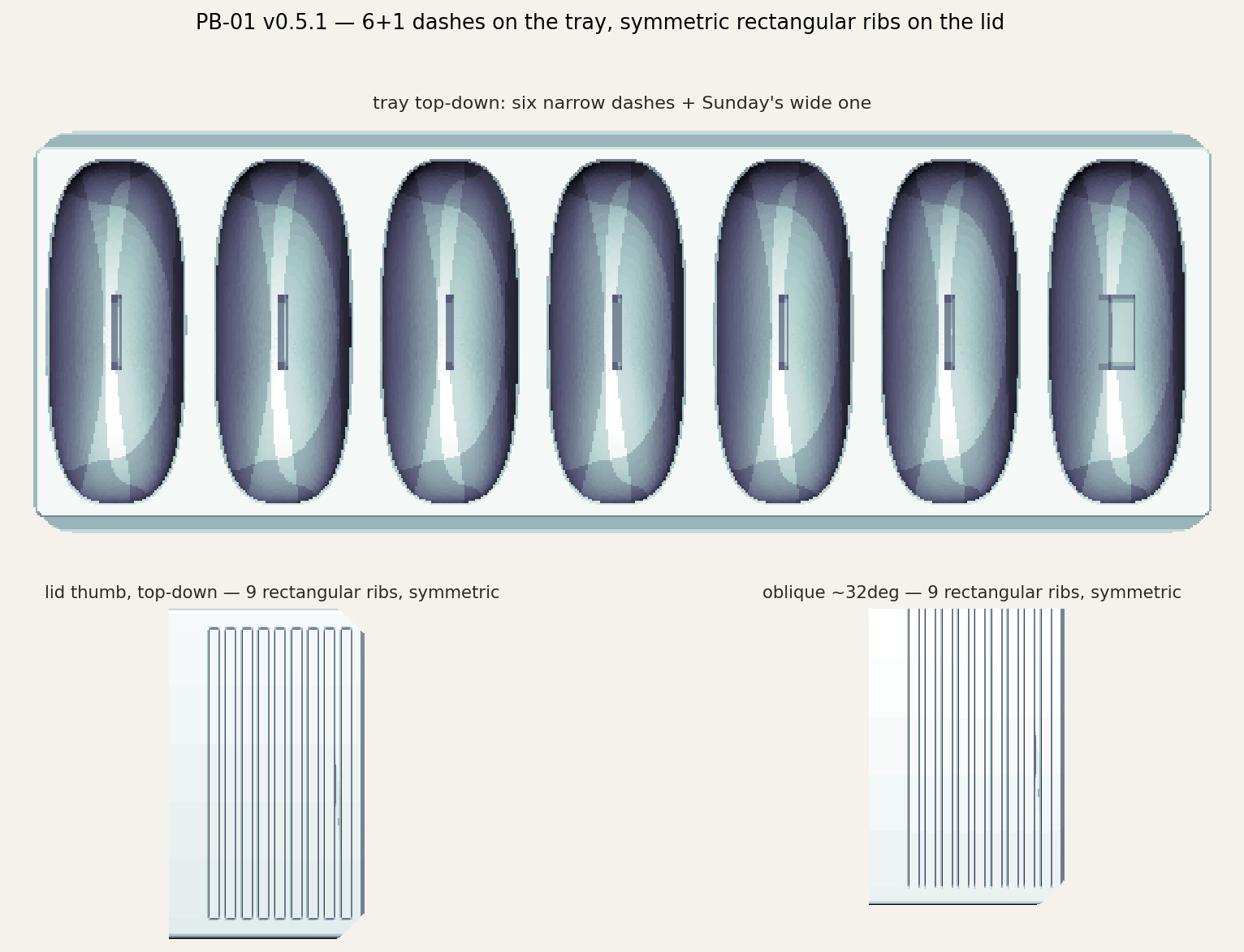

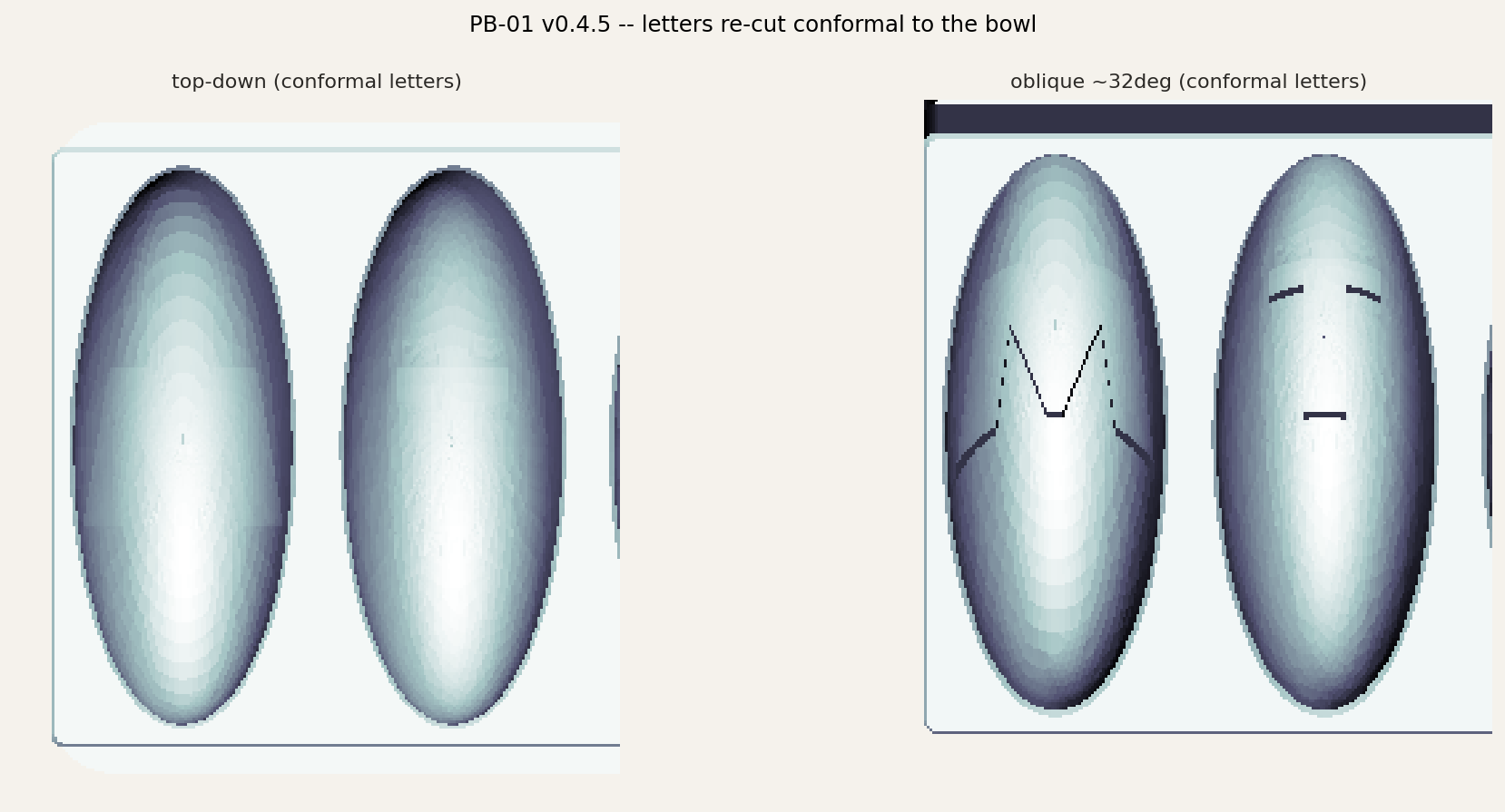

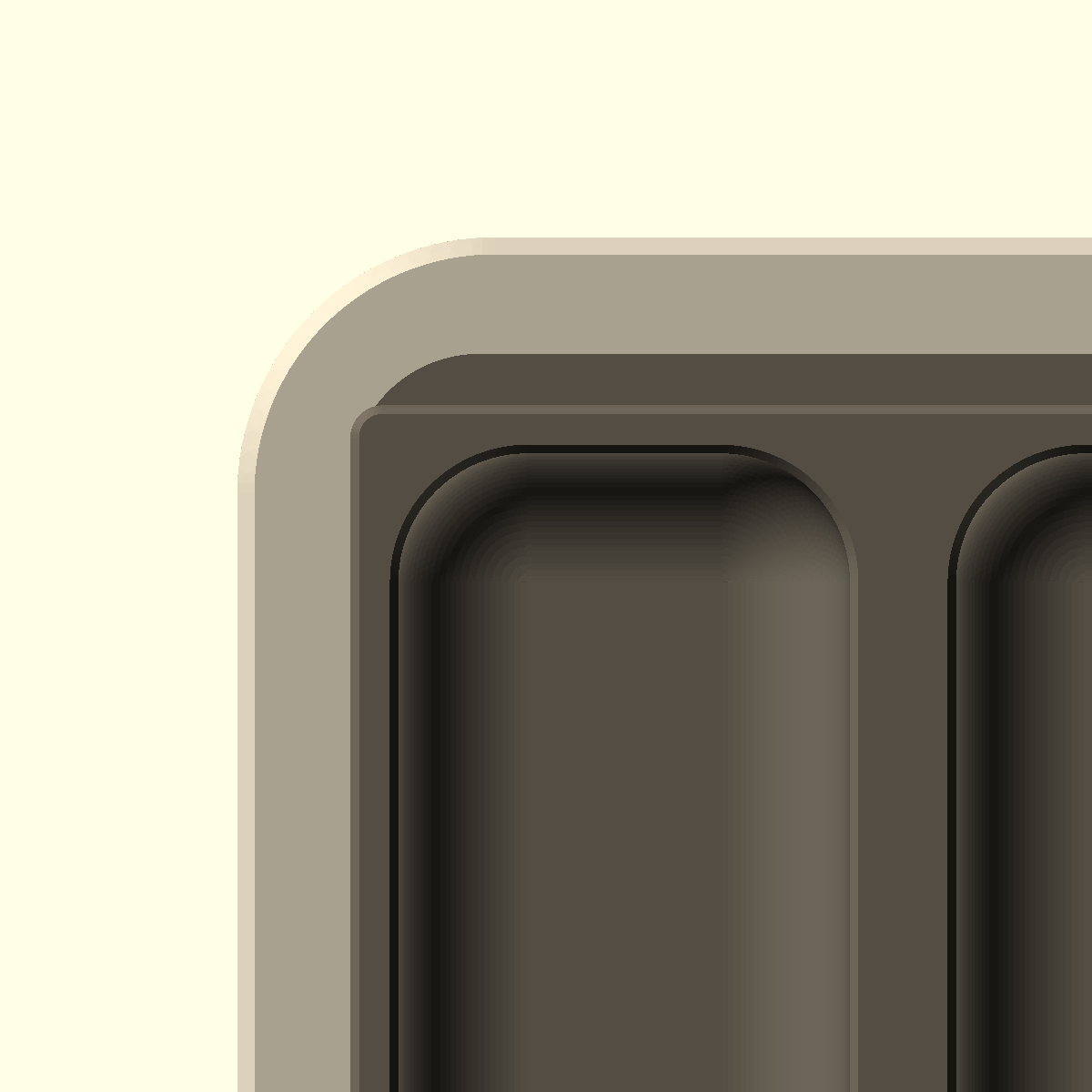

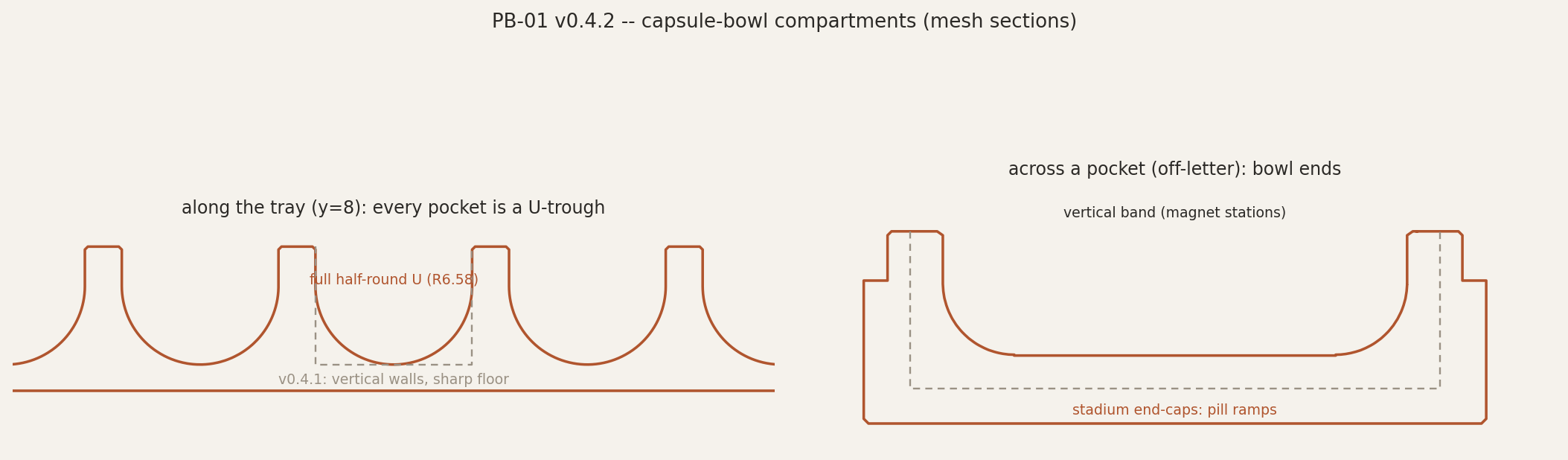

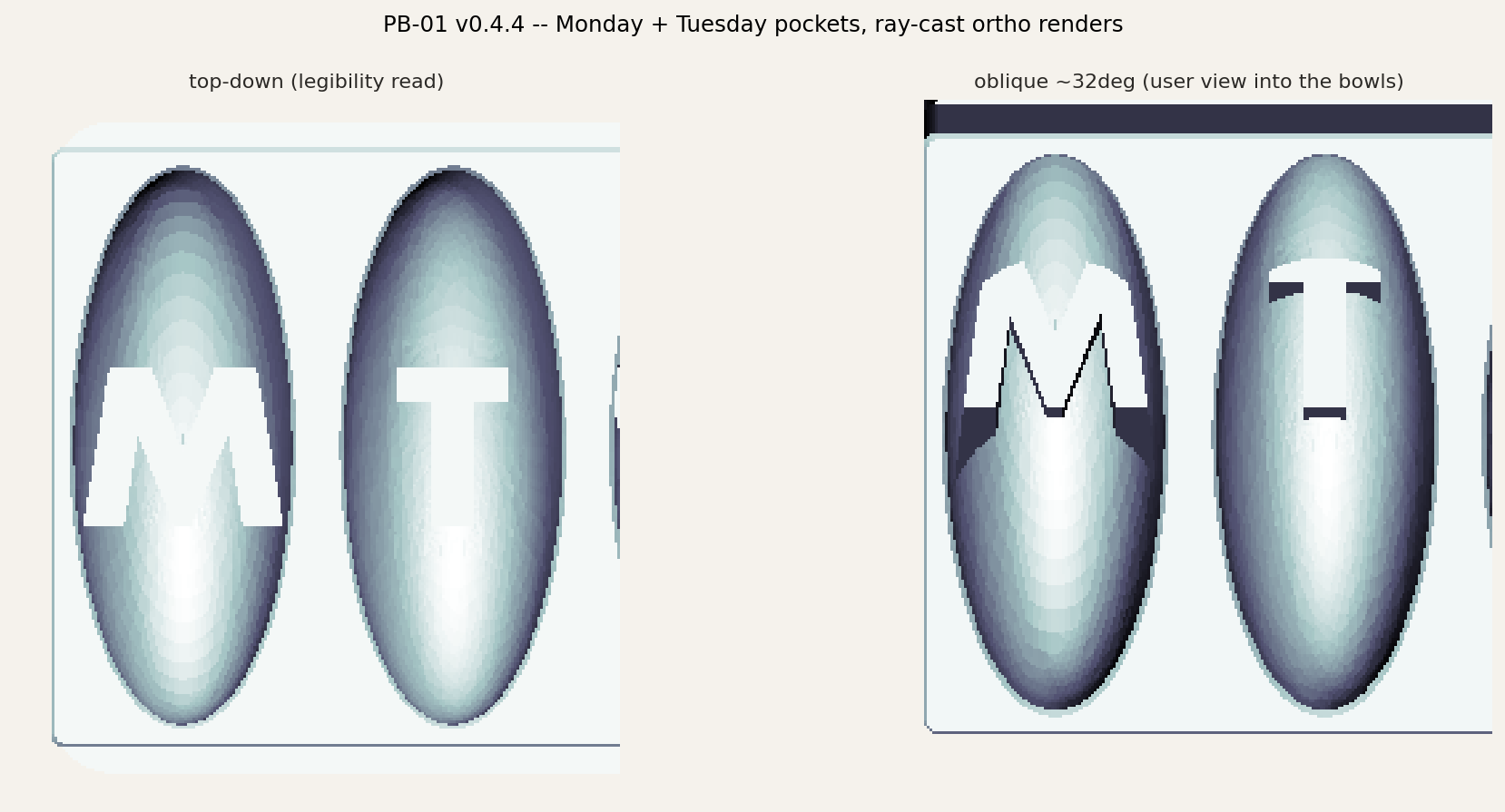

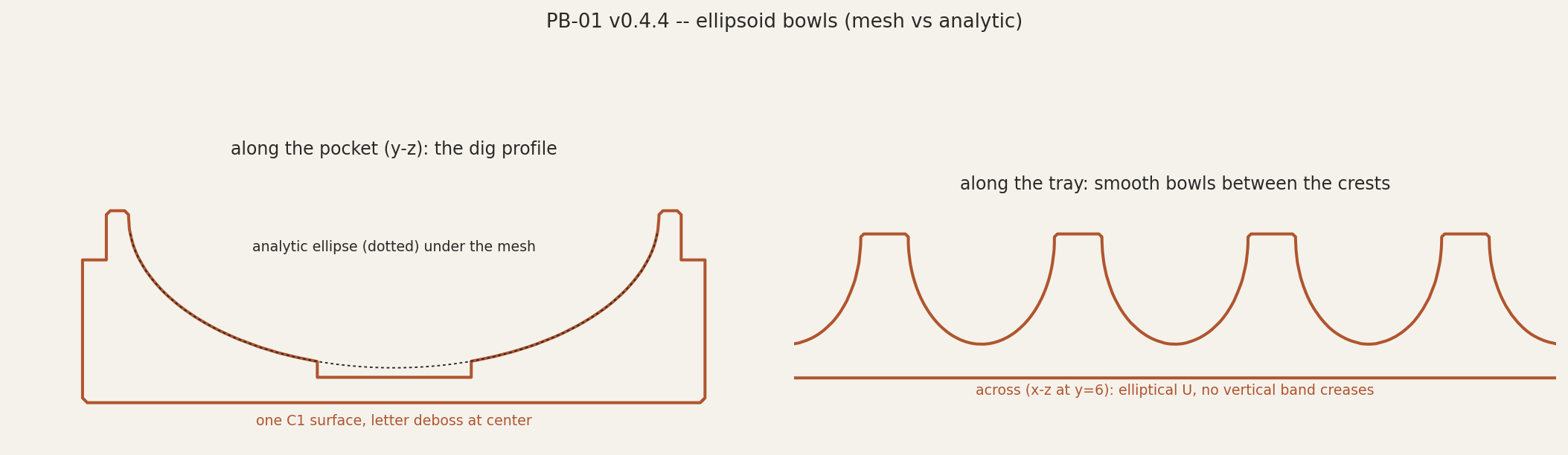

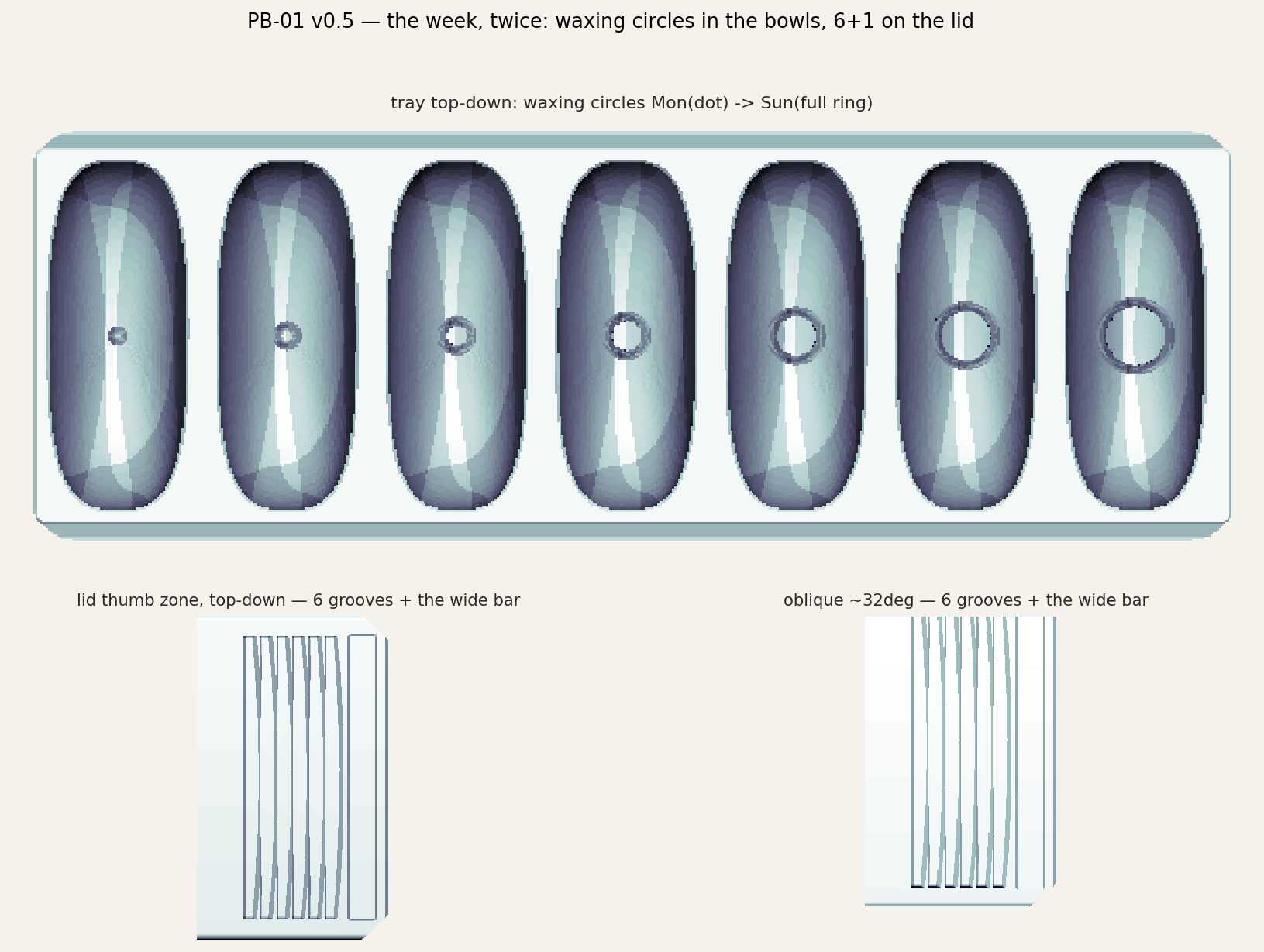

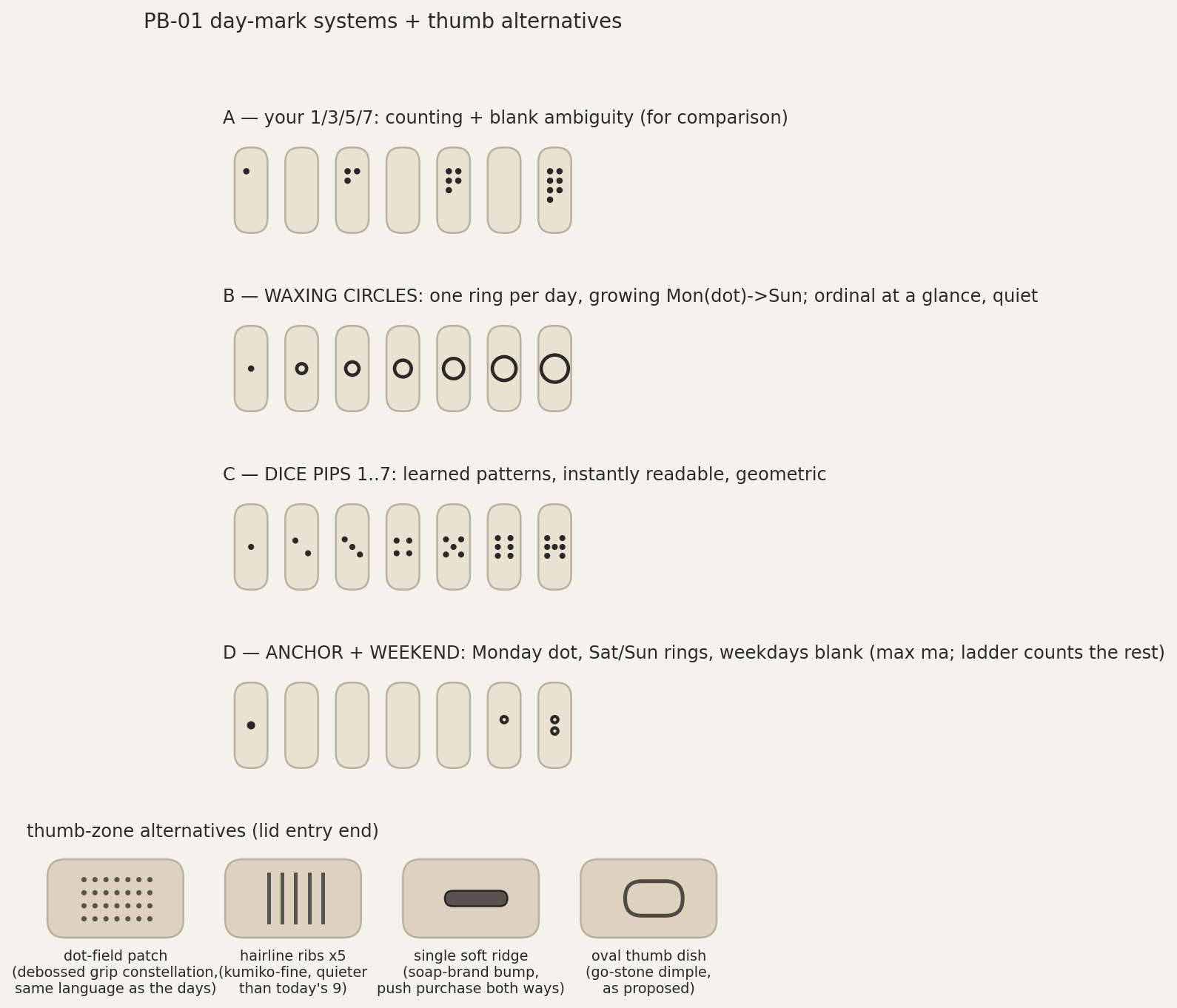

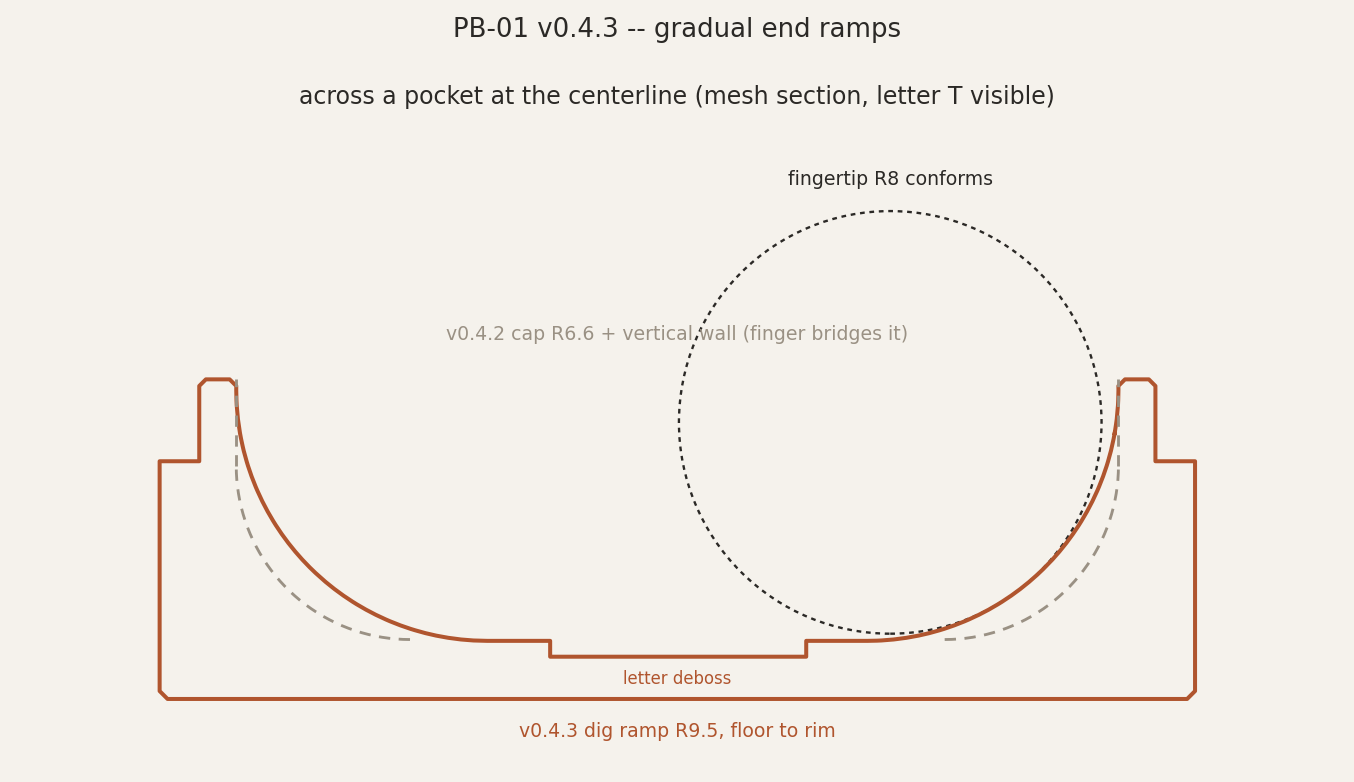

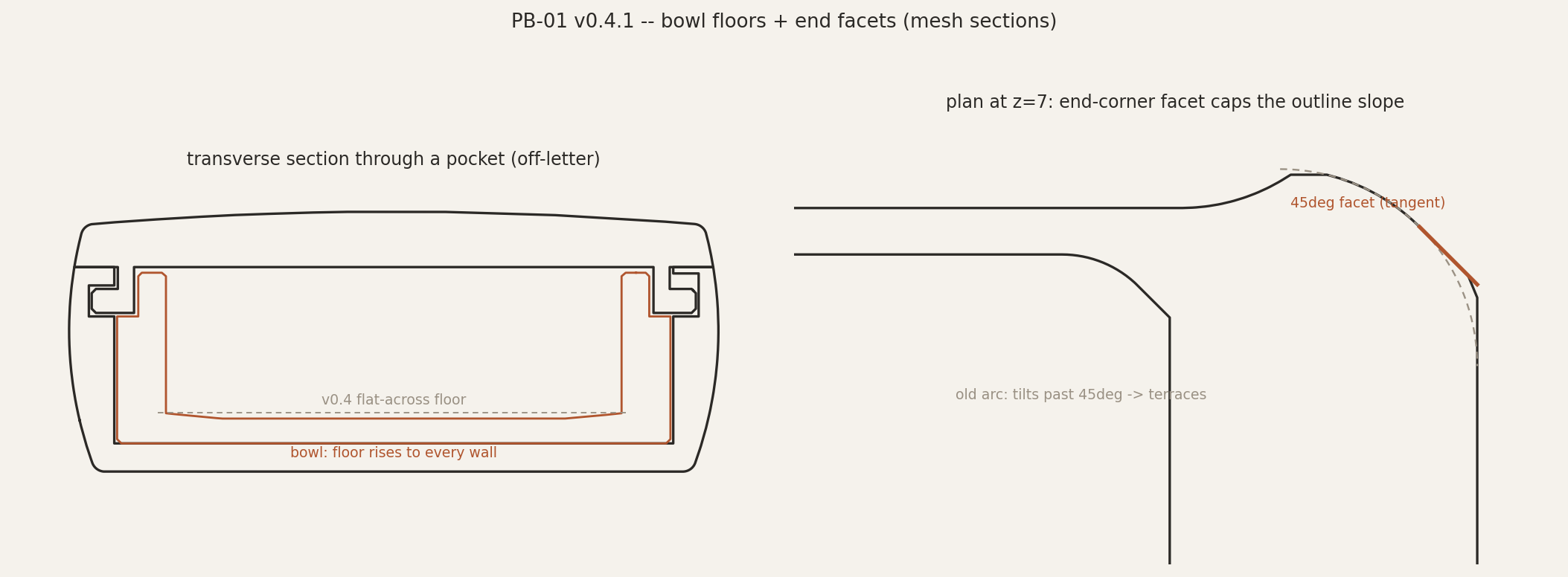

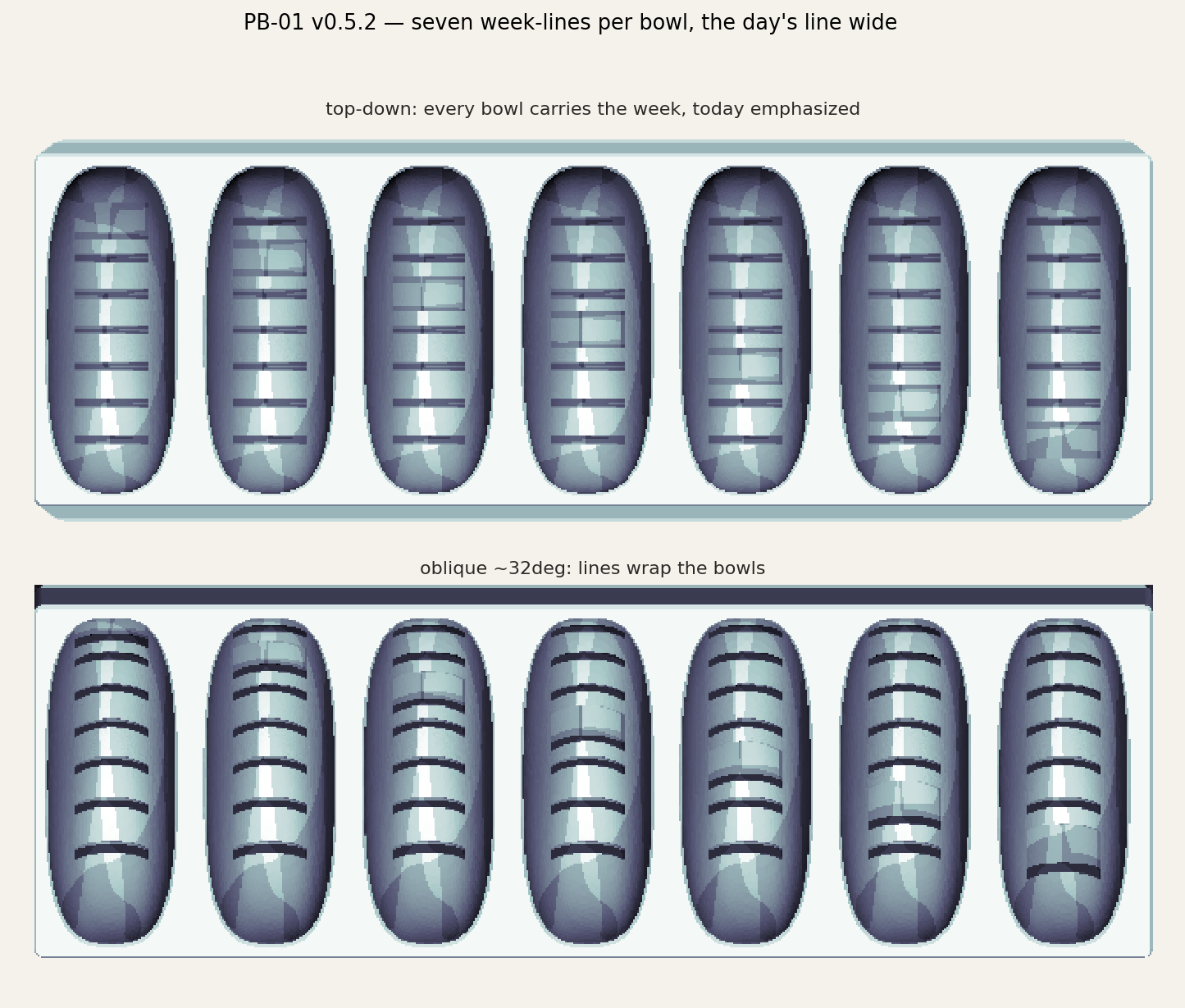

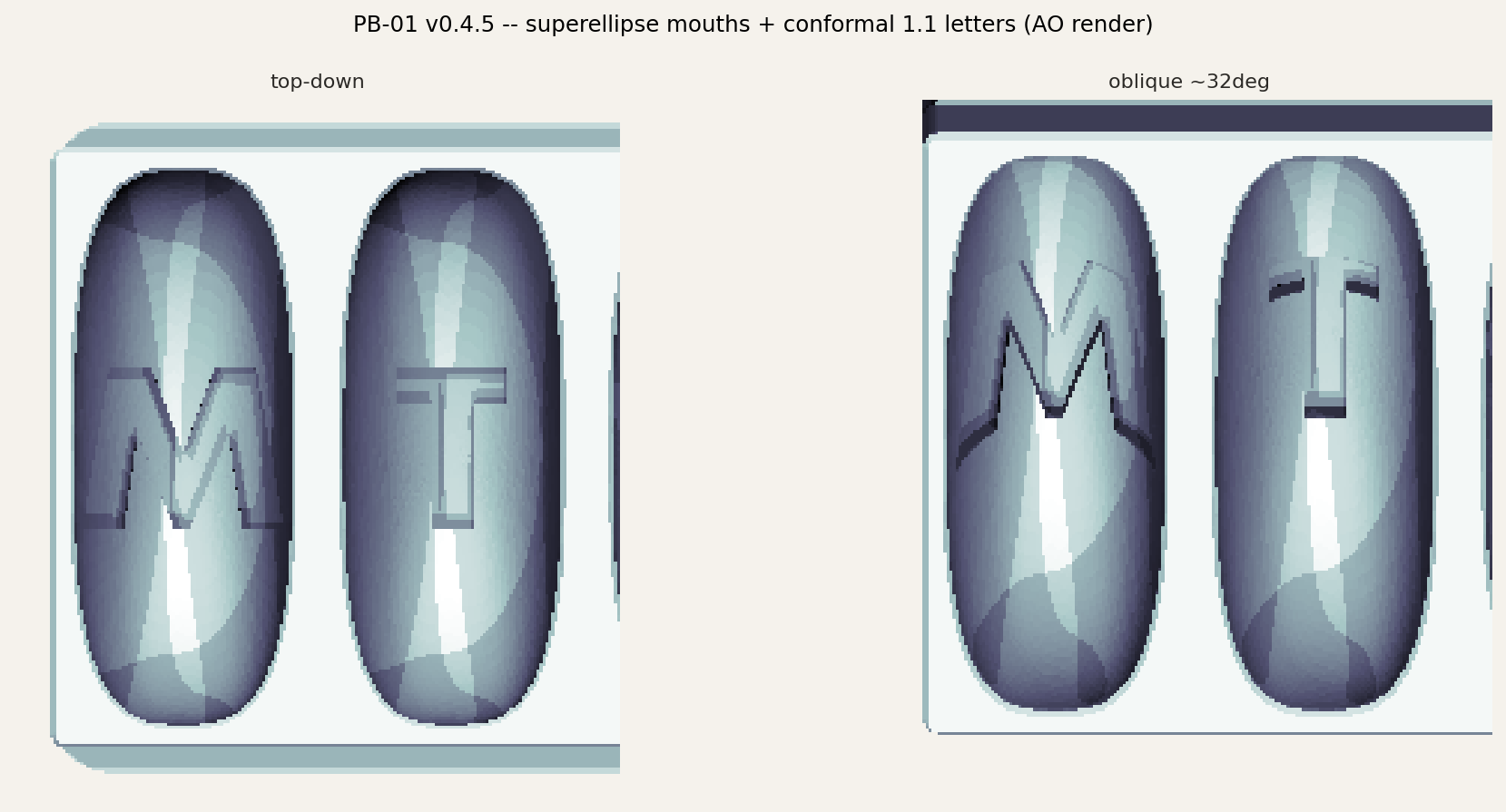

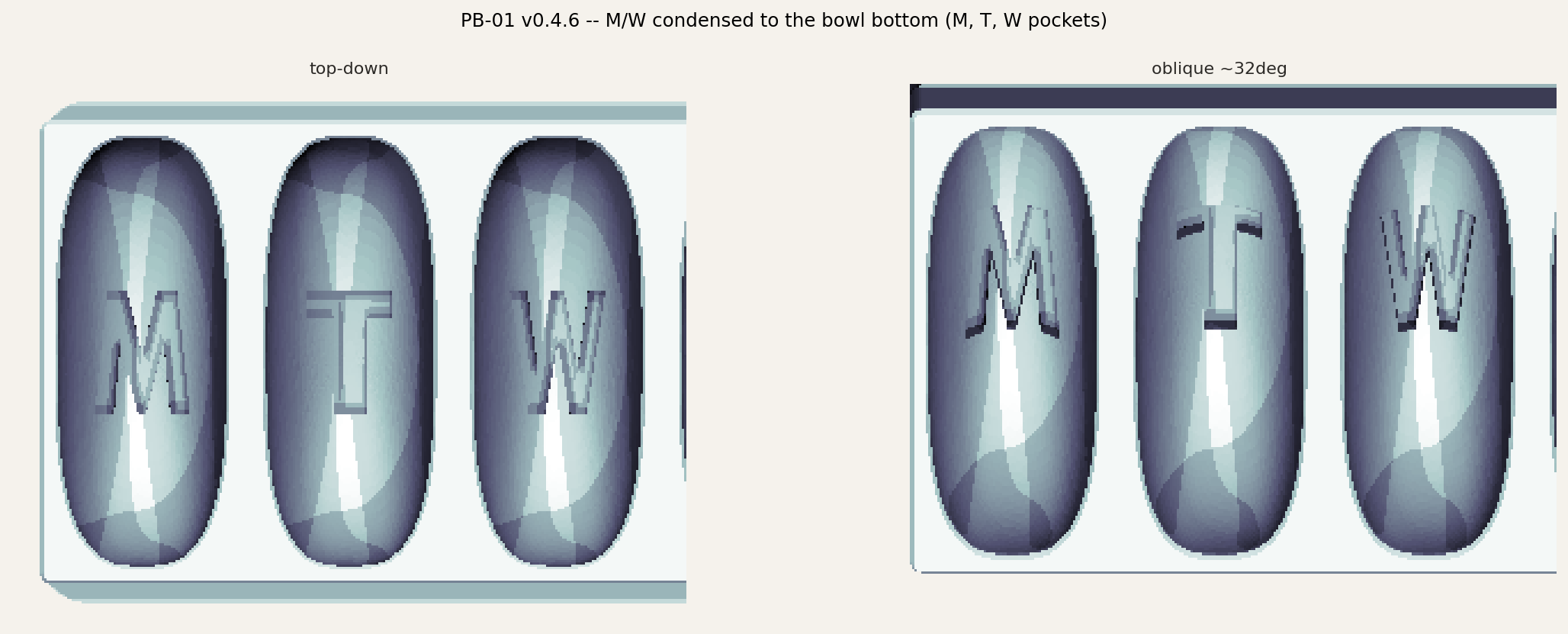

Tray n=7 with two-colour day-letter inlays (print frame — flat, pockets up)5.4 MB
drag to orbit · scroll or pinch to zoom
composed of: pill box tray n7, pill box tray n7 letters

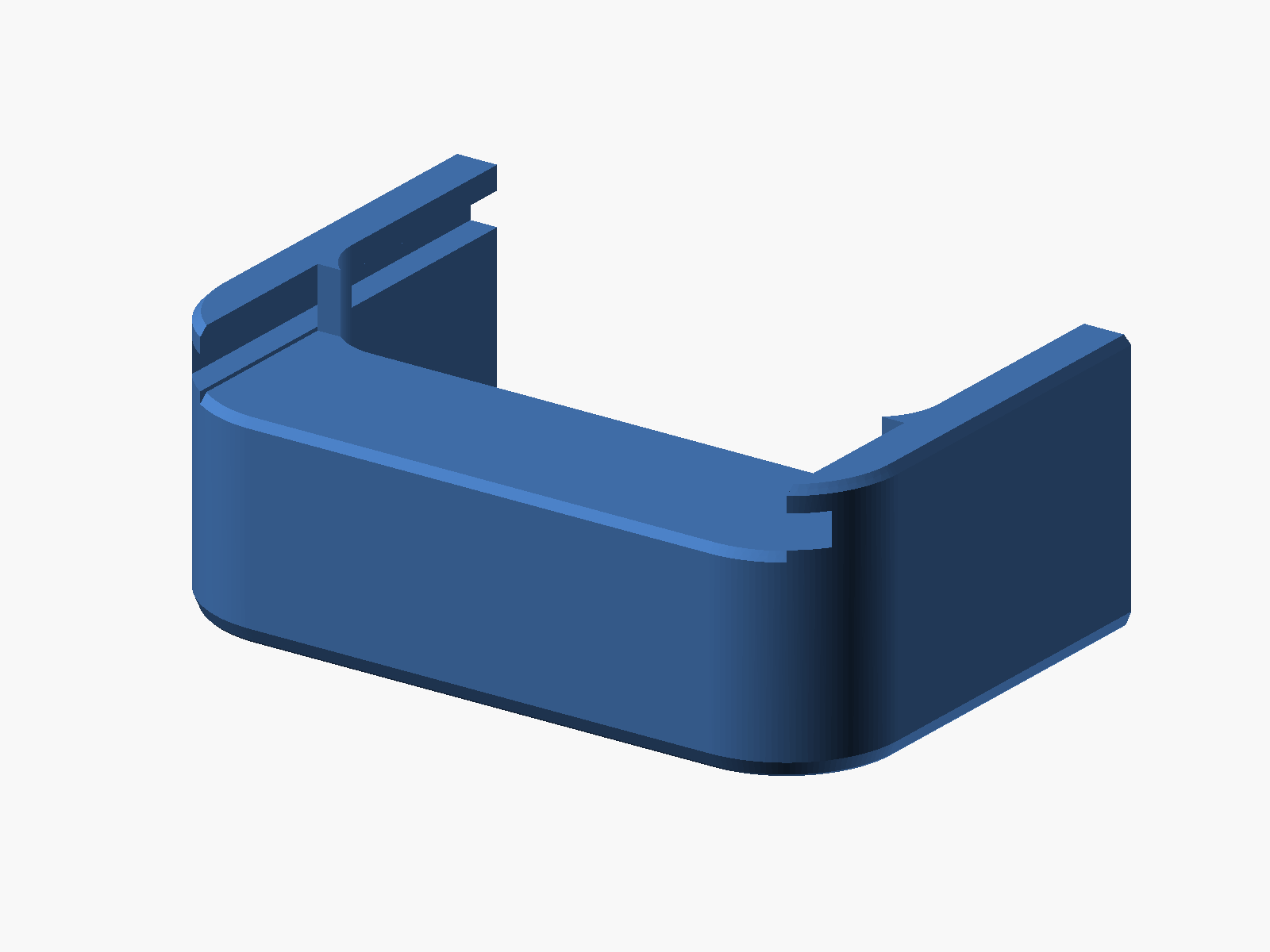

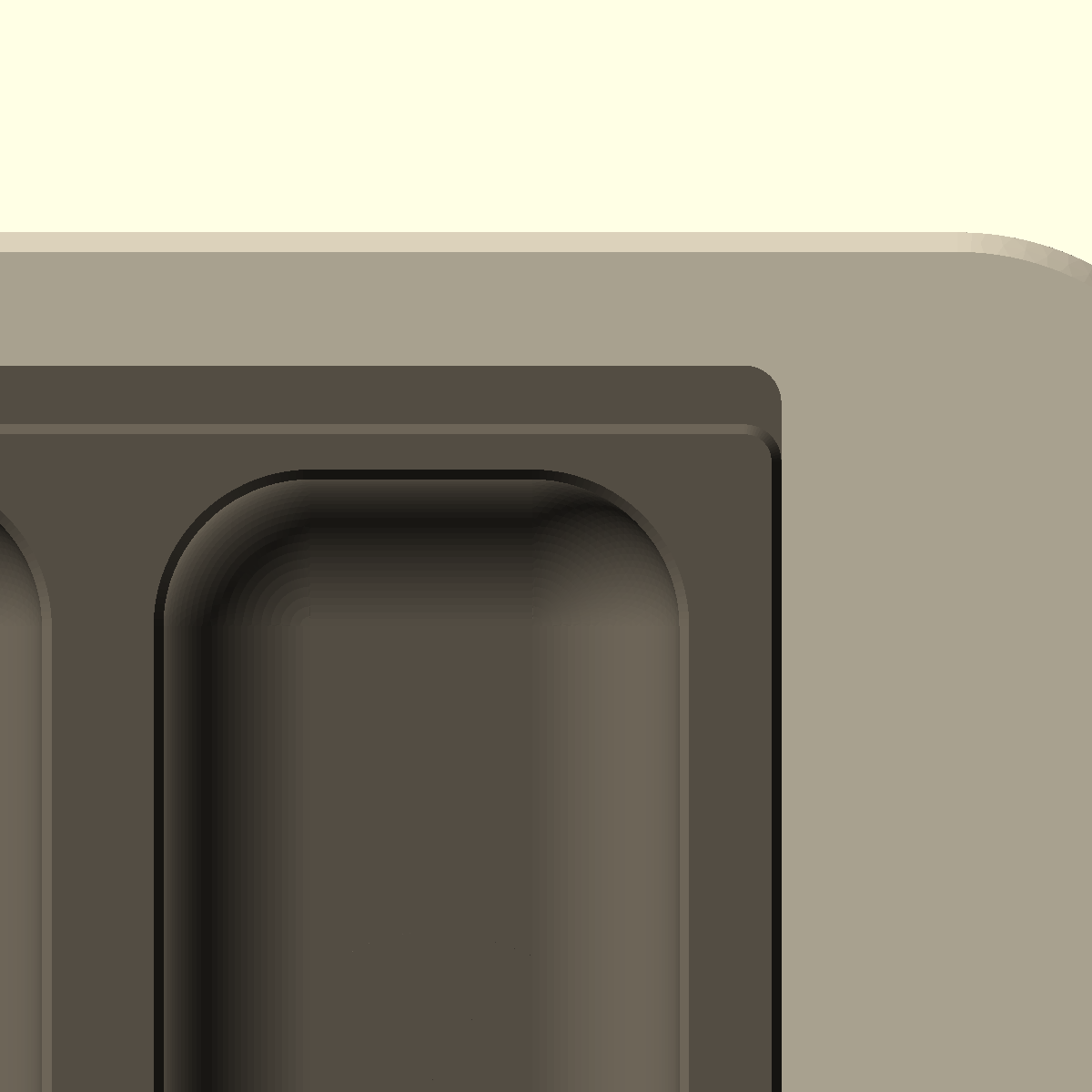

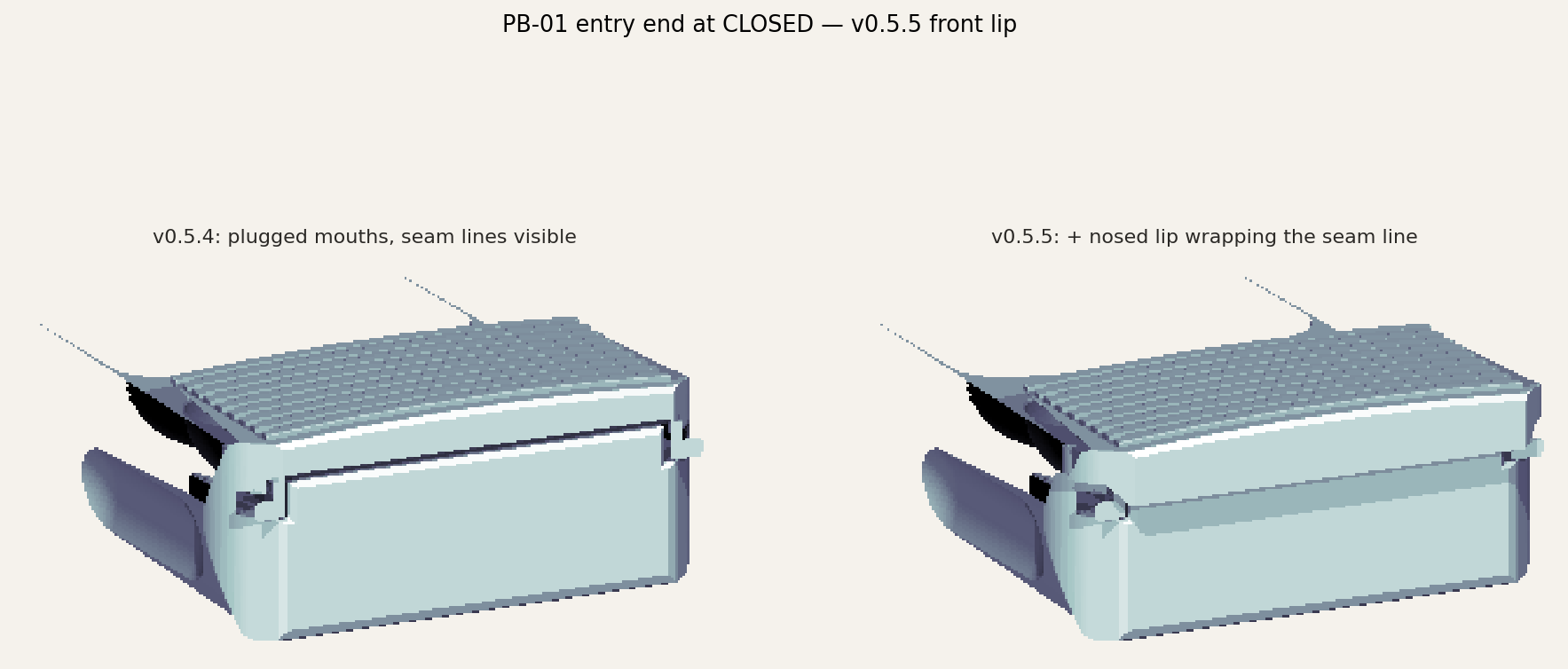

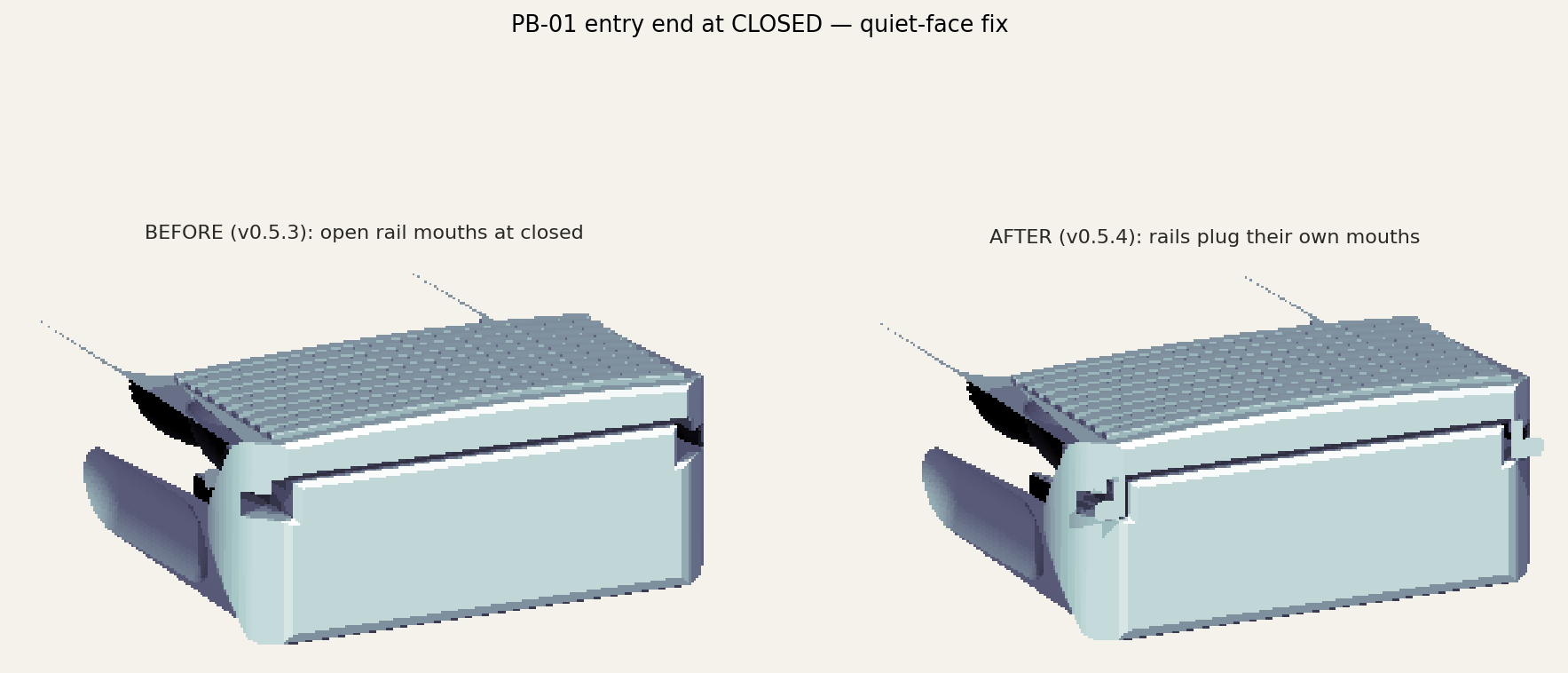

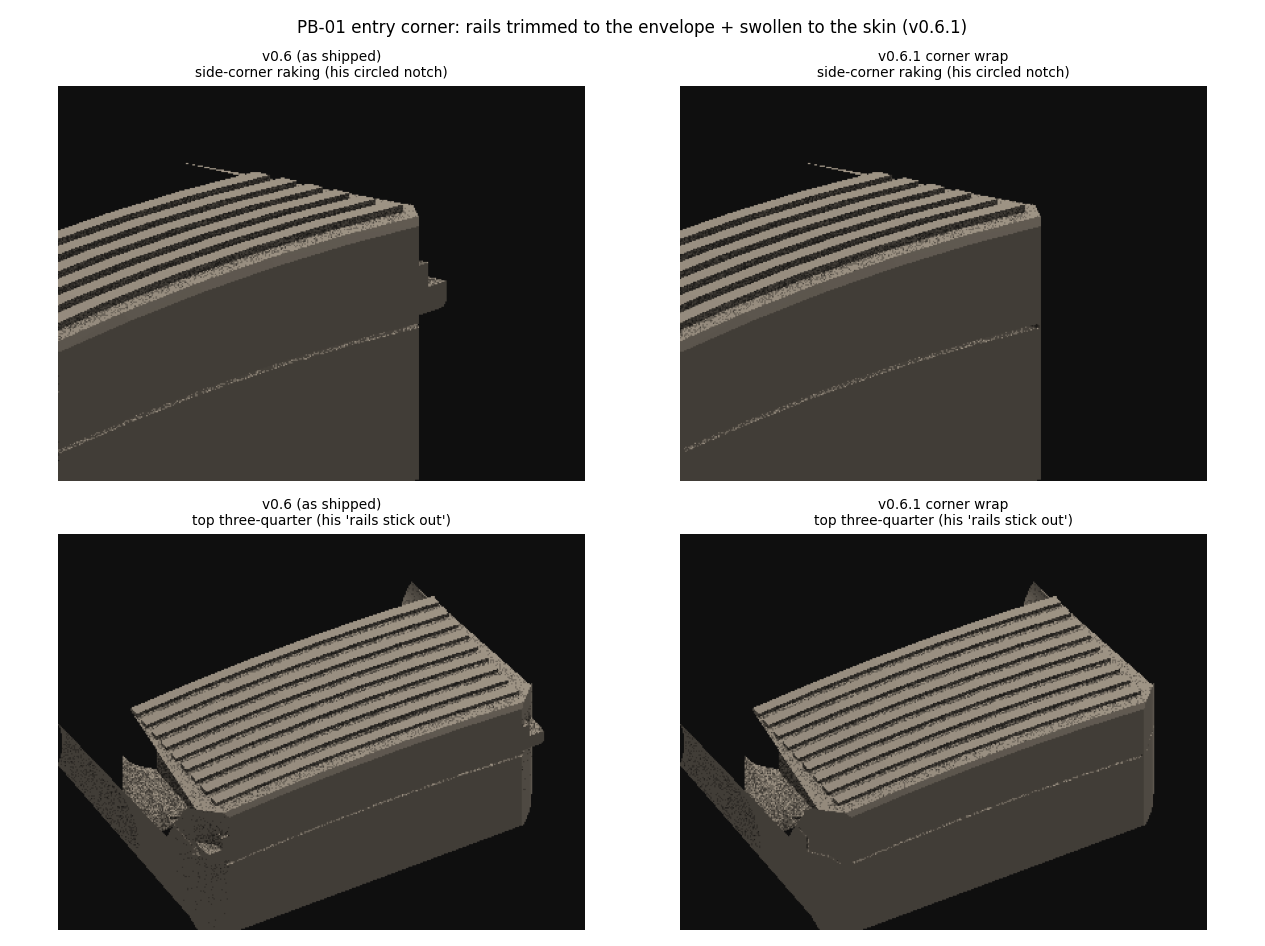

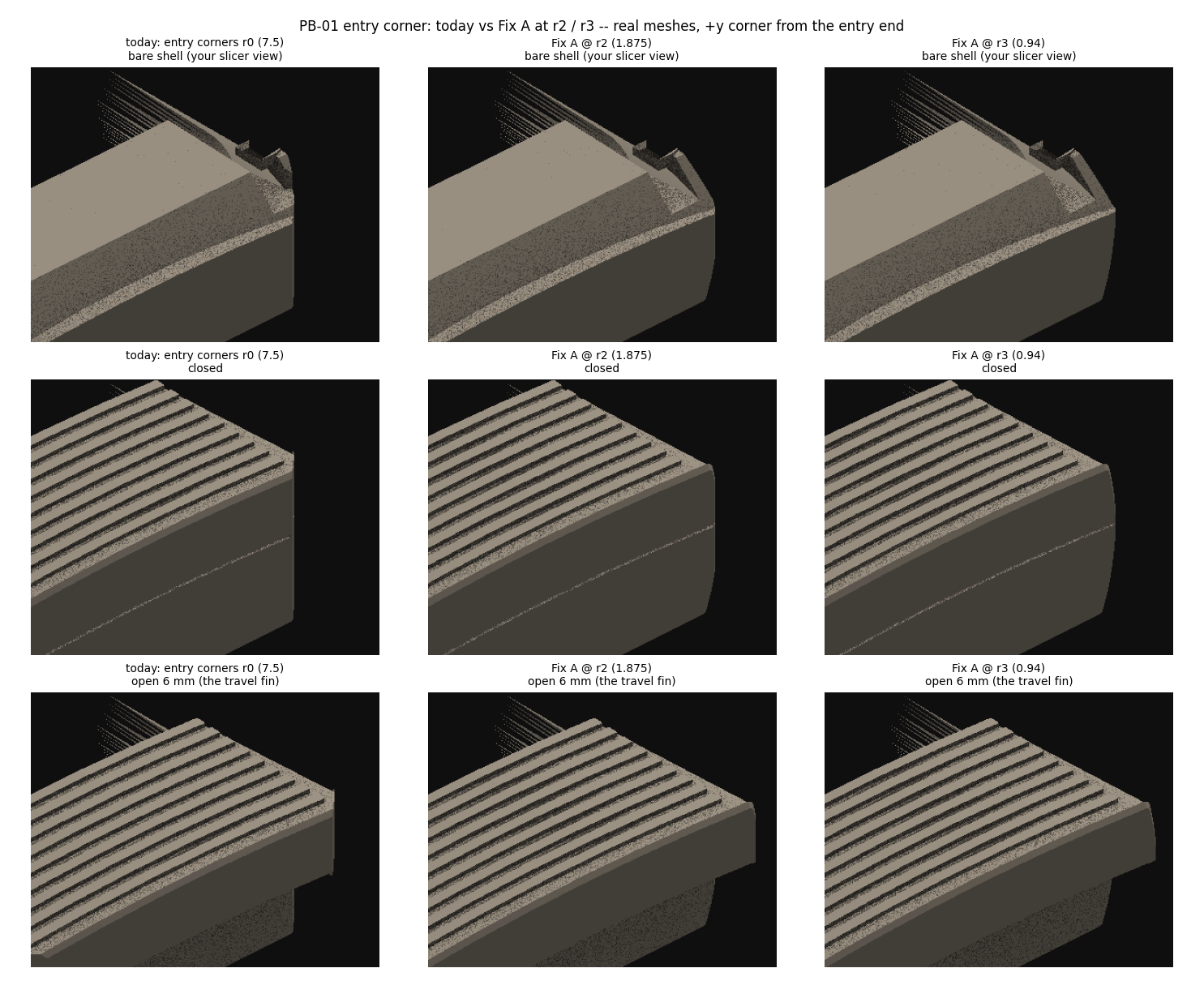

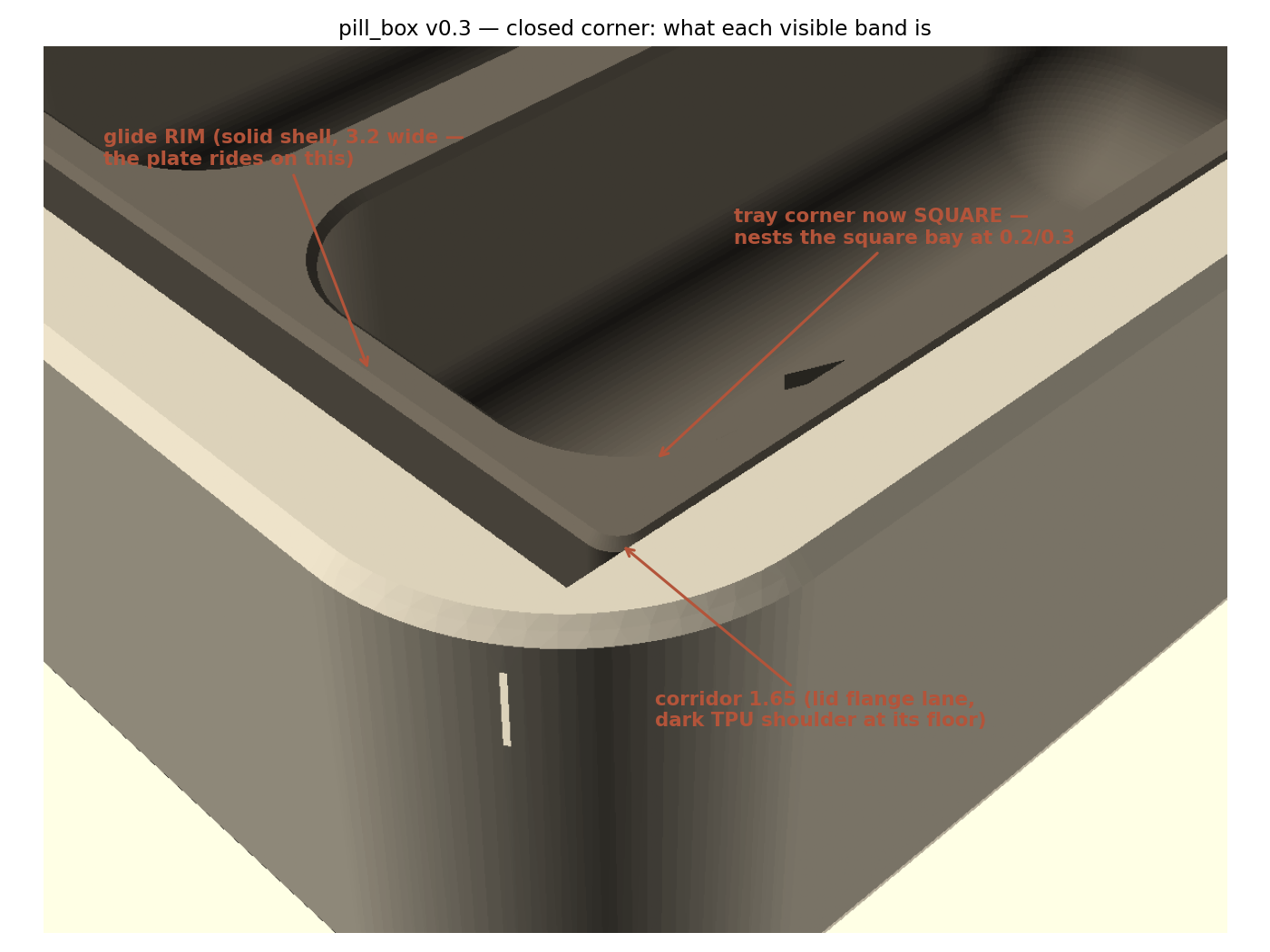

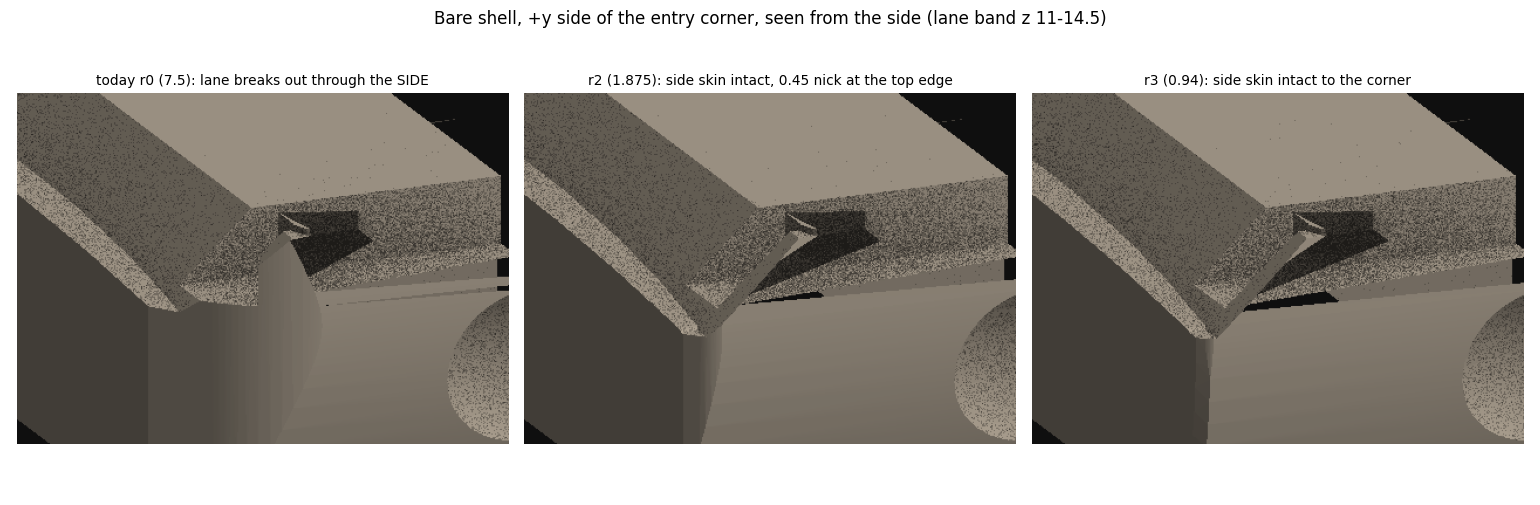

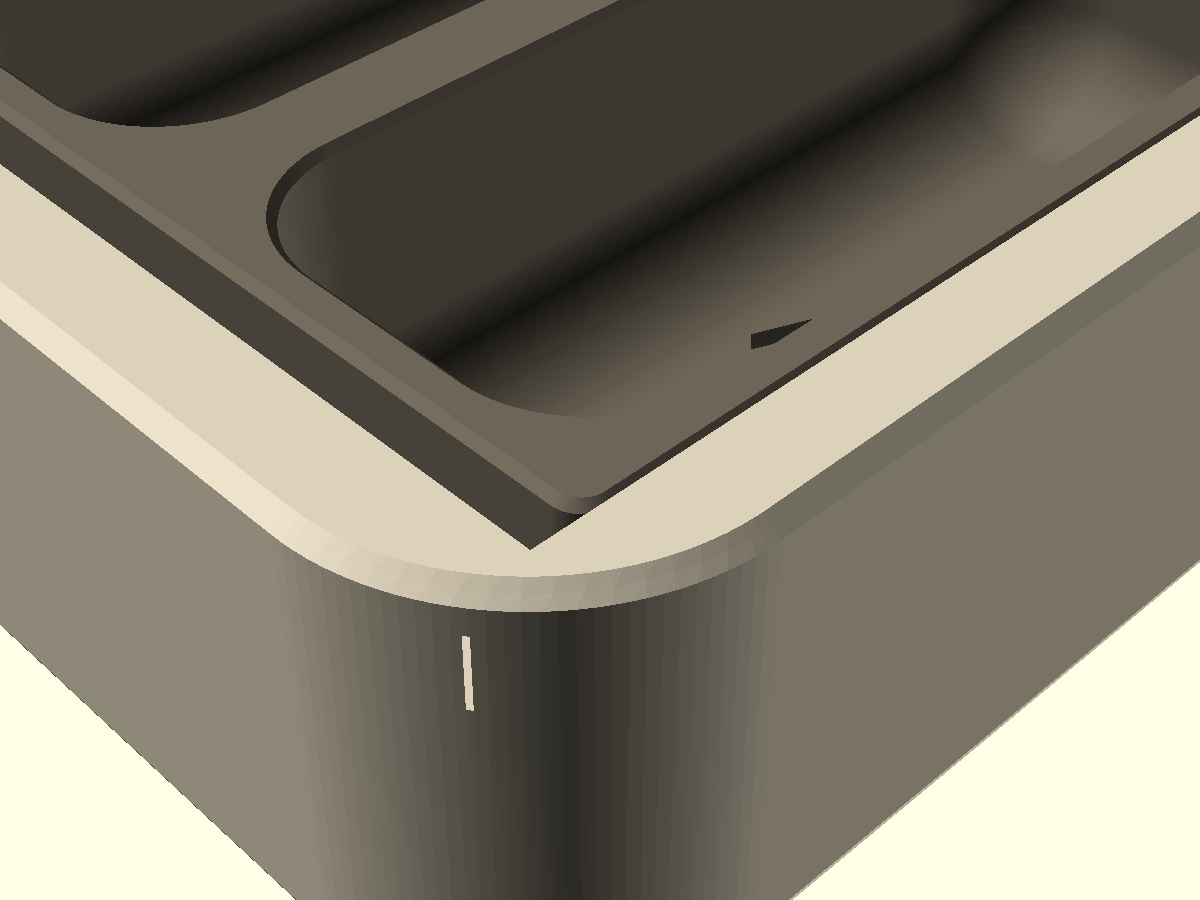

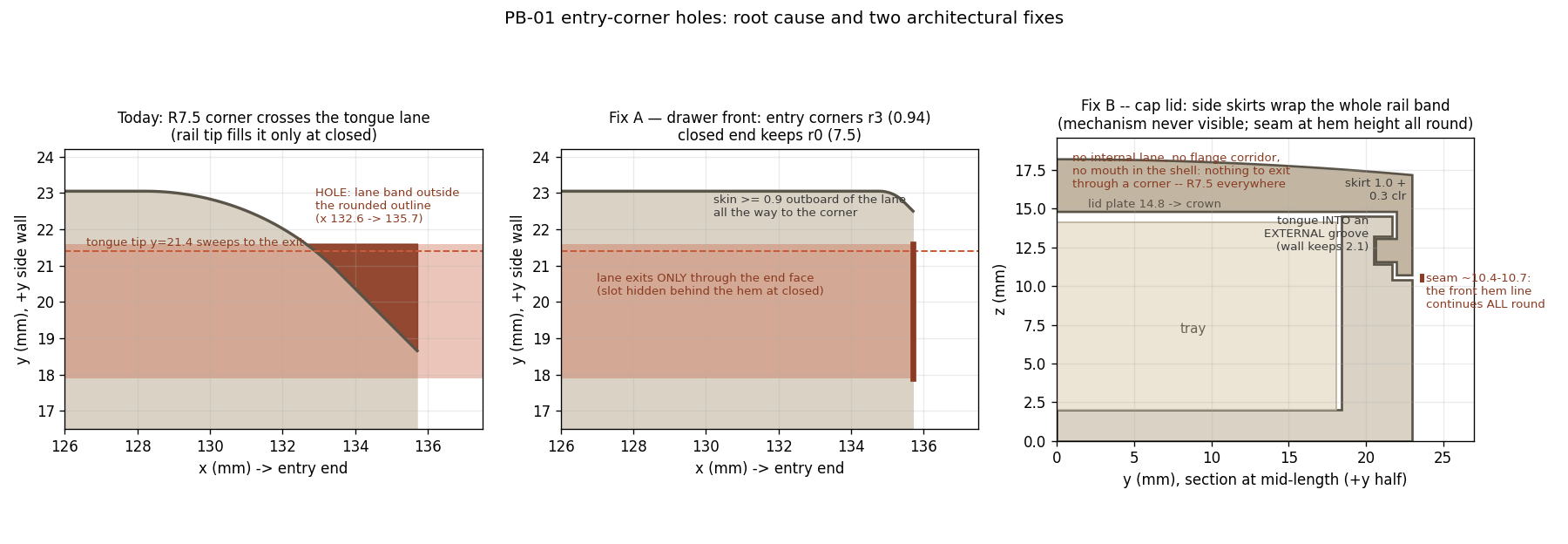

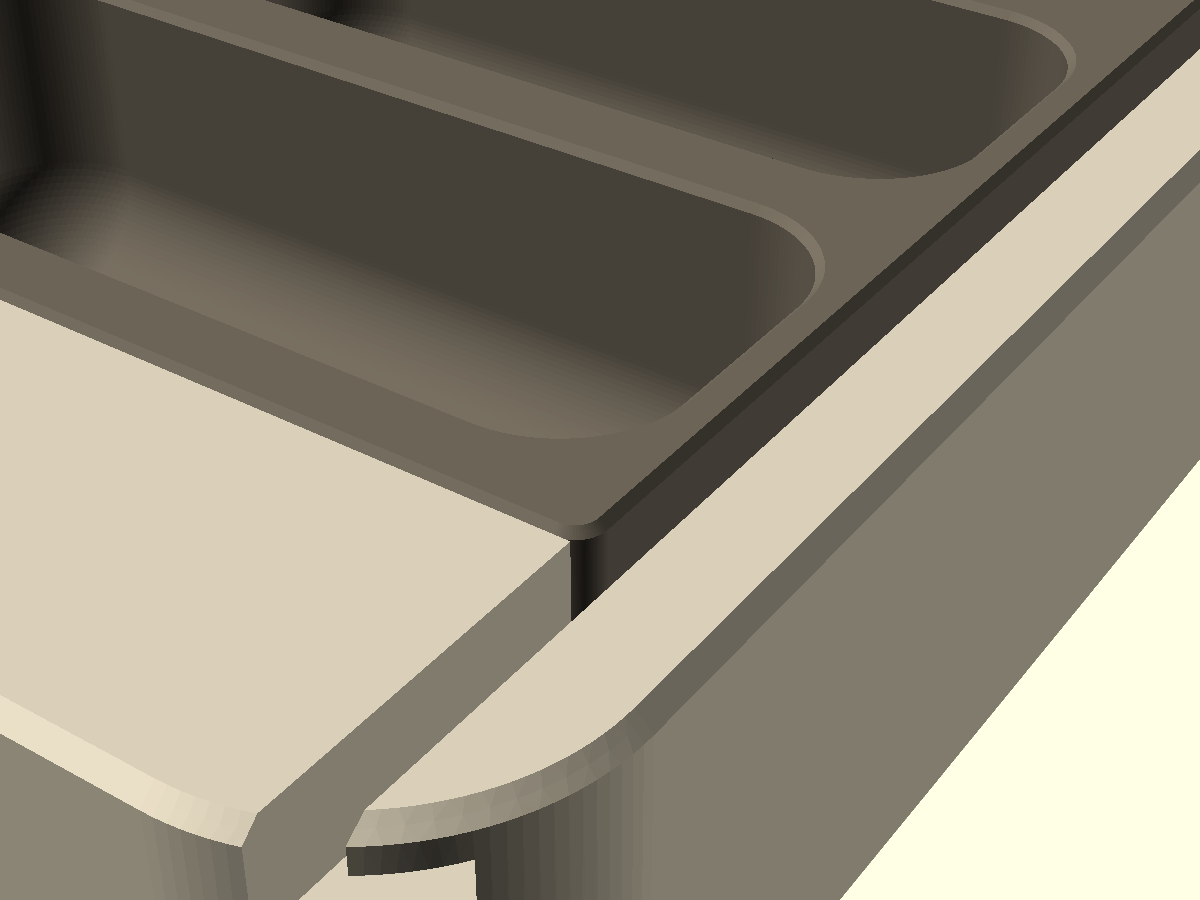

Coupon — shell entry region132 KB
drag to orbit · scroll or pinch to zoom

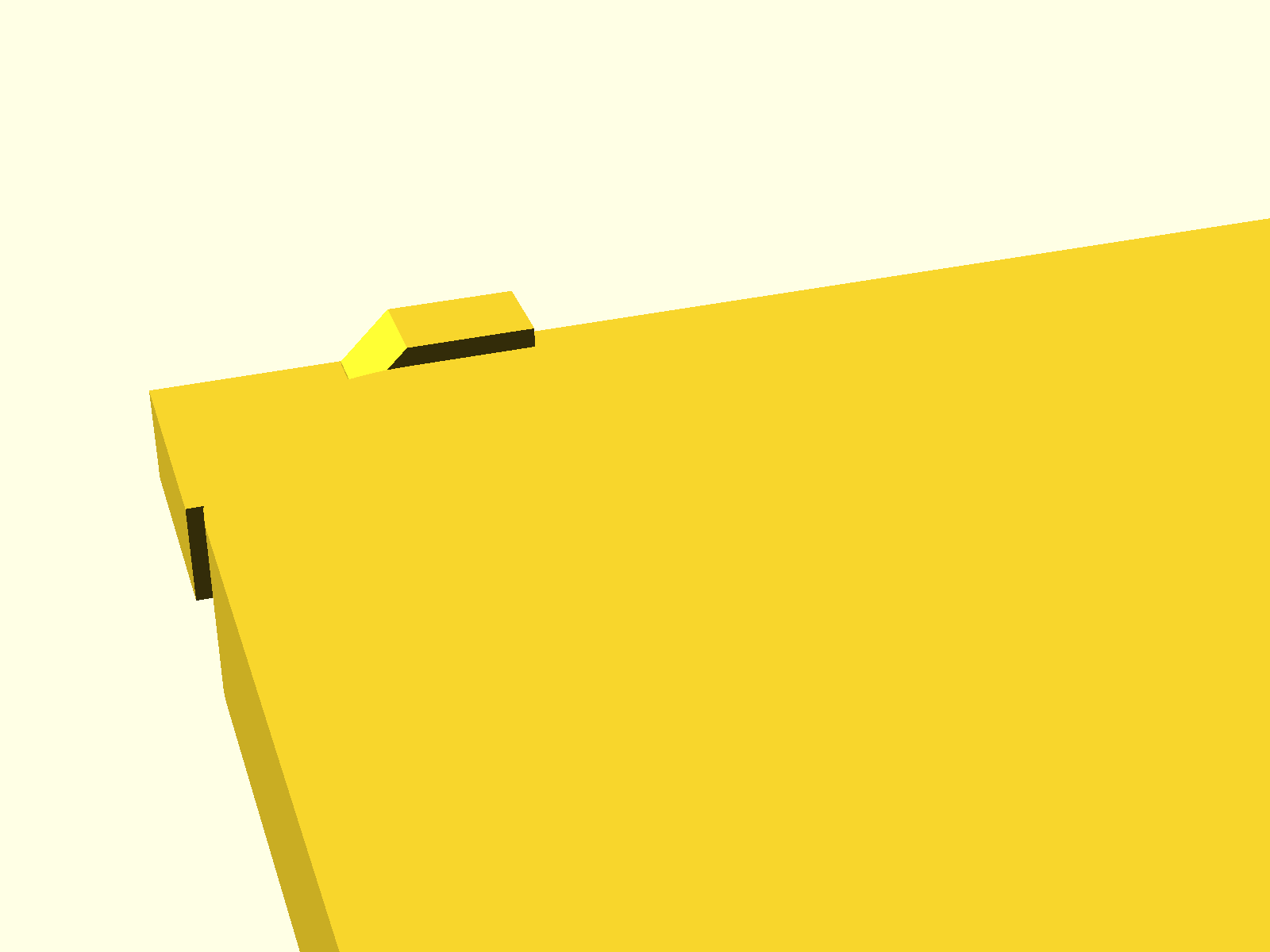

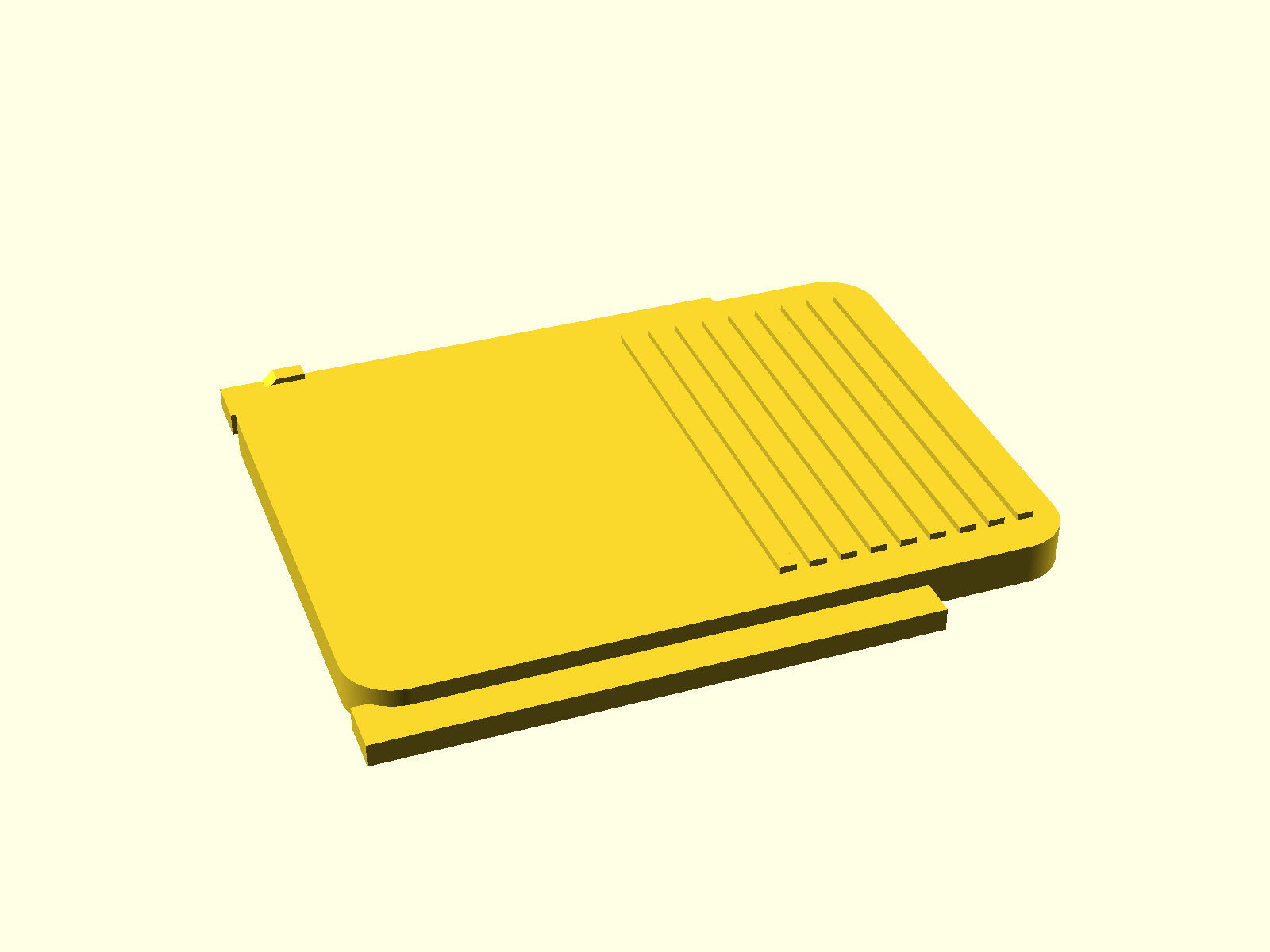

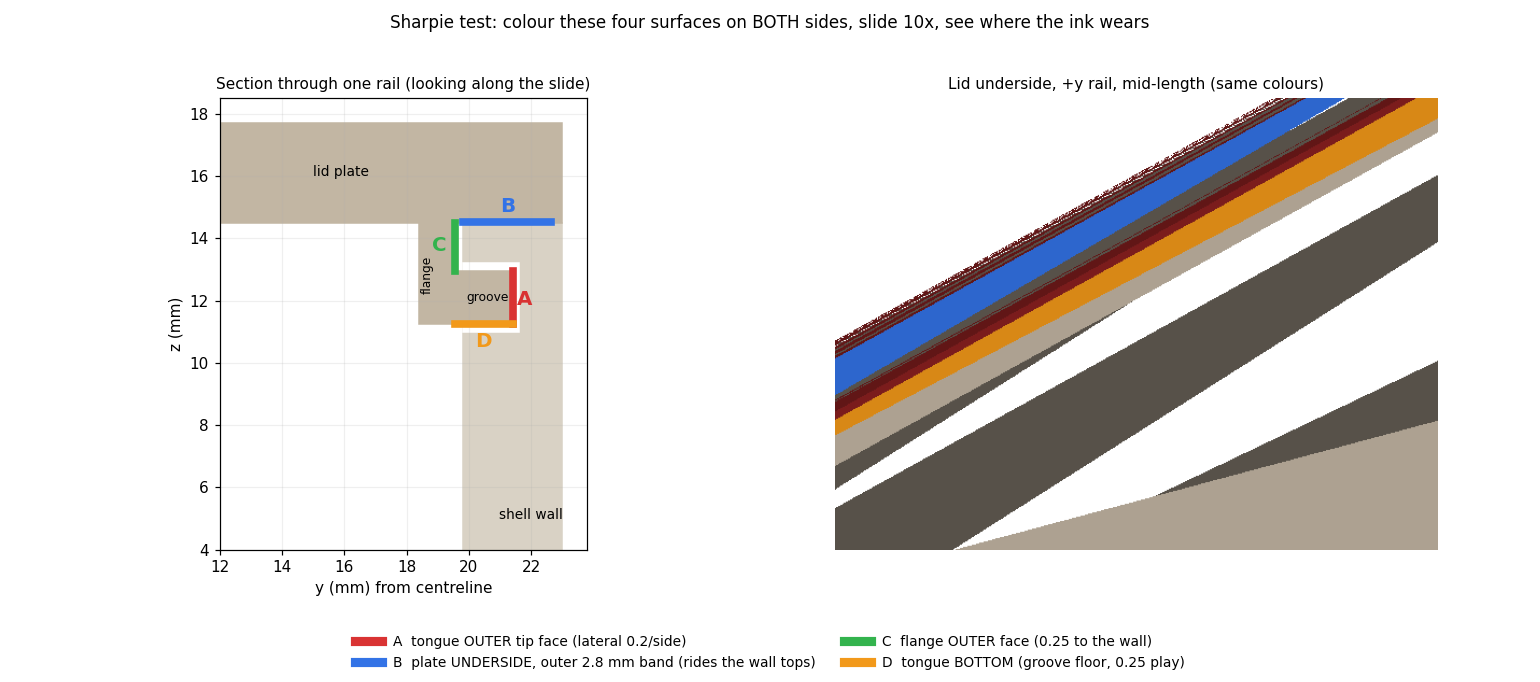

Coupon — lid tongue clearance 0.1597 KB
drag to orbit · scroll or pinch to zoom
Coupon — lid tongue clearance 0.2597 KB
drag to orbit · scroll or pinch to zoom
Coupon — lid tongue clearance 0.3597 KB
drag to orbit · scroll or pinch to zoom
Screenshots
