pill_box_mk2 (PB-02)

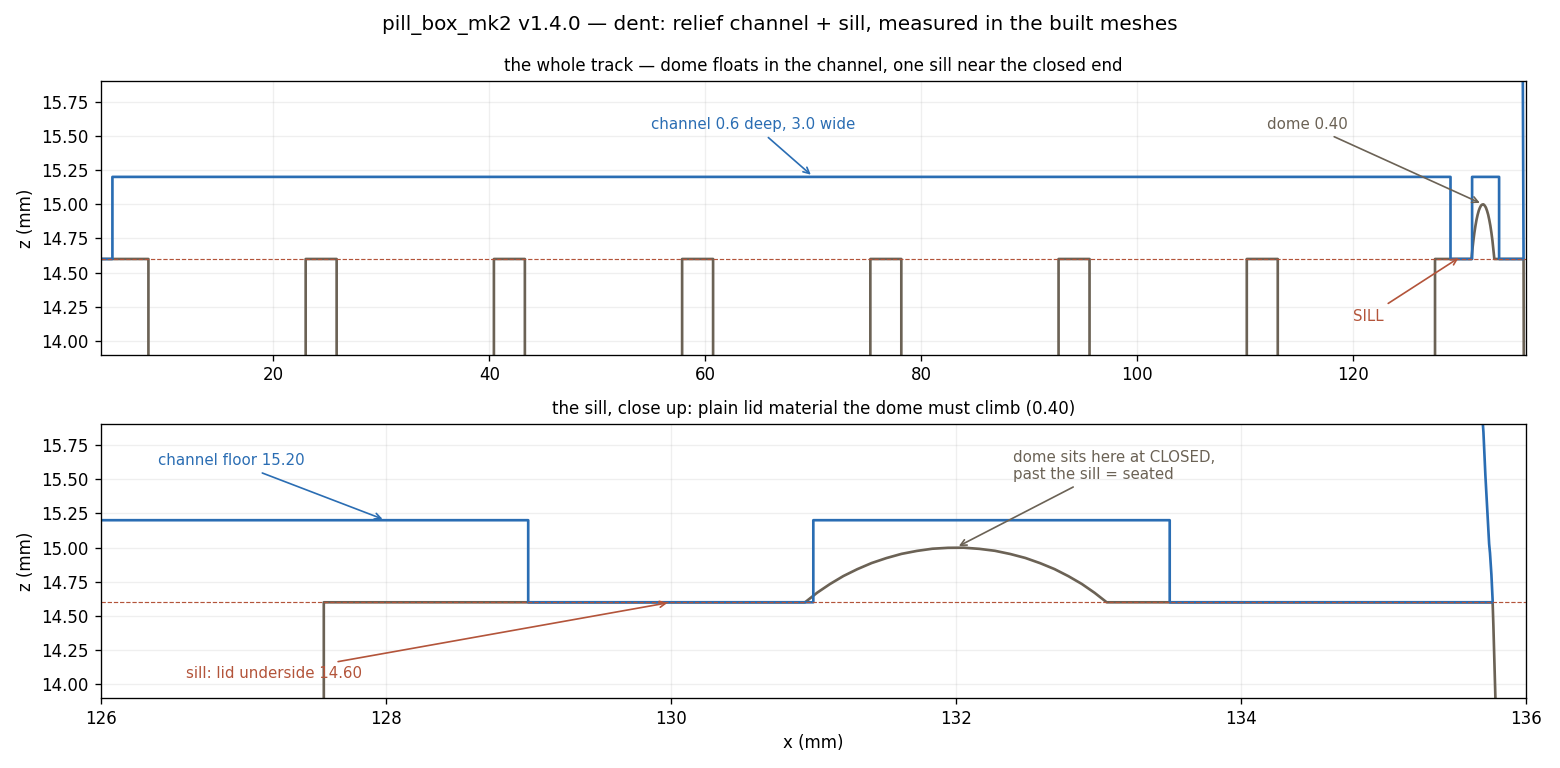

Current next print — I02: H engages the reported detents but has soft stops and excess play explicitly along the slide, especially when closed.
v1.11.0integral shell i is coupon-proven and i01 passed; the full i shell + i02 curved-seat lid are prepared and verified for the h2c but not sent
no print of I02 yet

Specs & BOM

Envelope
137 × 48.4 × 18.8 mm

pill_box_mk2 — assembled, PRESS-MAGNET variant1.8 MB

drag to orbit · scroll or pinch to zoom
composed of: pb2 shell press, pb2 shell letters, pb2 lid press

pill_box_mk2 — assembled, DENT variant1.9 MB

drag to orbit · scroll or pinch to zoom
composed of: pb2 shell dent, pb2 shell letters, pb2 lid dent

pb2 coupon finish / print pose1.5 MB

drag to orbit · scroll or pinch to zoom

pb2 coupon finish letters / print pose3 KB

drag to orbit · scroll or pinch to zoom

pb2 lid dent / print pose108 KB

drag to orbit · scroll or pinch to zoom

pb2 lid press / print pose181 KB

drag to orbit · scroll or pinch to zoom

pb2 shell dent / print pose1.4 MB

drag to orbit · scroll or pinch to zoom

pb2 shell letters / print pose436 KB

drag to orbit · scroll or pinch to zoom

pb2 shell press / print pose1.2 MB

drag to orbit · scroll or pinch to zoom

Screenshots
