Pomo Matrix

2026-09-15, primary-ref ingest adjudicated, contract + gates landed, and eight generated parts exist**: deck, 2x support_side wedge, 2x ctl_encoder_plate, carrier_s3_devkit_open, 4x MAX7219 corner bracket (from 2 STLs, bracket_max7219 +…
v0.11-clip-resizev0.11 -- 8 parts, meshes watertight + overhang-clean, parameters + mesh_features gates pass. bench
2026-09-20): the grip-neck self-tap HOLDS in matte PLA (deck to both wedges, 2 M3 per side) and the ctl_encoder_plate PRINTED AND WORKS -- the KY-040 no longer levers out. The clip saddle FAILED to print: its sealed STL was a solid block (channel cut missed the body) and its bore was sized from a flat span -- both fixed here, UNPRINTED at this revision. The 4 MAX7219 brackets have never been printed either, and no display, board, cell or switch has been seated. Button / switch / charge plates and the TPU feet are NOT MODELLED -- hardware unchosen.

Specs & BOM

Envelope
184 × 120 × 4 mm
↓ Print plate (.3mf) — all parts

pomo_matrix v0.11 -- DECK ASSEMBLY (try Explode / Ghost); the 4 MAX7219 brackets are not placed12.1 MB

web mesh reduced for size drag to orbit · scroll or pinch to zoom
composed of: deck, support side, ctl encoder plate, carrier s3 devkit open, knob ribbed, clip wire grid

v0.11 -- EXPLODED along the deck normal, in assembly order12.1 MB

web mesh reduced for size drag to orbit · scroll or pinch to zoom
composed of: deck, support side, ctl encoder plate, carrier s3 devkit open, knob ribbed, clip wire grid

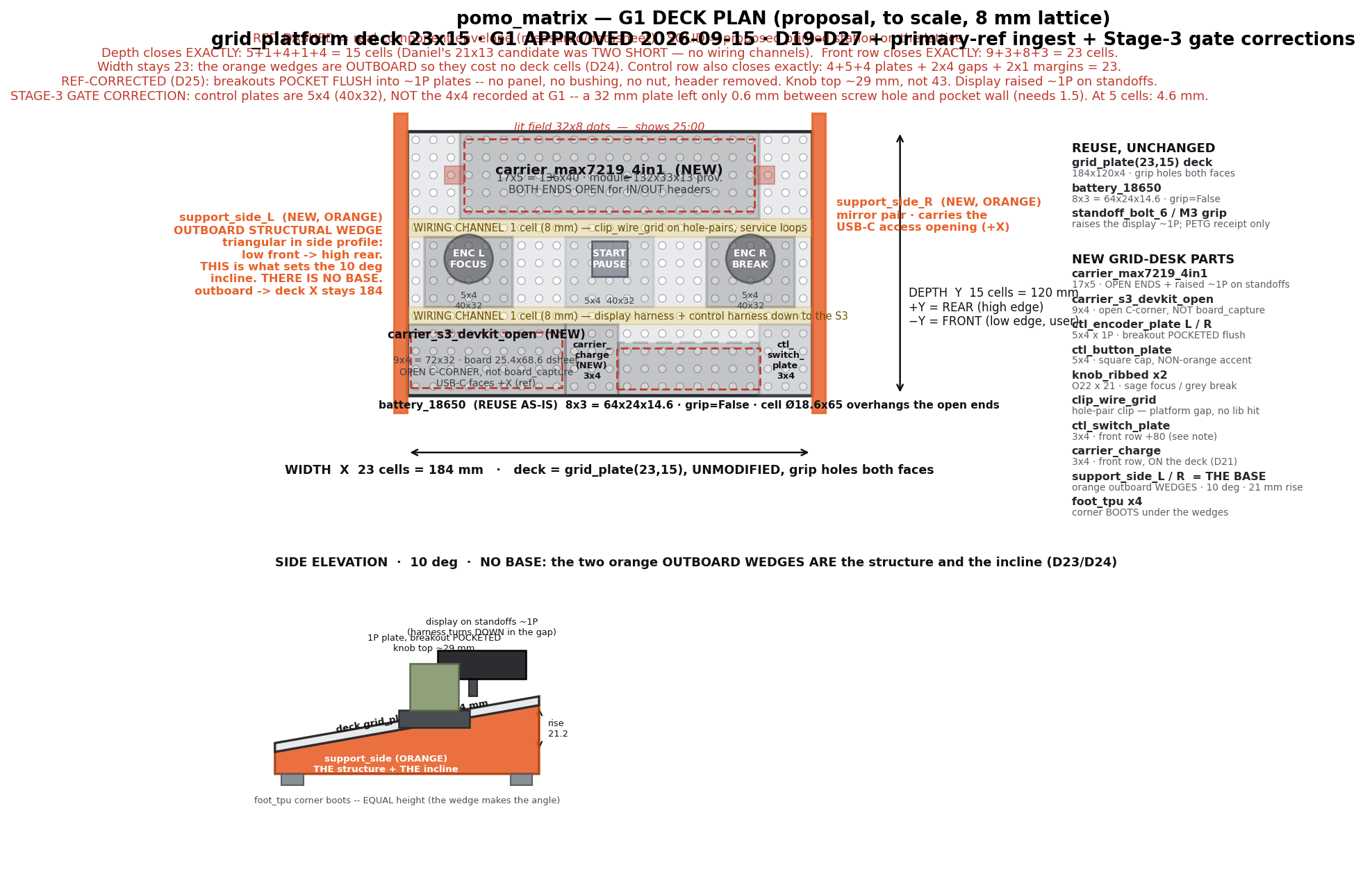

deck 23x15 / print pose11.2 MB

web mesh reduced for size drag to orbit · scroll or pinch to zoom

support_side wedge / print pose (flat)62 KB

drag to orbit · scroll or pinch to zoom

ctl_encoder_plate / print pose93 KB

drag to orbit · scroll or pinch to zoom

carrier_s3_devkit_open / print pose330 KB

drag to orbit · scroll or pinch to zoom

bracket_max7219 / print pose (2 of the 4 corners)55 KB

drag to orbit · scroll or pinch to zoom

bracket_max7219_mirror / print pose (the other 2 corners)55 KB

drag to orbit · scroll or pinch to zoom

knob_ribbed / print pose (socket down)123 KB

drag to orbit · scroll or pinch to zoom

clip_wire_grid / print pose (mouth up)29 KB

drag to orbit · scroll or pinch to zoom
