PR-1 Radar Enclosure

pr1_radar_enclosure-v0.16.0

A round display enclosure in physical development: v16 assembled, with v17 replacement-cap trials awaiting print.

wipv0.16.0
v16 assembled; v17 trials unprinted; switch reach unresolved

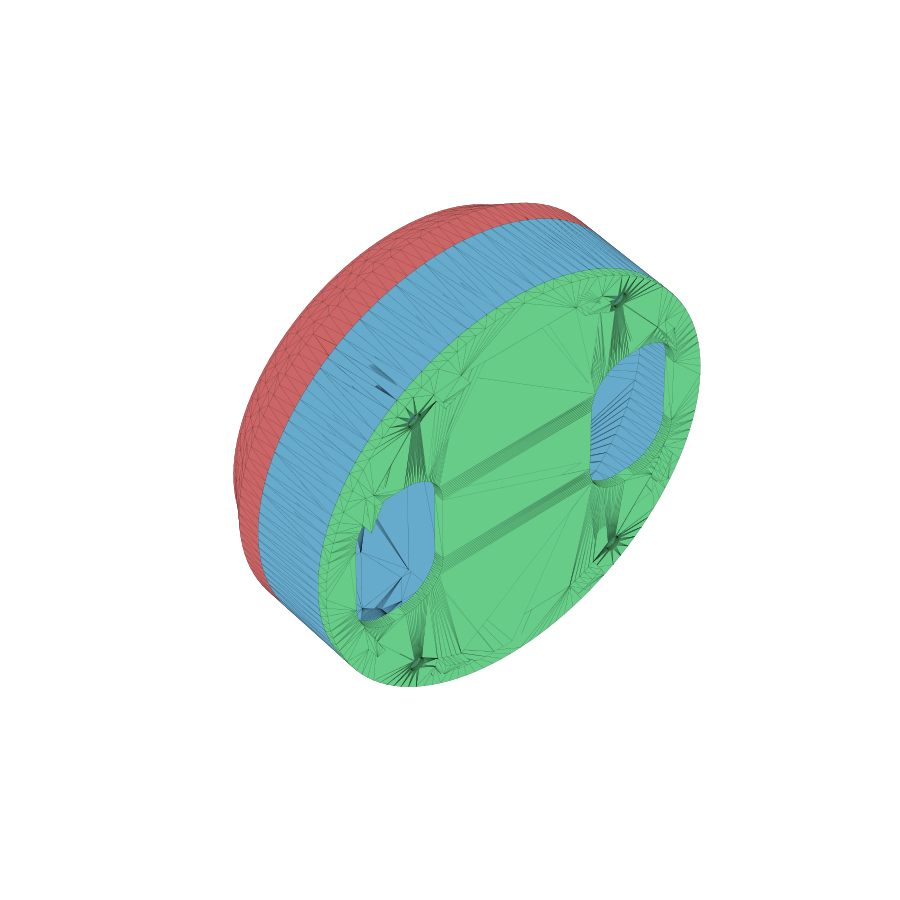

v16 diagnostic assembly · reused v14 cap · hardware omitted1.2 MB

drag to orbit · scroll or pinch to zoom
composed of: shell channel v16 v0.16.0, keeper simple v16 v0.16.0, cap motion v14

Cap and keeper · native seated positions · case omitted649 KB

drag to orbit · scroll or pinch to zoom
composed of: keeper simple v16 v0.16.0, cap motion v14

v17 alternatives · 1 / 2 / 3 dots · display layout, install one only · unprinted1.9 MB

drag to orbit · scroll or pinch to zoom
composed of: cap reach 1 plus020 v17, cap reach 2 plus030 v17, cap reach 3 plus040 v17 — all at v0.17.0

CAD-based product images

AI-finished images of rendered CAD geometry; not a physical print or fit test.

1 phase
