Sidecar — Electronics Box

radio_enclosure/phase2a_sidecar-v2.3

Build the electronics sidecar body that integrates the Phase 1 front-panel coupon (v1.8, subject to fit-test verification) as the sidecar's front wall, plus 5 surrounding walls forming a closed box.

activev2.3
restyle (rounded corners + front chamfer) + USB-C raised for the female-socket riser; one of two radio shells (sibling: acoustic box), both at product v2.3.

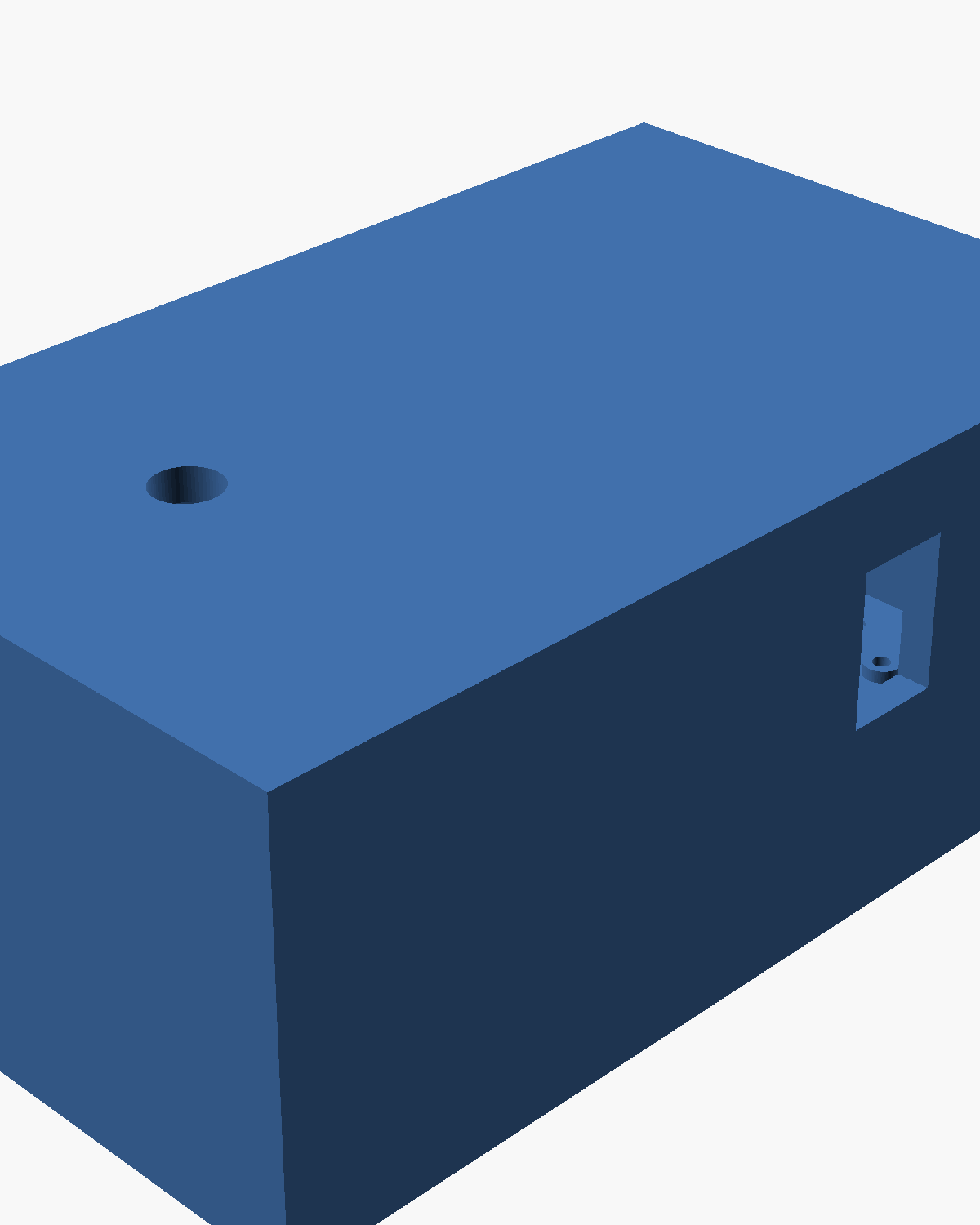

Full assembly (sidecar + lid + electronics)2.9 MB

drag to orbit · scroll or pinch to zoom
composed of: sidecar, lid, carrier-PCB, ESP32-S3-Zero, OLED, knob

Full radio (context — sidecar mated to acoustic box)3.8 MB

drag to orbit · scroll or pinch to zoom
composed of: acoustic box, acoustic lid, speaker, sidecar, lid, carrier-PCB, ESP32-S3-Zero, OLED, knob

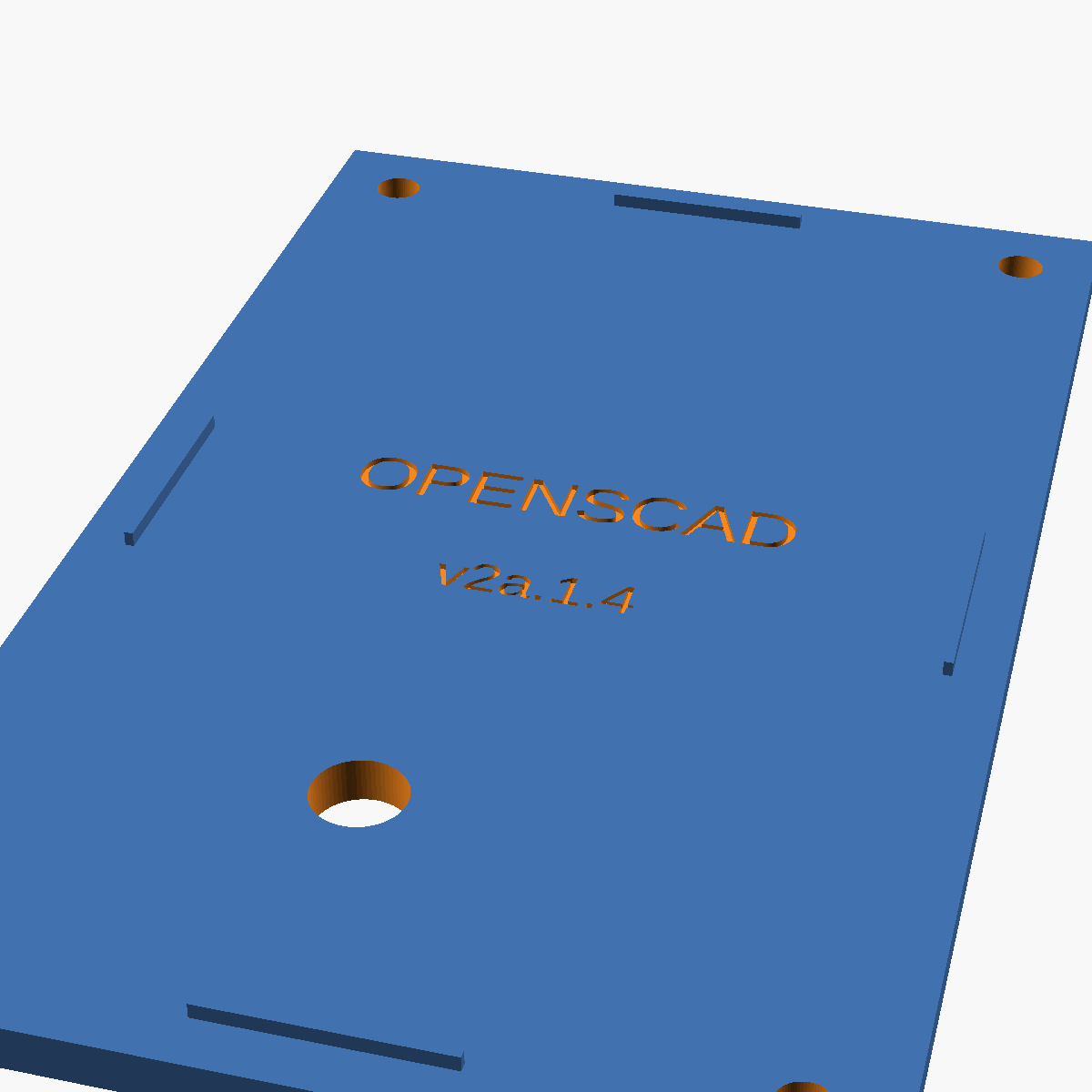

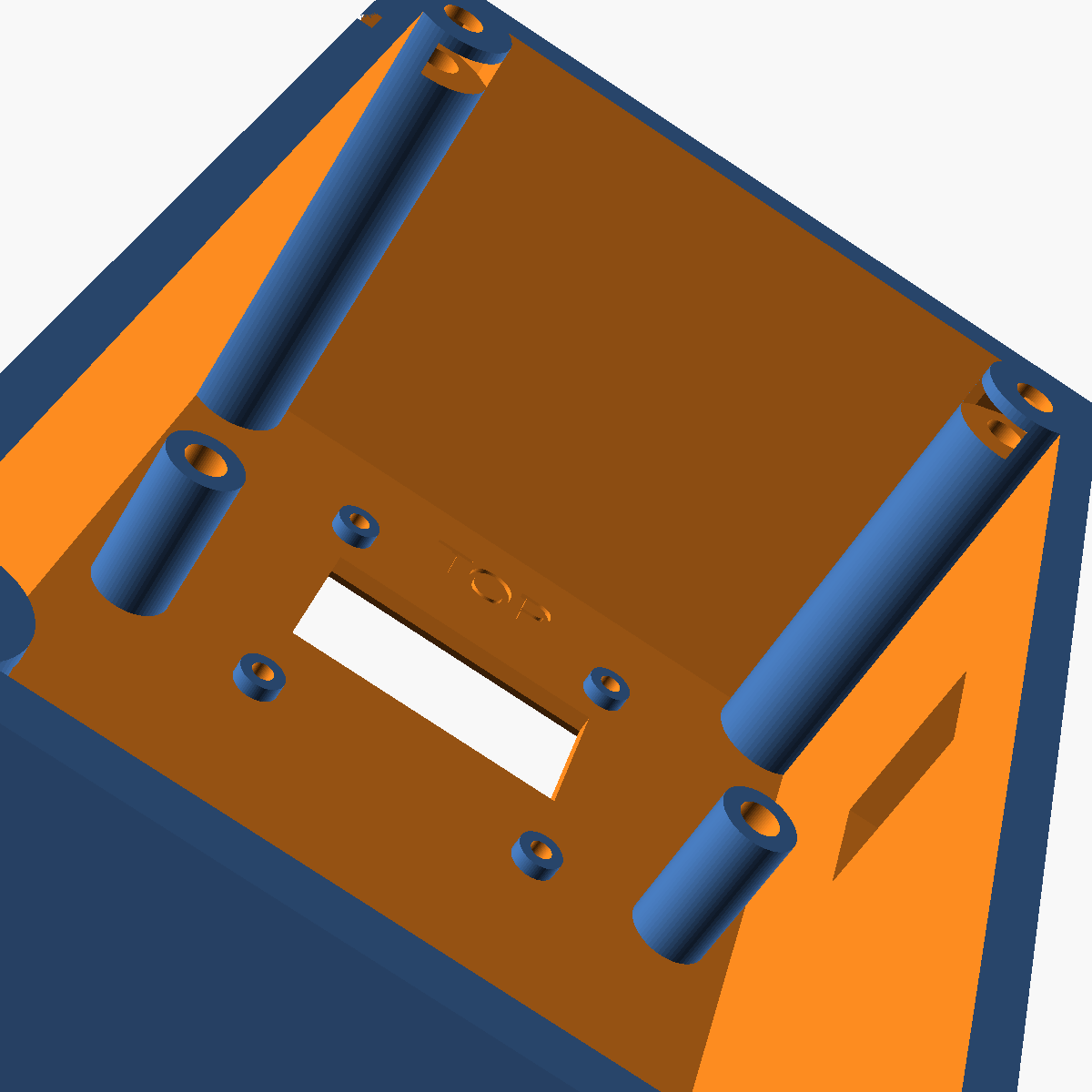

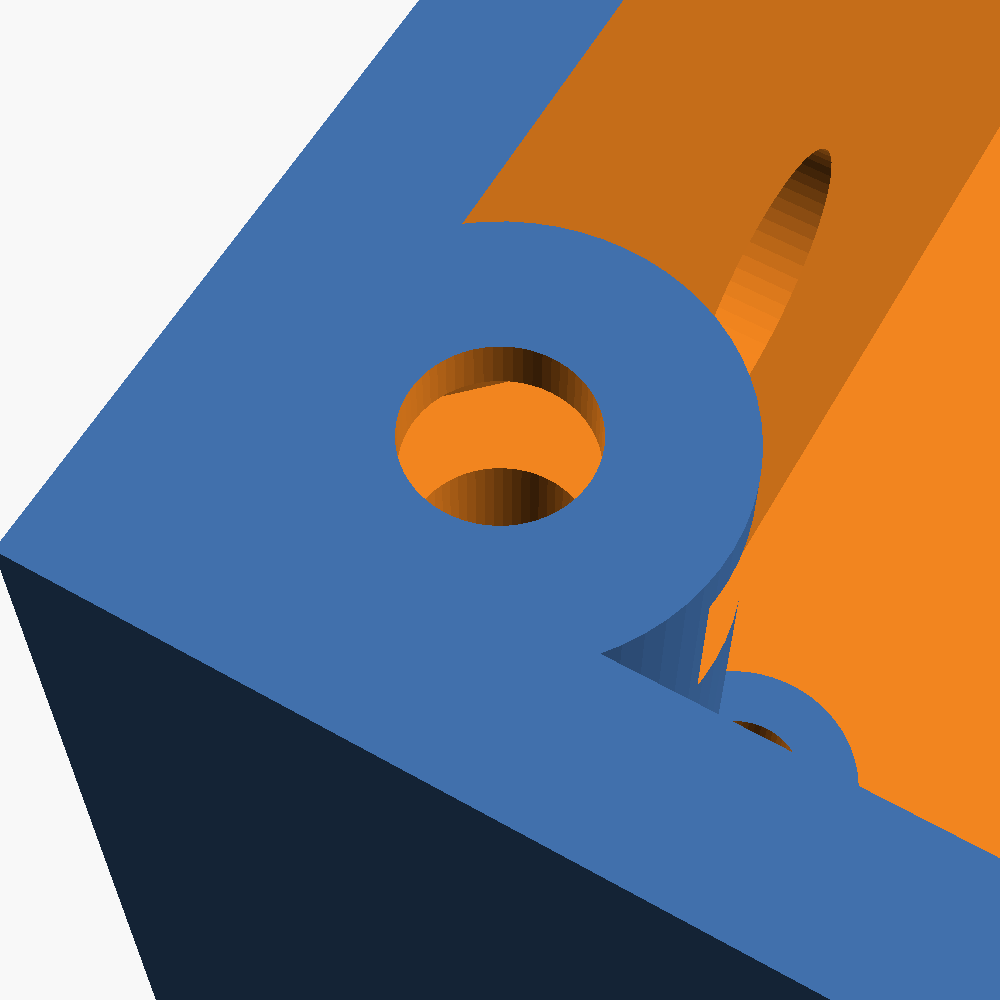

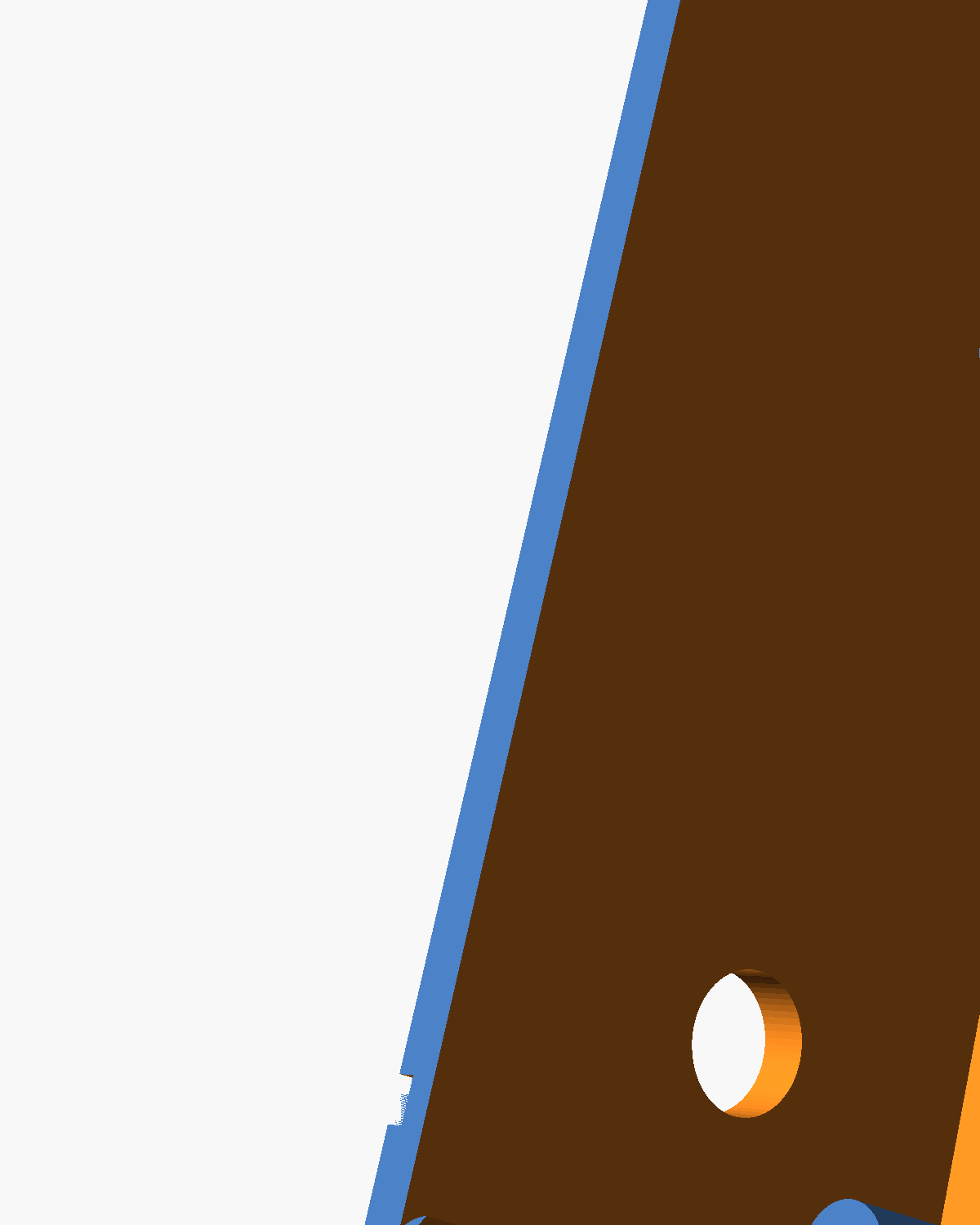

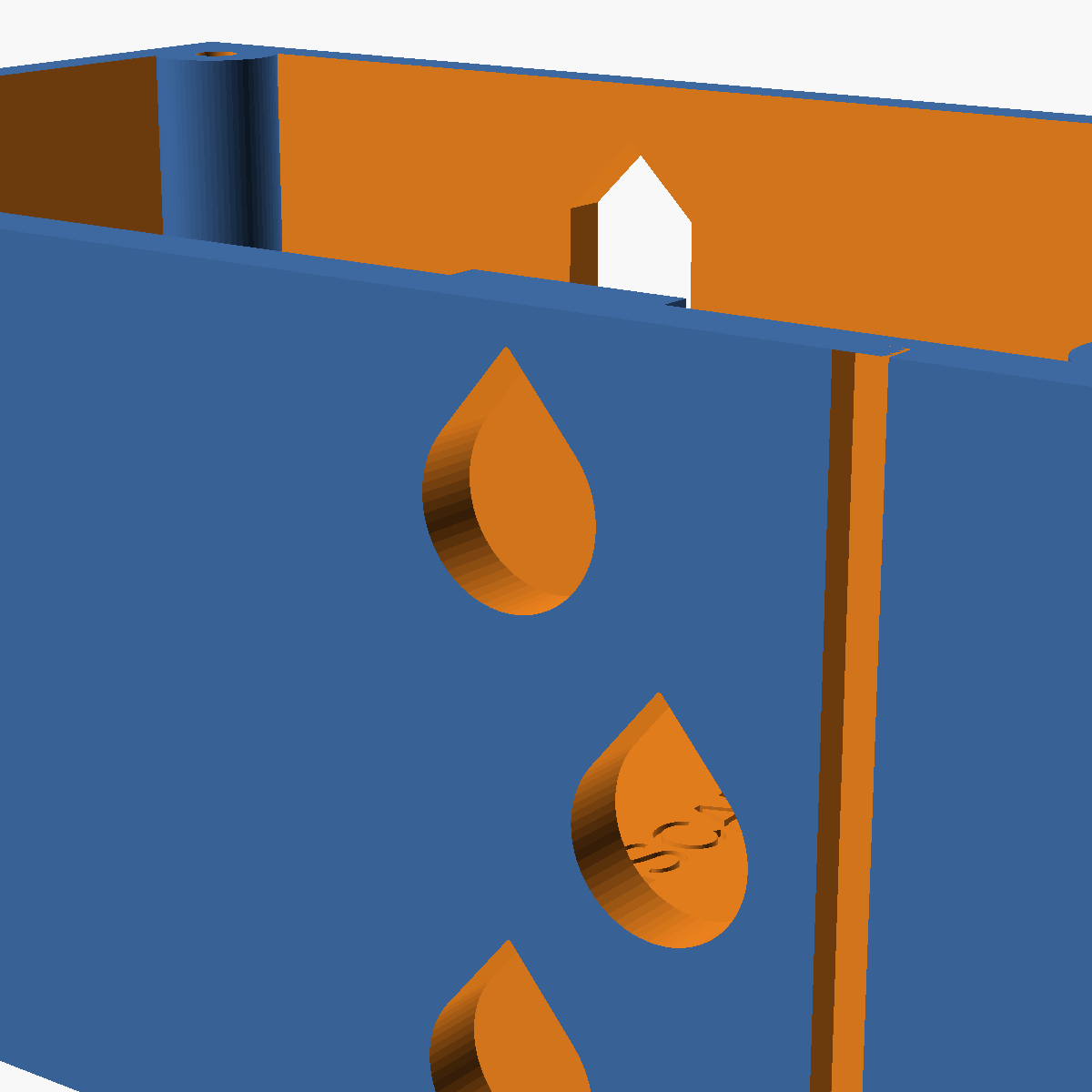

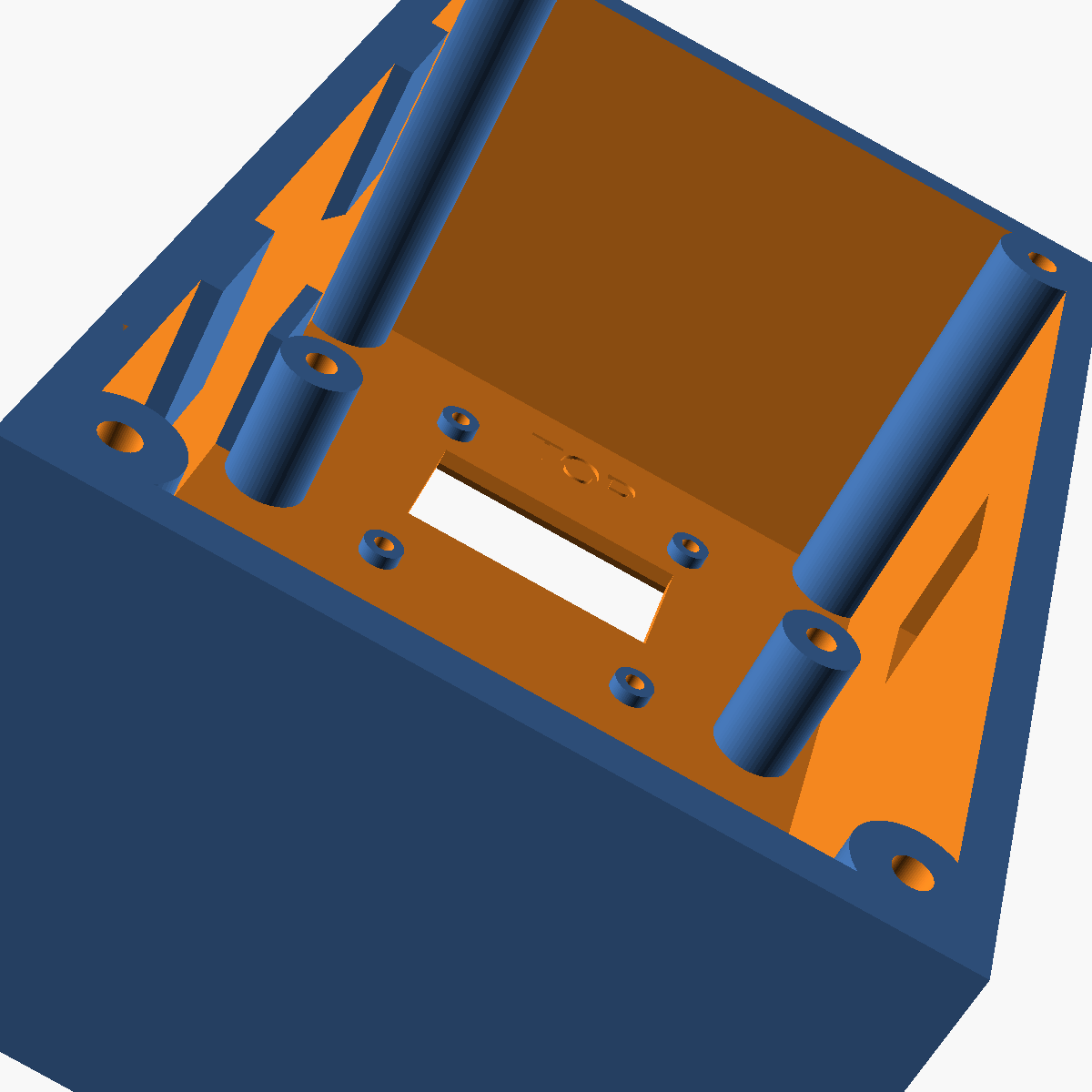

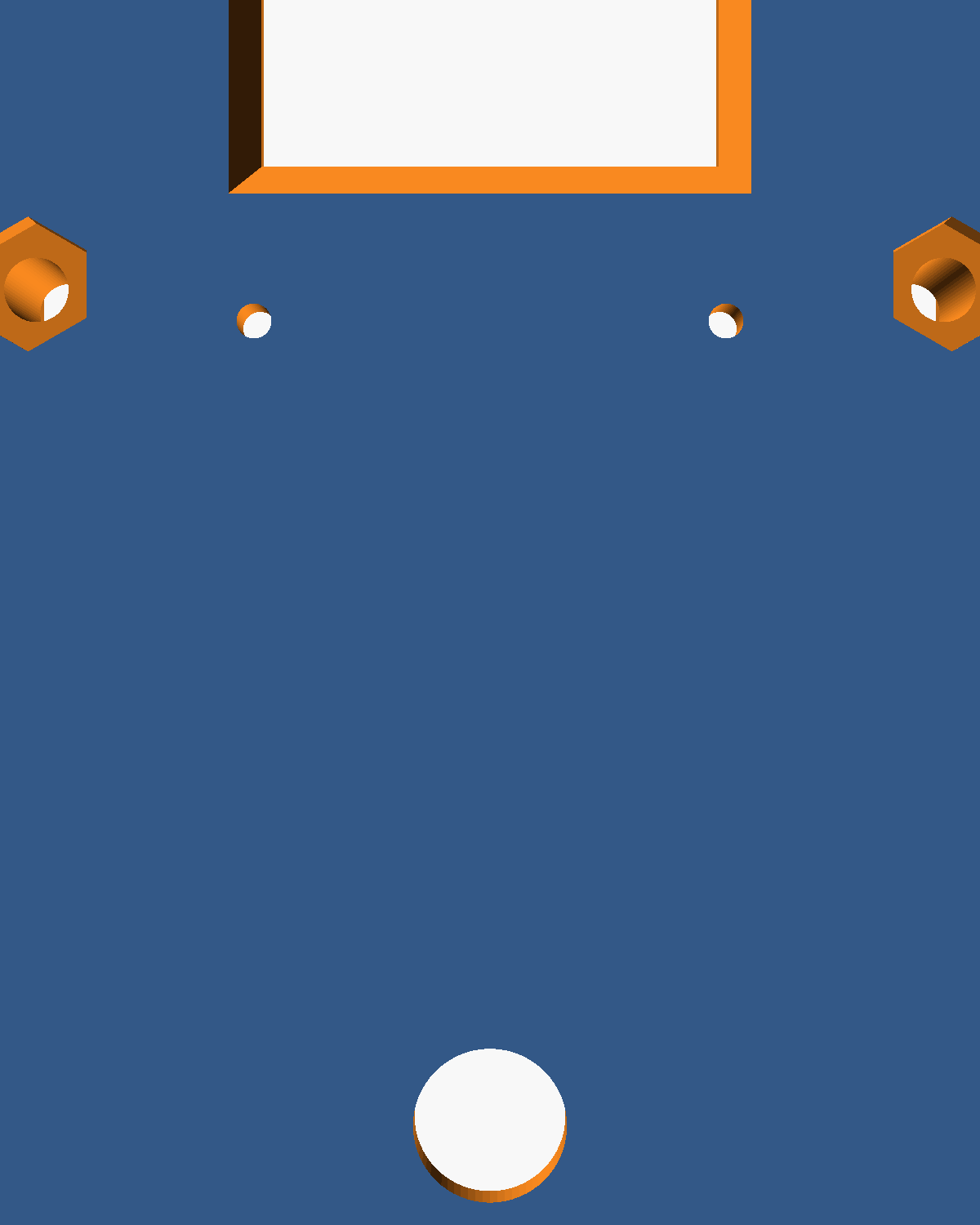

Sidecar body684 KB

drag to orbit · scroll or pinch to zoom

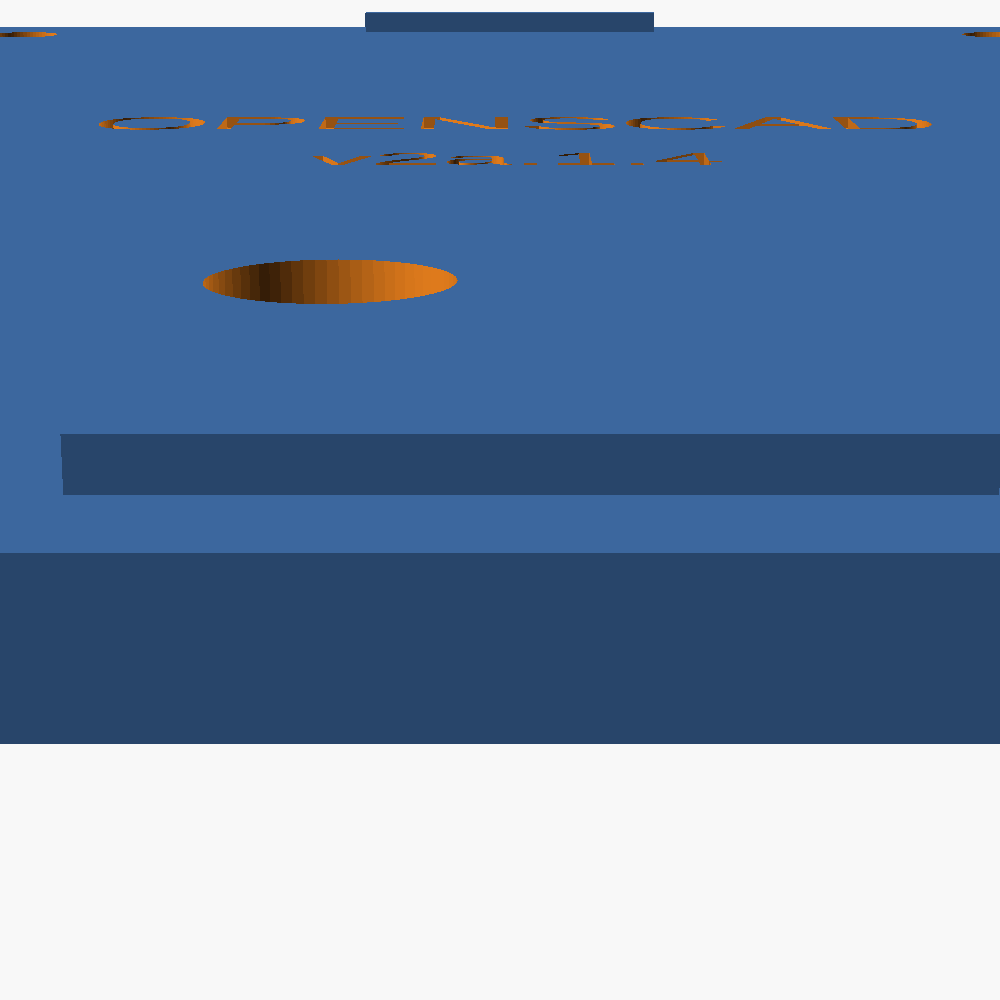

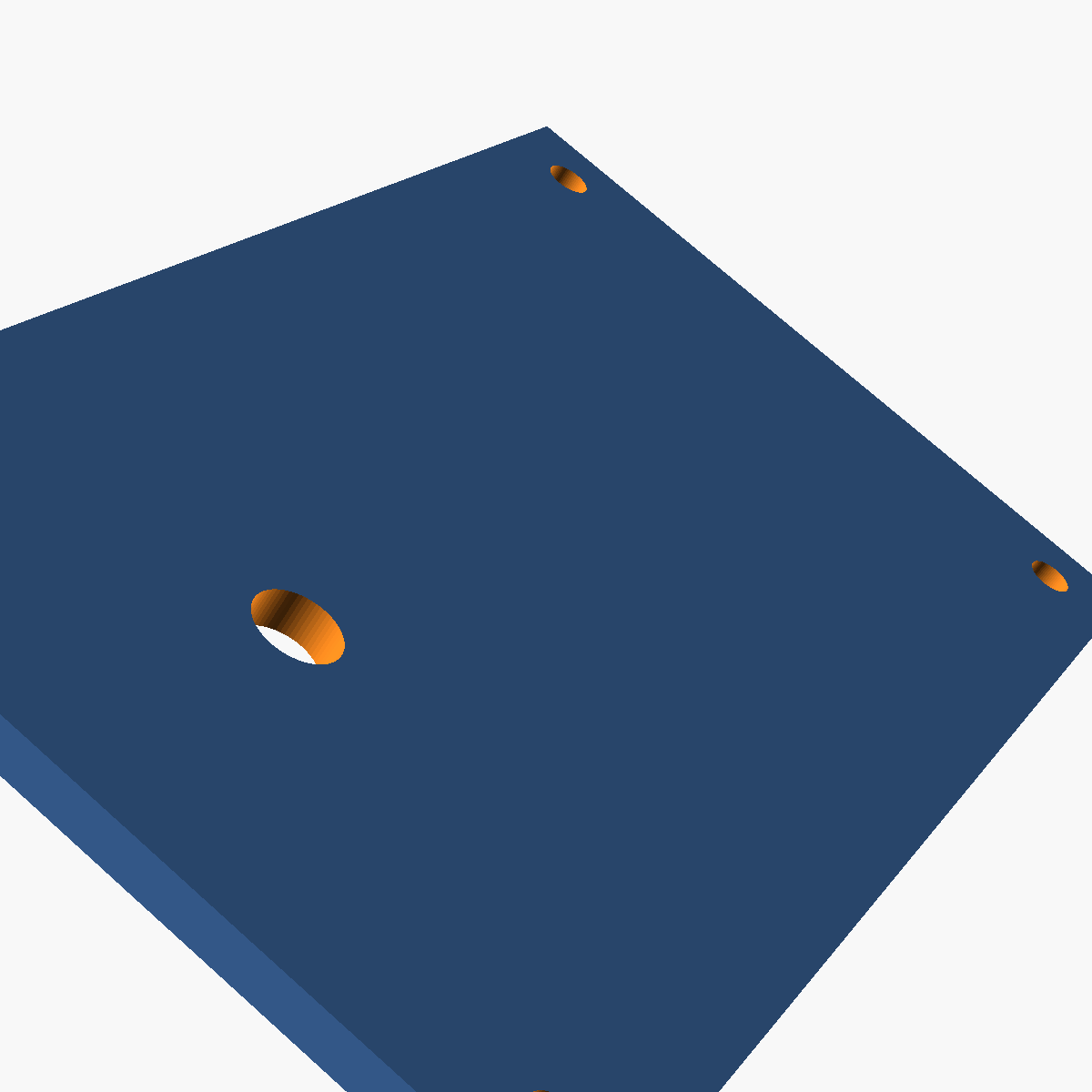

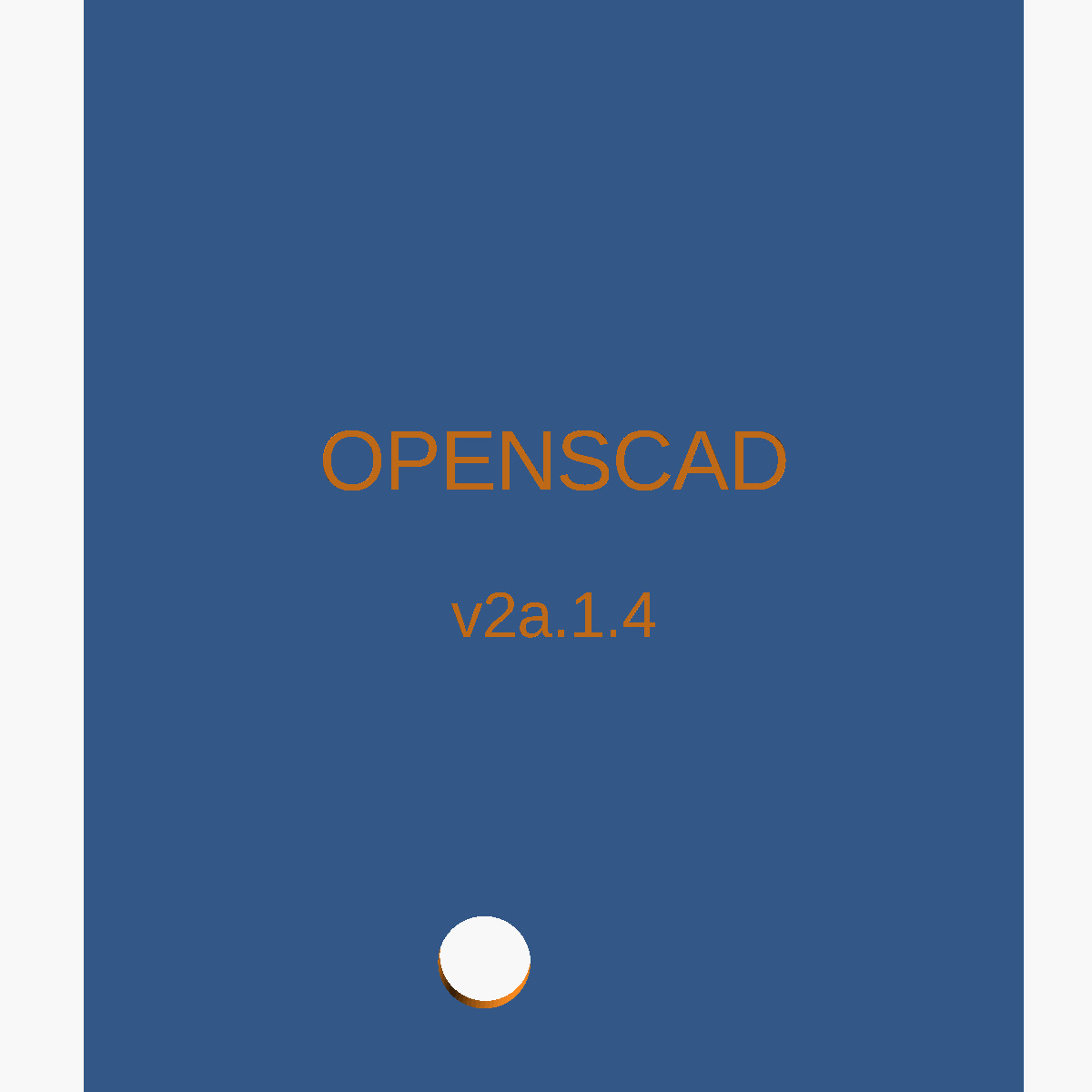

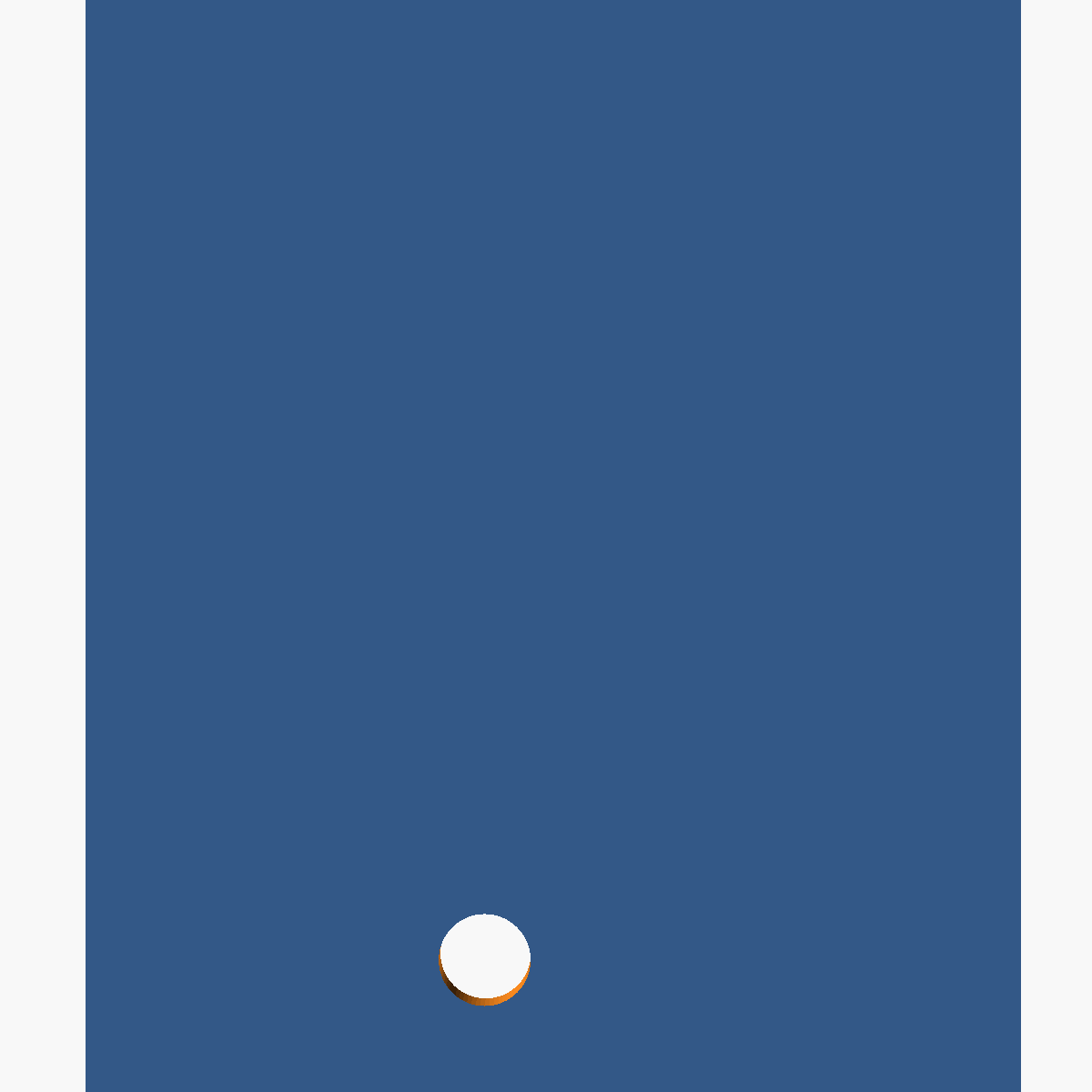

Lid377 KB

drag to orbit · scroll or pinch to zoom

Specs & BOM

ParameterValueUnit
Envelope63 × 101 × 41mm
↓ Print plate (.3mf) · all parts

CAD-based product images

AI-finished images of rendered CAD geometry; not a physical print or fit test.
