Acoustic Box — Speaker Chamber

radio_enclosure/phase2b_acoustic_box-v2.3

Build the acoustic chamber that houses the Gikfun 2" 4Ω 3W speaker and mates to the Phase 2a sidecar.

activev2.3
v2.3 adds the anti-warp lid chamfer + a JST-XH speaker-disconnect socket in the mating wall; software-modeled, awaiting print test. One of two radio shells (sibling: sidecar), both at product v2.3.

Full assembly (acoustic box + lid + speaker)894 KB

drag to orbit · scroll or pinch to zoom
composed of: acoustic box, acoustic lid, speaker

Full radio (context — acoustic mated to sidecar)3.6 MB

drag to orbit · scroll or pinch to zoom
composed of: acoustic box, acoustic lid, speaker, sidecar, lid, carrier-PCB

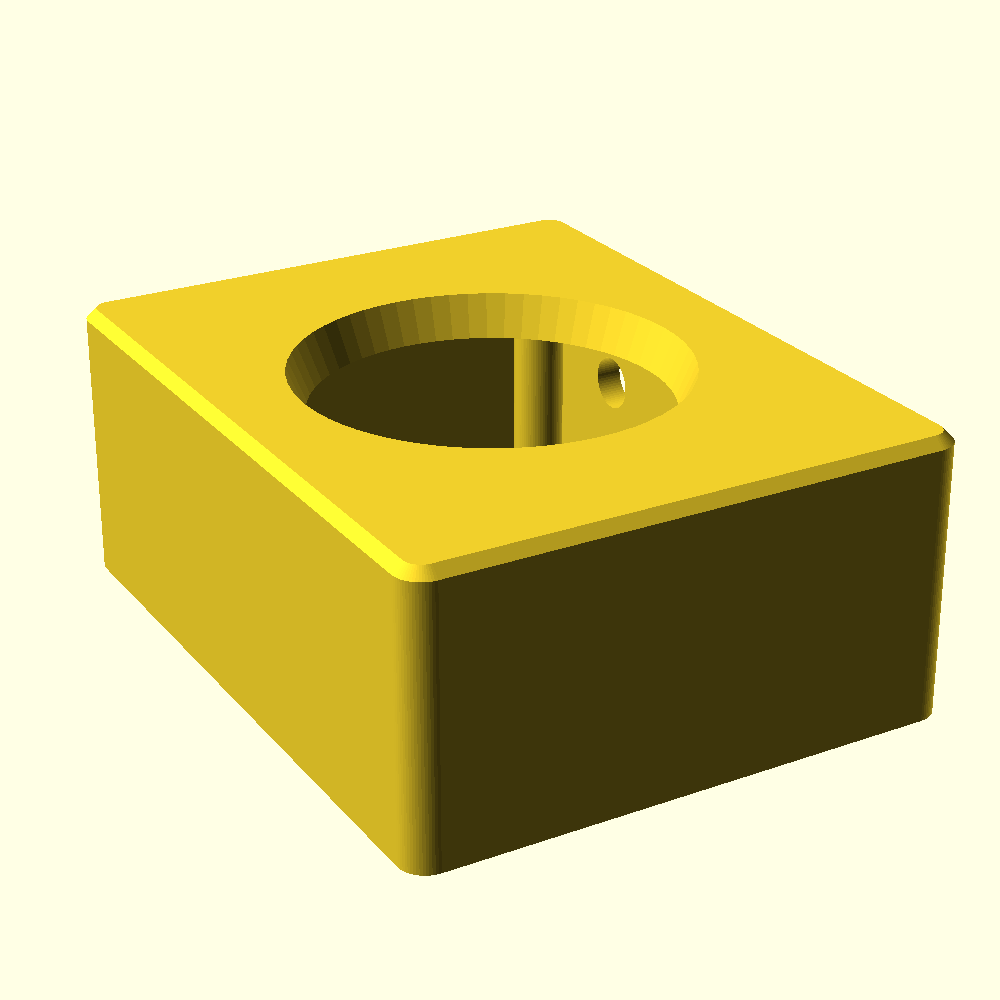

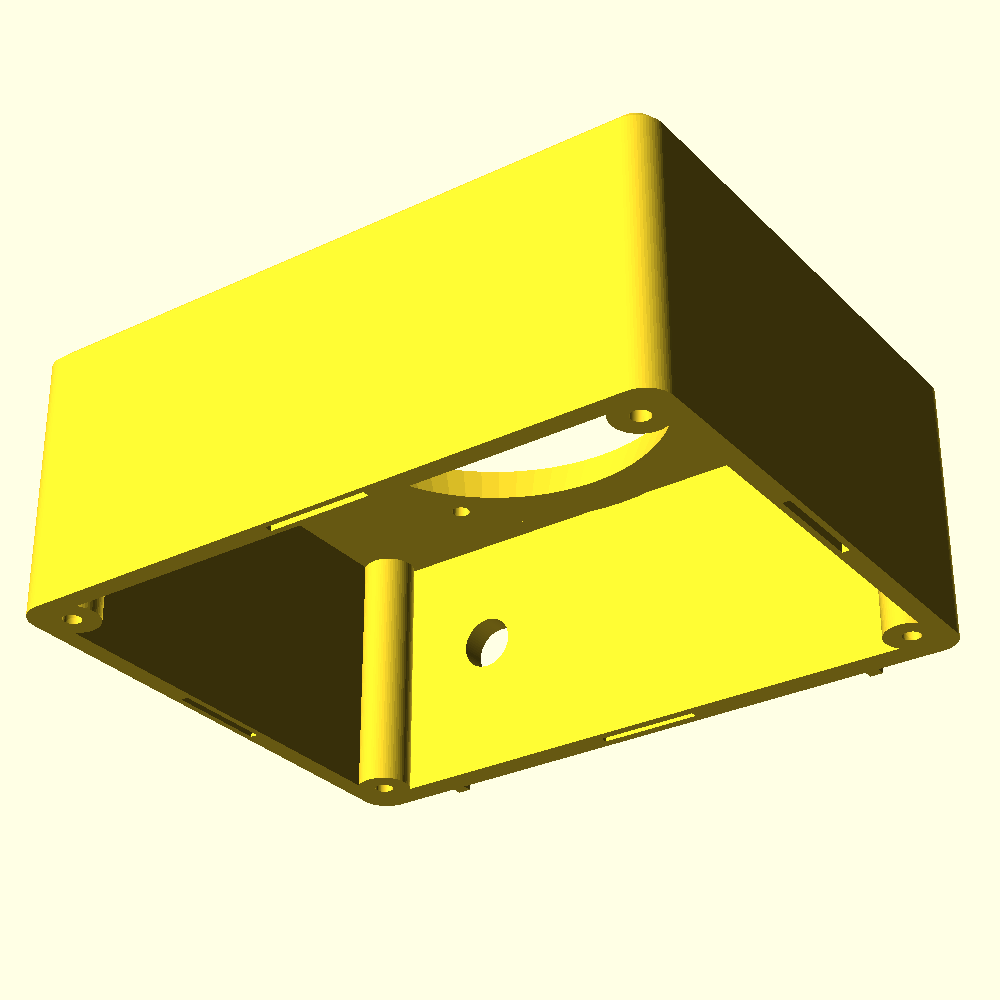

Acoustic box482 KB

drag to orbit · scroll or pinch to zoom

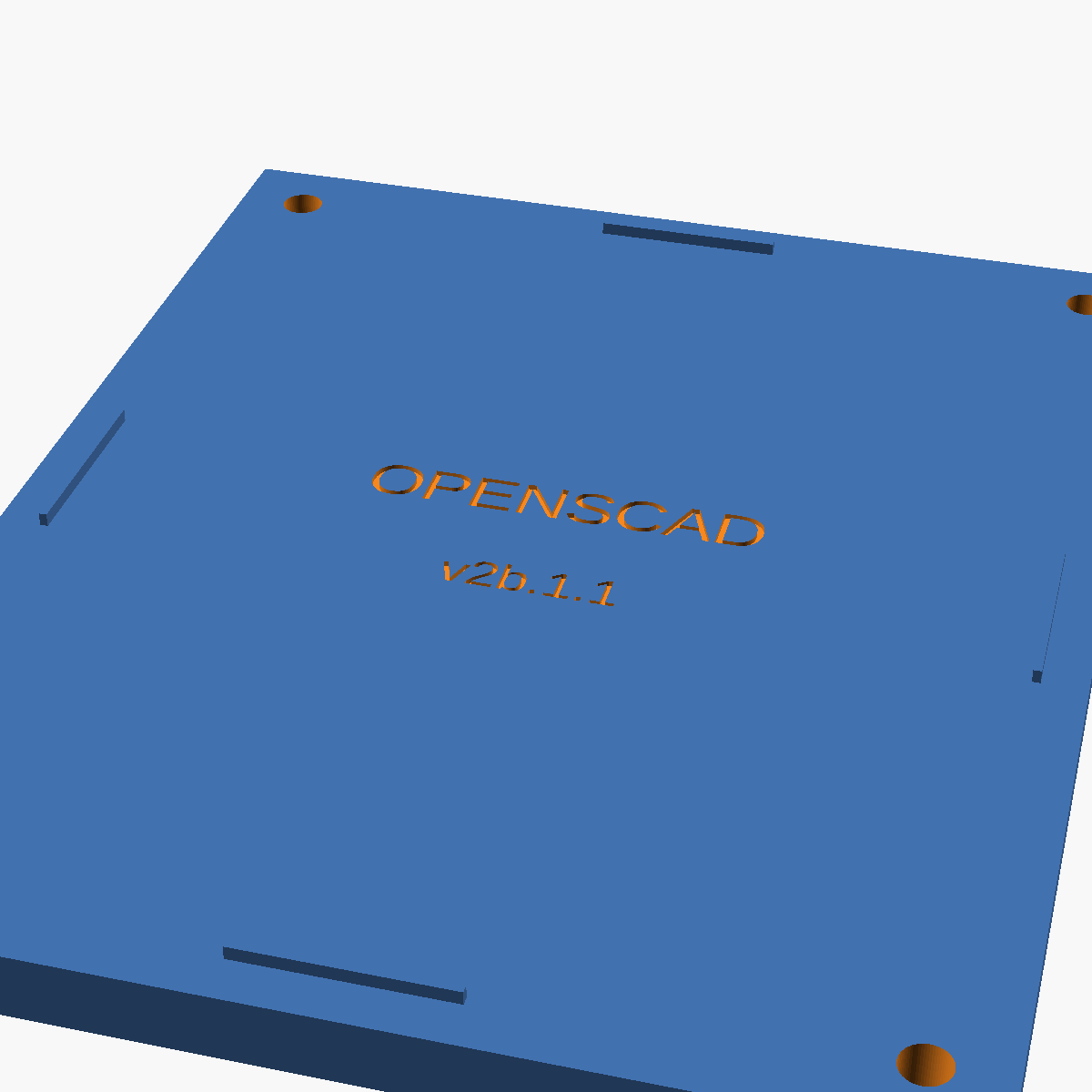

Acoustic lid364 KB

drag to orbit · scroll or pinch to zoom

Speaker (Gikfun 2" 4Ω 3W)47 KB

drag to orbit · scroll or pinch to zoom

Specs & BOM

ParameterValueUnit
Envelope82.5 × 101 × 41mm
↓ Print plate (.3mf) · all parts

CAD-based product images

AI-finished images of rendered CAD geometry; not a physical print or fit test.

Evidence

All evidence (10)
