USB-C Coupon

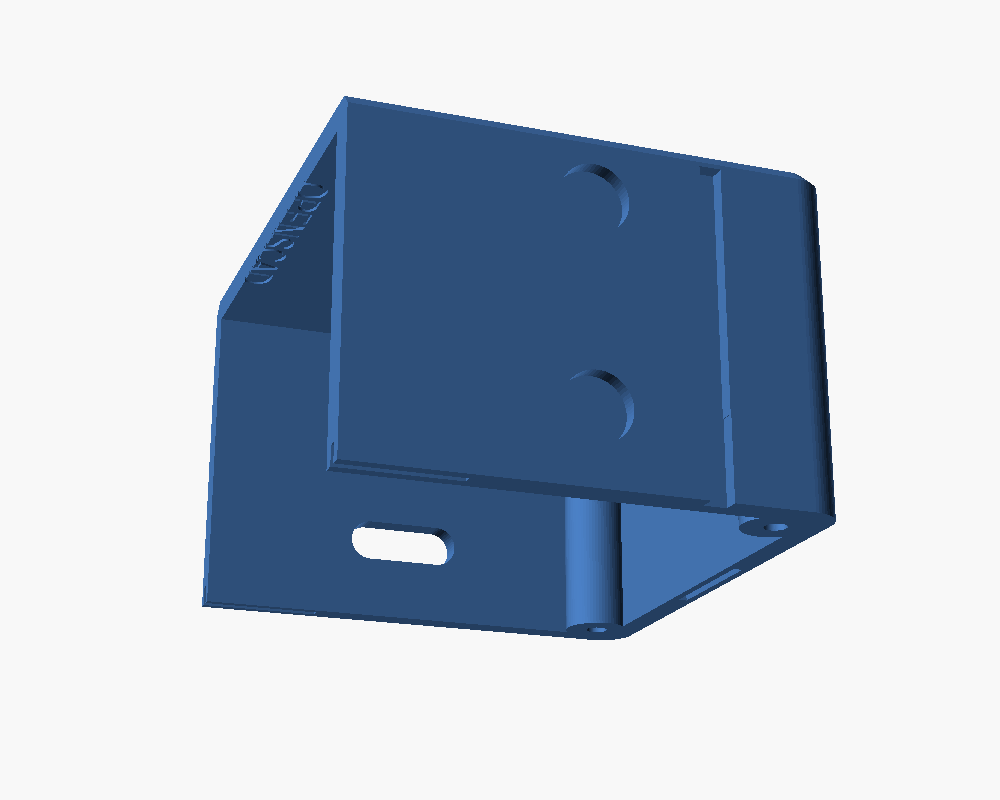

A small test coupon: an exact crop of the Phase 2a sidecar (v2.2) around the USB-C cutout + the top two carrier-PCB mount bosses.
v2
active
quick test print to verify USB-C alignment before reprinting the sidecar
Specs & BOM
Envelope
58 × 37 × 41 mm
↓ Print plate (.3mf) — all parts
USB-C coupon (sidecar crop)
952 KB
