Rail Stand

rail-stand-v0.2.1

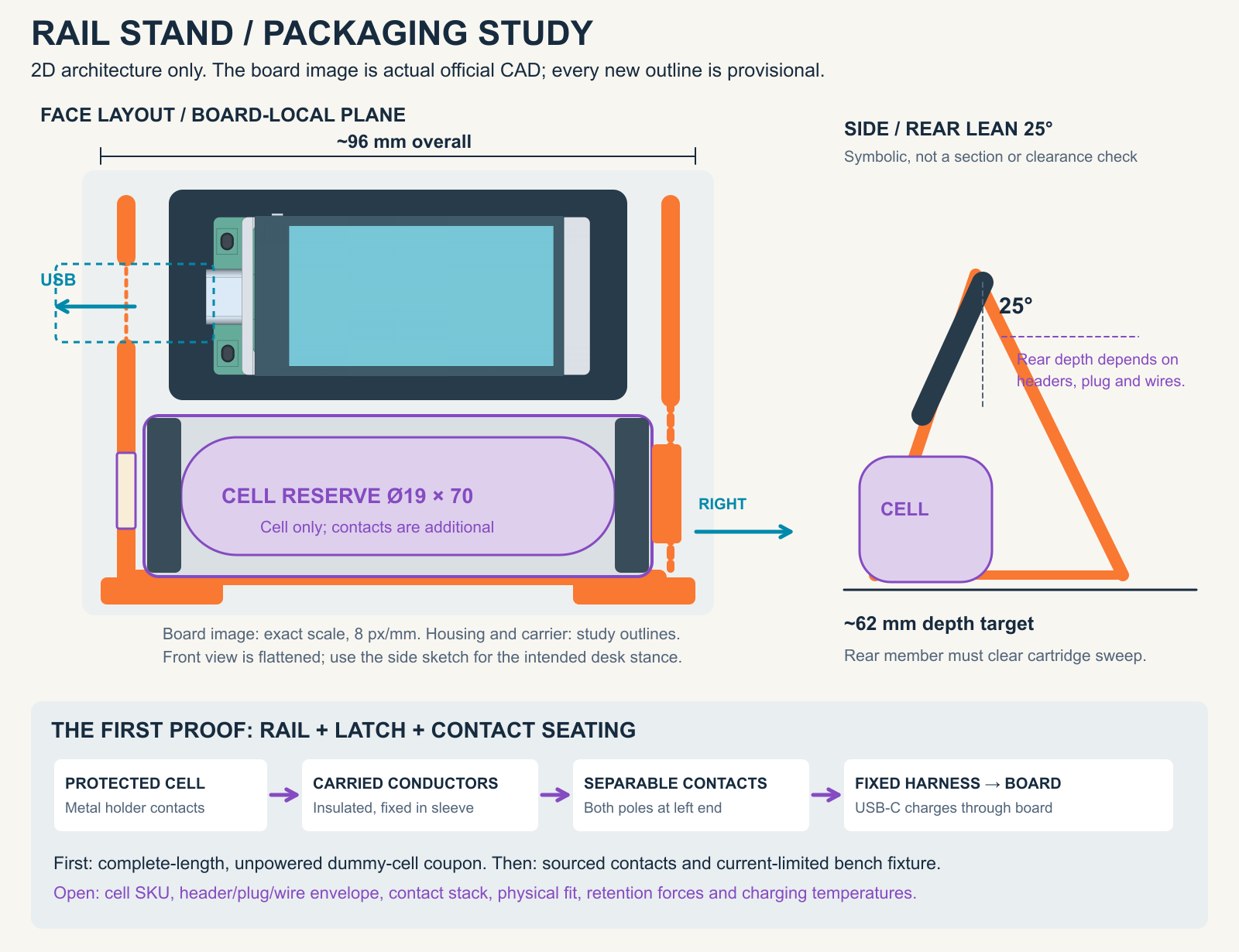

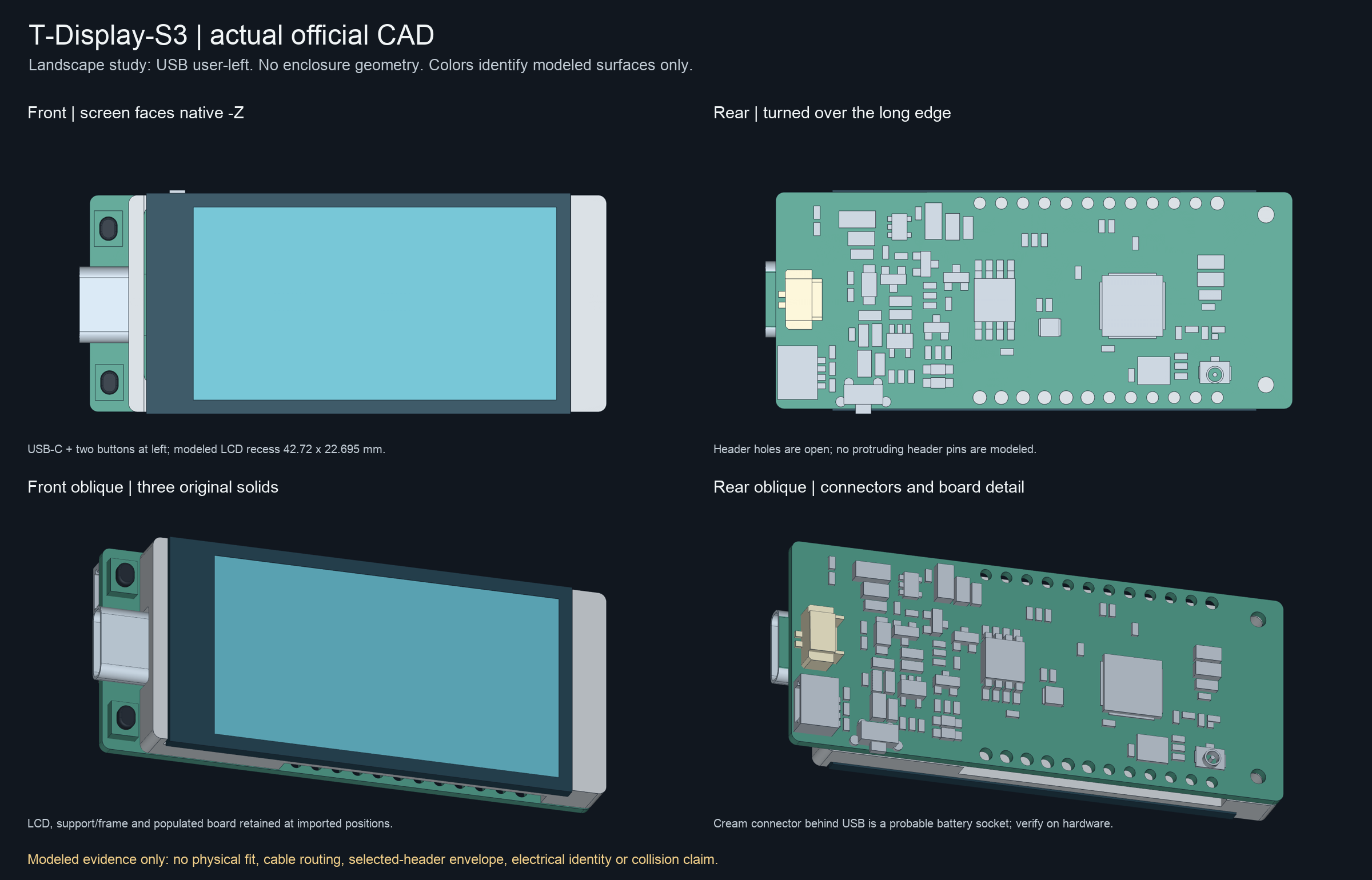

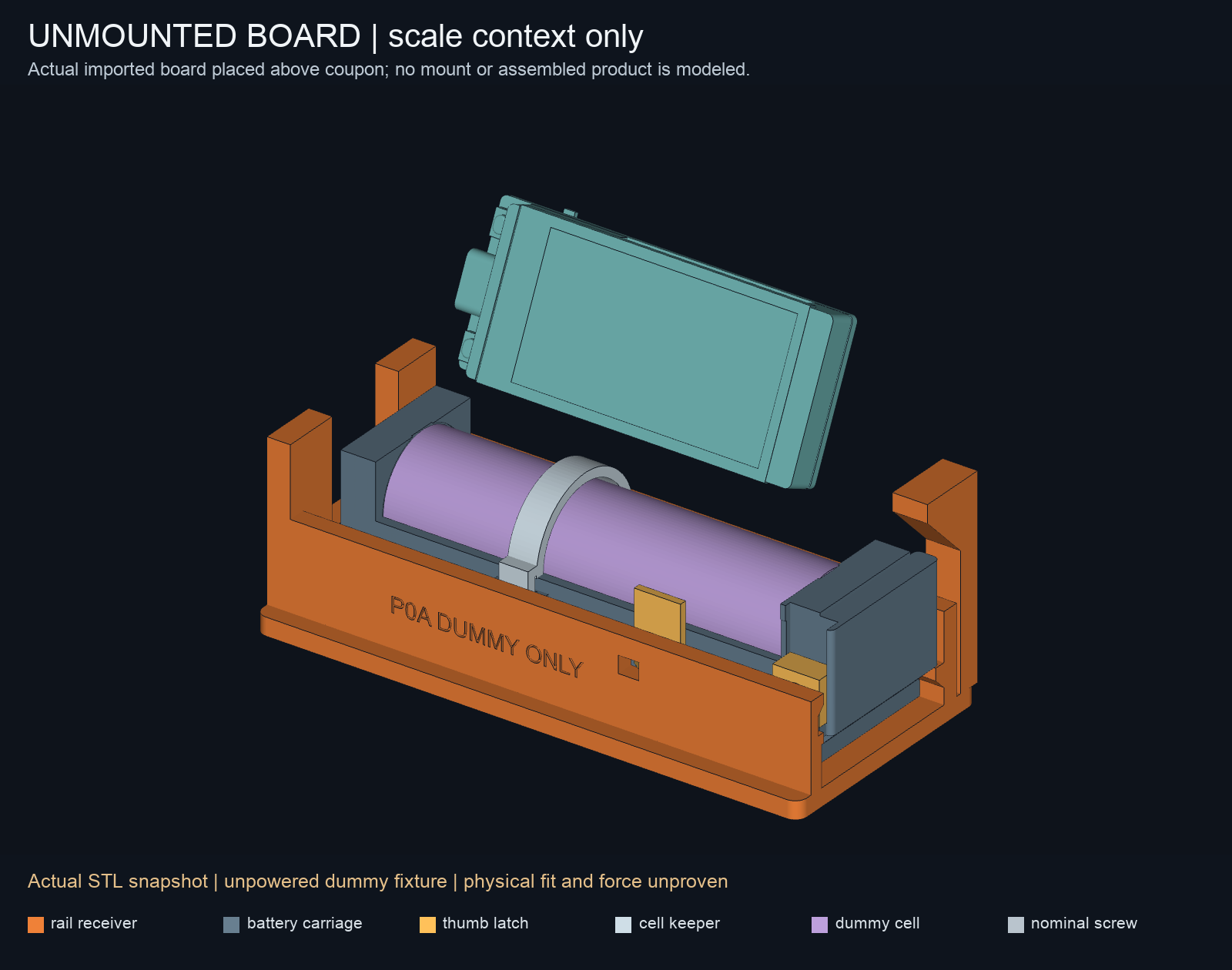

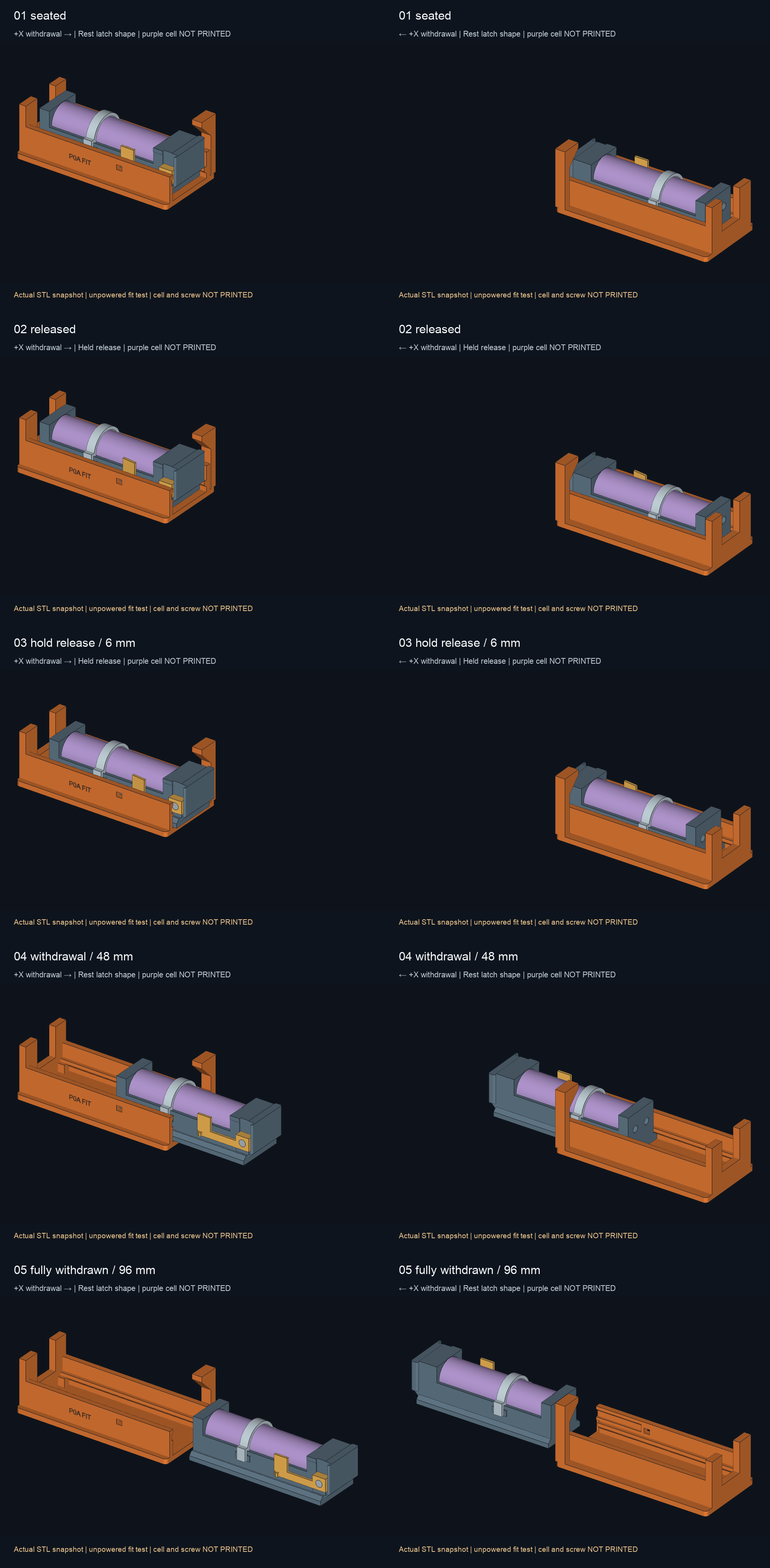

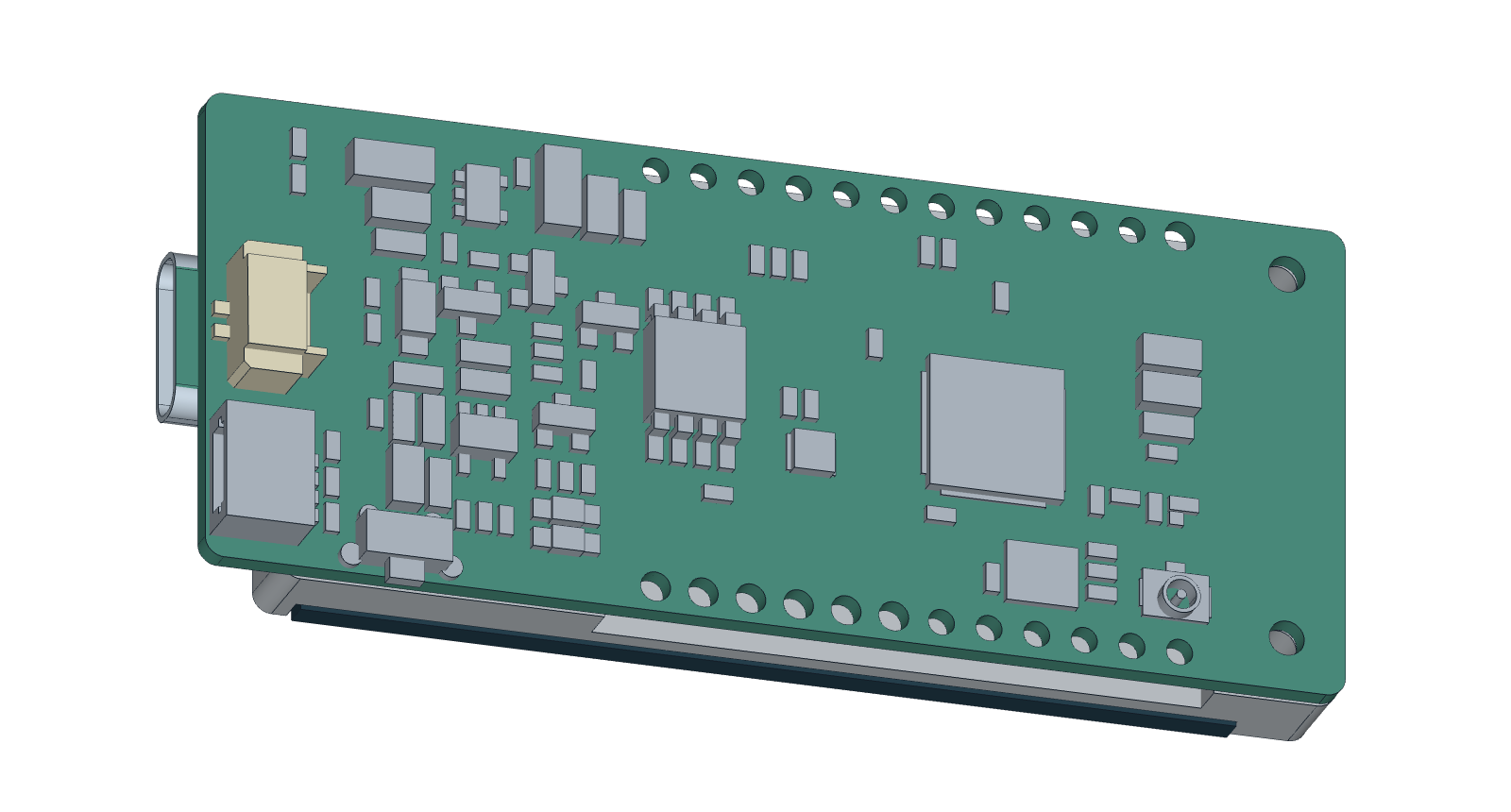

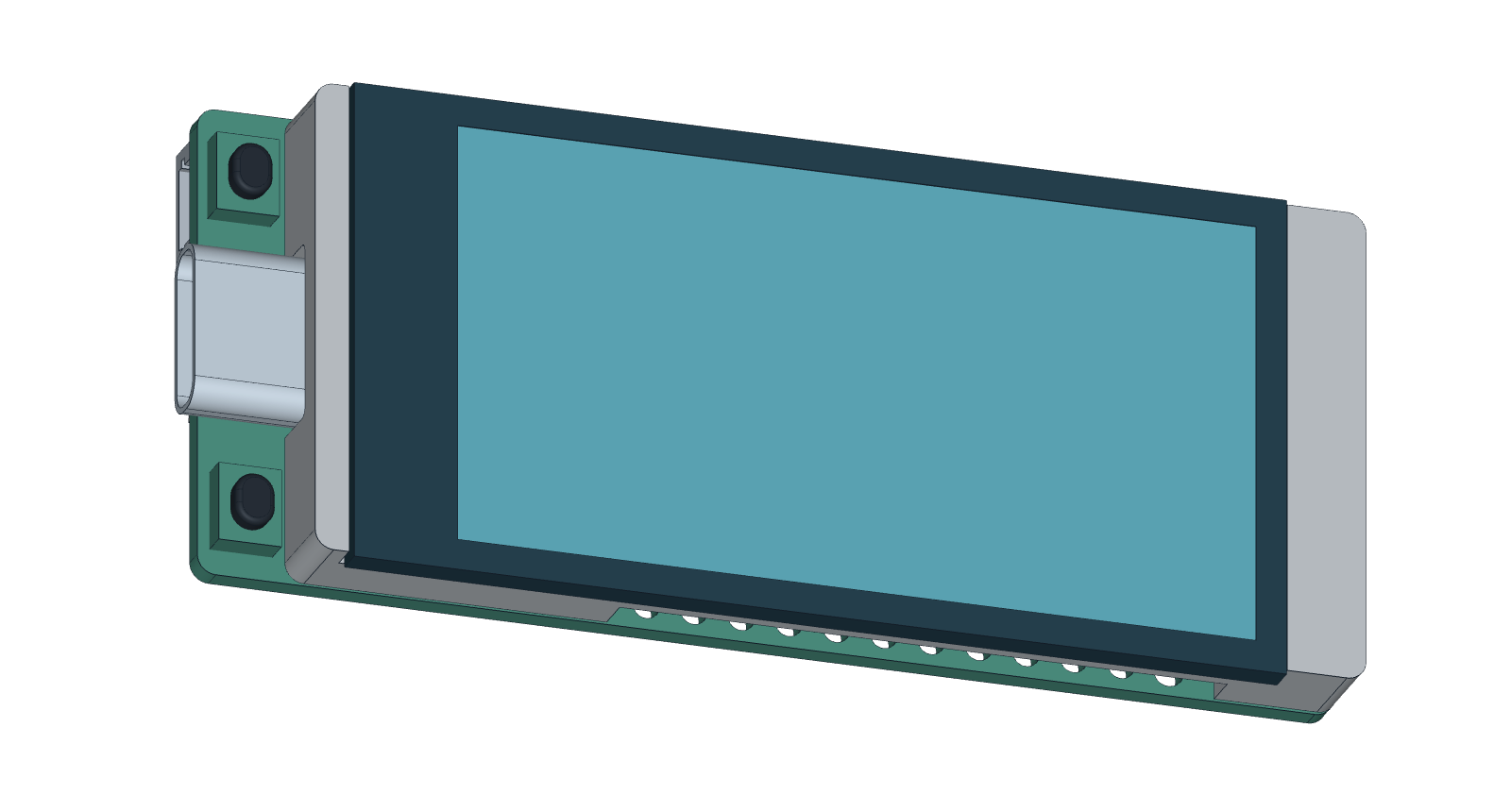

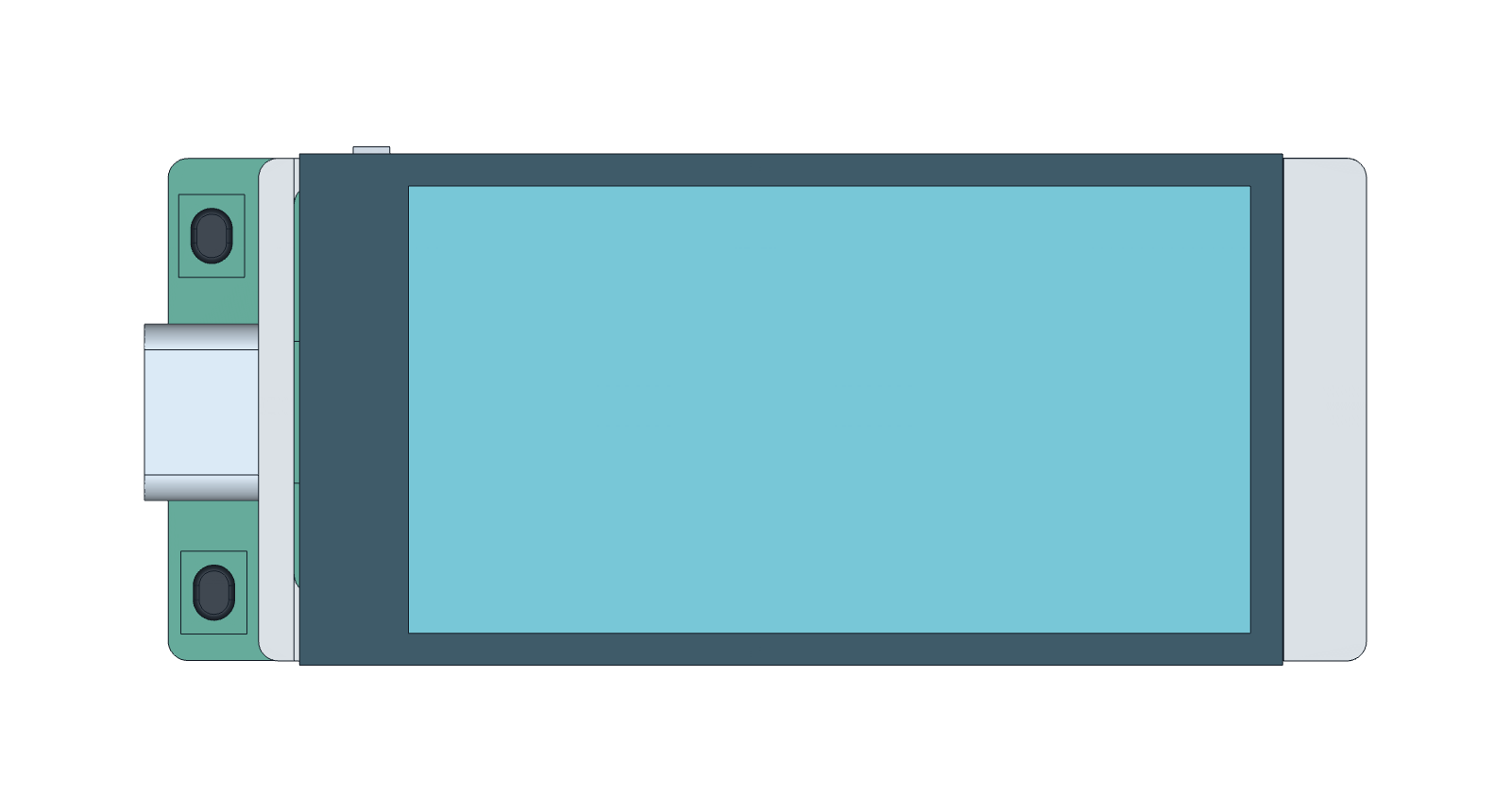

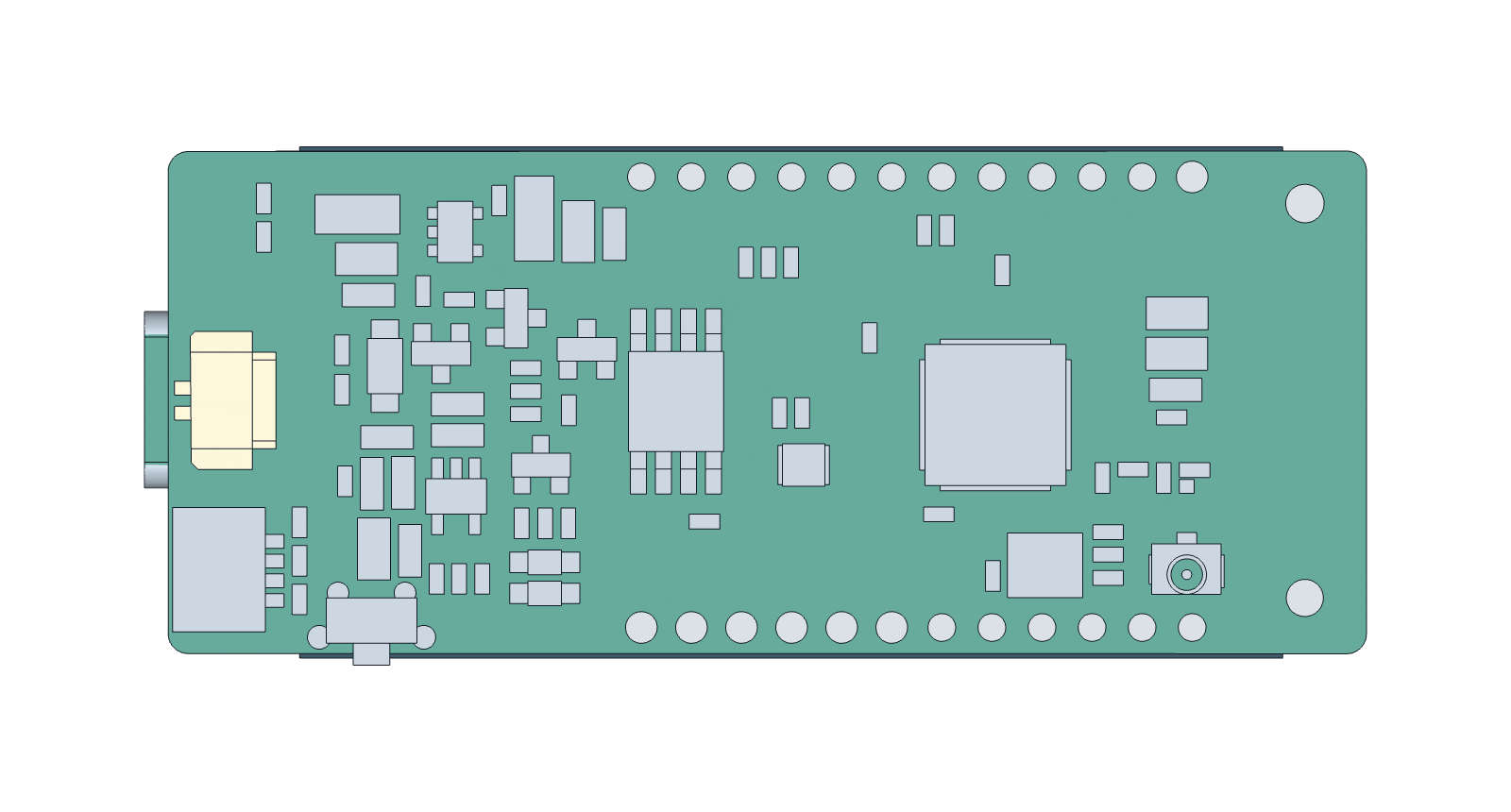

A desk stand for a LILYGO T-Display-S3 with a battery cartridge that slides out sideways.

v0.2.1

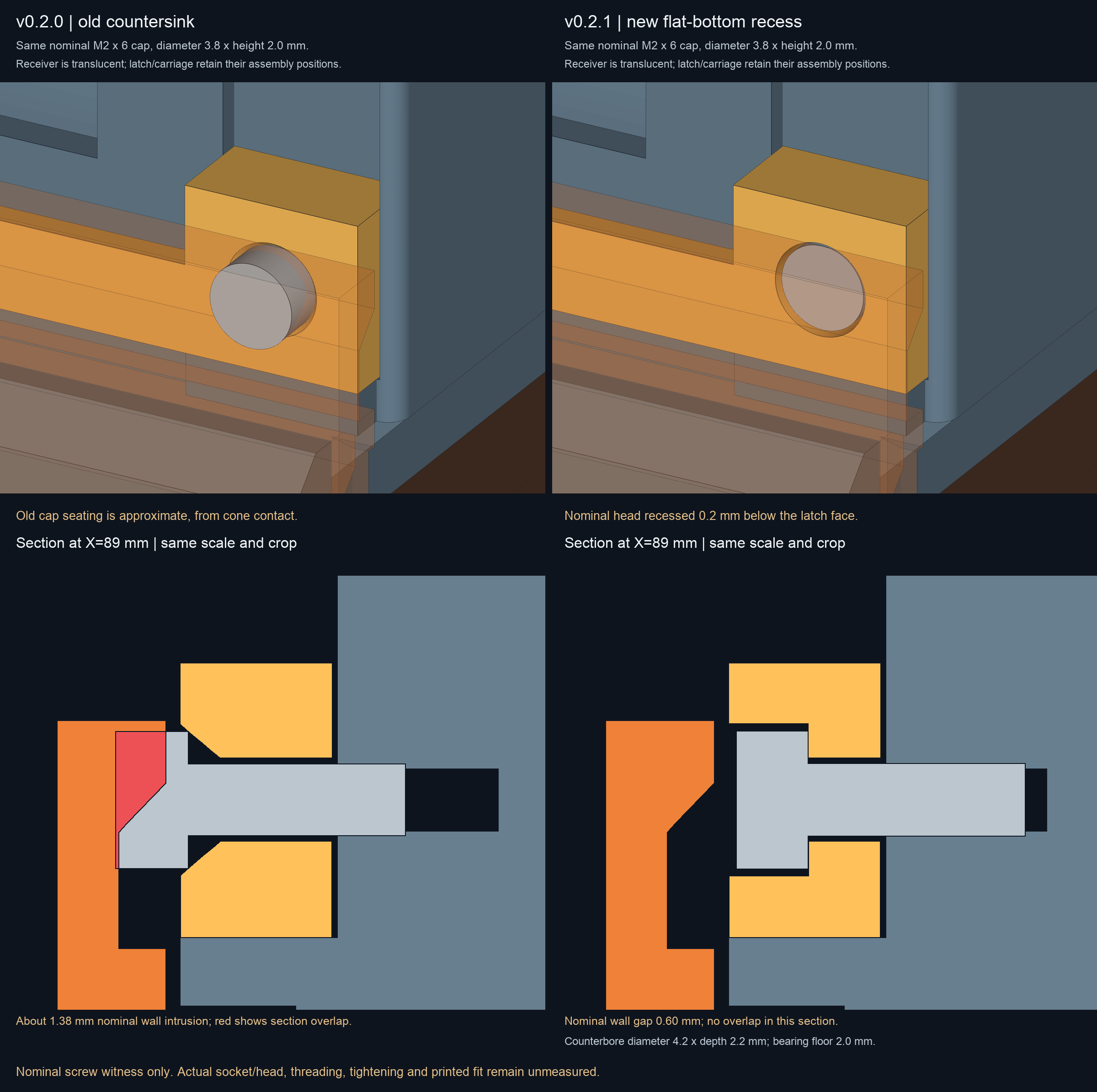

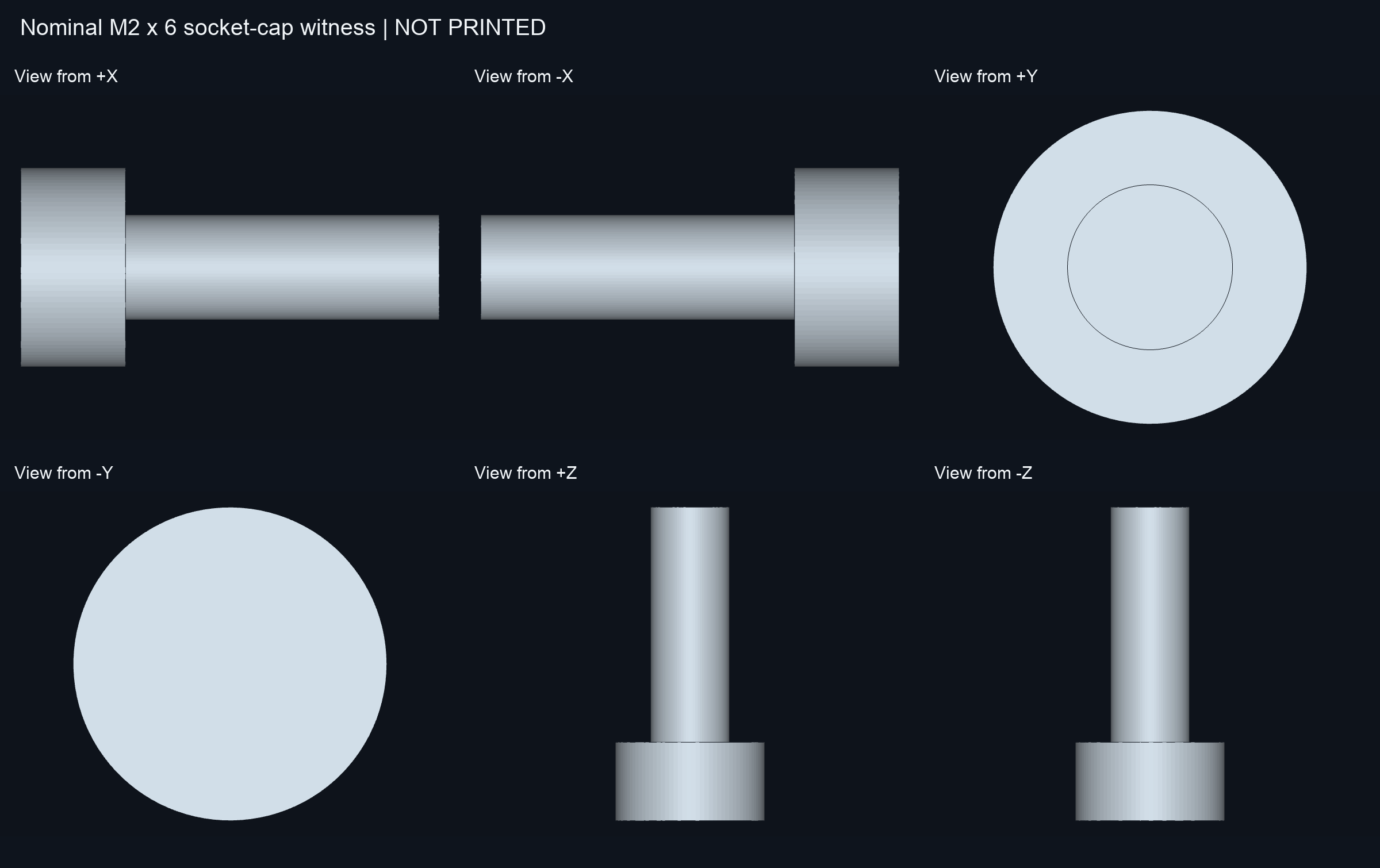

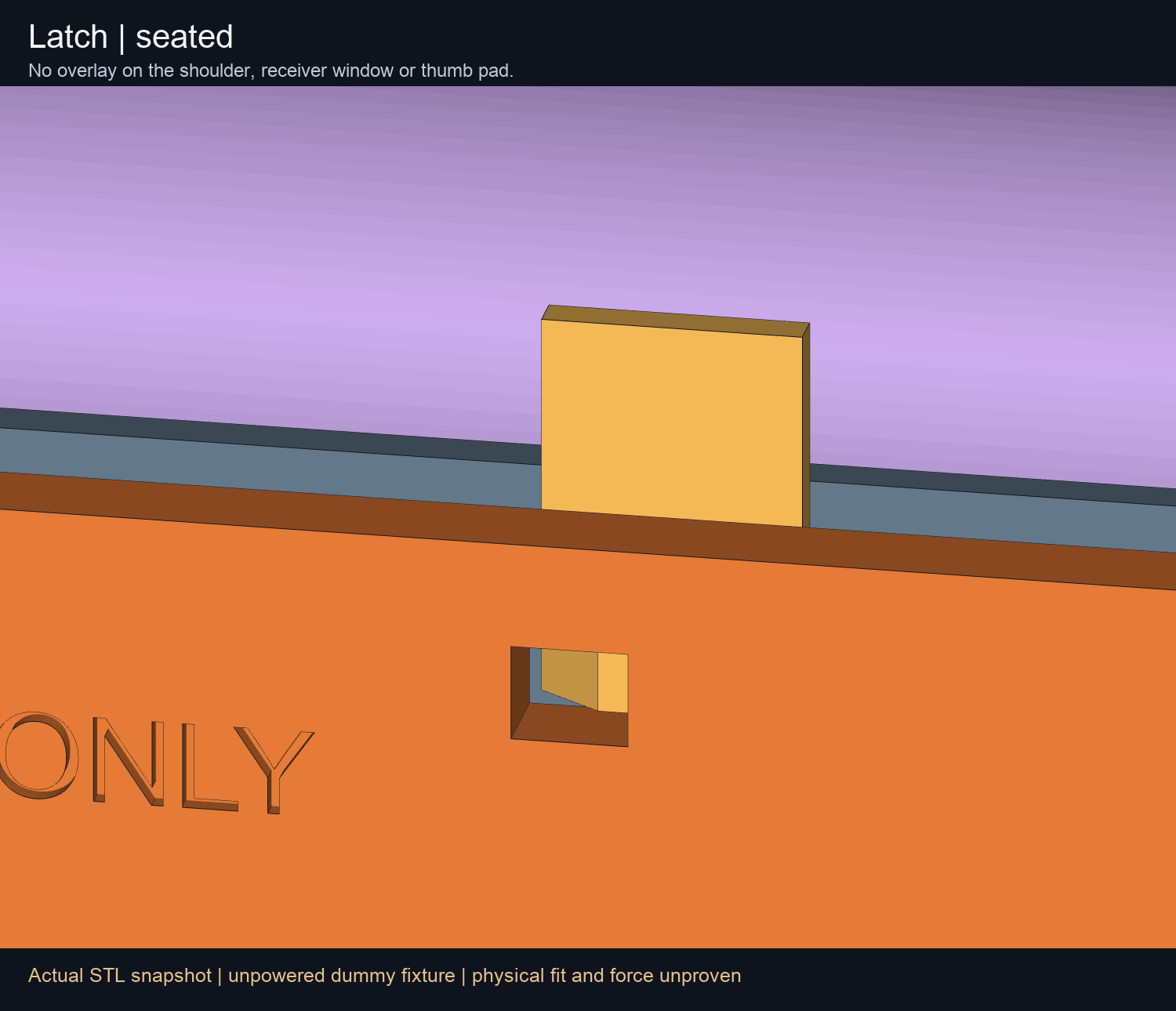

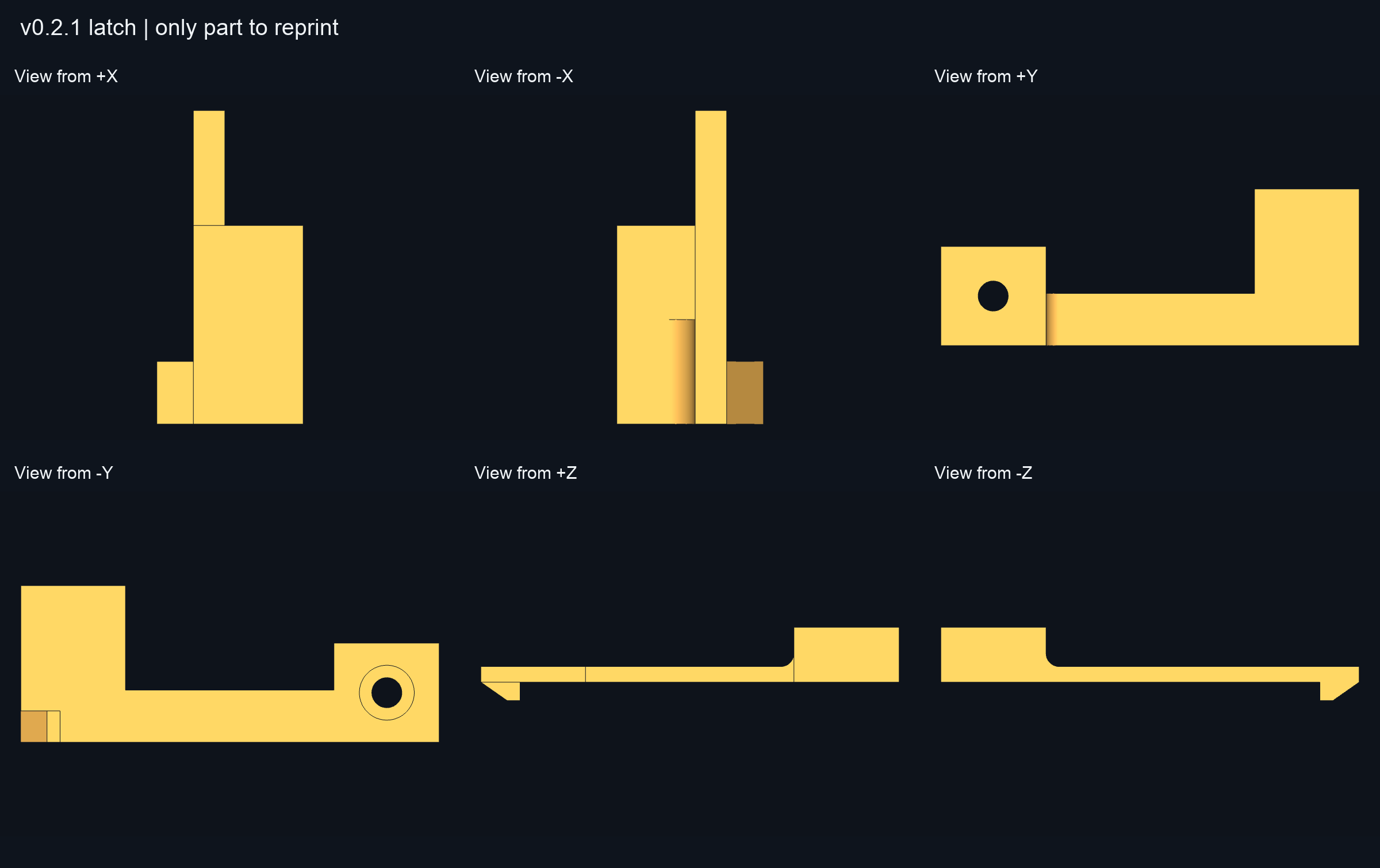

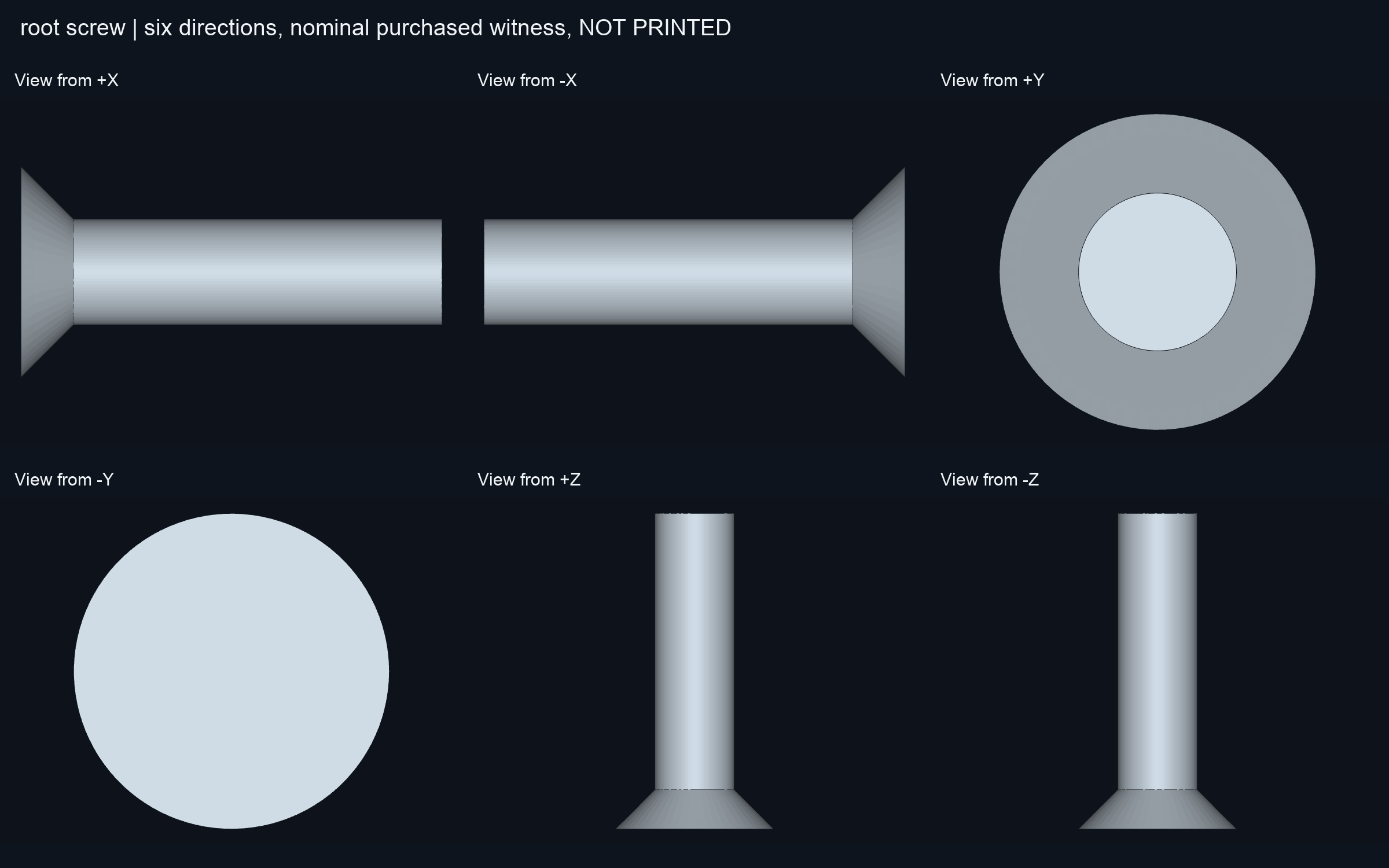

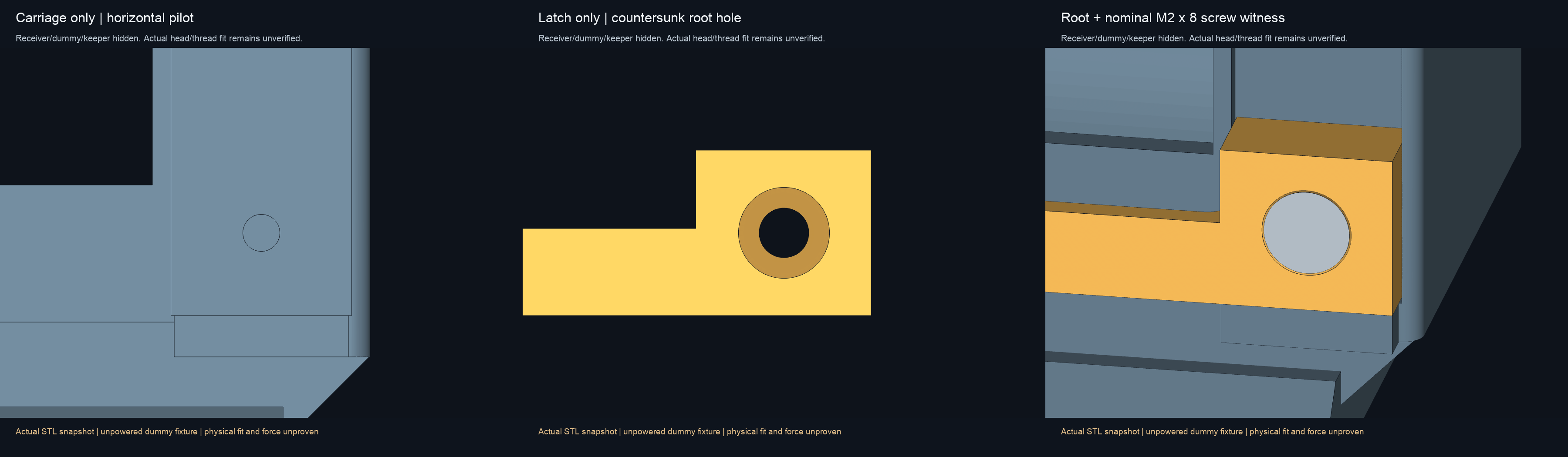

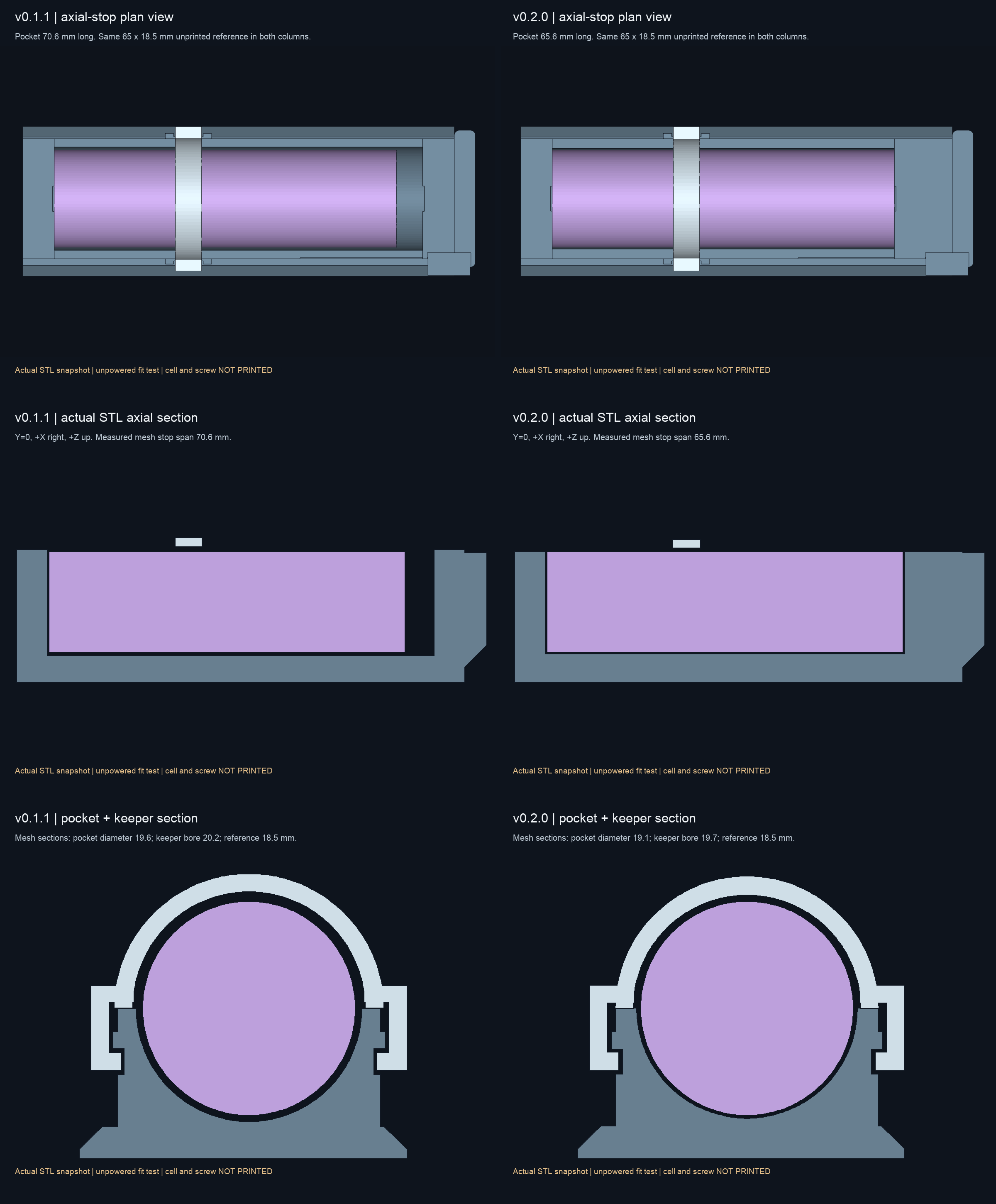

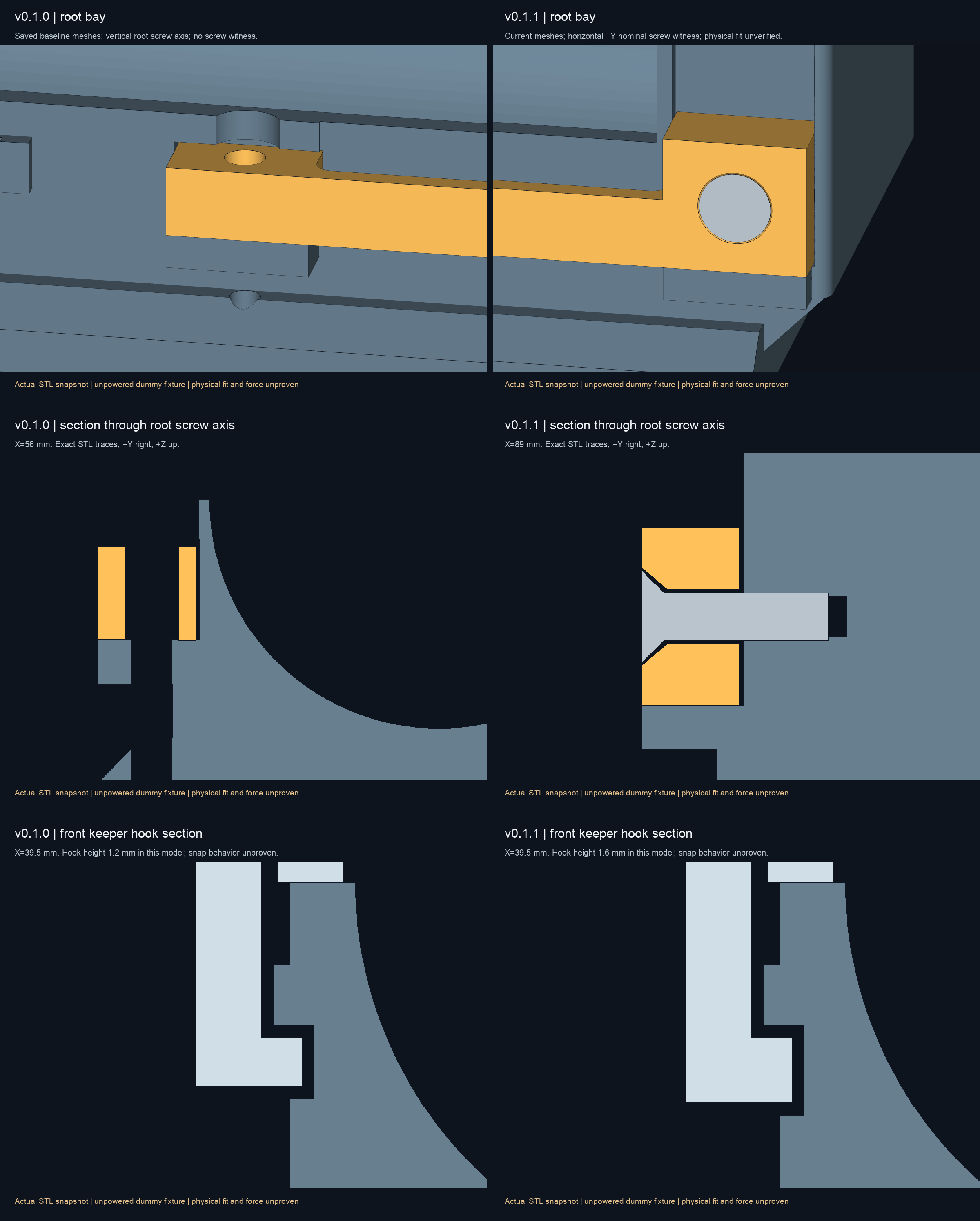

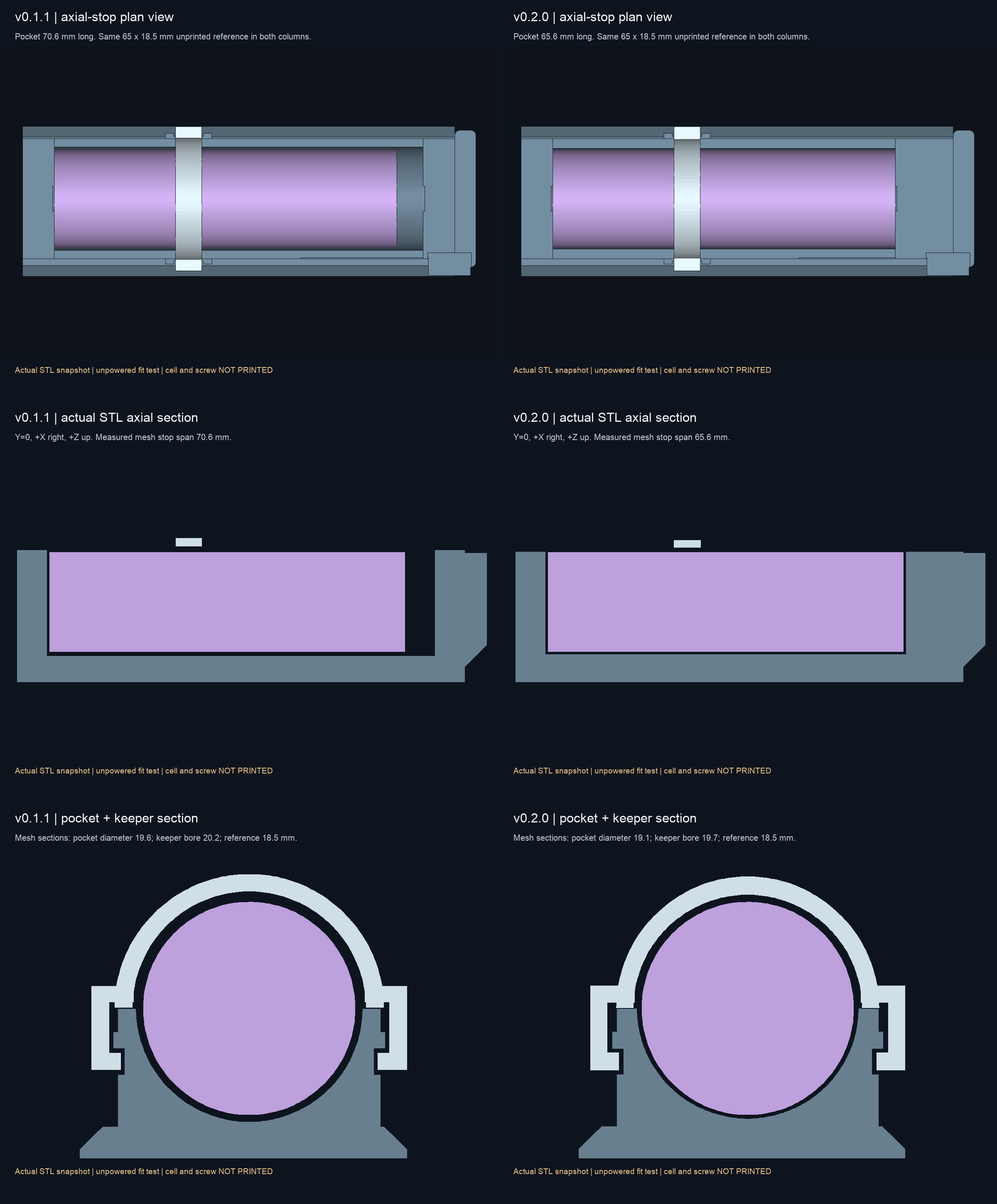

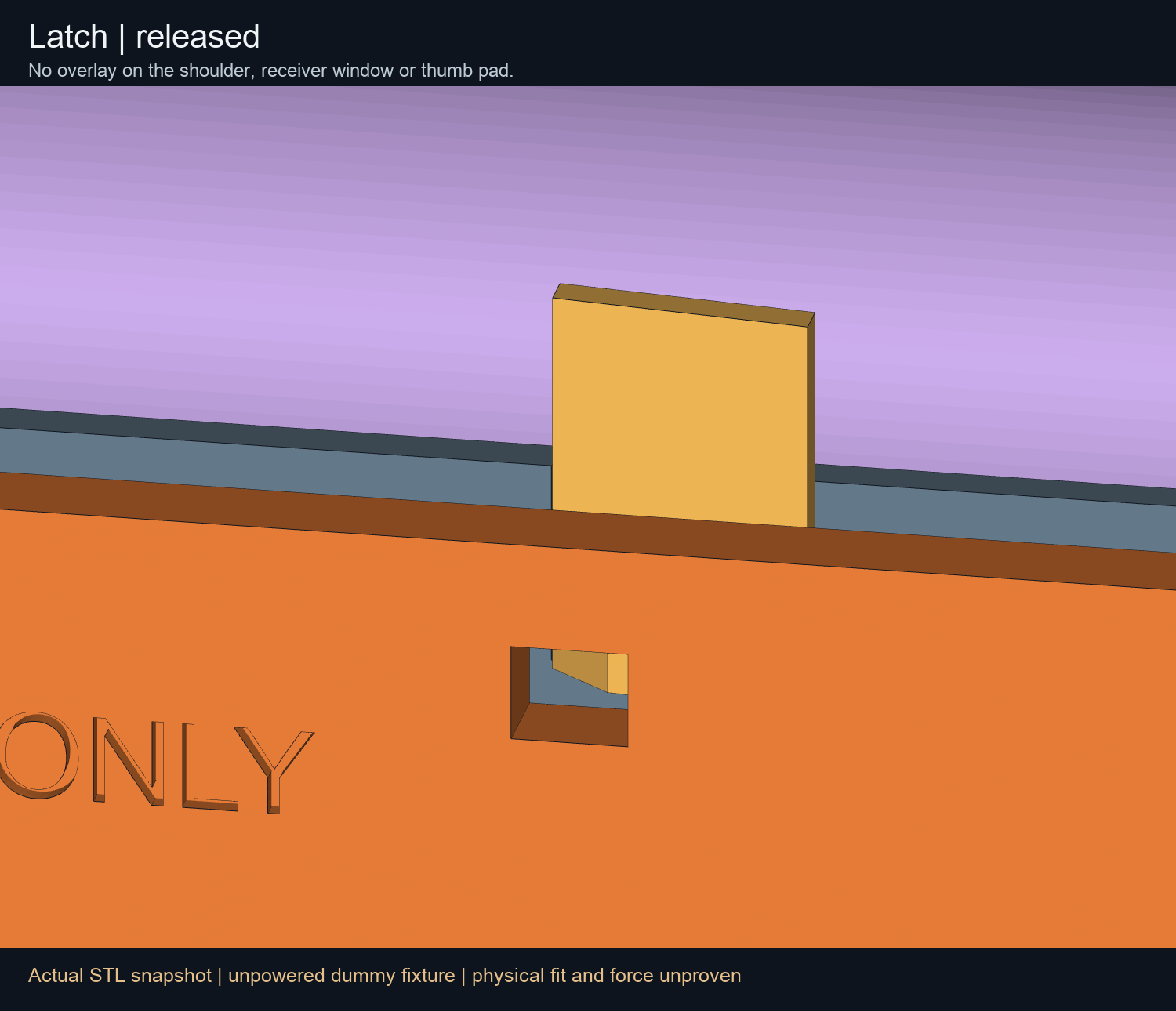

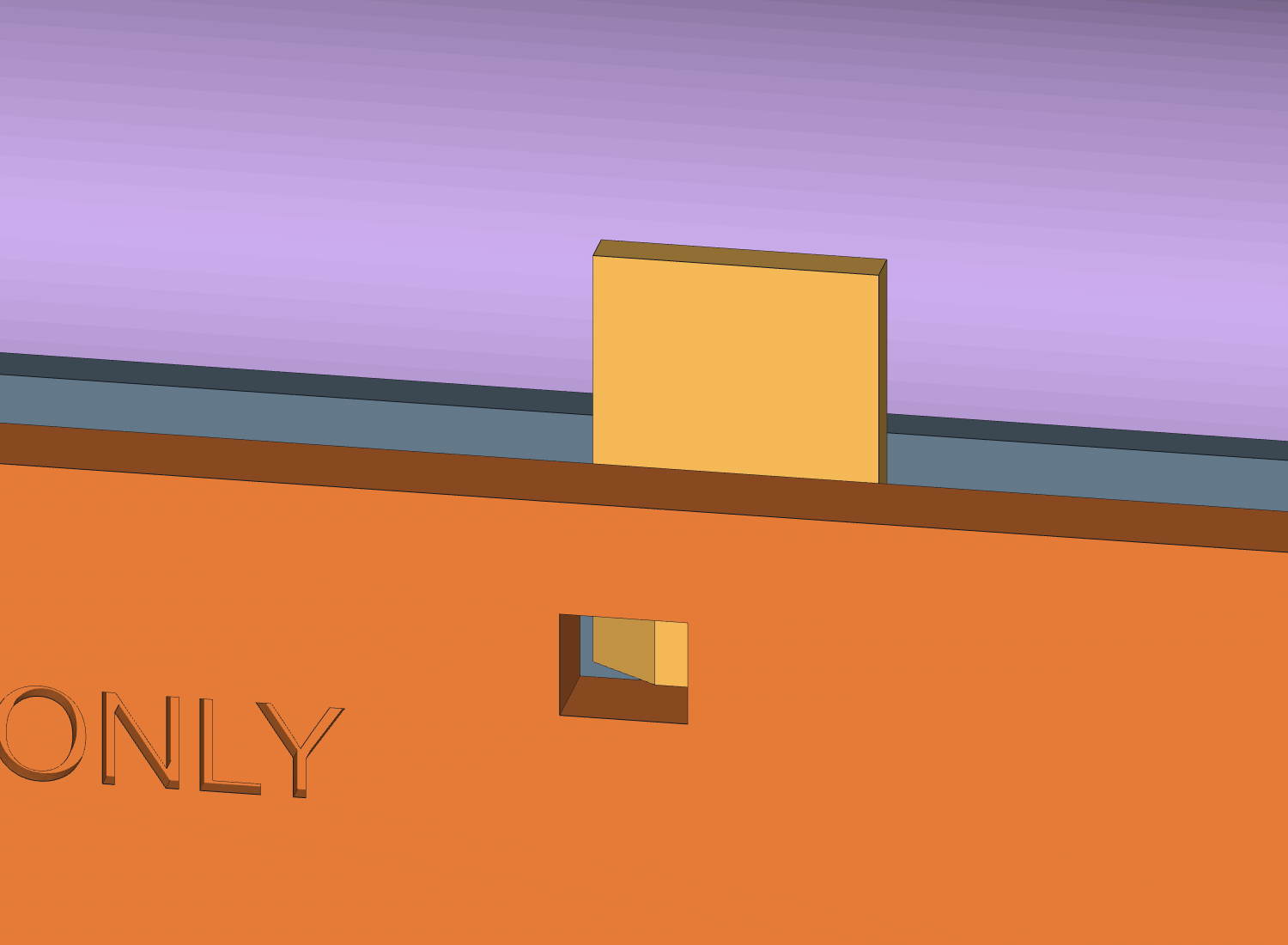

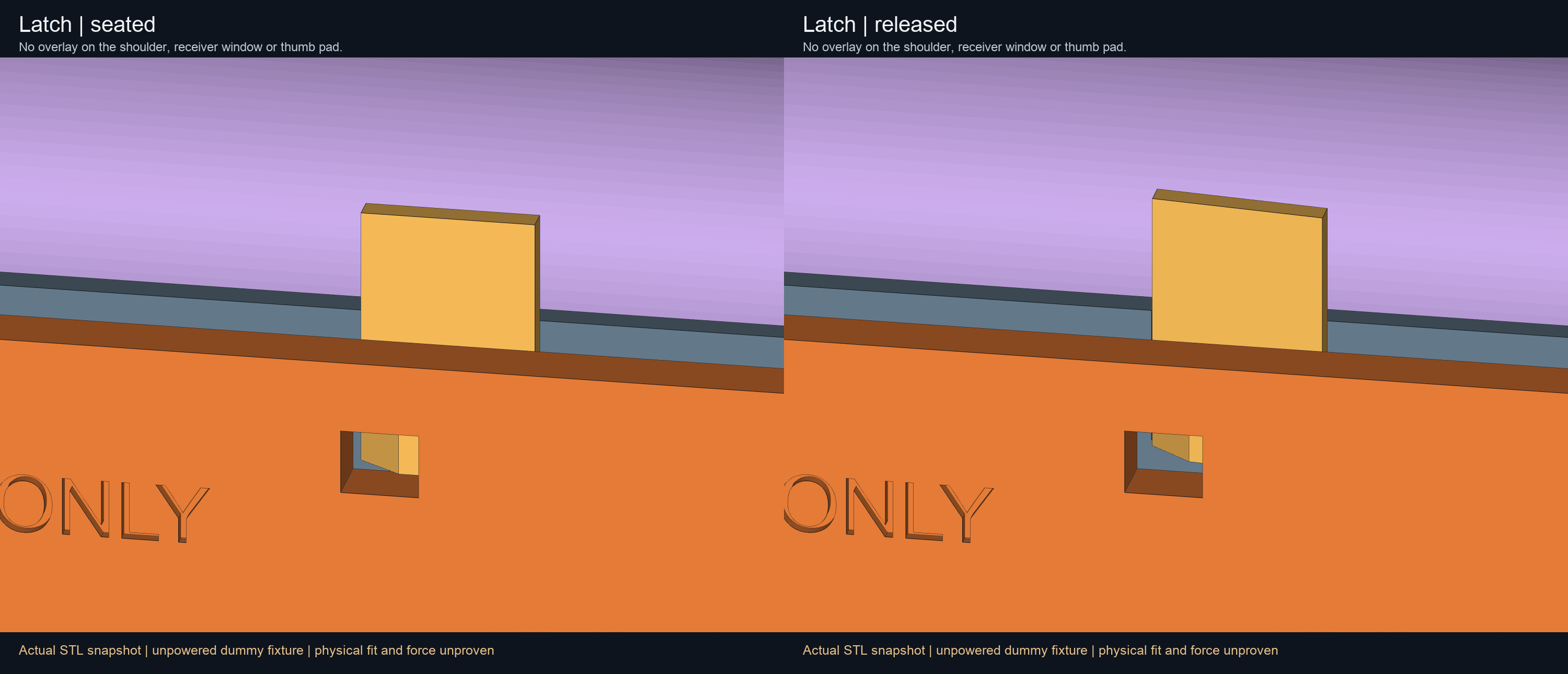

v0.2.1 M2x6 socket-cap latch; reprint latch only, reuse v0.2.0 receiver/carriage/keeper; physical fit/electrics unverified

v0.2.1 socket-head latch replacement335 KB

drag to orbit · scroll or pinch to zoom

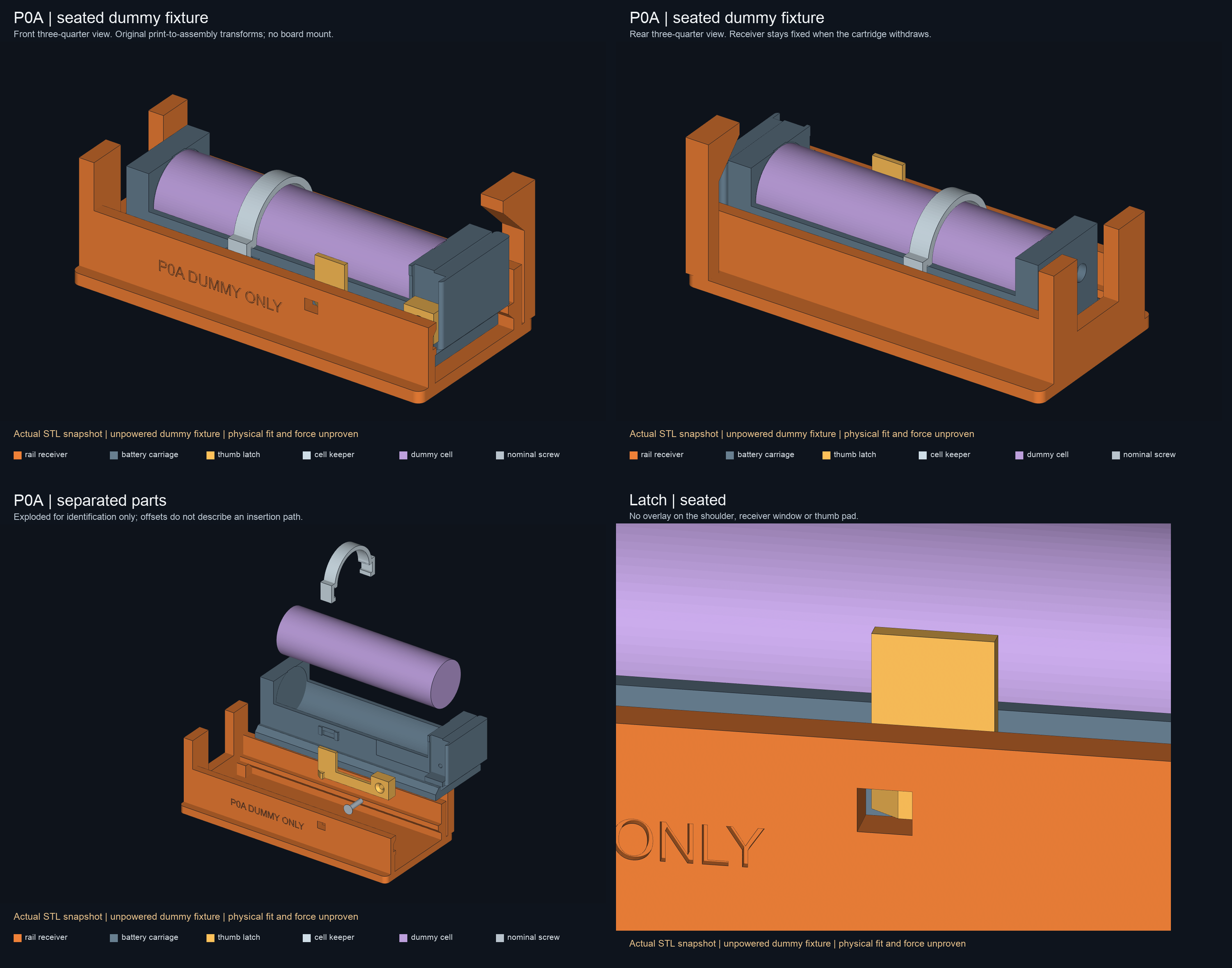

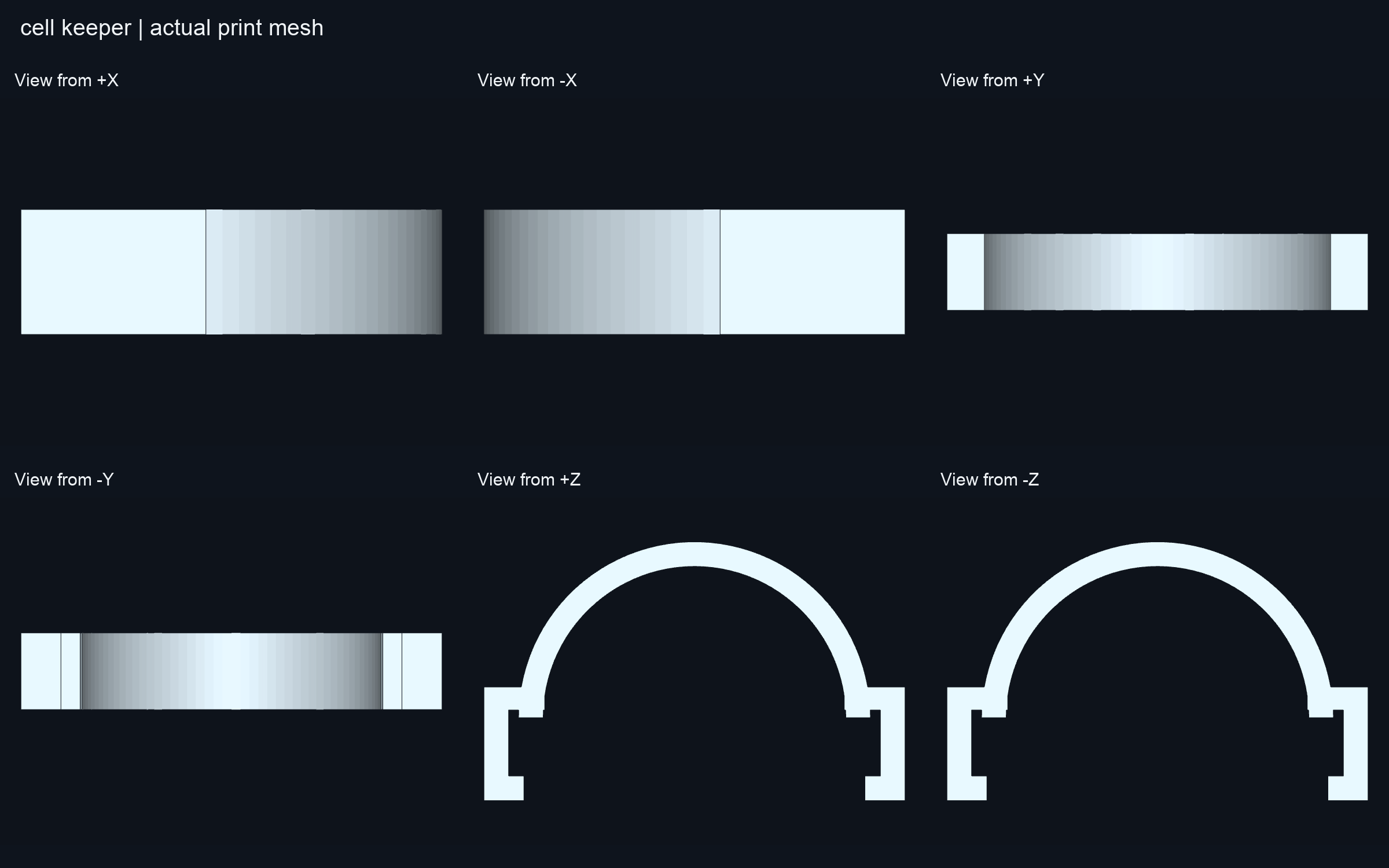

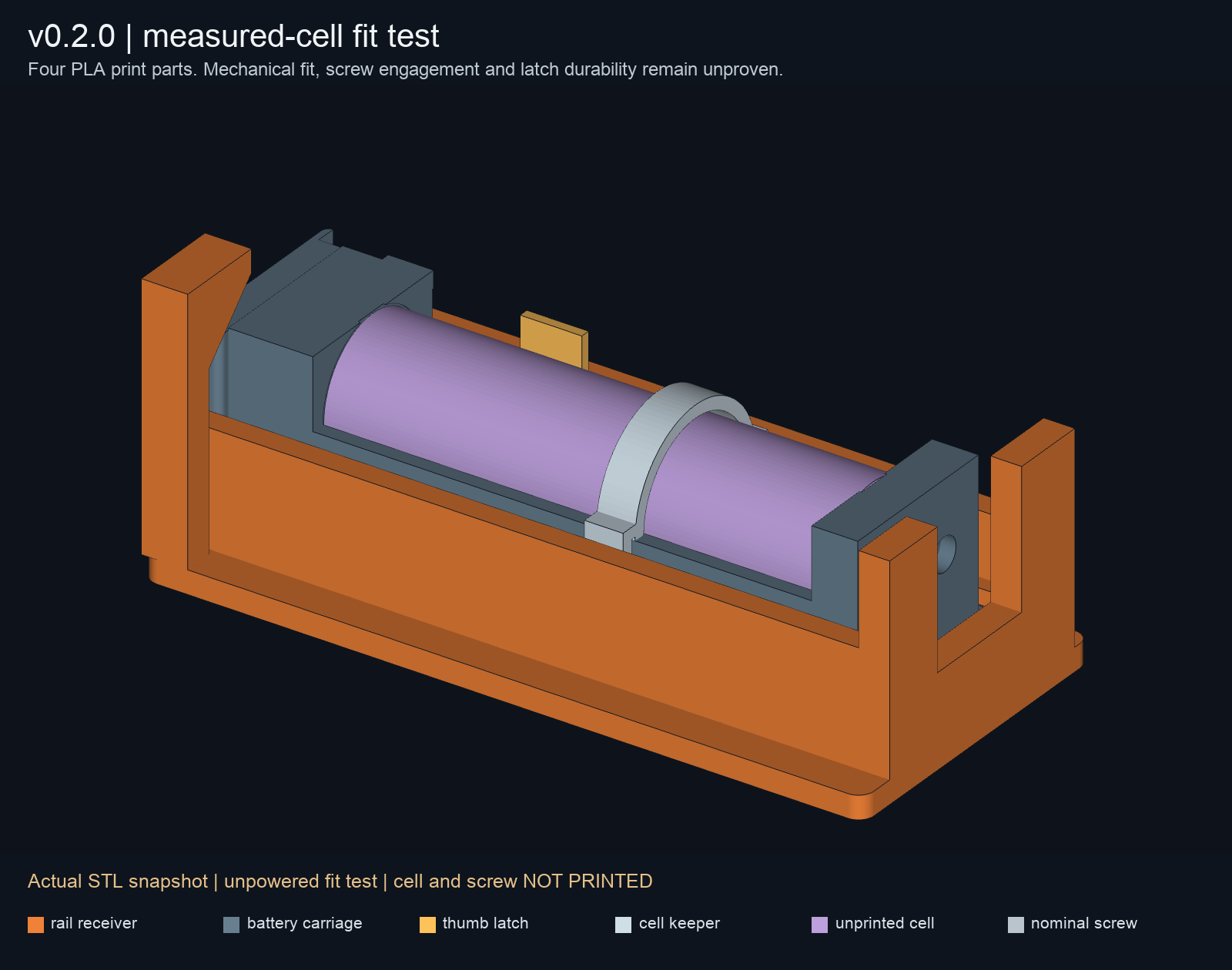

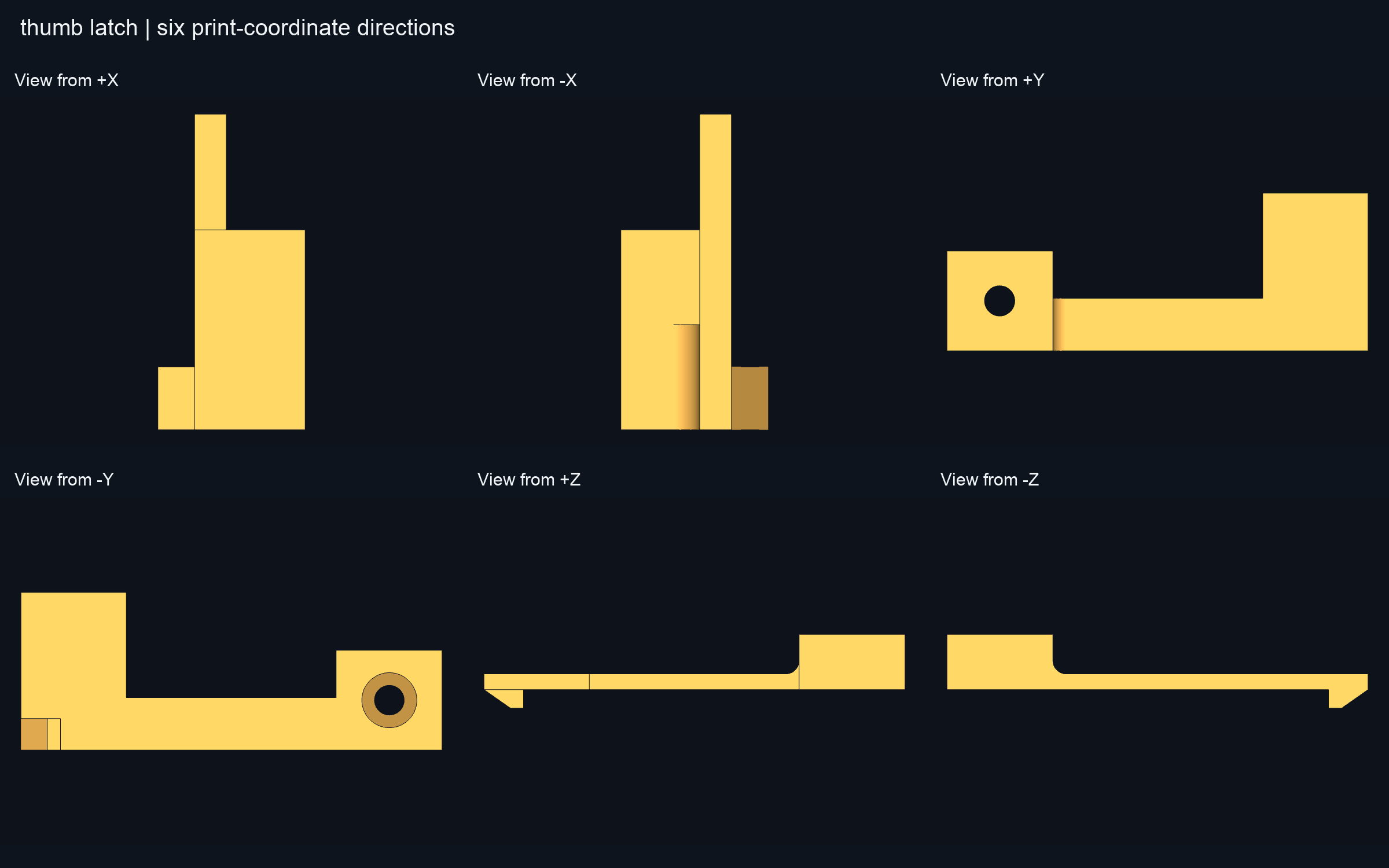

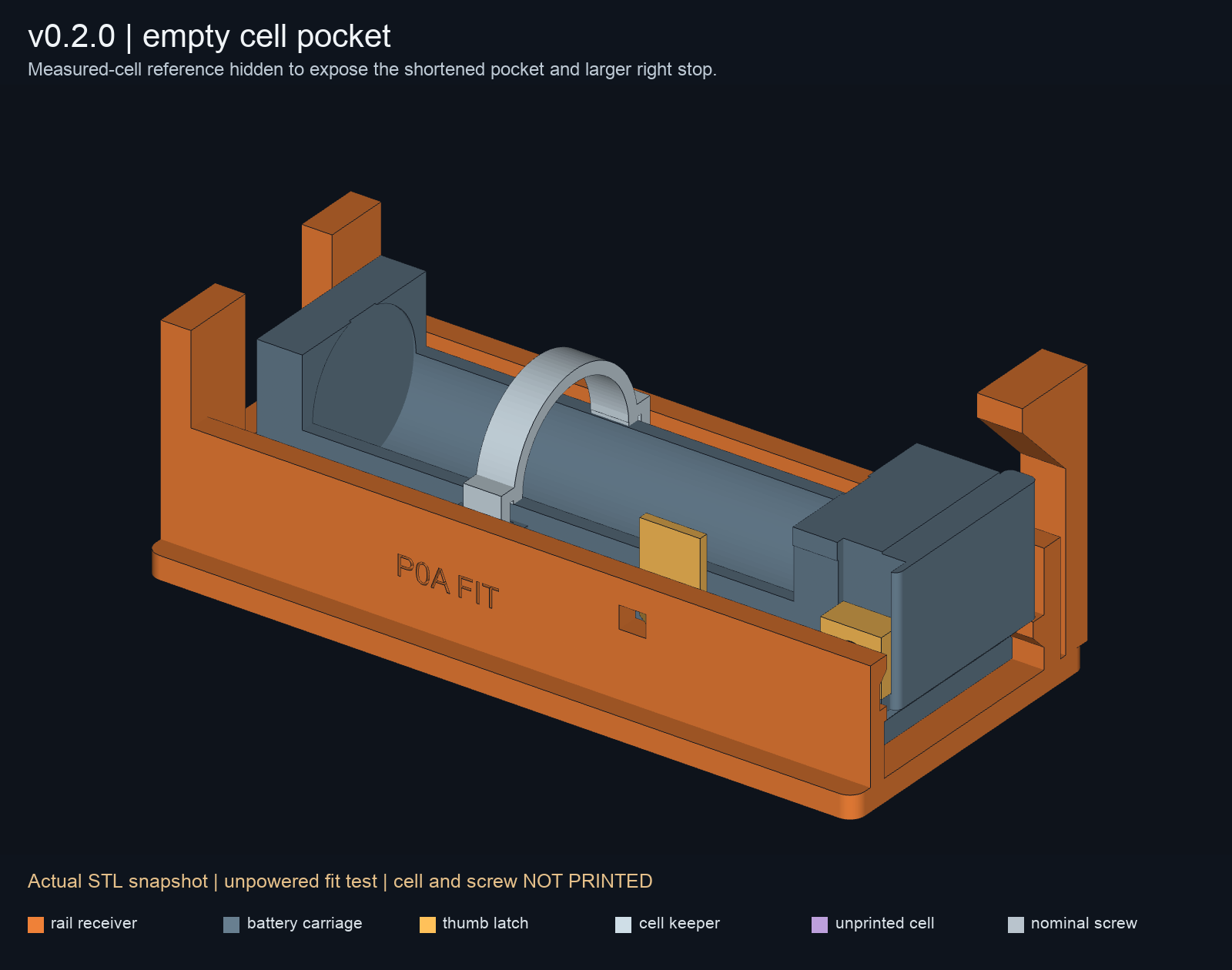

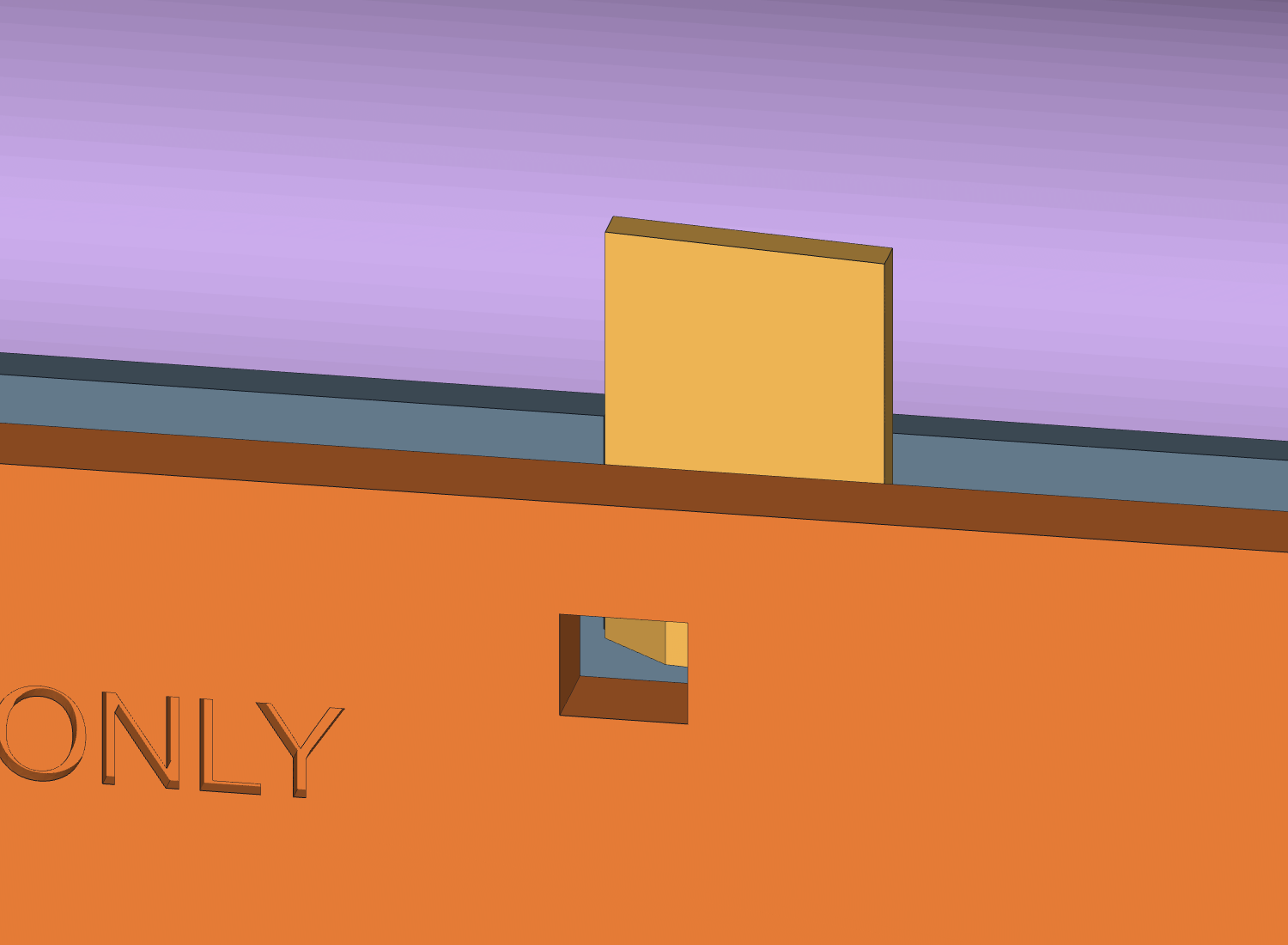

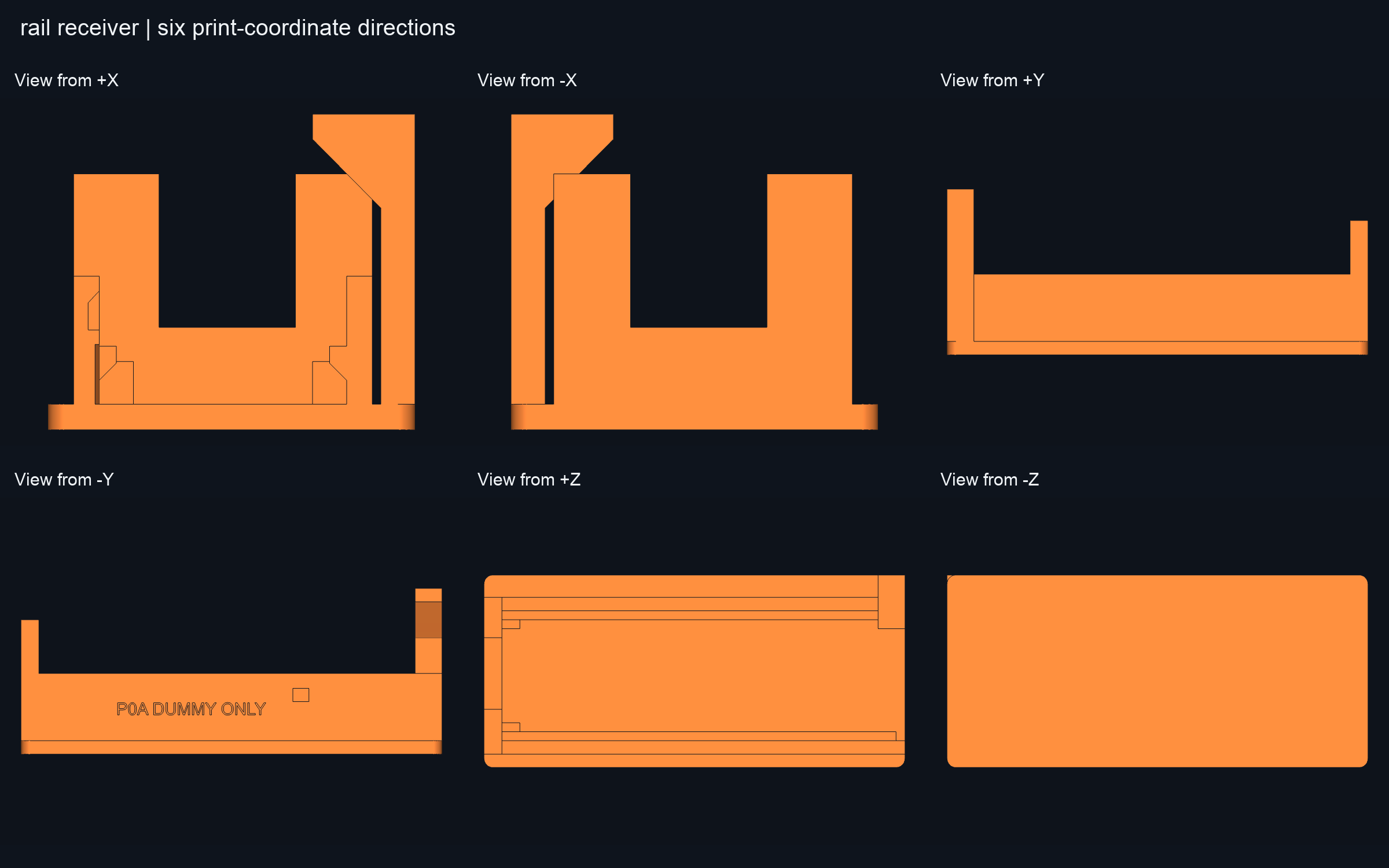

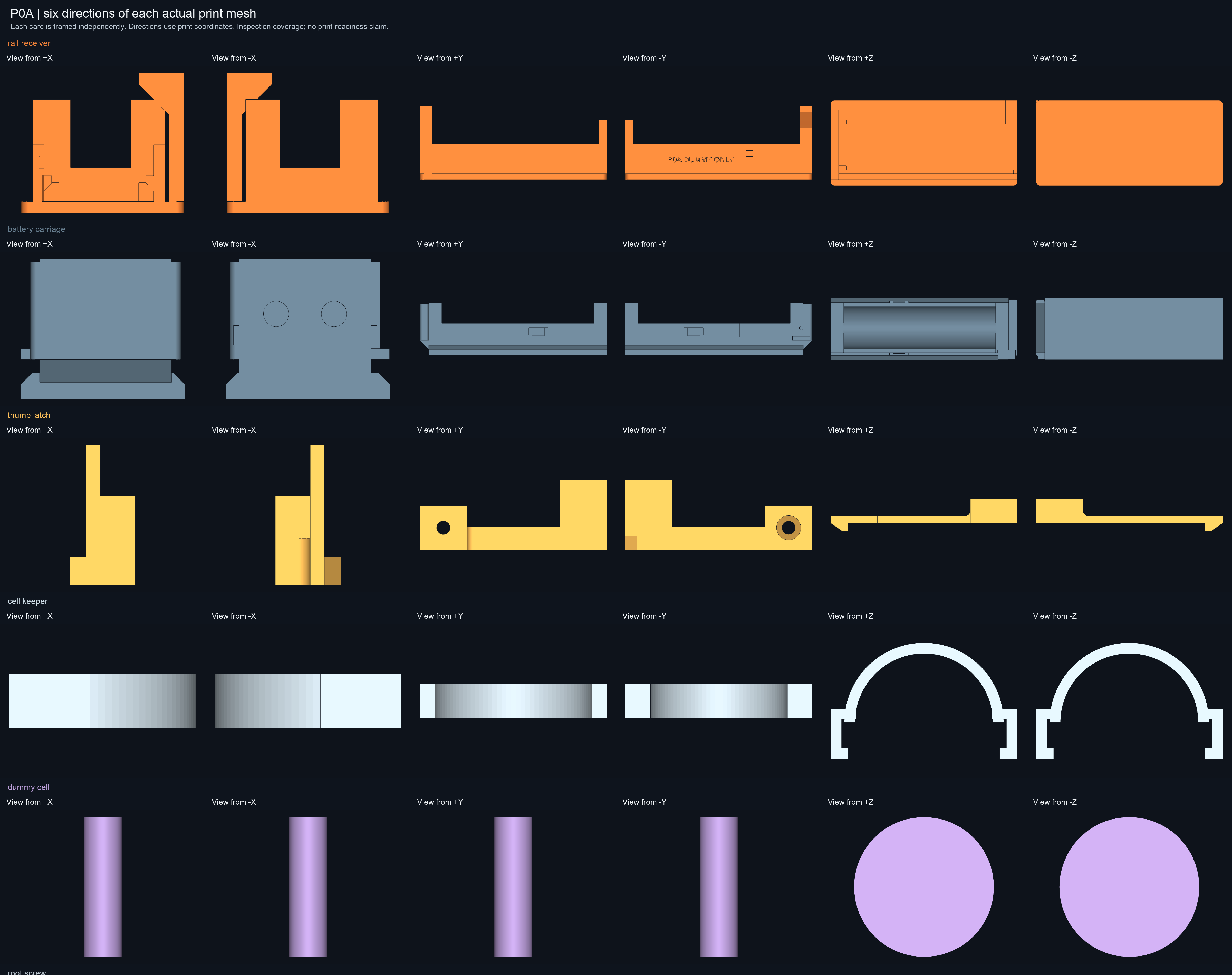

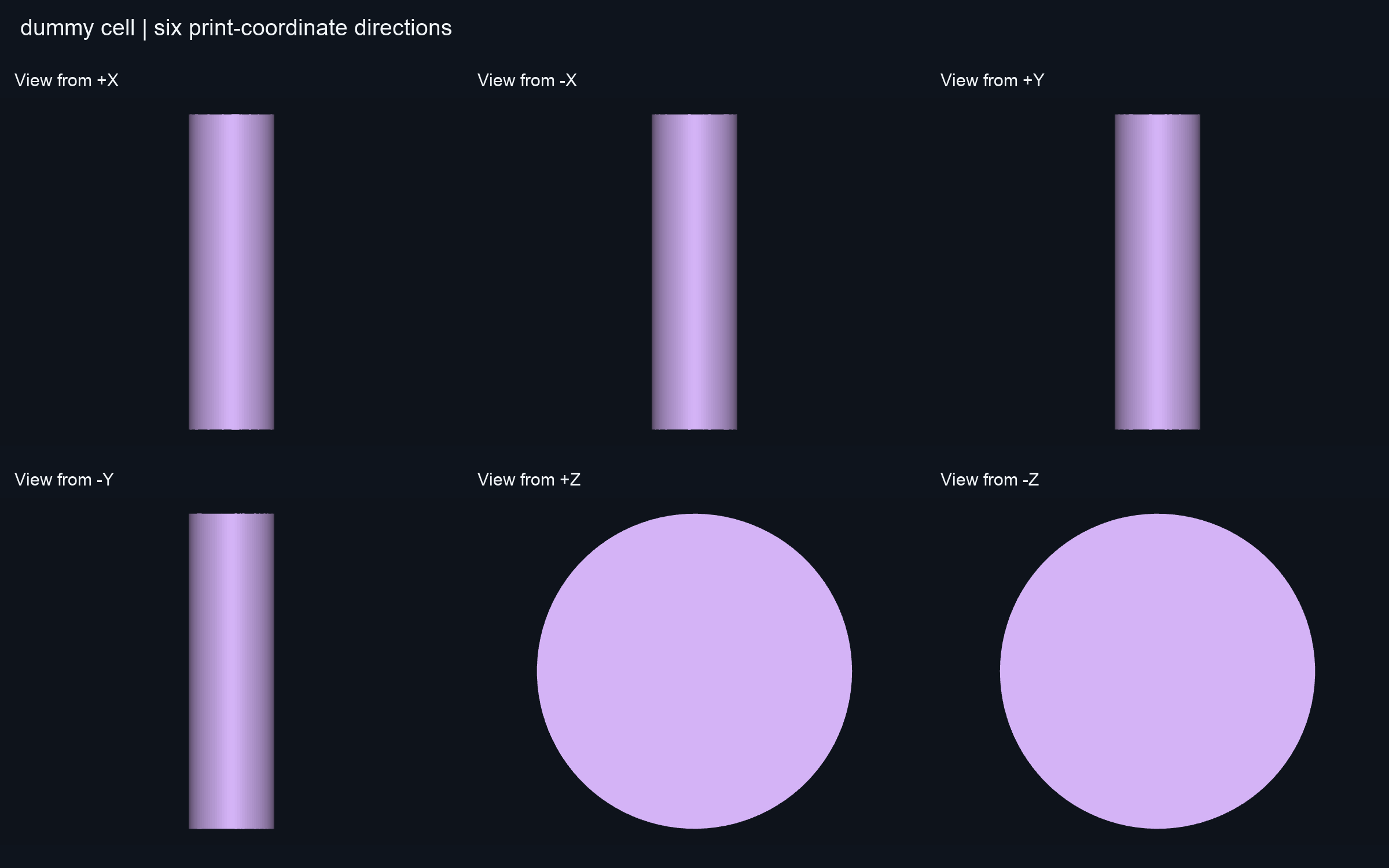

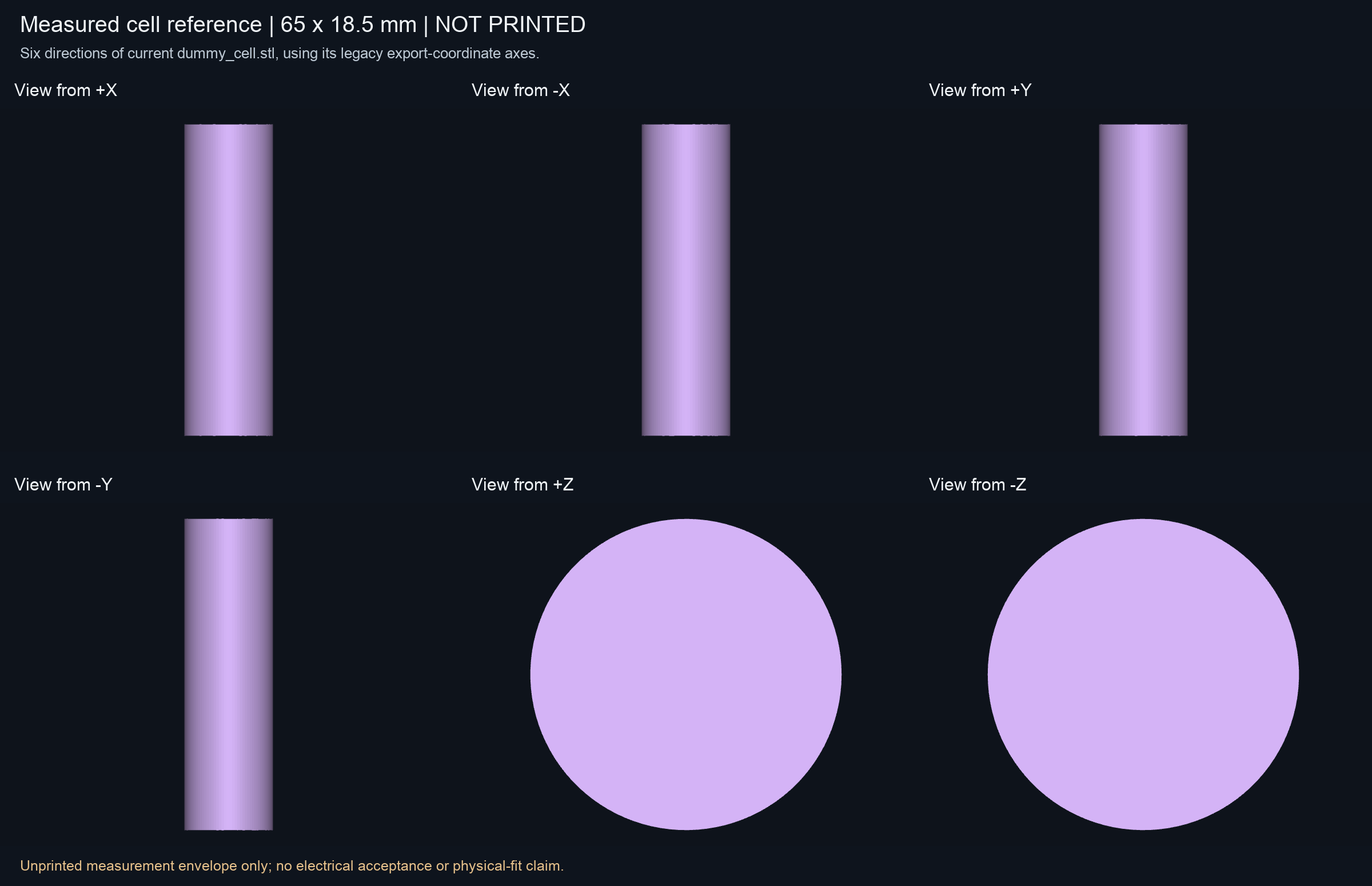

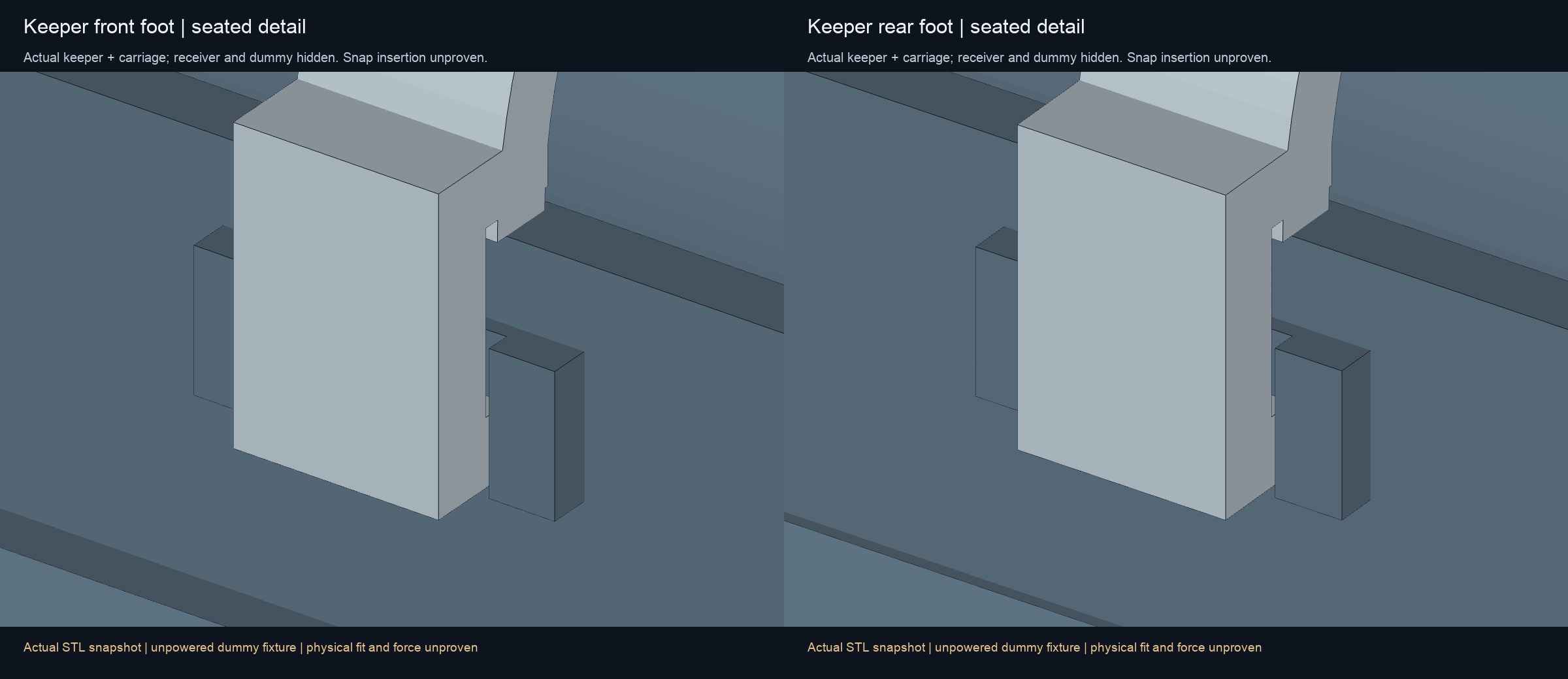

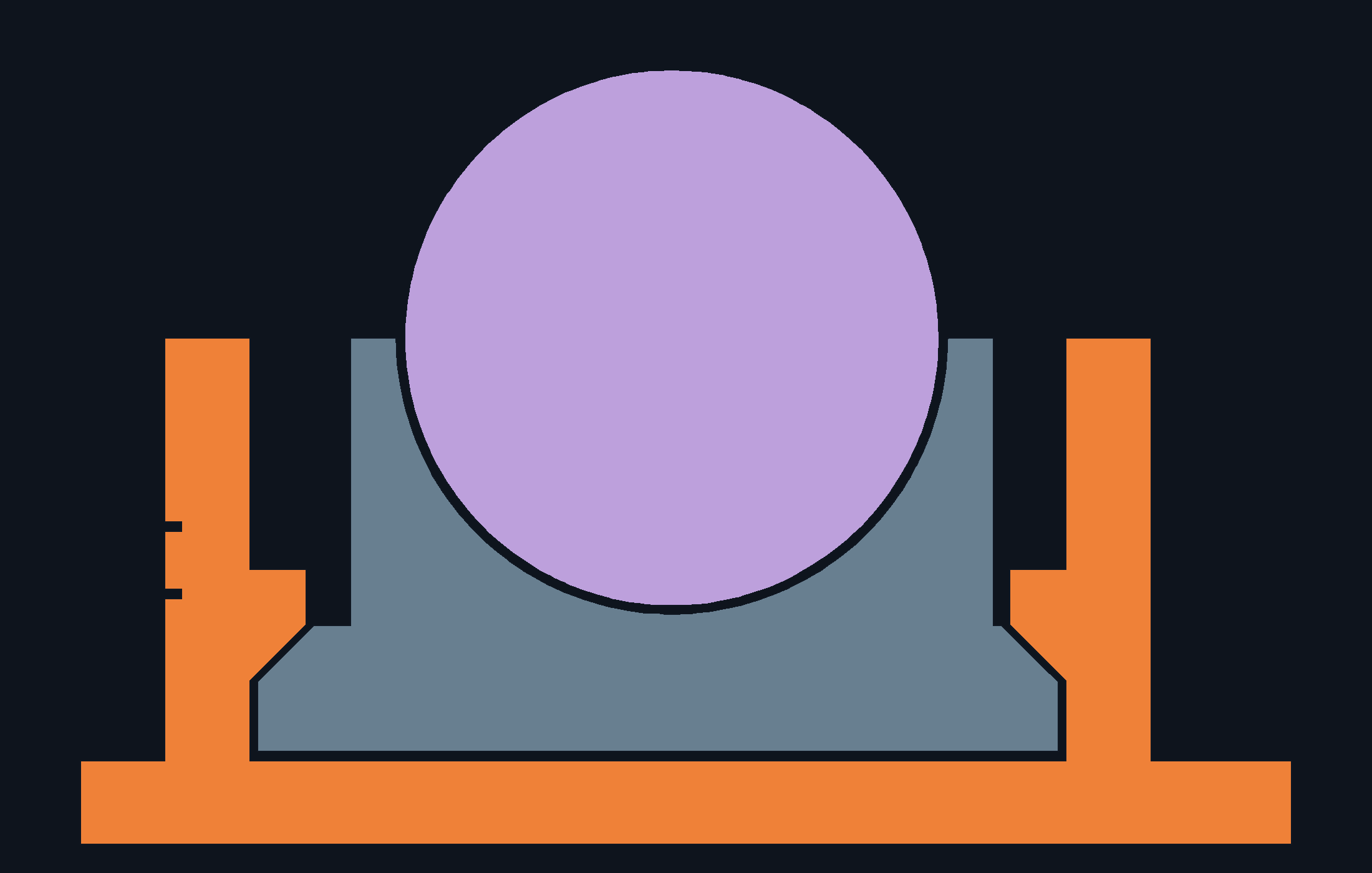

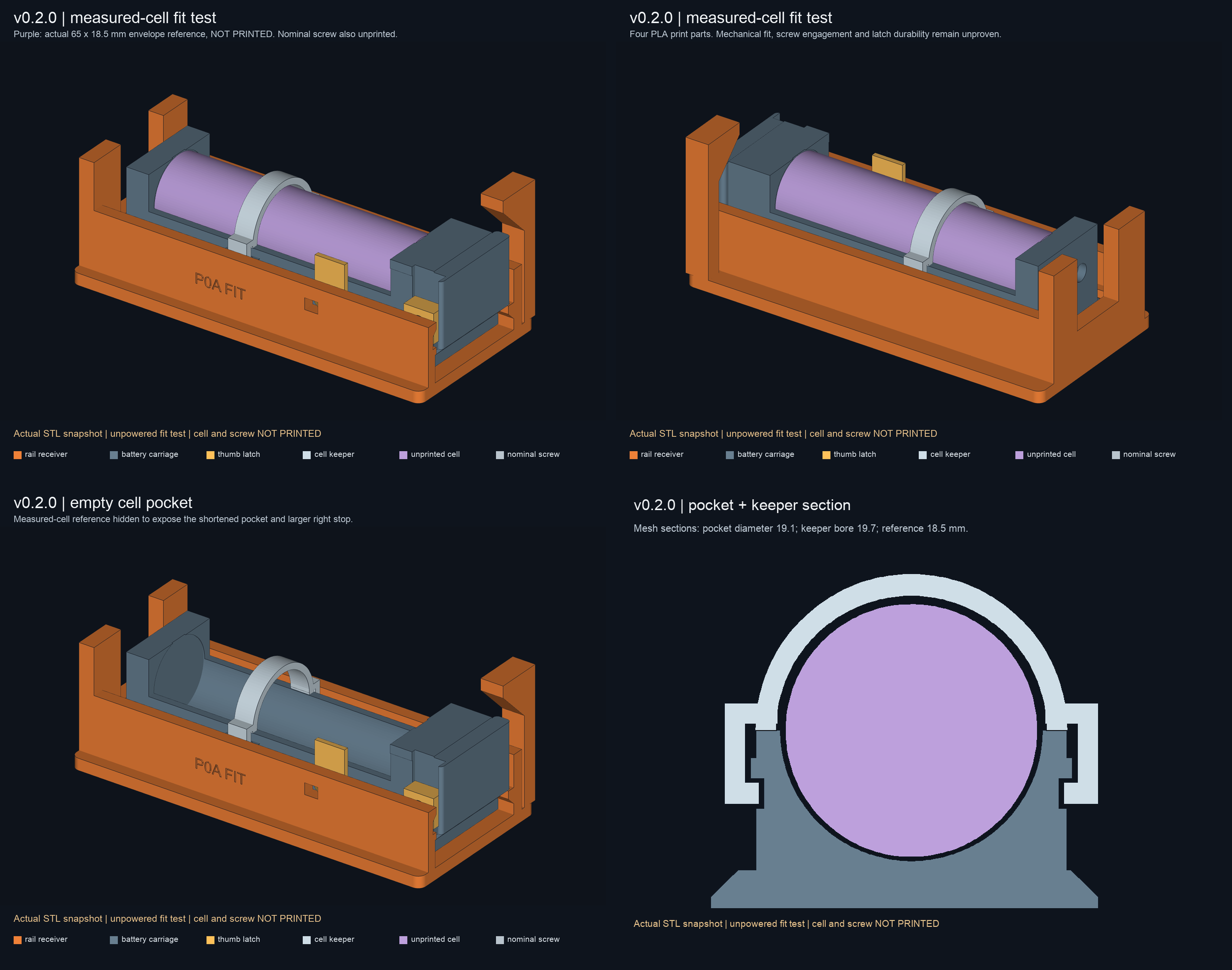

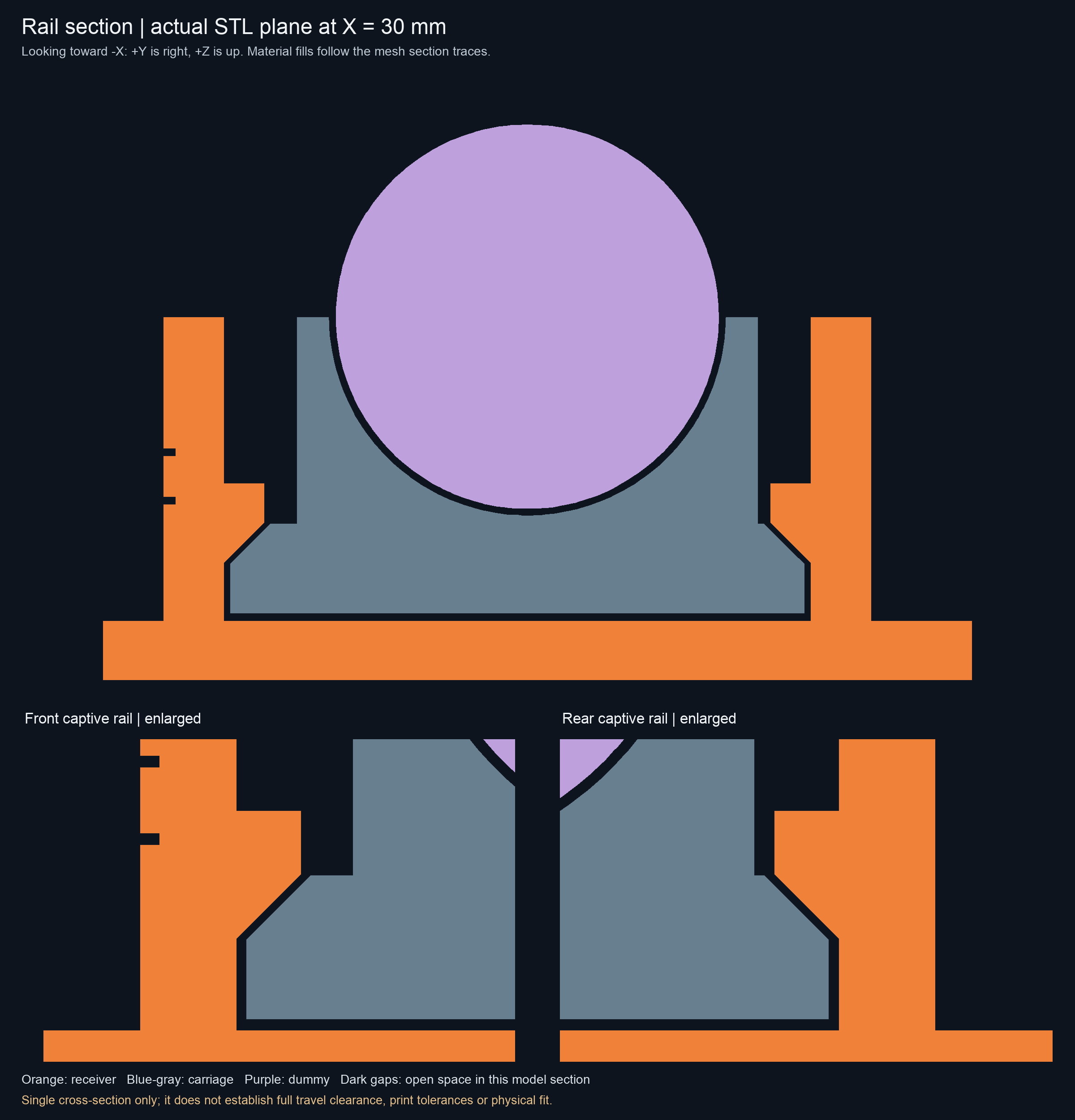

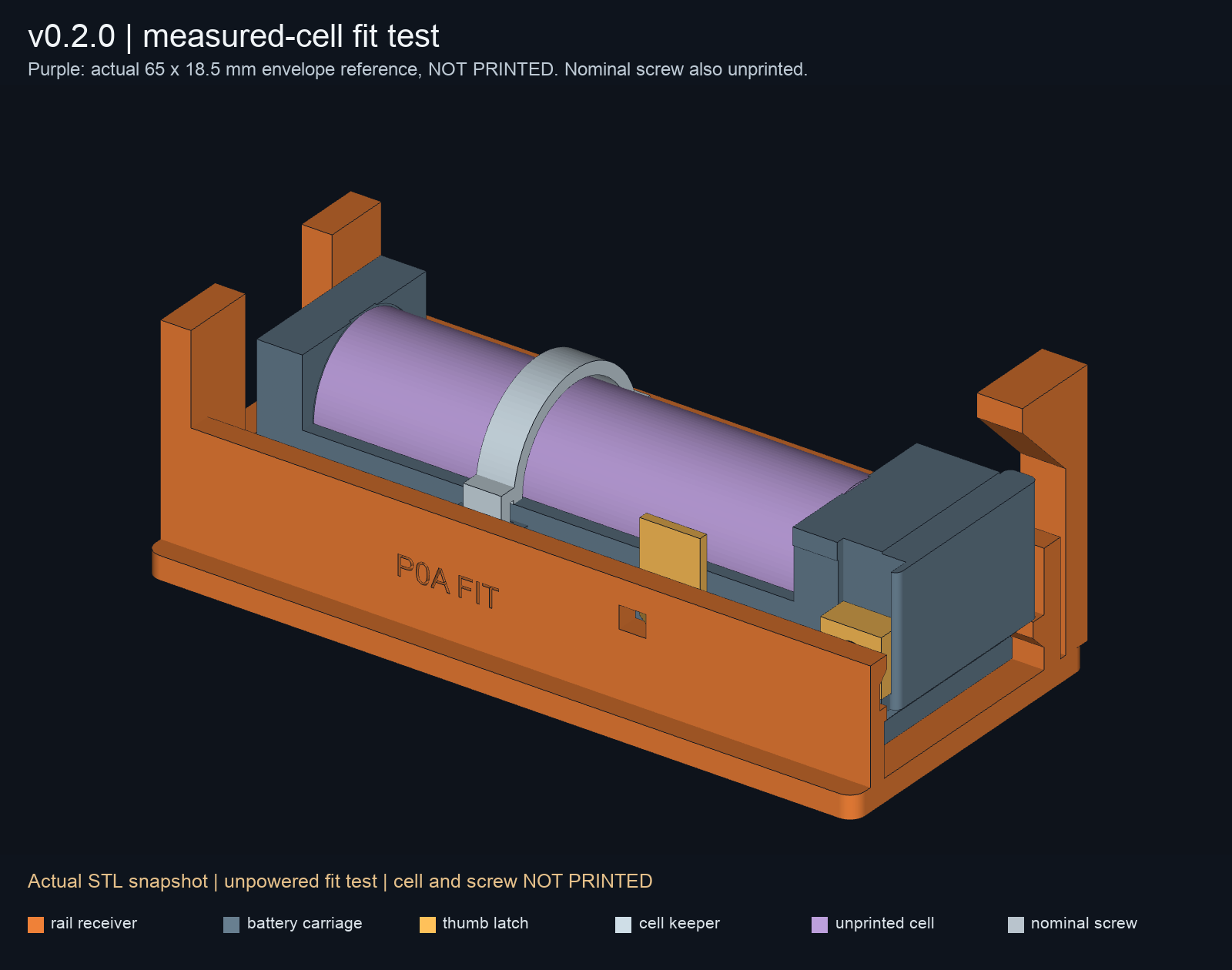

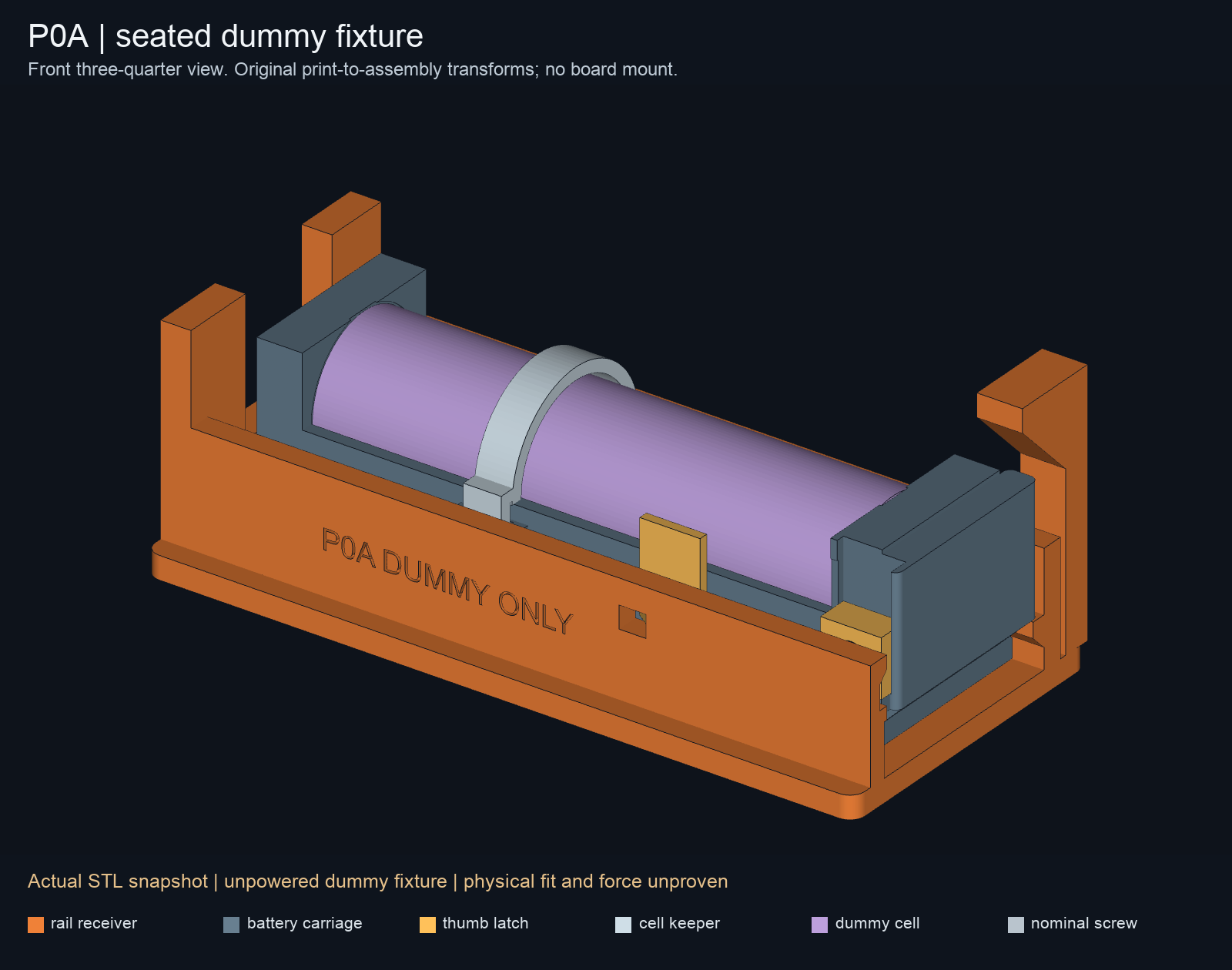

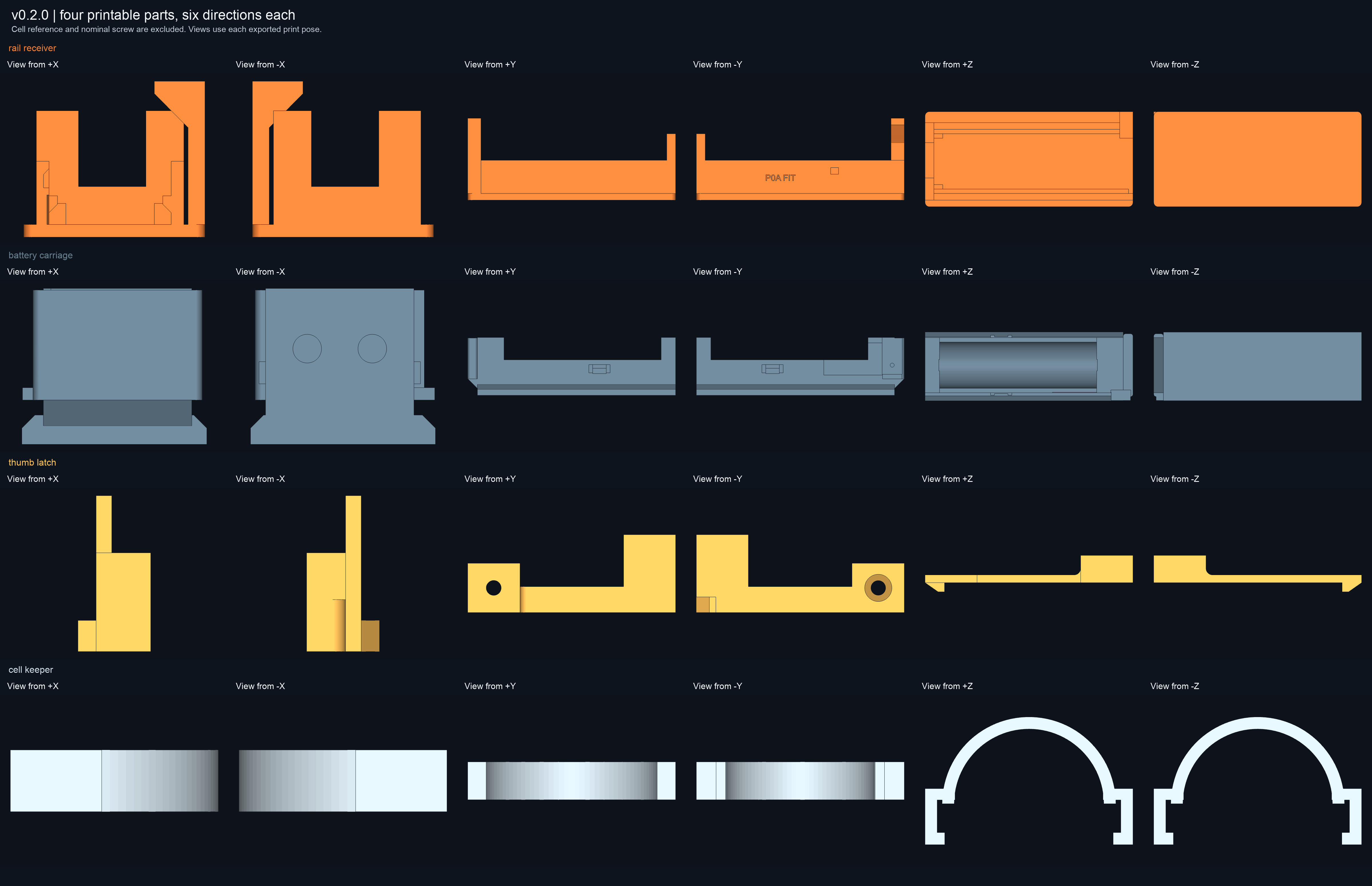

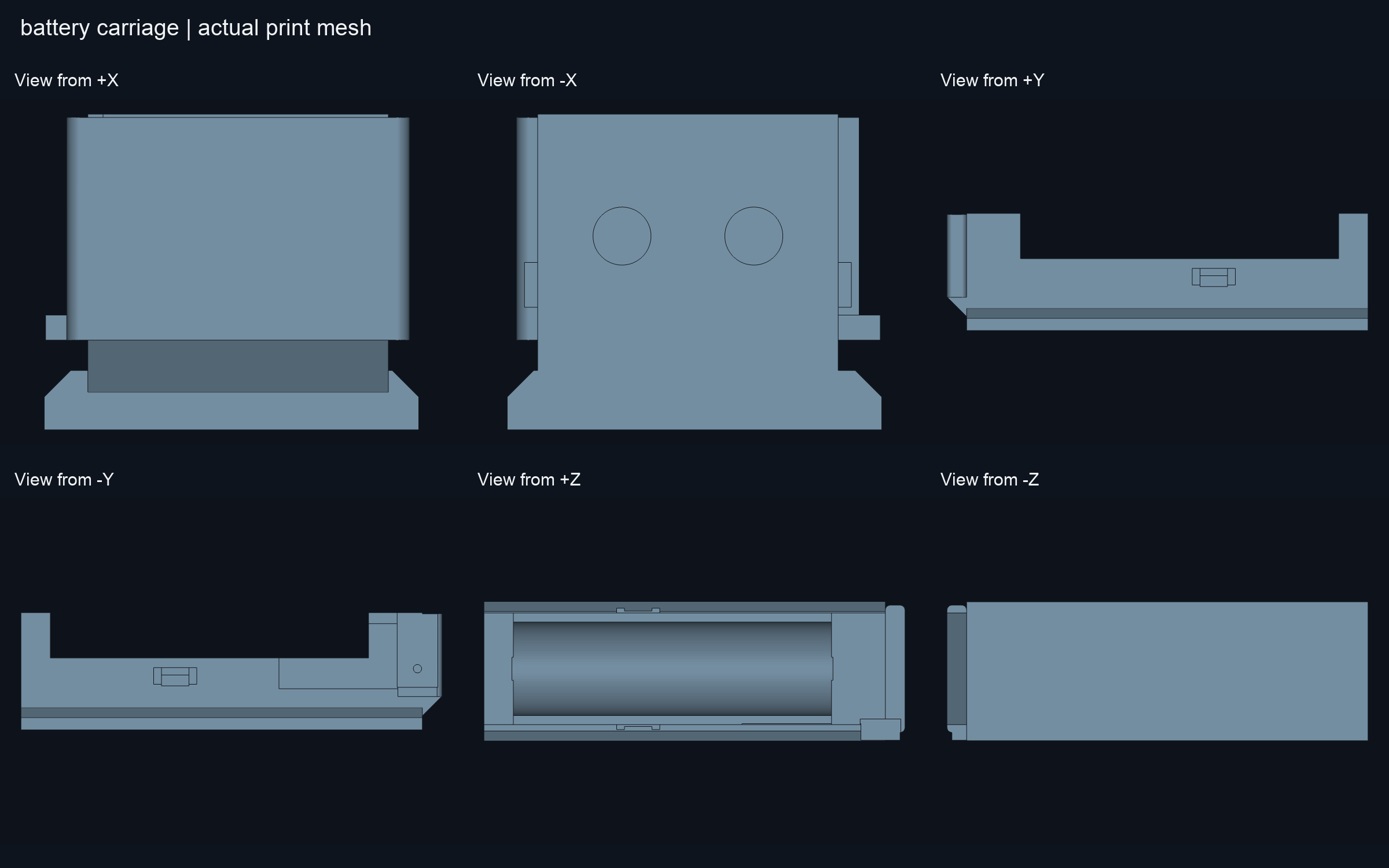

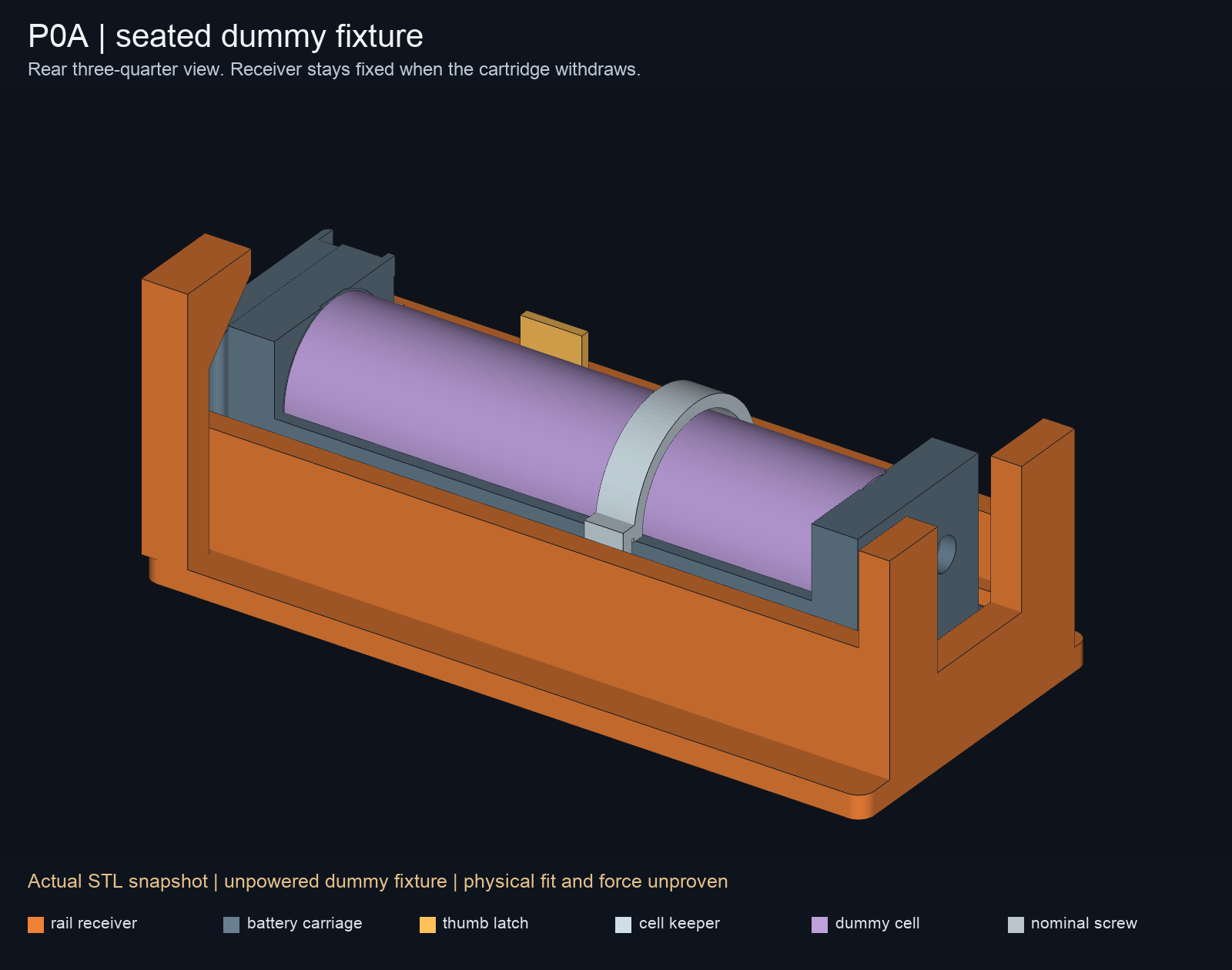

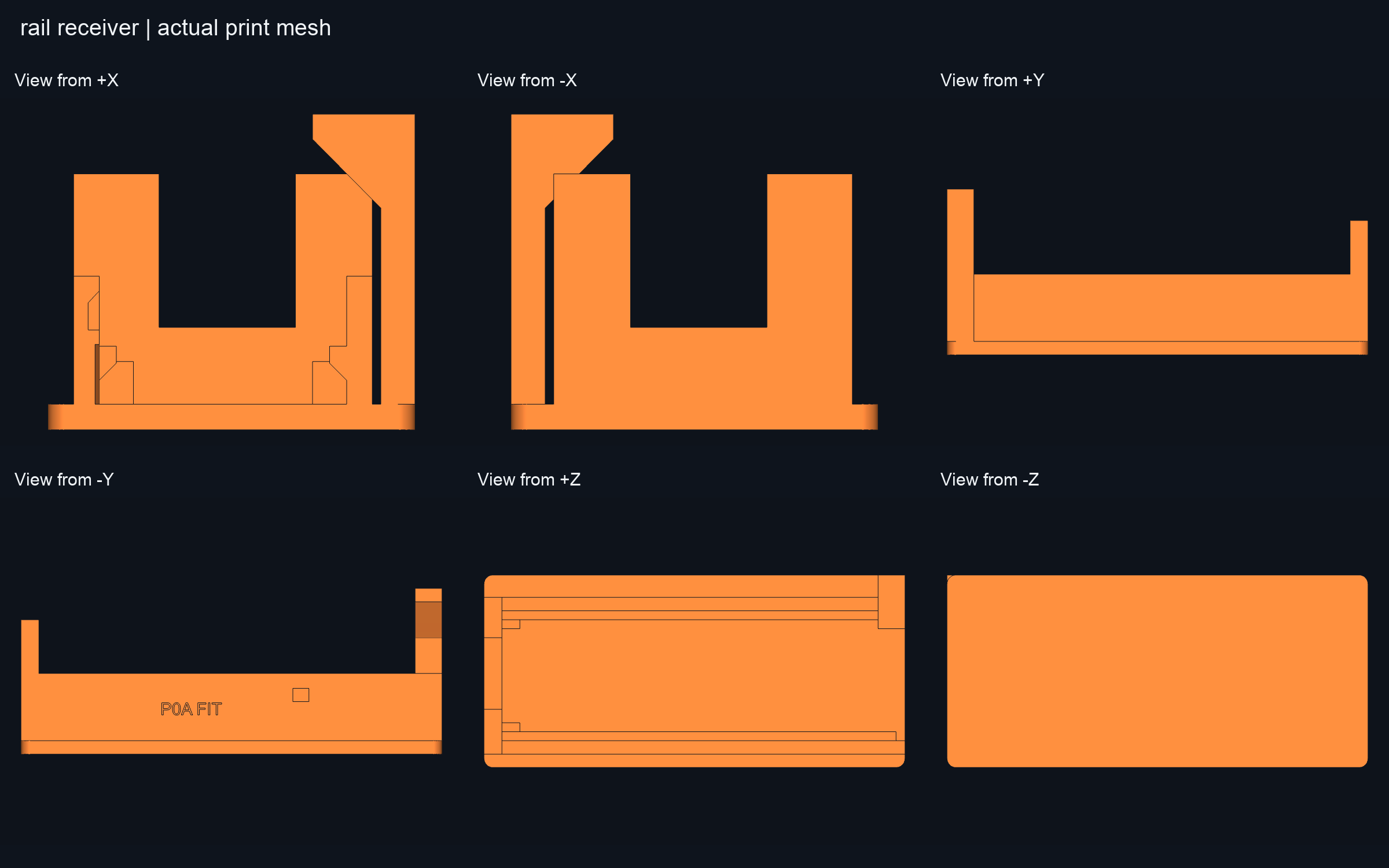

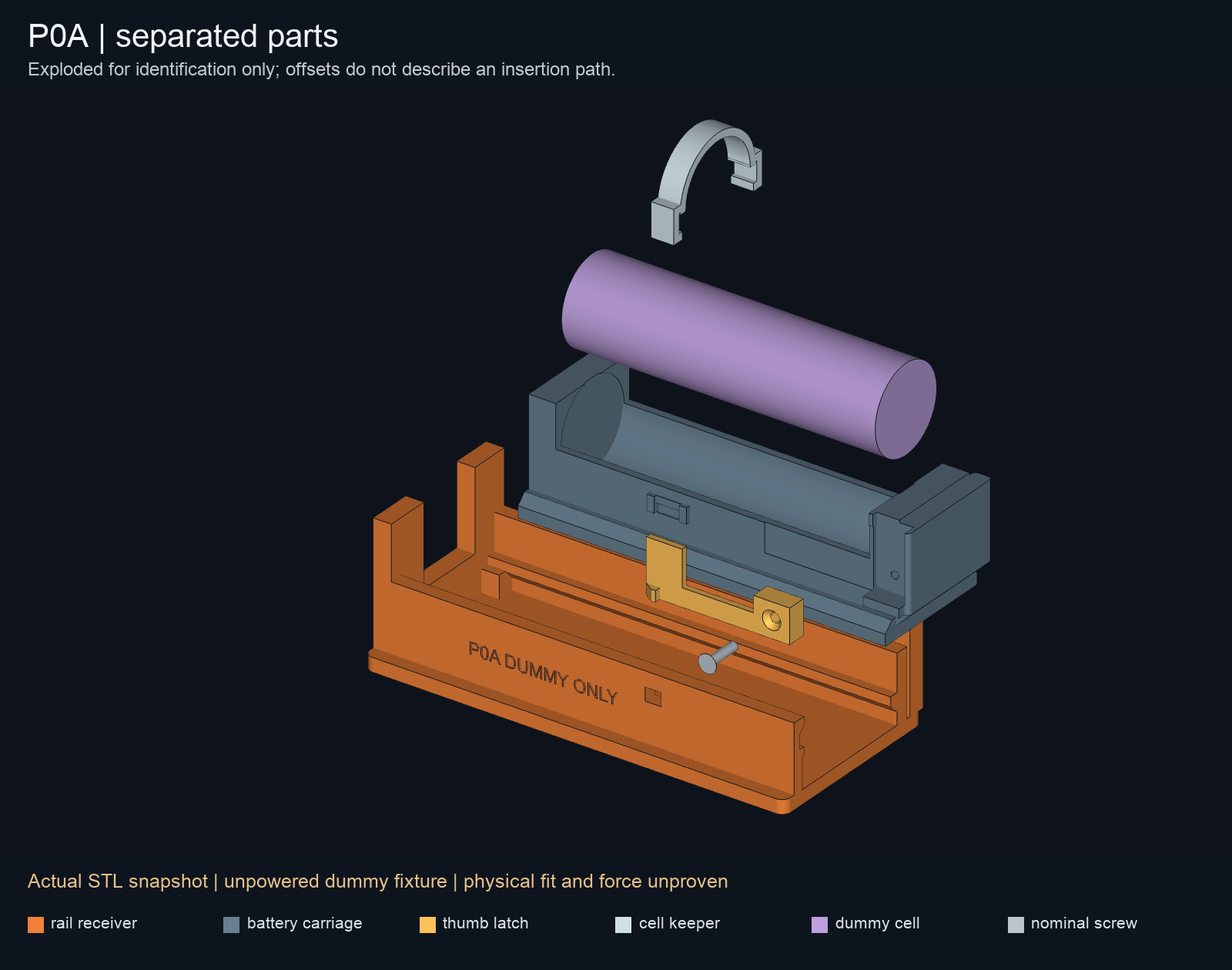

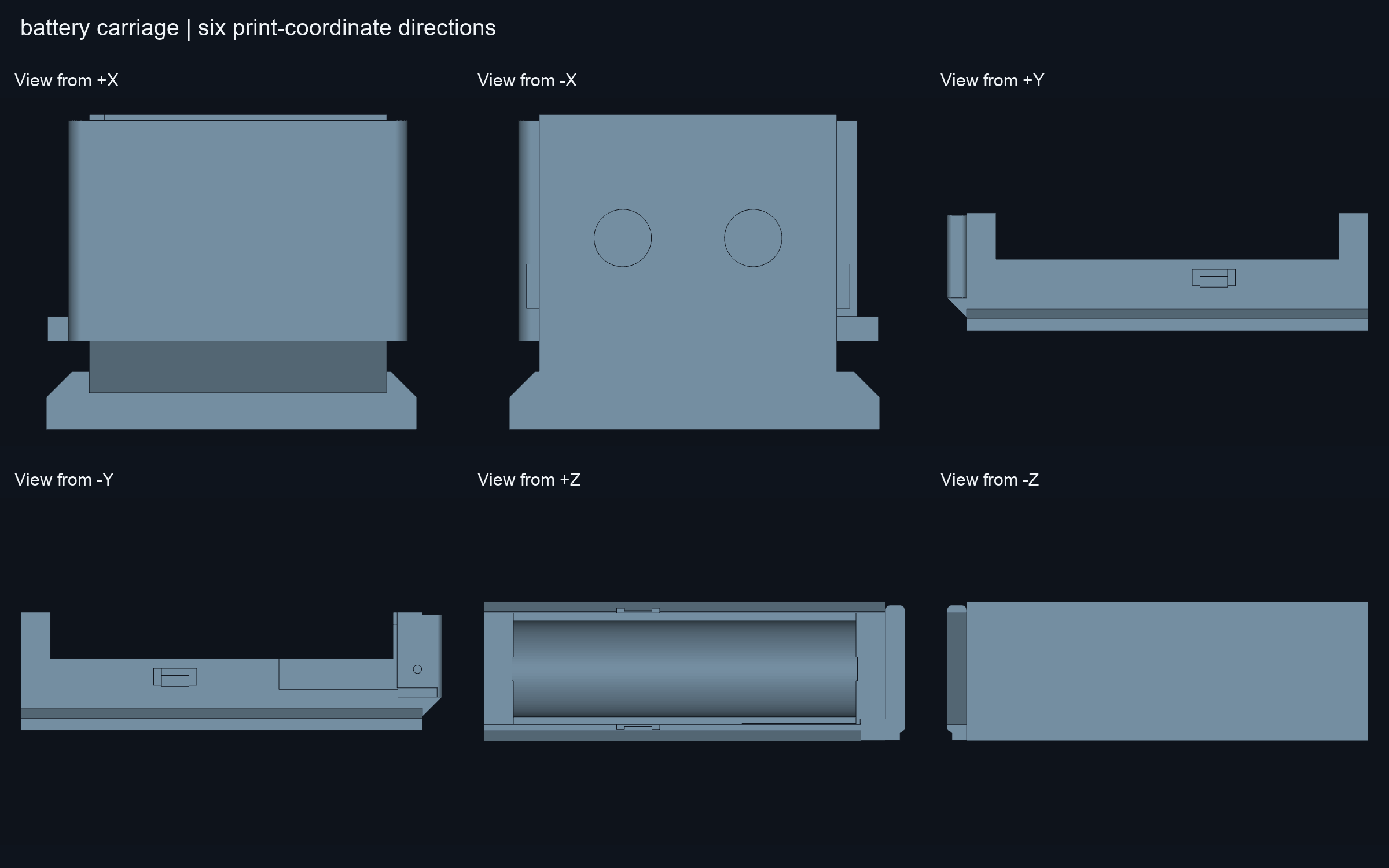

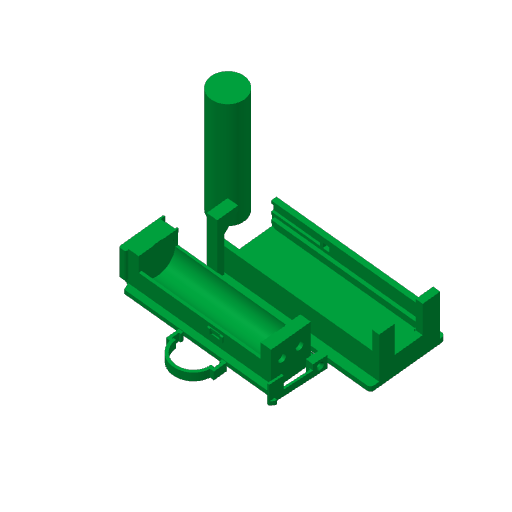

composed of: rail receiver, battery carriage, thumb latch, cell keeper

Specs & BOM

ParameterValueUnit
Envelope94 × 43 × 37mm

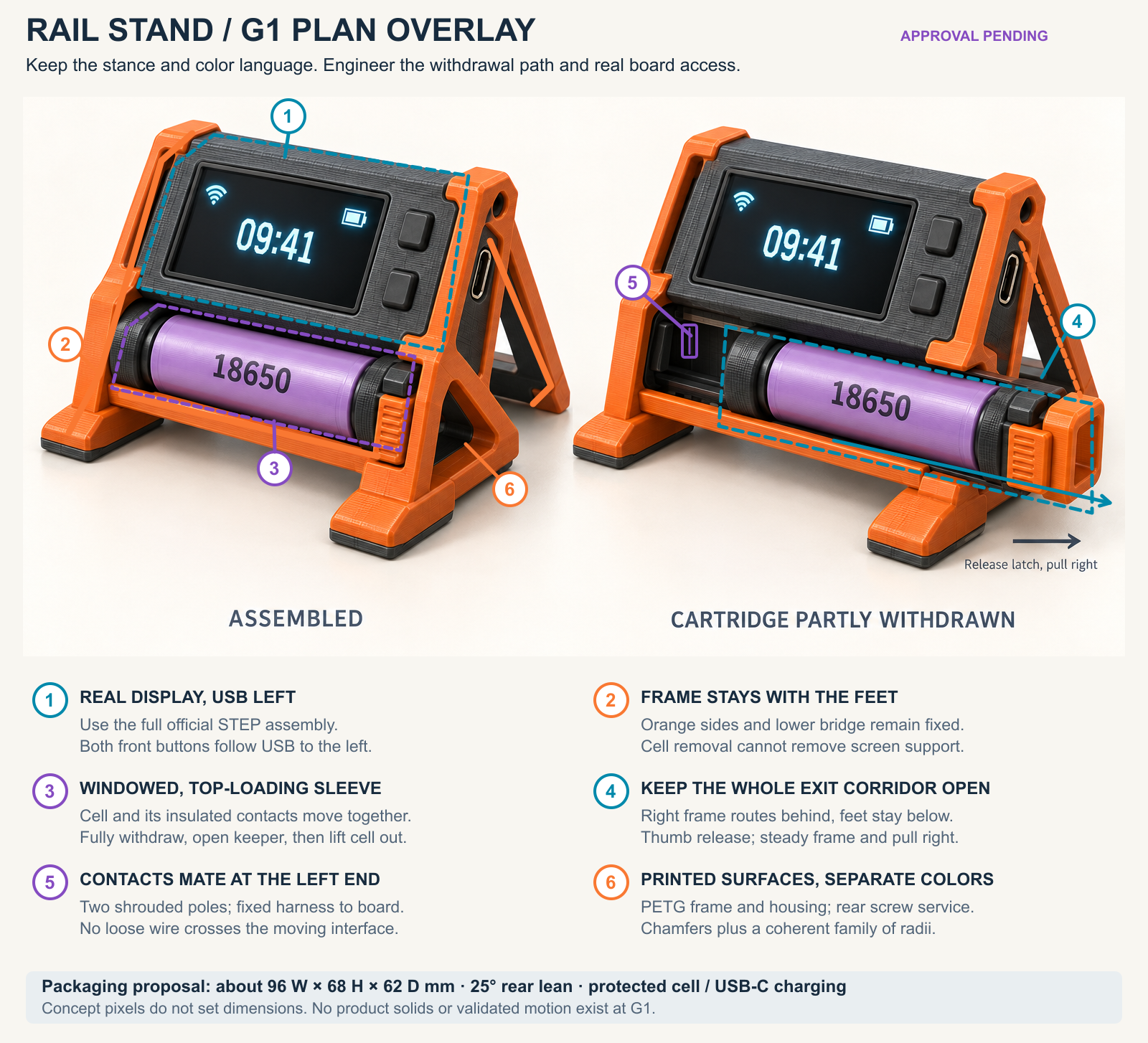

Concept art

Early AI concept images: direction, not the design.

Evidence

All evidence (57)
