RF-1 · Phase 1b — 4-Wheel Belt-Drive Drivetrain Coupon

rolling_face/phase1b_belt_drivetrain-v0.4

The 4-wheel evolution of the locomotion de-risk for the rolling face (../brief.md), per the design doc.

print-readyv0.4
three-compartment symmetric cradle on caliper-confirmed N20 dims; manifold + collision/clearance-checked (awaiting test-fit)

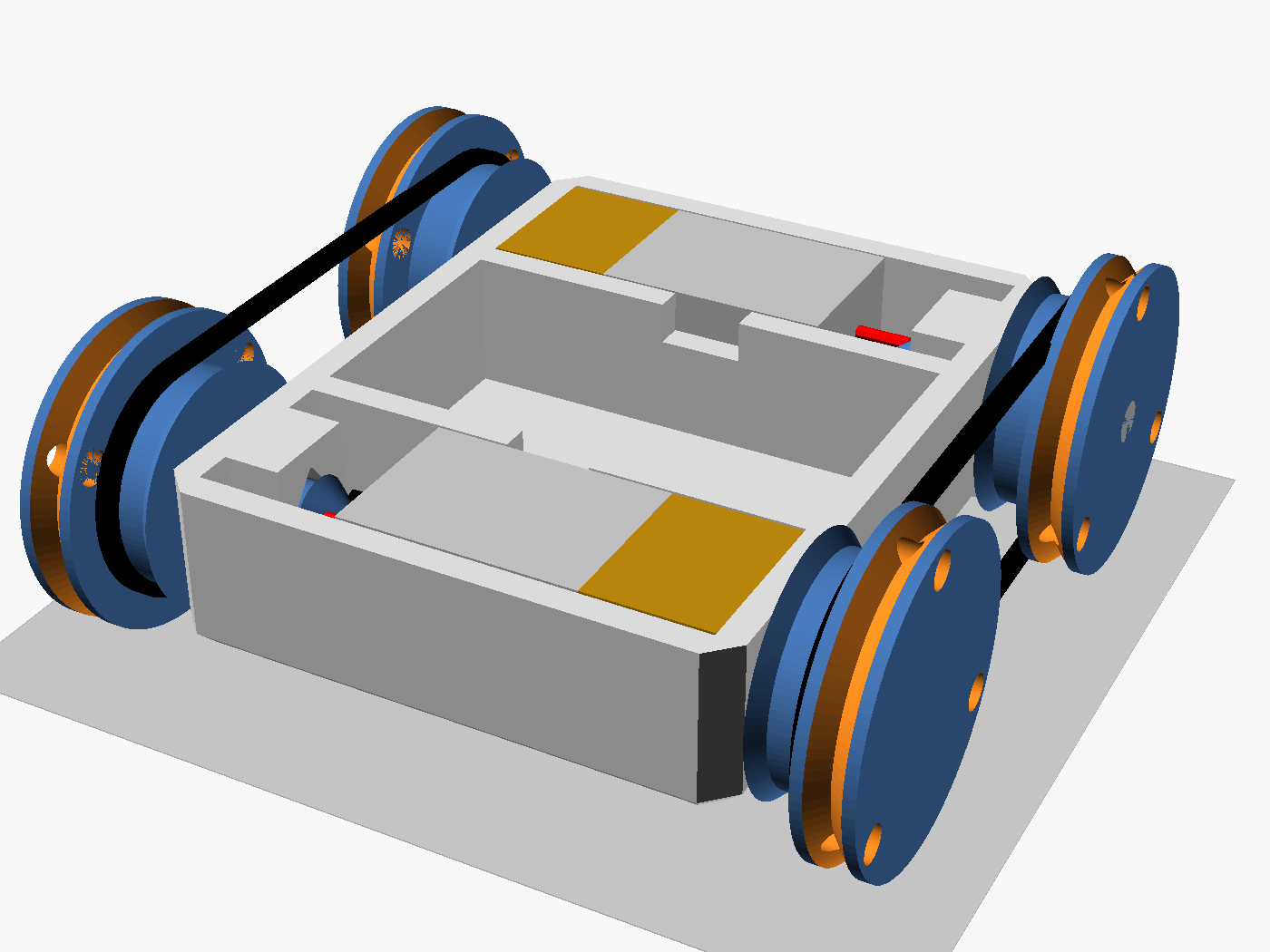

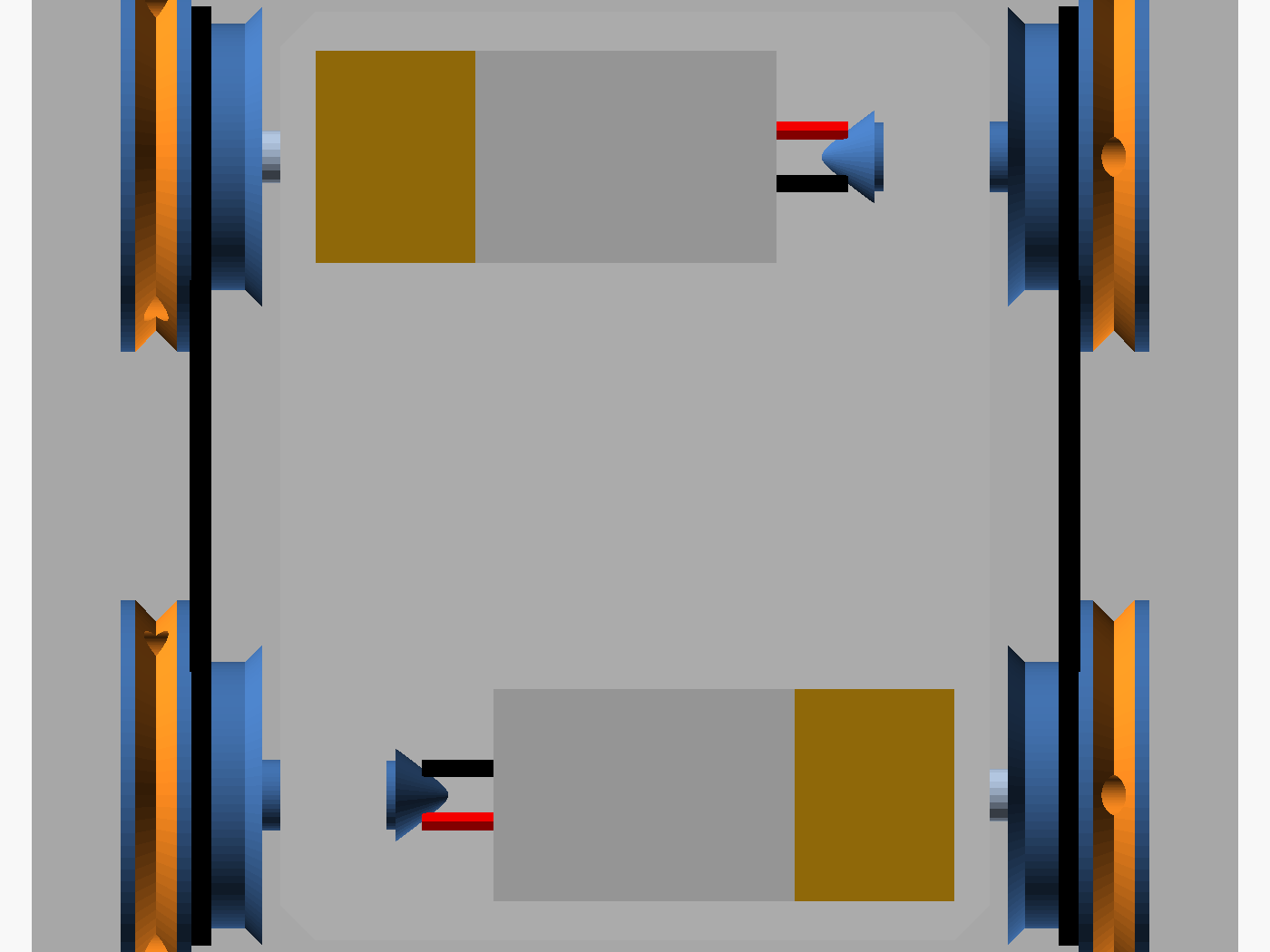

Assembled — 4-wheel belt drive874 KB

drag to orbit · scroll or pinch to zoom
composed of: chassis base, belts, wheel driven, wheel idler — all at v0.4

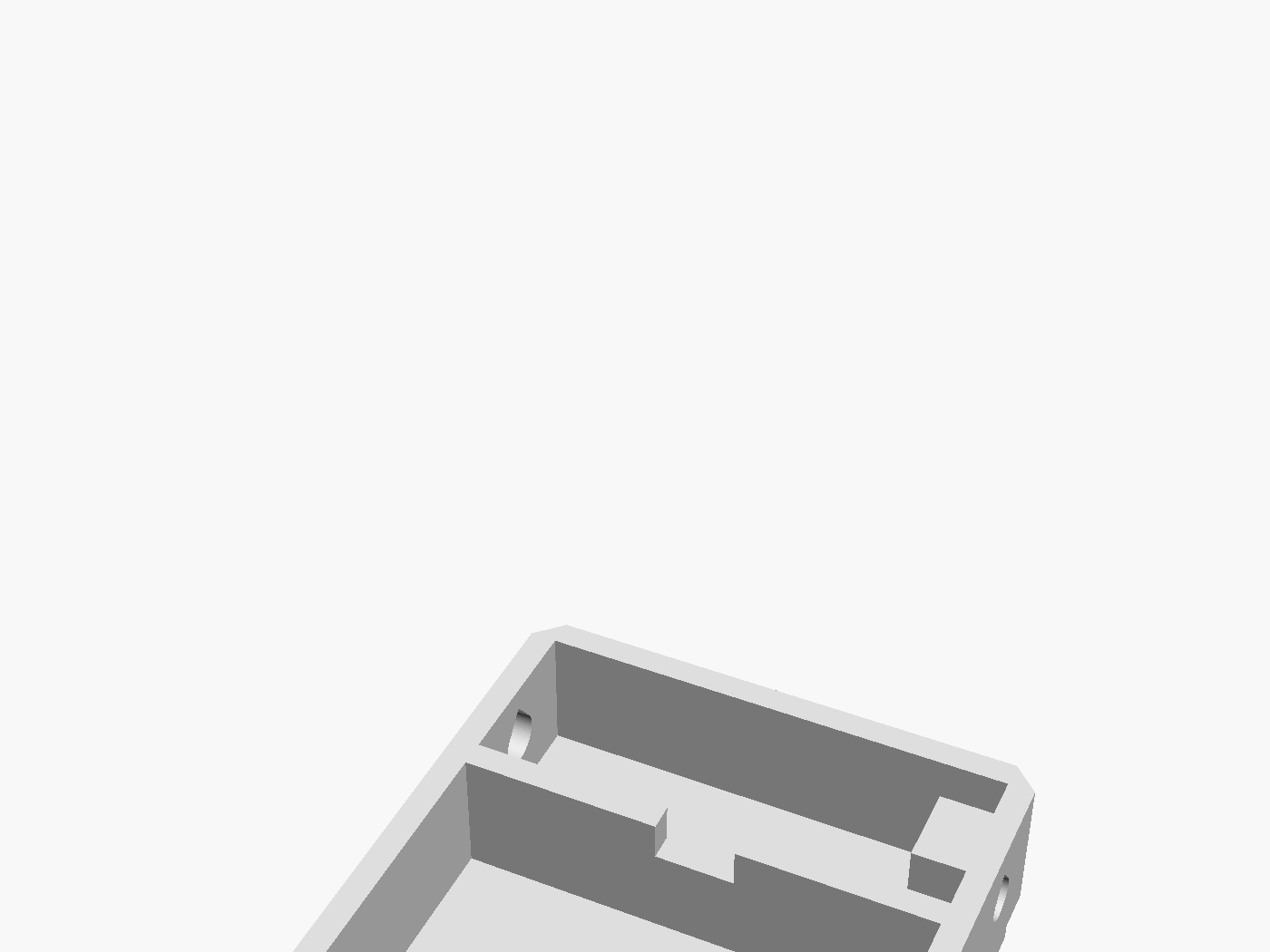

chassis_base61 KB

drag to orbit · scroll or pinch to zoom

wheel — driven (D-bore)189 KB

drag to orbit · scroll or pinch to zoom

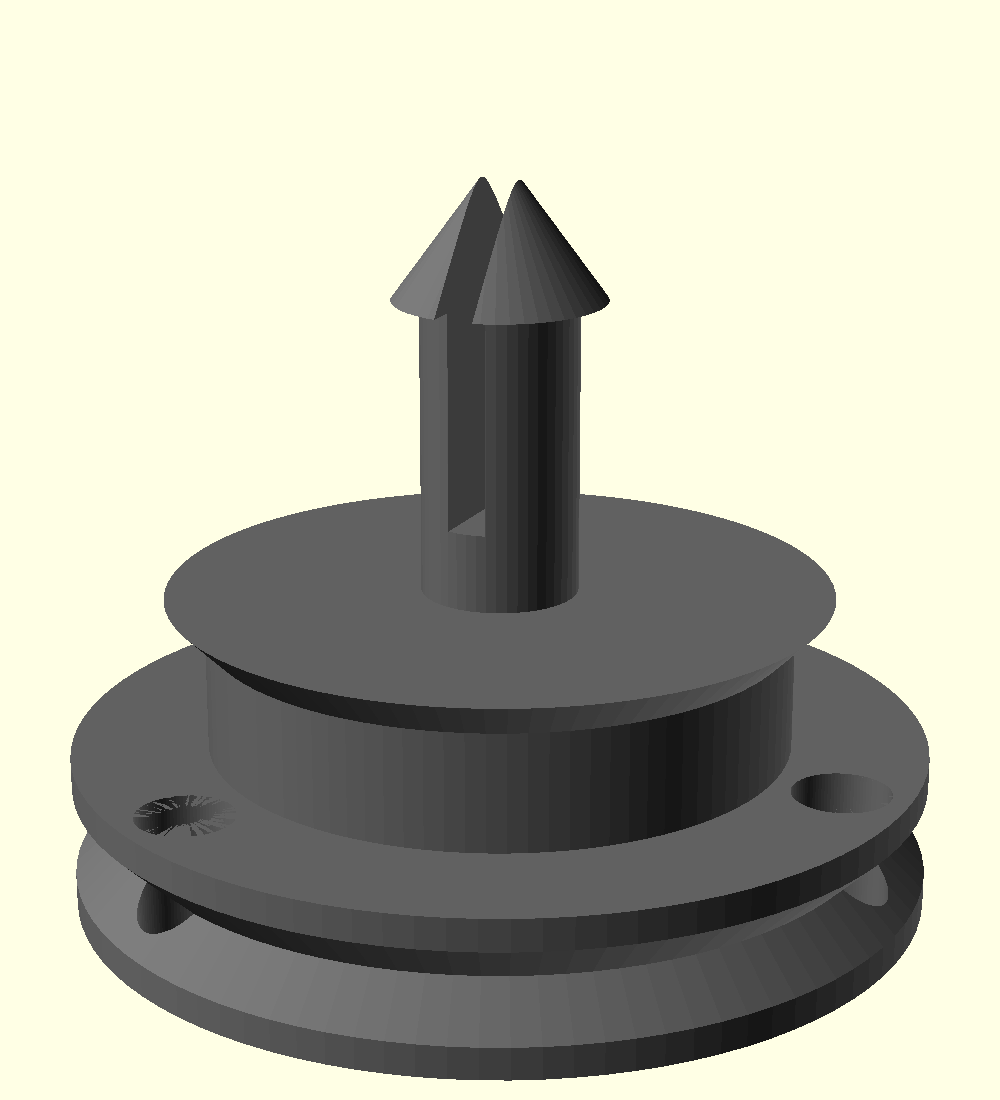

wheel — idler (MR63 bearing)197 KB

drag to orbit · scroll or pinch to zoom

Specs & BOM

ParameterValueUnit
Envelope50.2 × 53 × 17mm

CAD-based product images

AI-finished images of rendered CAD geometry; not a physical print or fit test.

Evidence
