RF-1 · Phase 2 — Powered Rover

The integrated, untethered, phone-driven rover — drivetrain + electronics + power, layered and wired, before the OLED face.
v0.9in progress

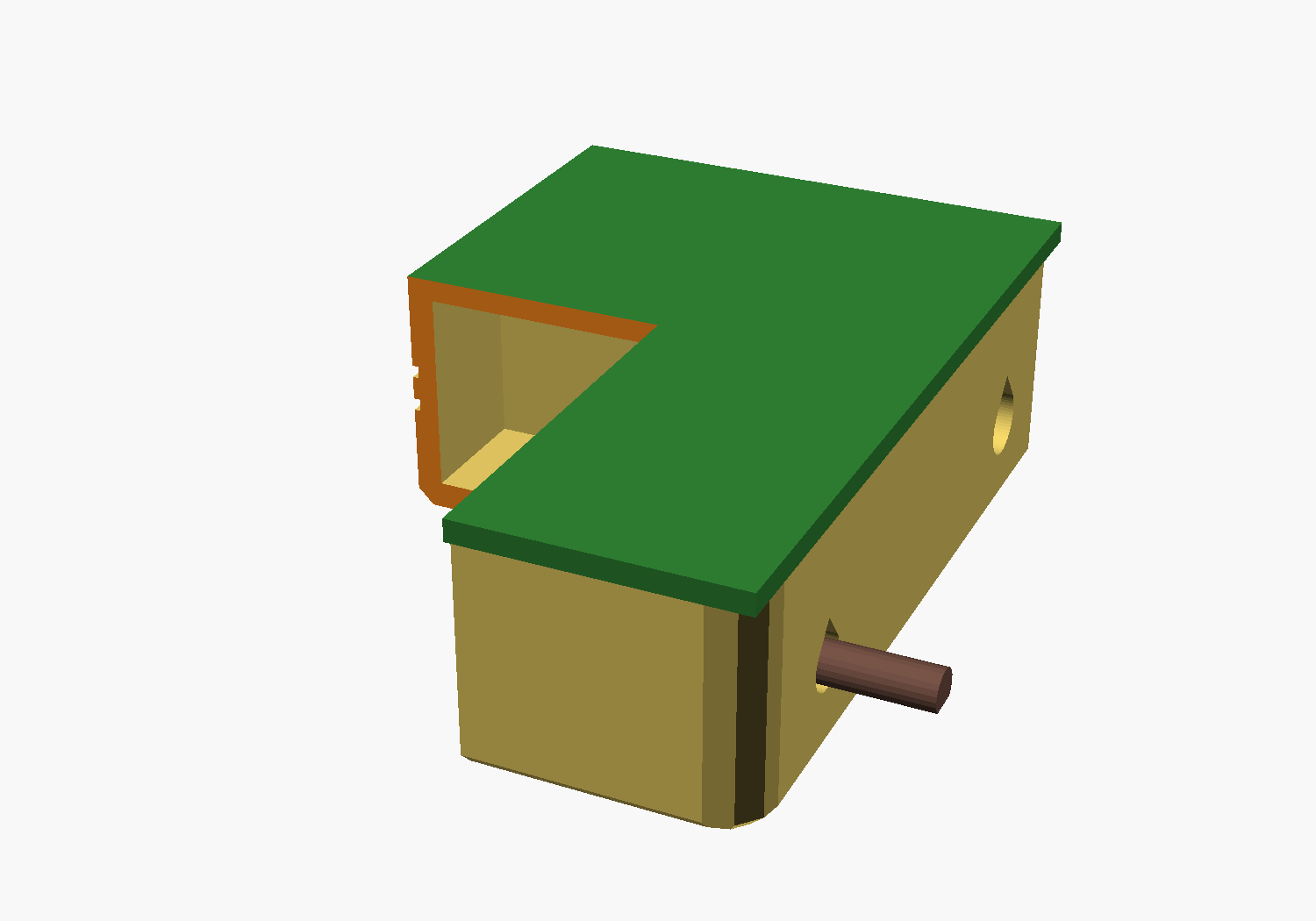

v0.9 second-print feedback applied: motor clip reworked to a narrow free-flexing finger (lip 0.8→0.6), inter-bay ribs lowered (z=18.5), wire chase cut to the bay floor; manifold + collision-checked, awaiting re-test

Specs & BOM

Envelope
50.2 × 60 × 24 mm

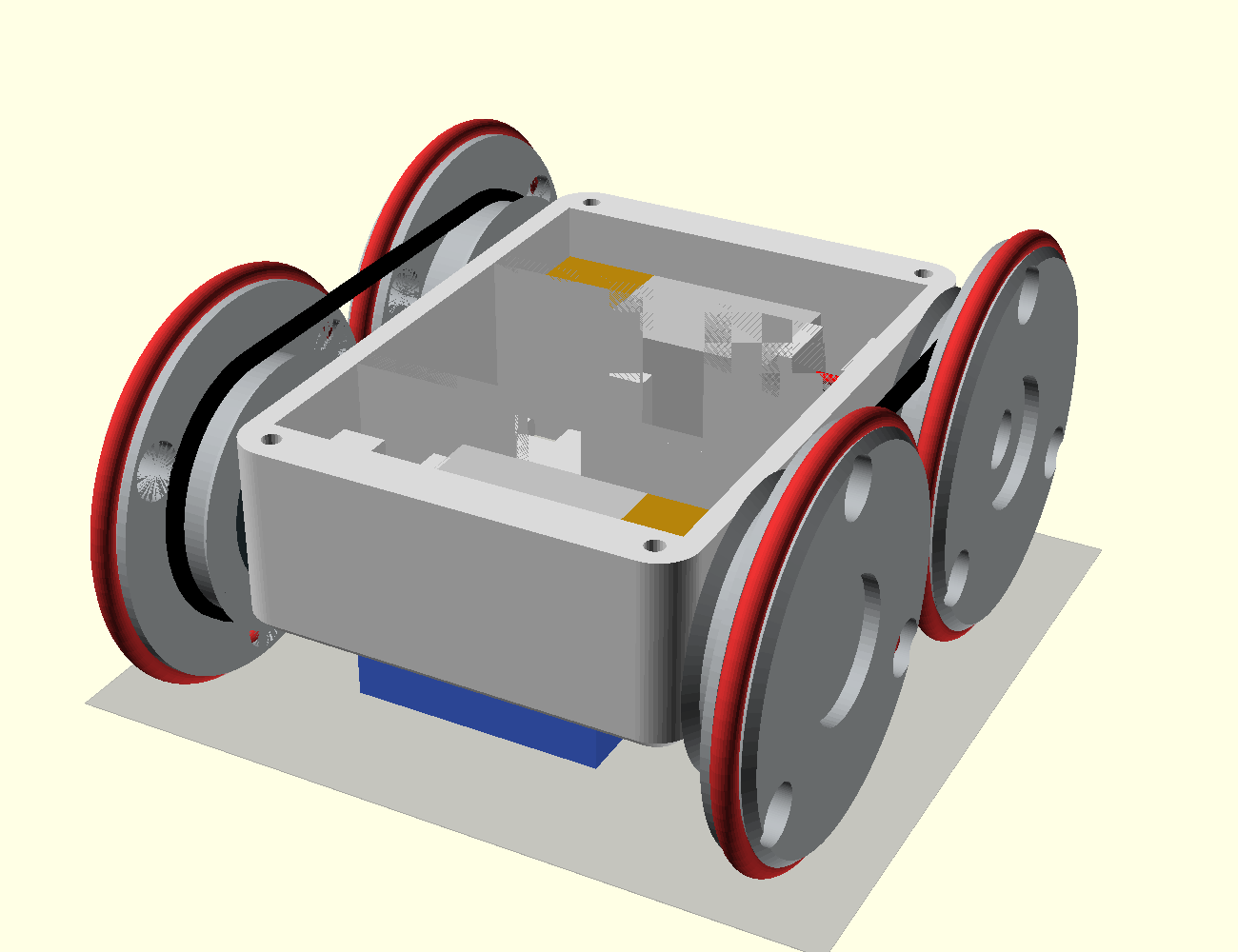

Assembled — powered rover (drivetrain + HW)2.2 MB

drag to orbit · scroll or pinch to zoom
composed of: chassis base, hw battery, hw motors, hw bearings, hw pins, belts, hw tire, wheel driven, wheel idler, hub cap — all at v0.9

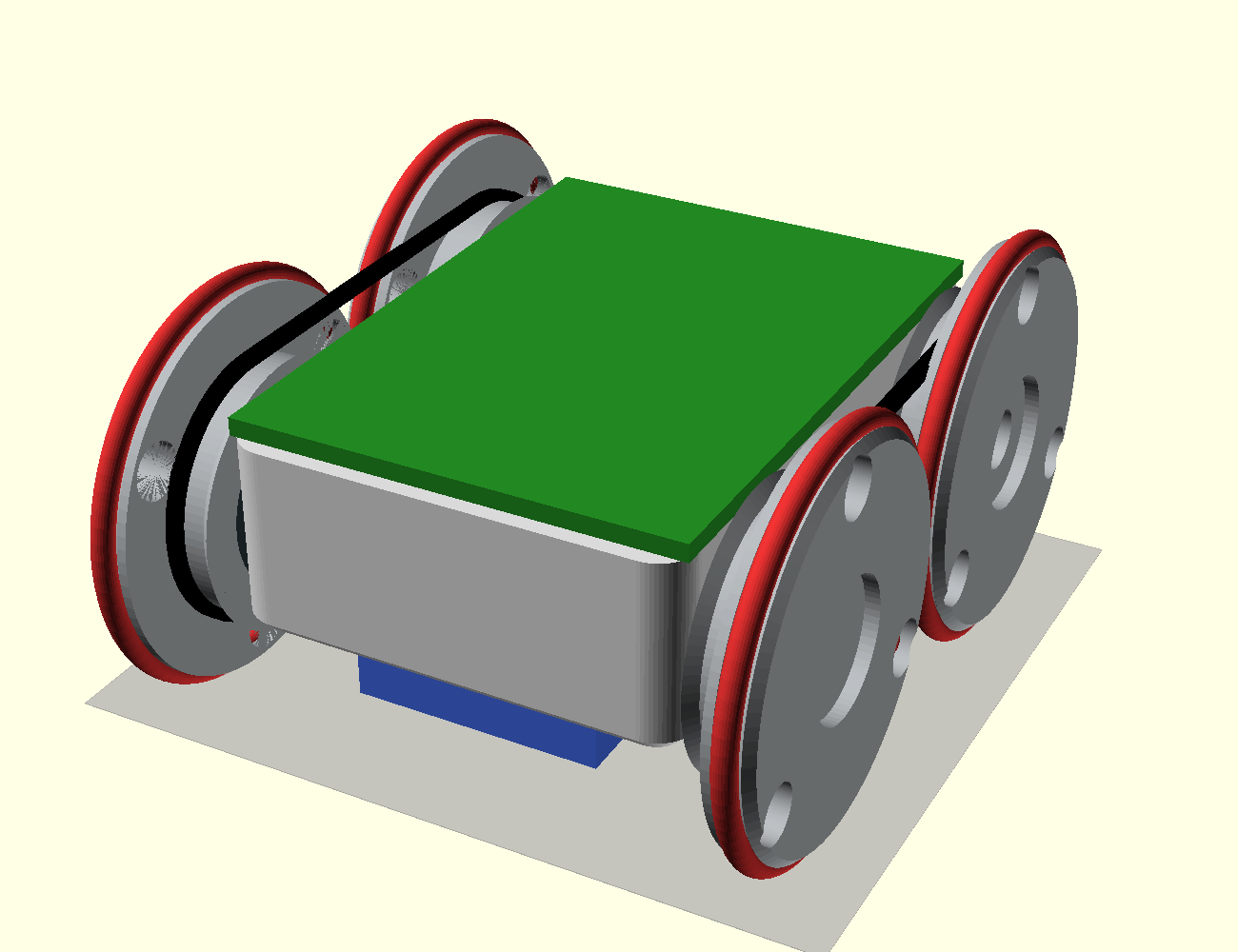

Full stack (+ perfboard flush top)2.2 MB

drag to orbit · scroll or pinch to zoom
composed of: chassis base, hw battery, hw motors, hw bearings, hw pins, hw deck, belts, hw tire, wheel driven, wheel idler, hub cap — all at v0.9

chassis_base (rounded body + flush-top PCB mounts)116 KB

drag to orbit · scroll or pinch to zoom

wheel — driven (D-bore + hub-cap recess)205 KB

drag to orbit · scroll or pinch to zoom

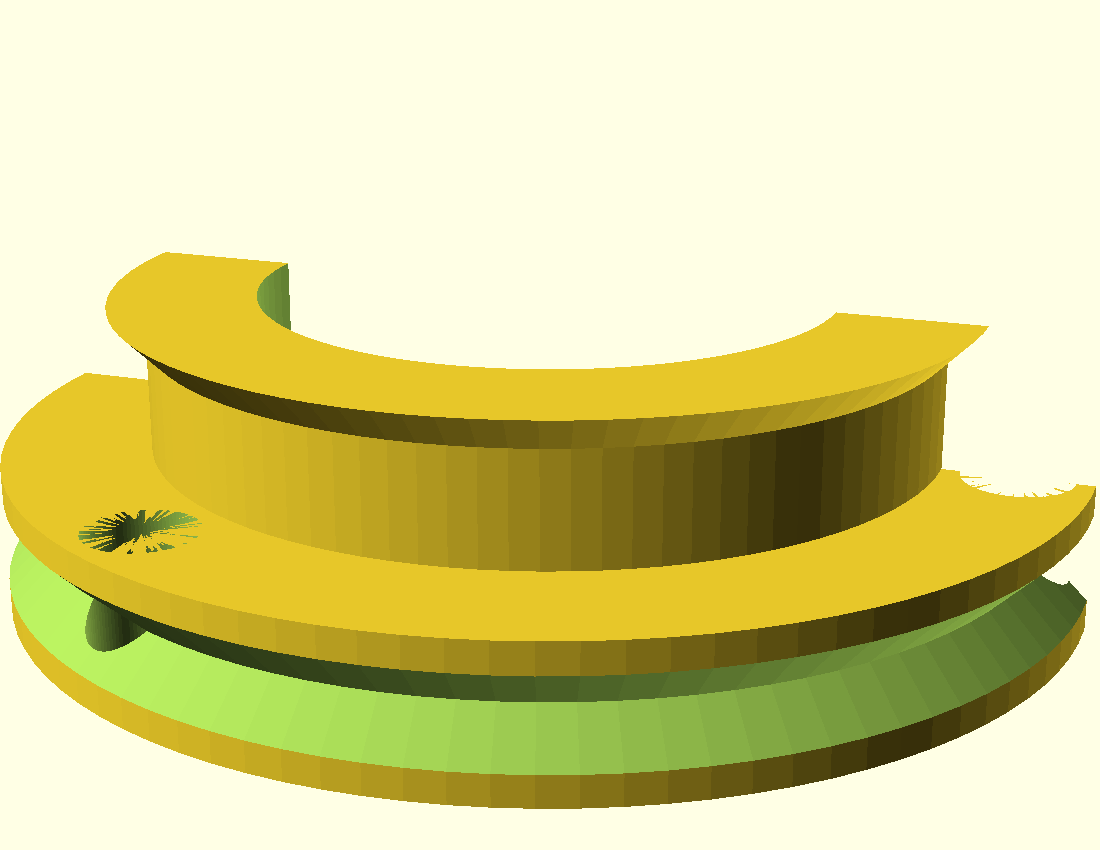

wheel — idler (625-2RS bearing seat)229 KB

drag to orbit · scroll or pinch to zoom

hub-cap (print 4 in CREAM)49 KB

drag to orbit · scroll or pinch to zoom

idler pin (printed Ø5 — print 2)37 KB

drag to orbit · scroll or pinch to zoom
