RF-1 · Phase 3 — The Face

The two-part enclosure that finally gives RF-1 a face: a press-fit cover closes the powered-rover body, and a separate tilted head module at the front holds a 0.96″ OLED behind a masked visor slot.
v0.3software-verified
full cover + face (contract-driven, gated): cover clears the Ø34 wheels, tail USB×2 + switch cutouts, front face-module socket; head wedge with masked visor. 3 gates PASS, form_lint 0 FAIL, form-resolved (one 5 mm house radius across body+cover+head). Next: seam/retention coupon → dry-fit → print.

Specs & BOM

Envelope
40 × 56.9 × 13.02 mm

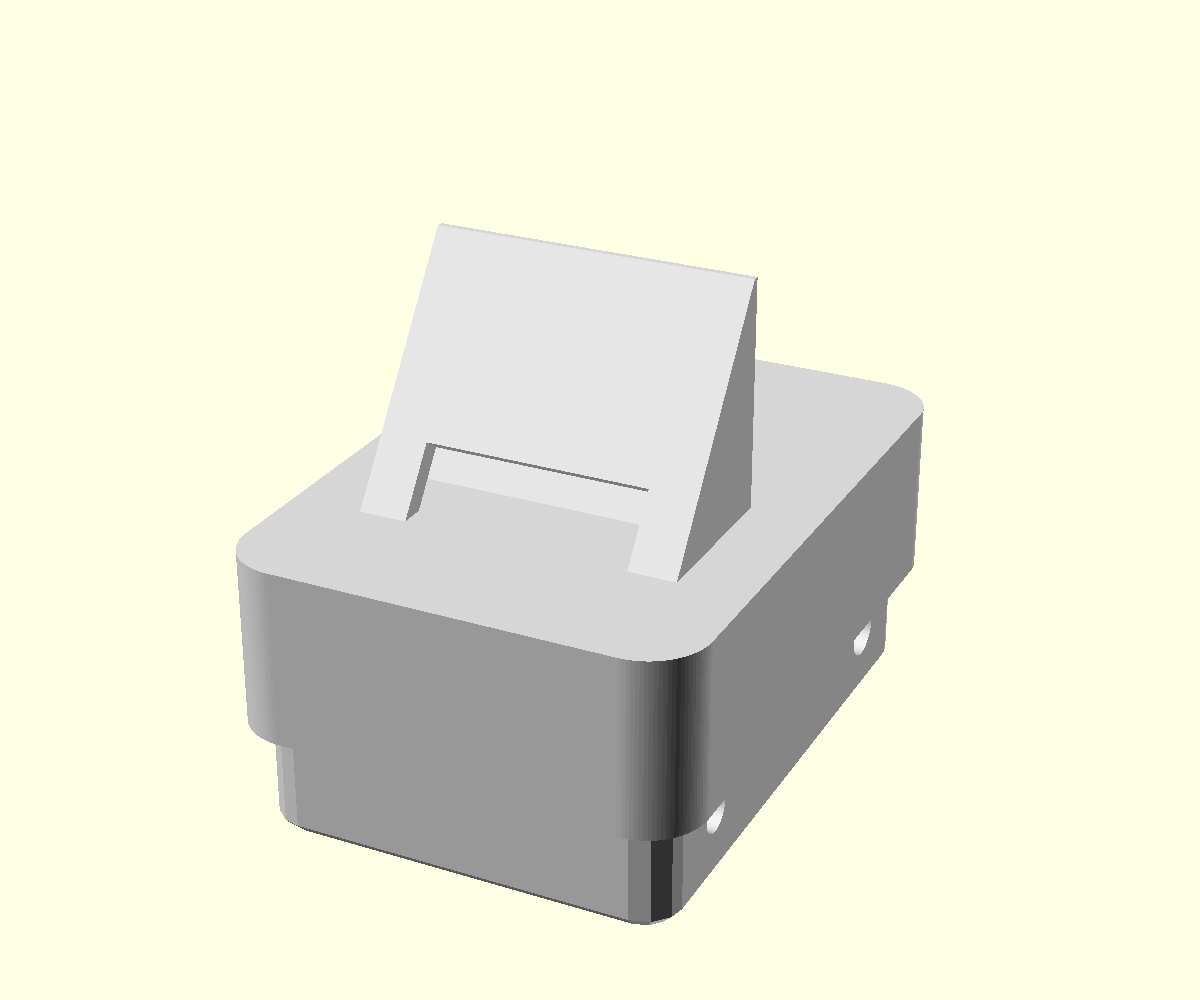

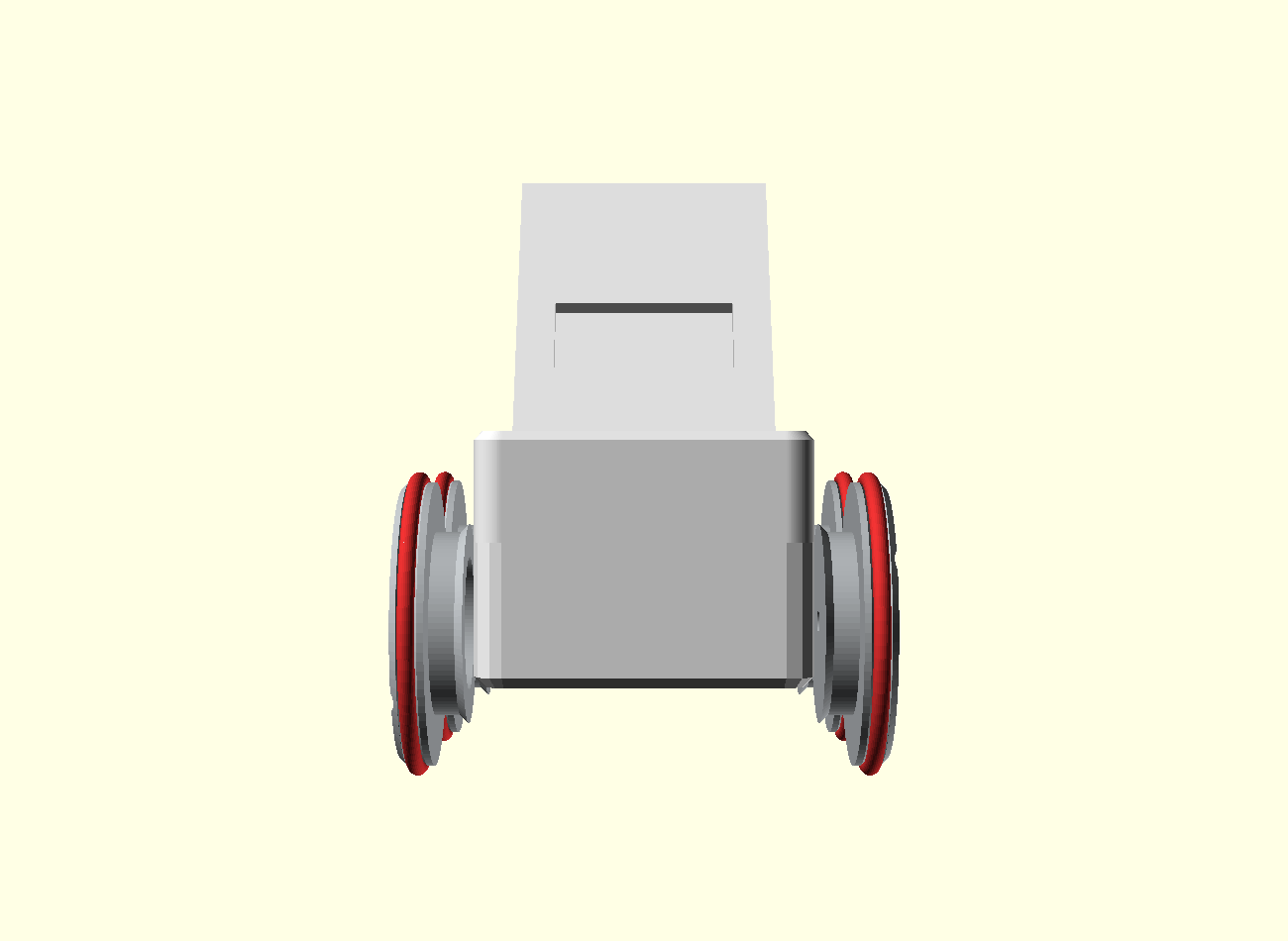

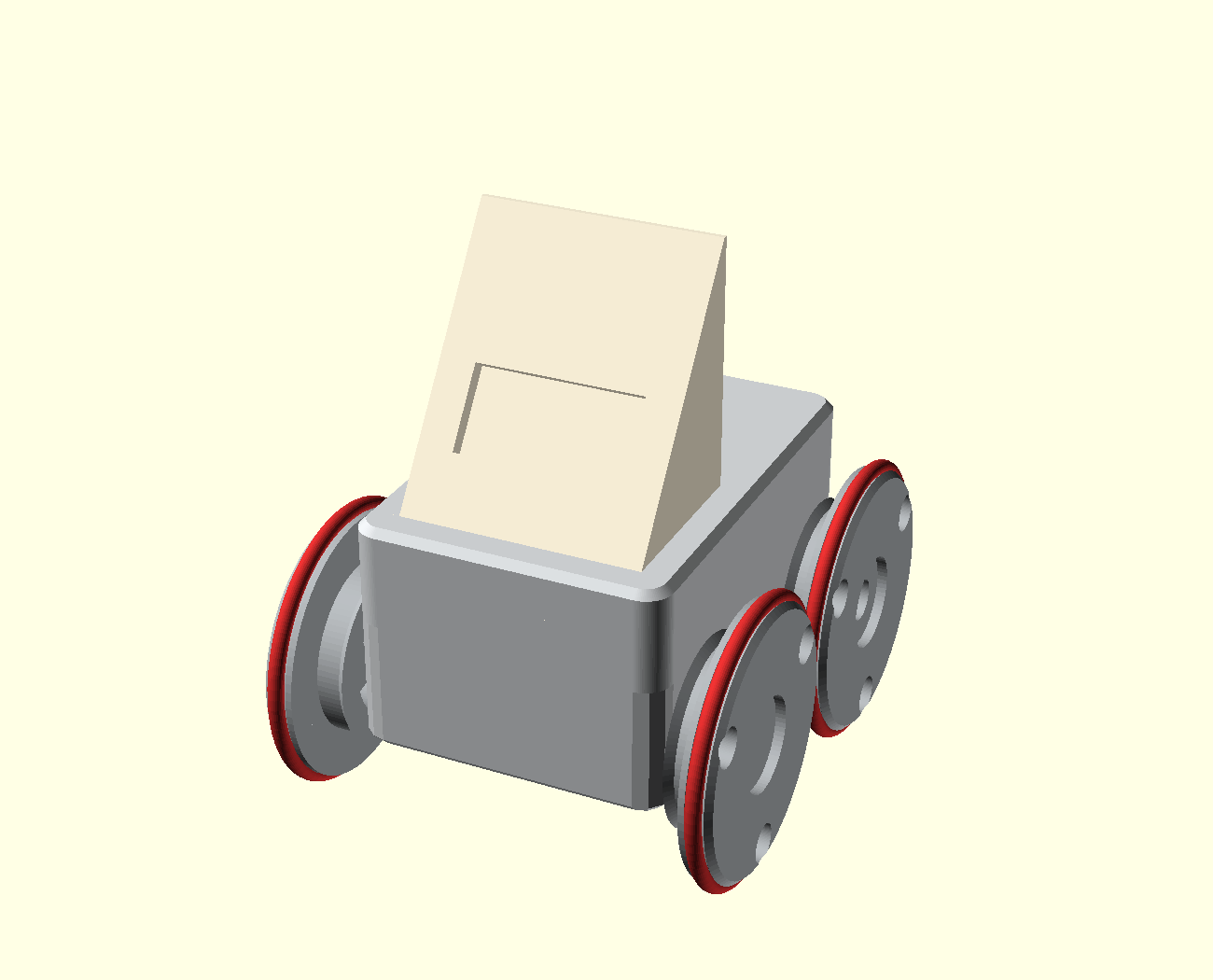

Assembled — cover + OLED head544 KB

drag to orbit · scroll or pinch to zoom
composed of: cover, head — all at v0.3

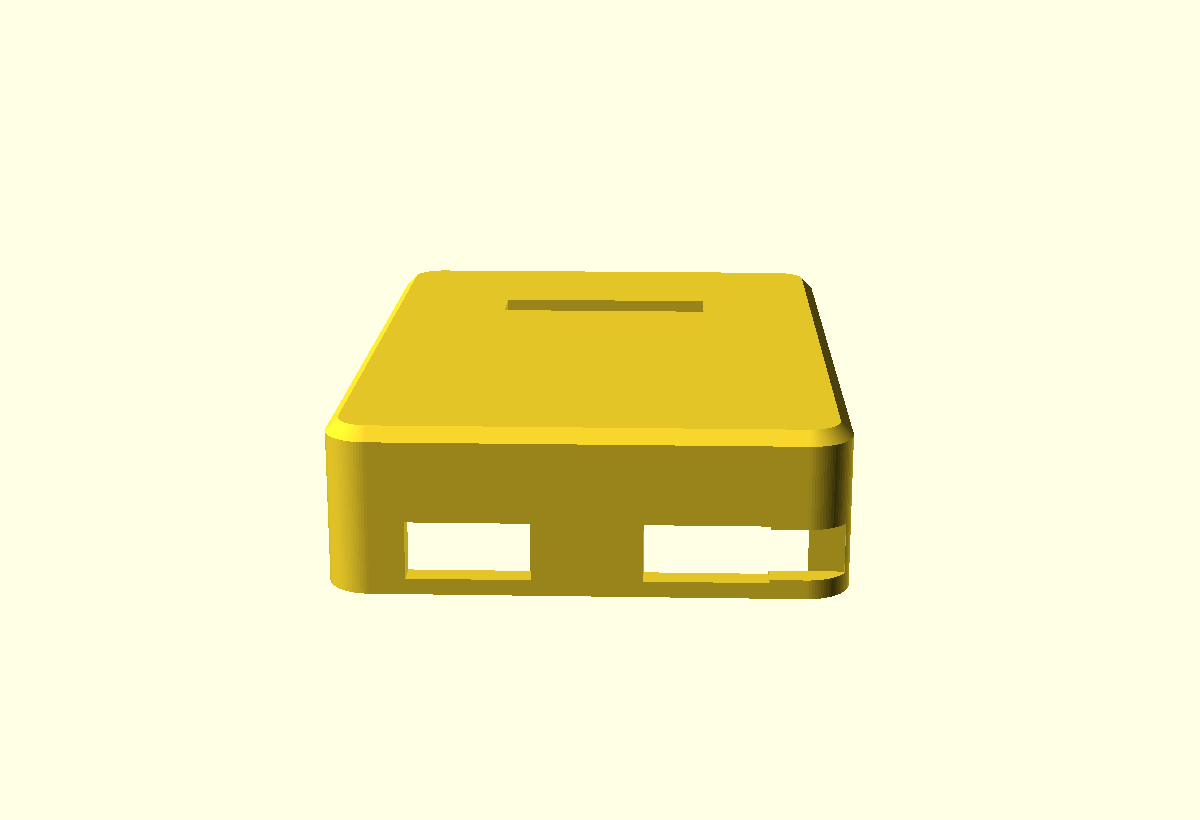

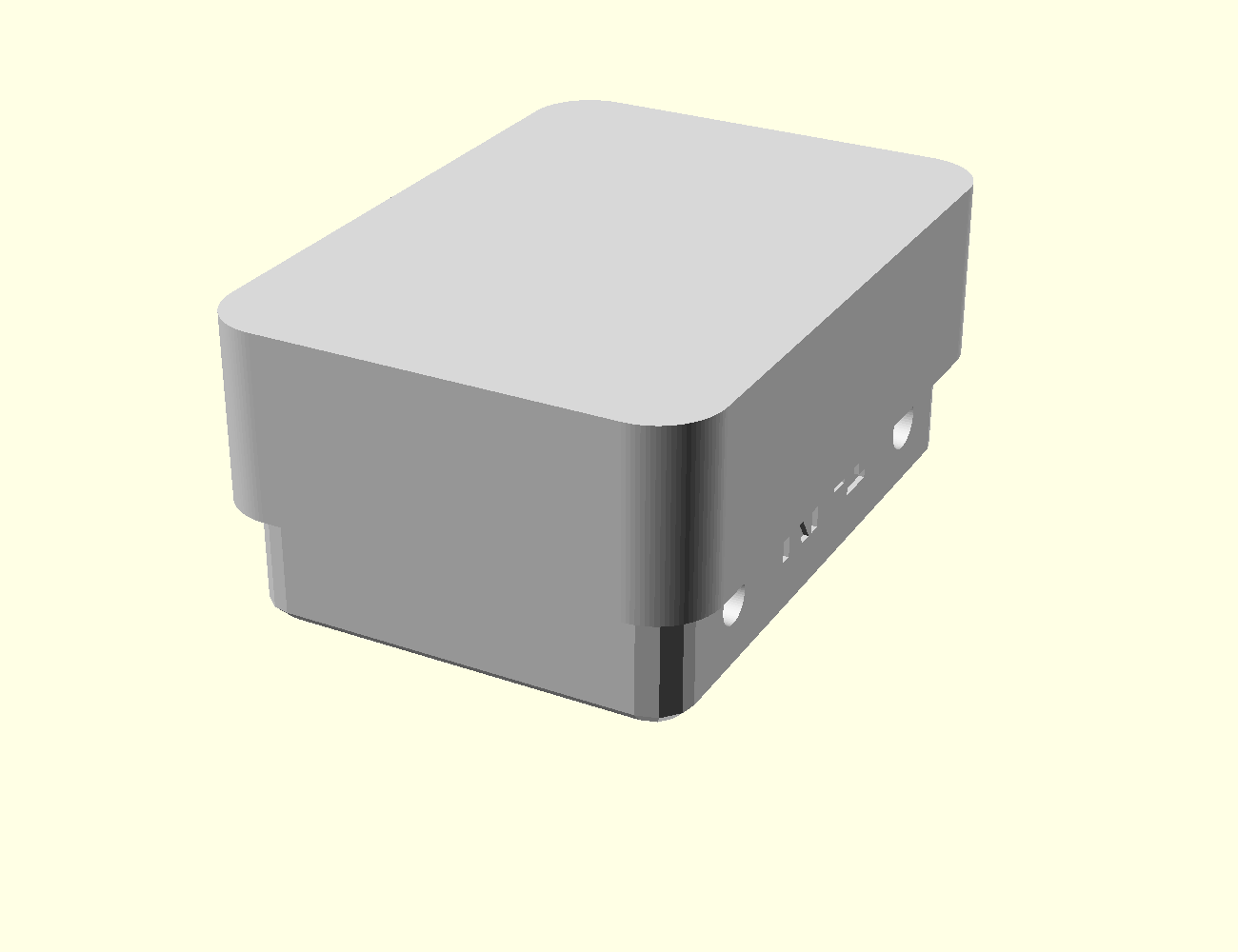

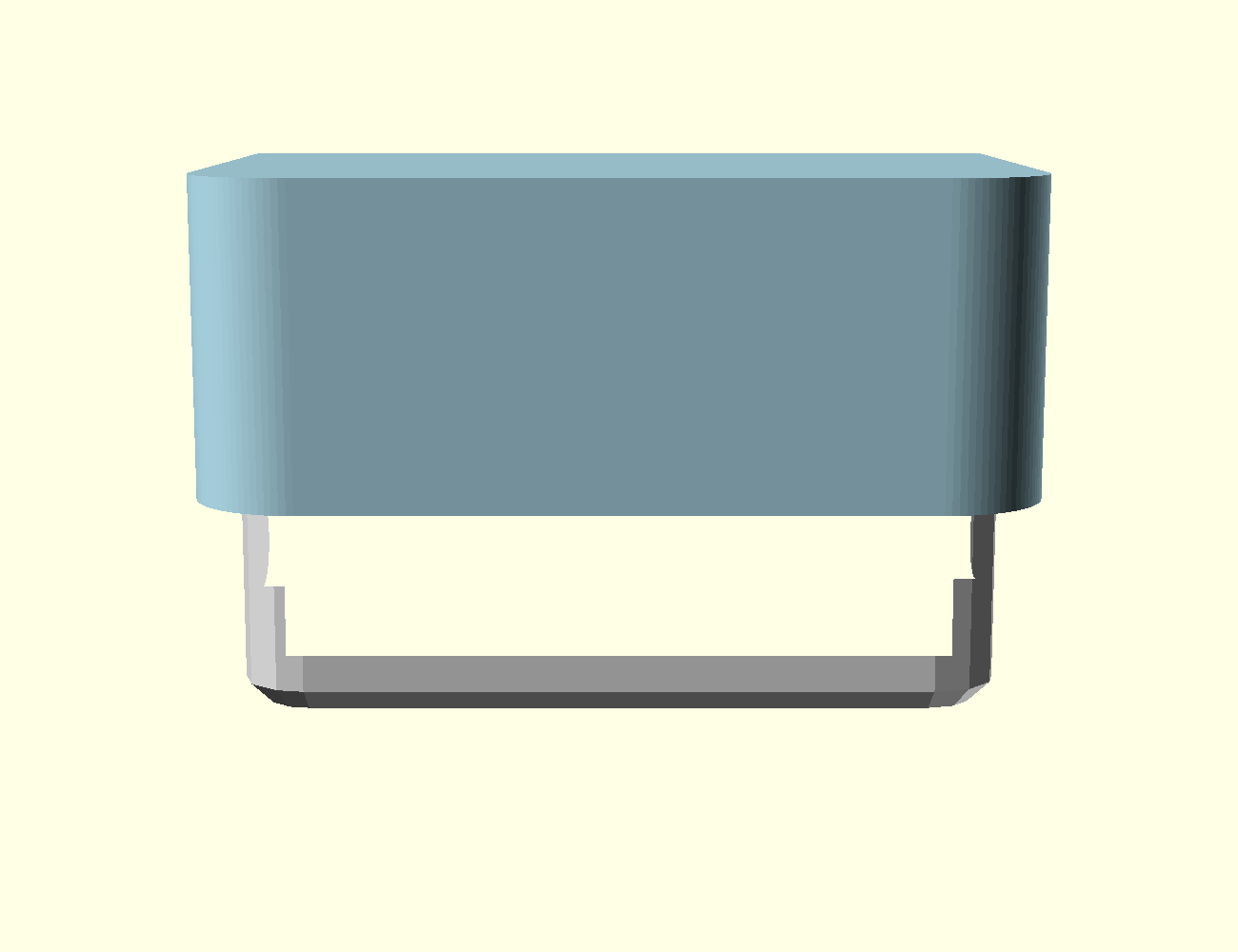

cover — press-fit shell186 KB

drag to orbit · scroll or pinch to zoom

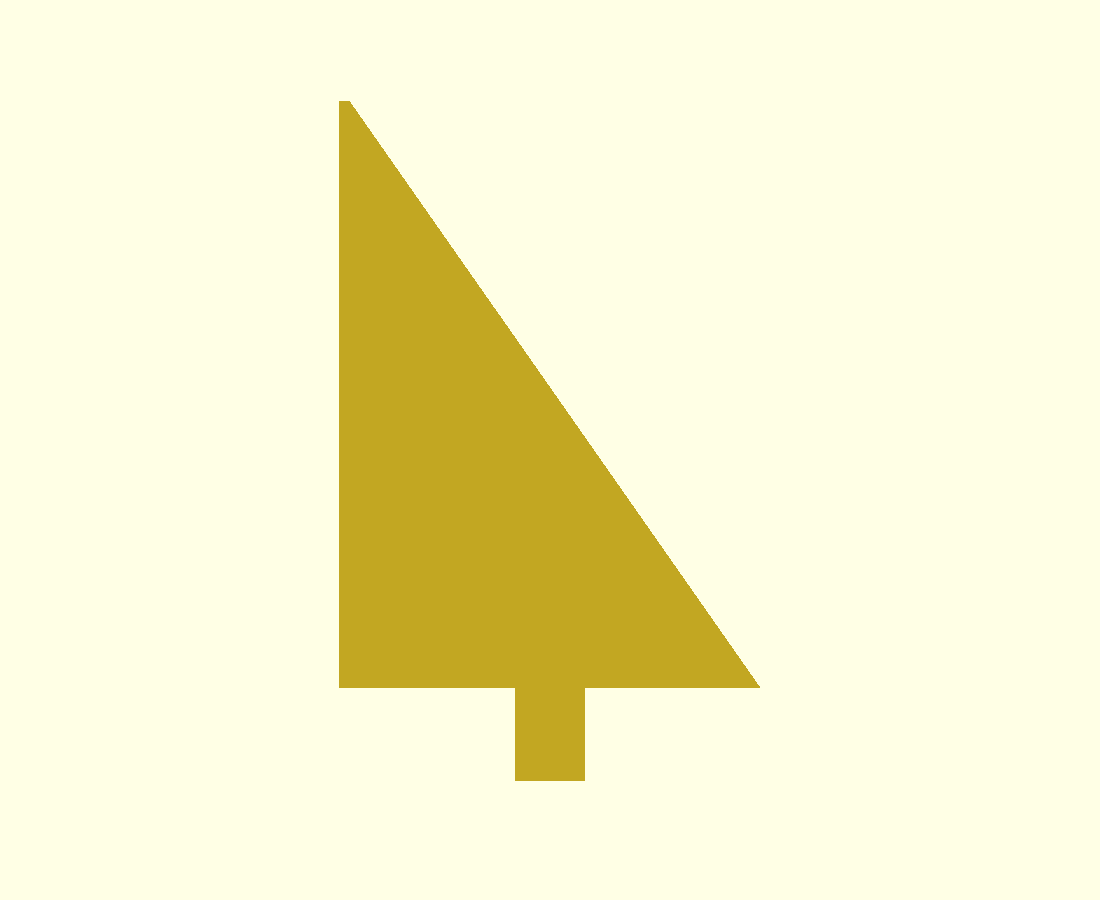

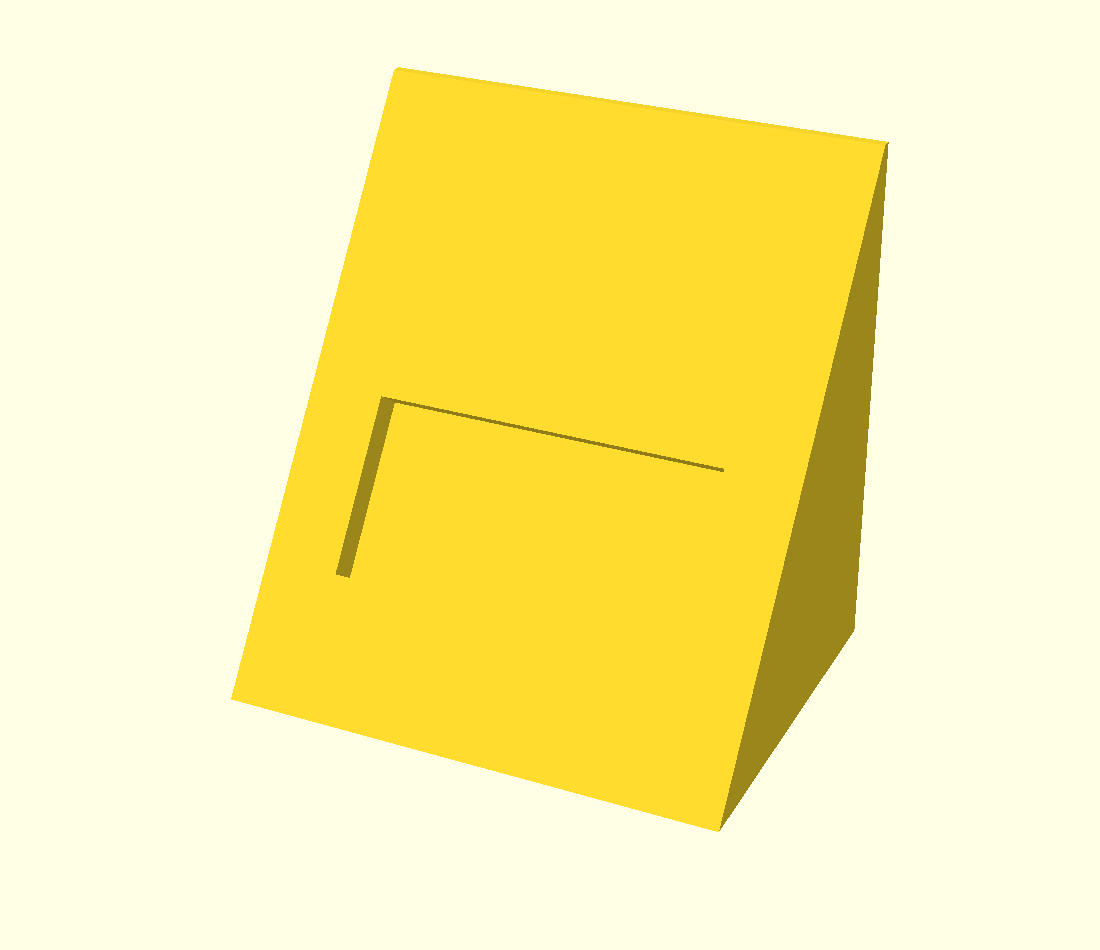

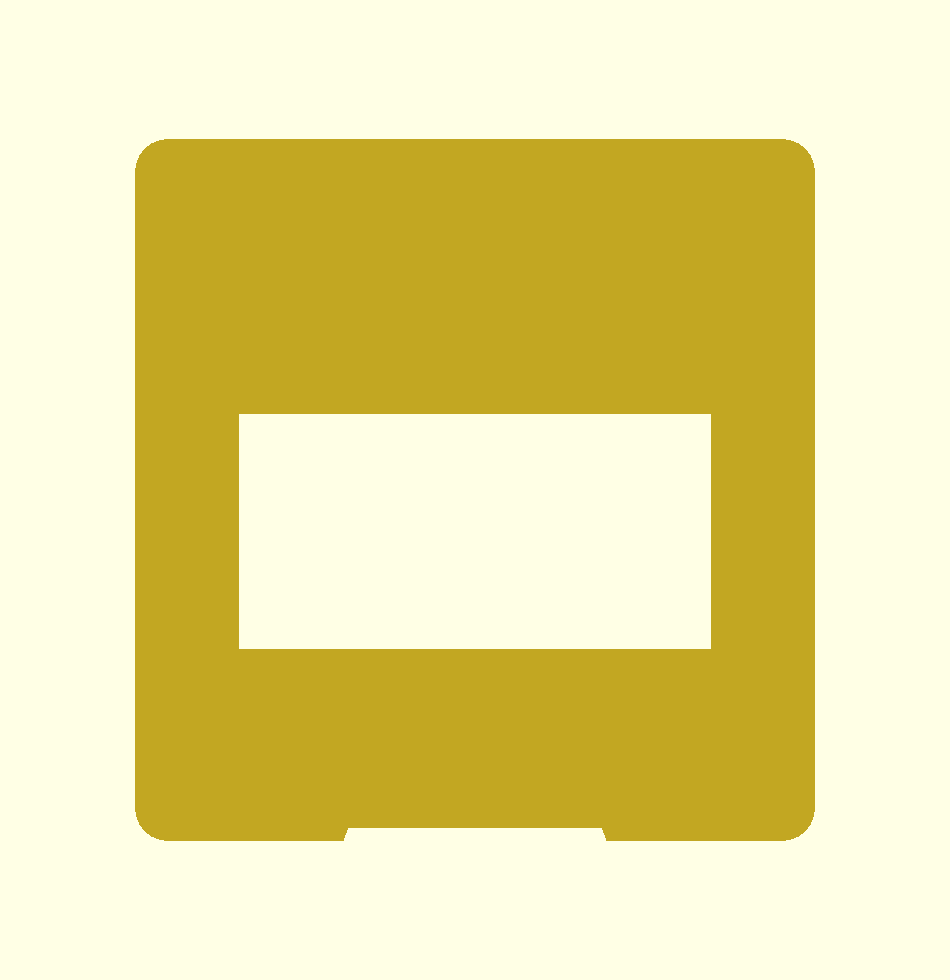

head — tilted OLED module357 KB

drag to orbit · scroll or pinch to zoom

Screenshots
