RF-02 · The Monocoque Loaf

rolling_face/phase4_rf02_form-v0.14

Why RF-02 instead of patching RF-1/P3: RF-1 grew function-first with form patched on at the end (three corner radii reconciled after the fact, a chamfer-vs-round-over residual, a body-align override).

in progressv0.14
v0.14 ARCHITECTURE PIVOT (board-in-cover) + version-stamped parts; all 7 gates GREEN, both parts 1-shell manifold, print-orientation-correct. The custom perfboard moved from the tub deck INTO the COVER: it mounts component-sid

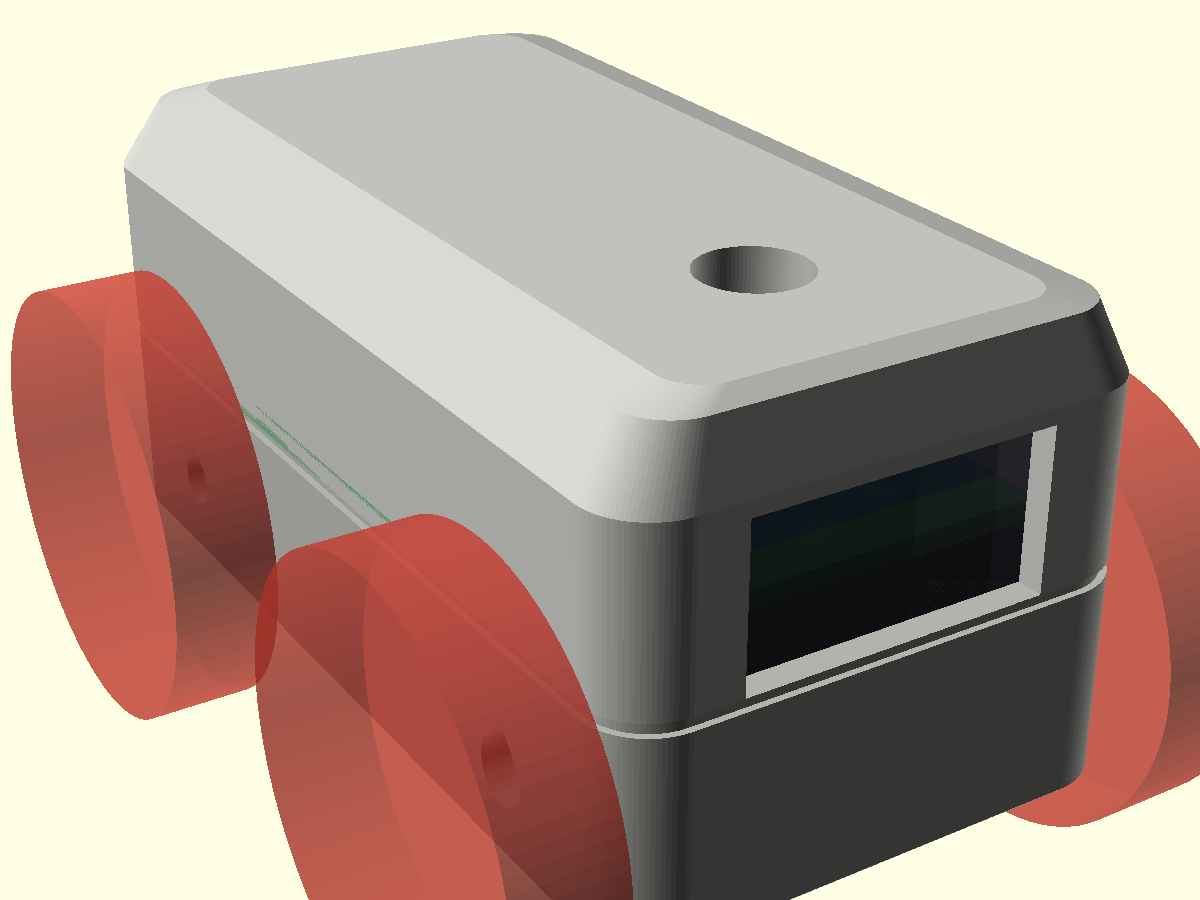

Fully assembled — loaf + all hardware1.9 MB

drag to orbit · scroll or pinch to zoom
composed of: cover v0.14, tub v0.14, wheel driven v0.9, wheel idler v0.9, hub cap v0.9, hw tires v0.14, hw board v0.14, hw motors v0.14, hw oled v0.14, hw cap v0.14, motor keeper v0.14

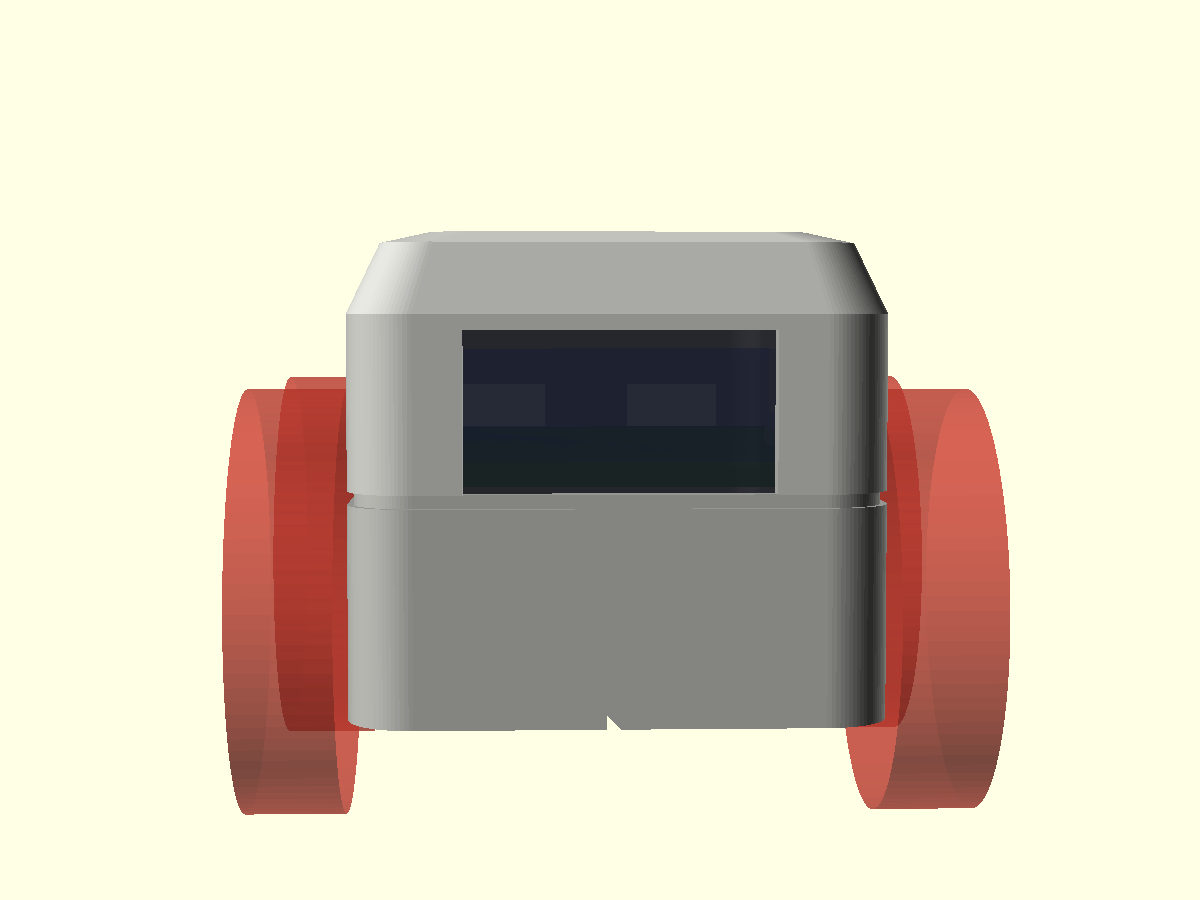

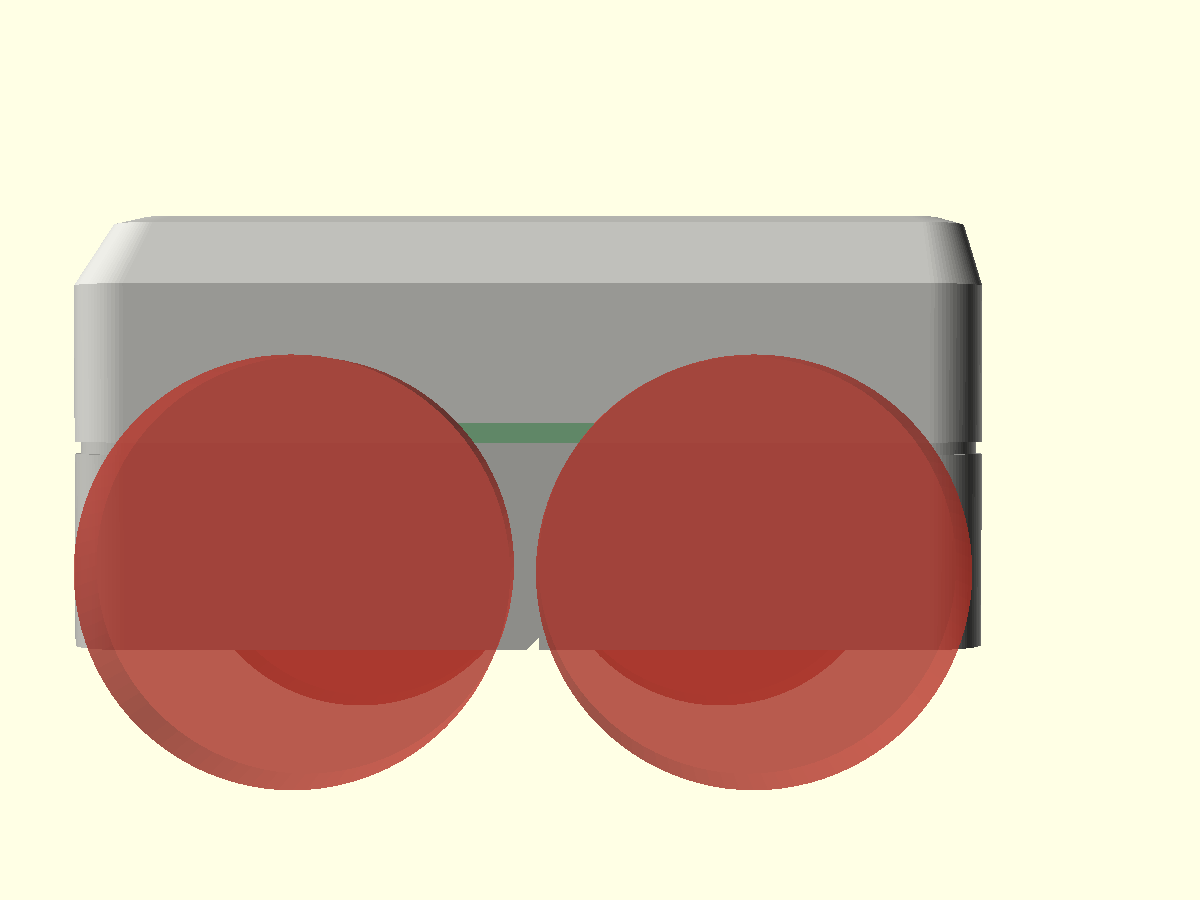

Assembled — the loaf (cover + tub)791 KB

drag to orbit · scroll or pinch to zoom
composed of: cover, tub — all at v0.14

cover — vertical-screen loaf upper241 KB

drag to orbit · scroll or pinch to zoom

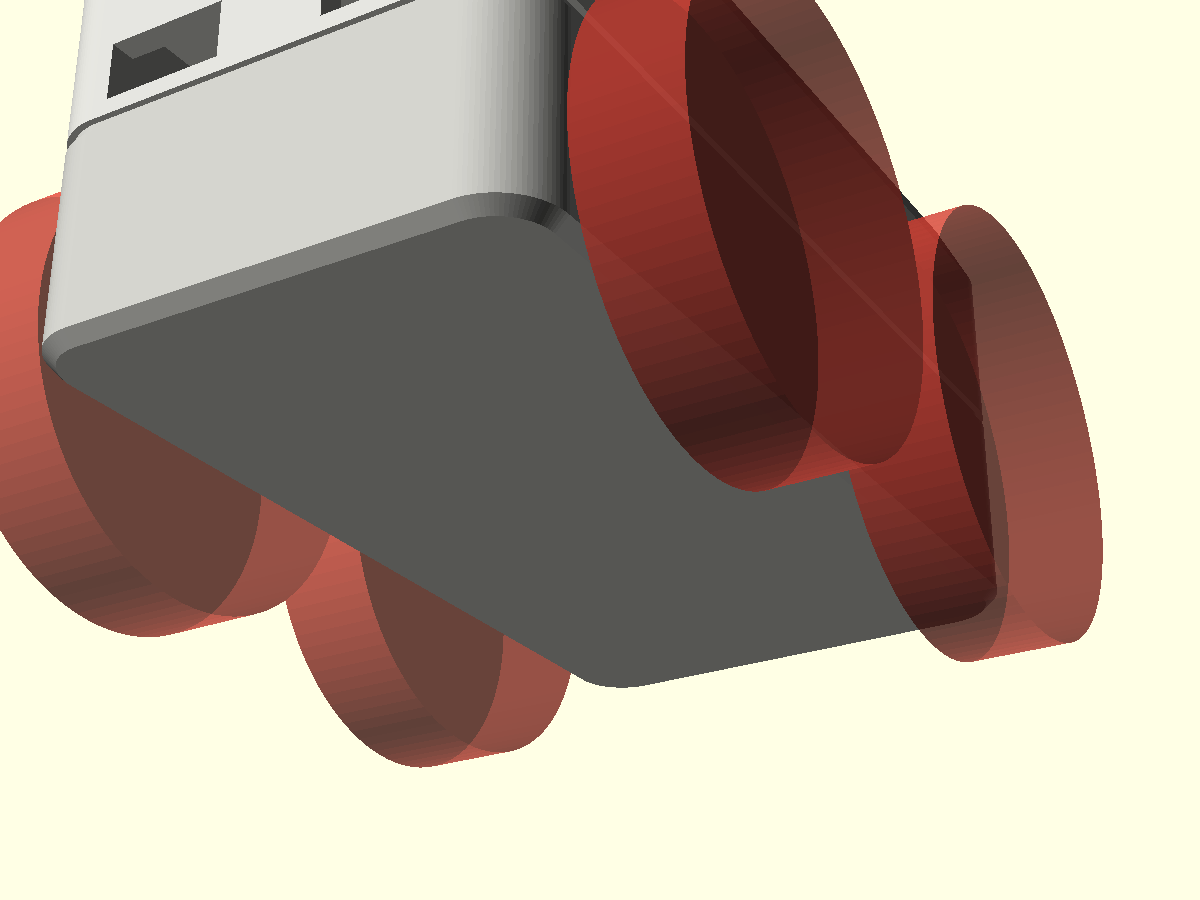

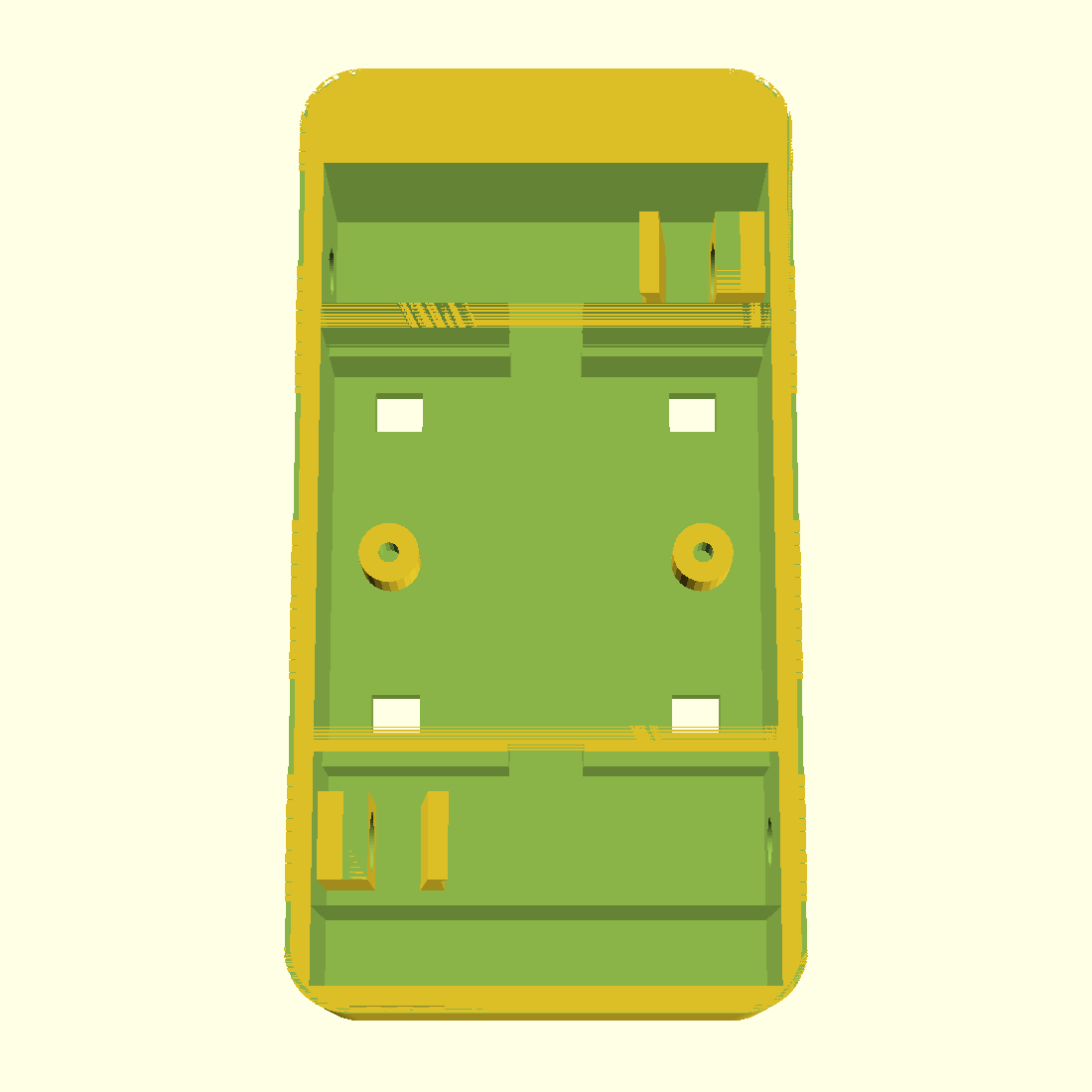

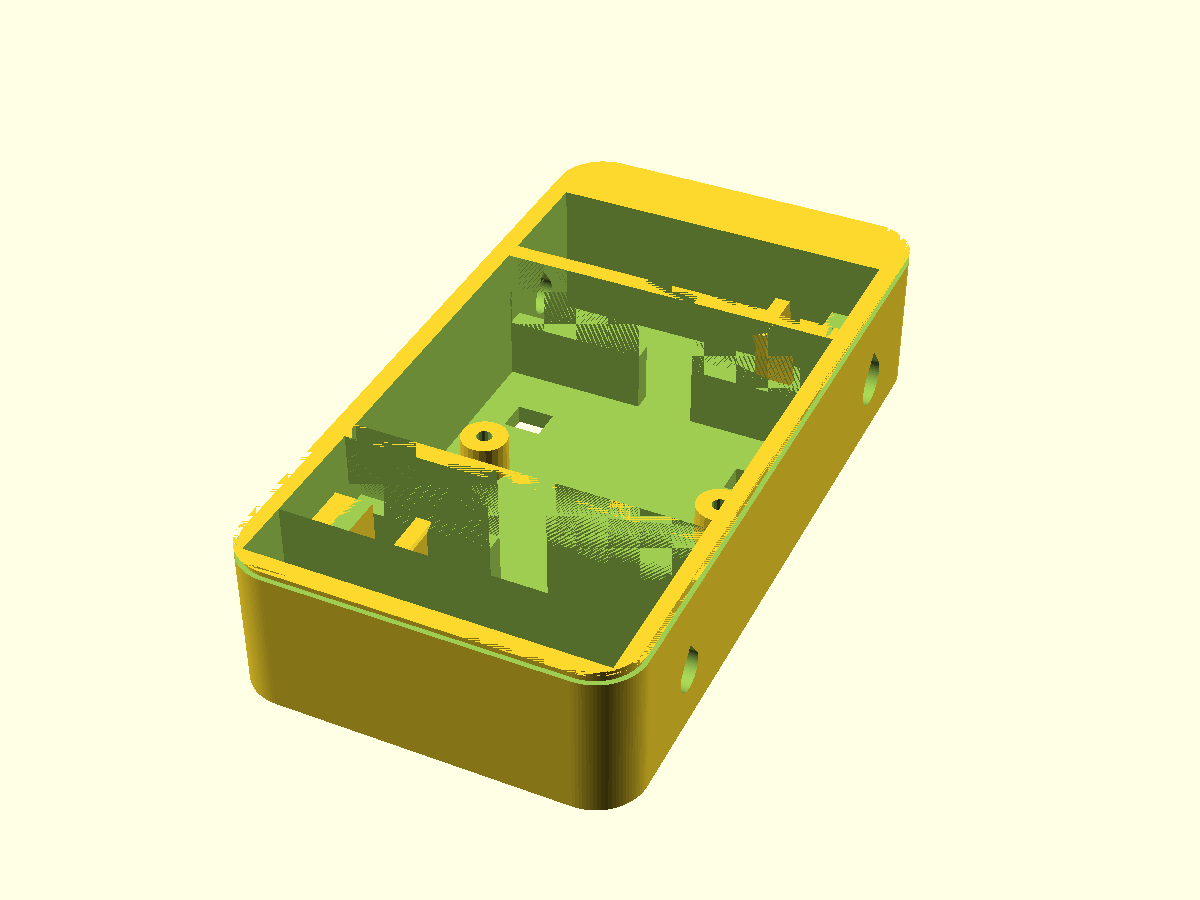

tub — chassis lower (drivetrain bays + OLED chin)550 KB

drag to orbit · scroll or pinch to zoom

motor keeper bars (×2, M2 to the bay)9 KB

drag to orbit · scroll or pinch to zoom

Specs & BOM

ParameterValueUnit
Envelope65 × 82 × 34mm

CAD-based product images

AI-finished images of rendered CAD geometry; not a physical print or fit test.

Evidence
