RF-1 bench platform

The basic bench platform for Rolling Face: get the electronics and mechanics working, then feed what you learn into RF-03.
v0.4bench mule
every interface number measured and parts mesh-verified, but no cover and no gates; learnings feed RF-03

Specs & BOM

Envelope
34 × 34 × 8 mm

rf1 platform — assembled2.4 MB

drag to orbit · scroll or pinch to zoom
composed of: platform plate v2, platform tub v2, platform wheel — all at v0.4

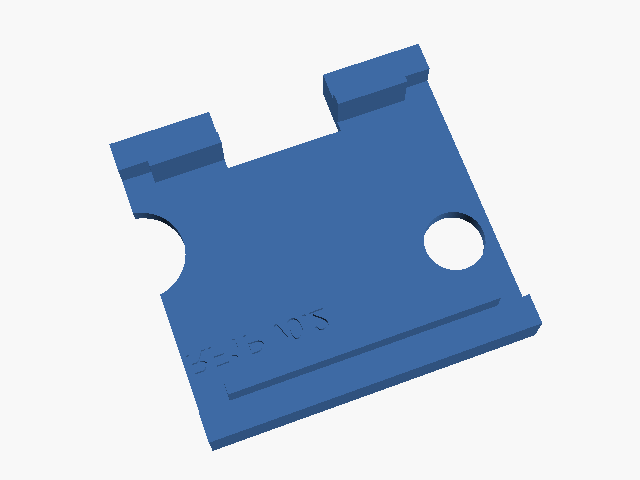

platform plate v2 / print pose956 KB

drag to orbit · scroll or pinch to zoom

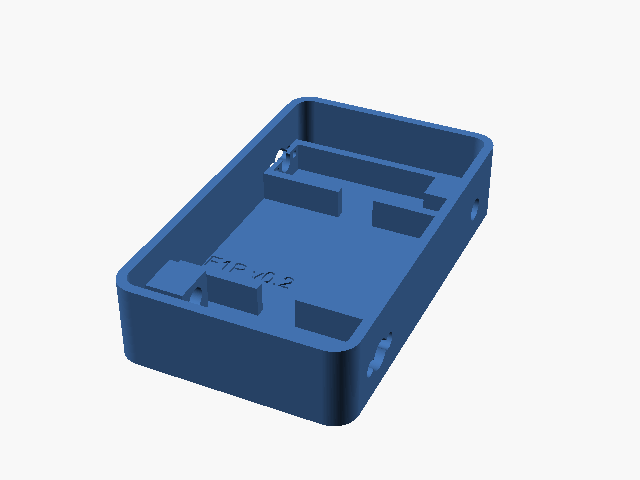

platform tub v2 / print pose1.3 MB

drag to orbit · scroll or pinch to zoom

platform wheel / print pose205 KB

drag to orbit · scroll or pinch to zoom
