HS-02A iron insert — stock HS-02B stand, adapted

fnirsi_hs02a_insert-v4

An insert that adapts the stock HS-02B stand to hold the HS-02A iron.

provisionalv4

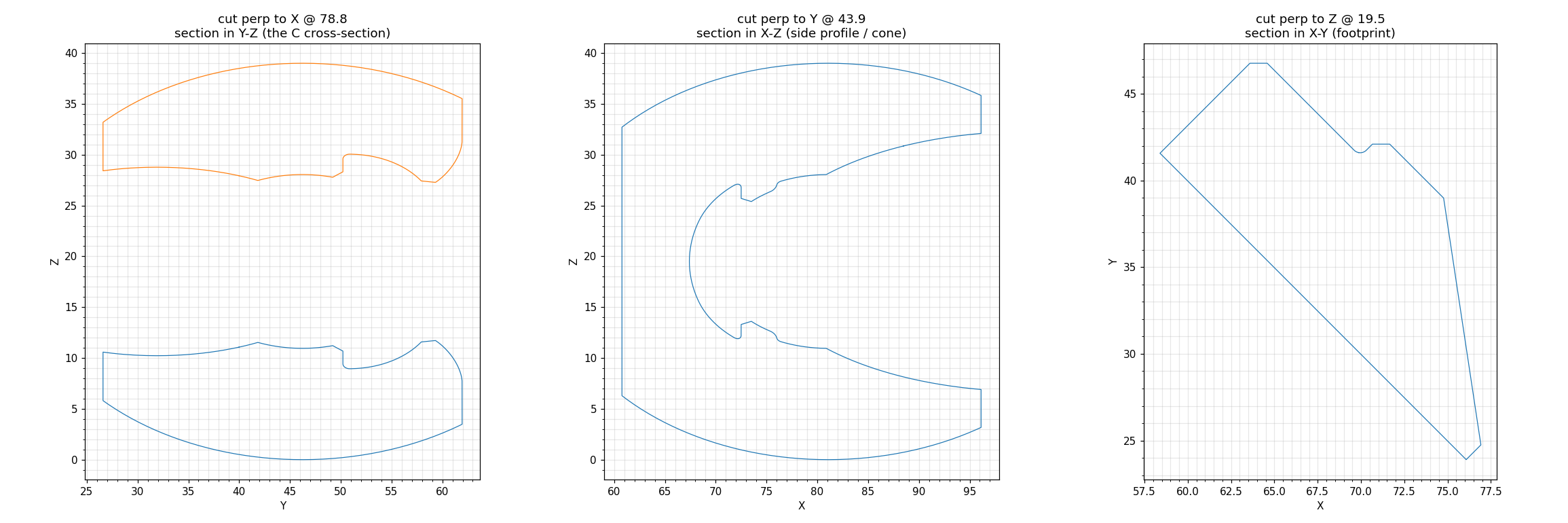

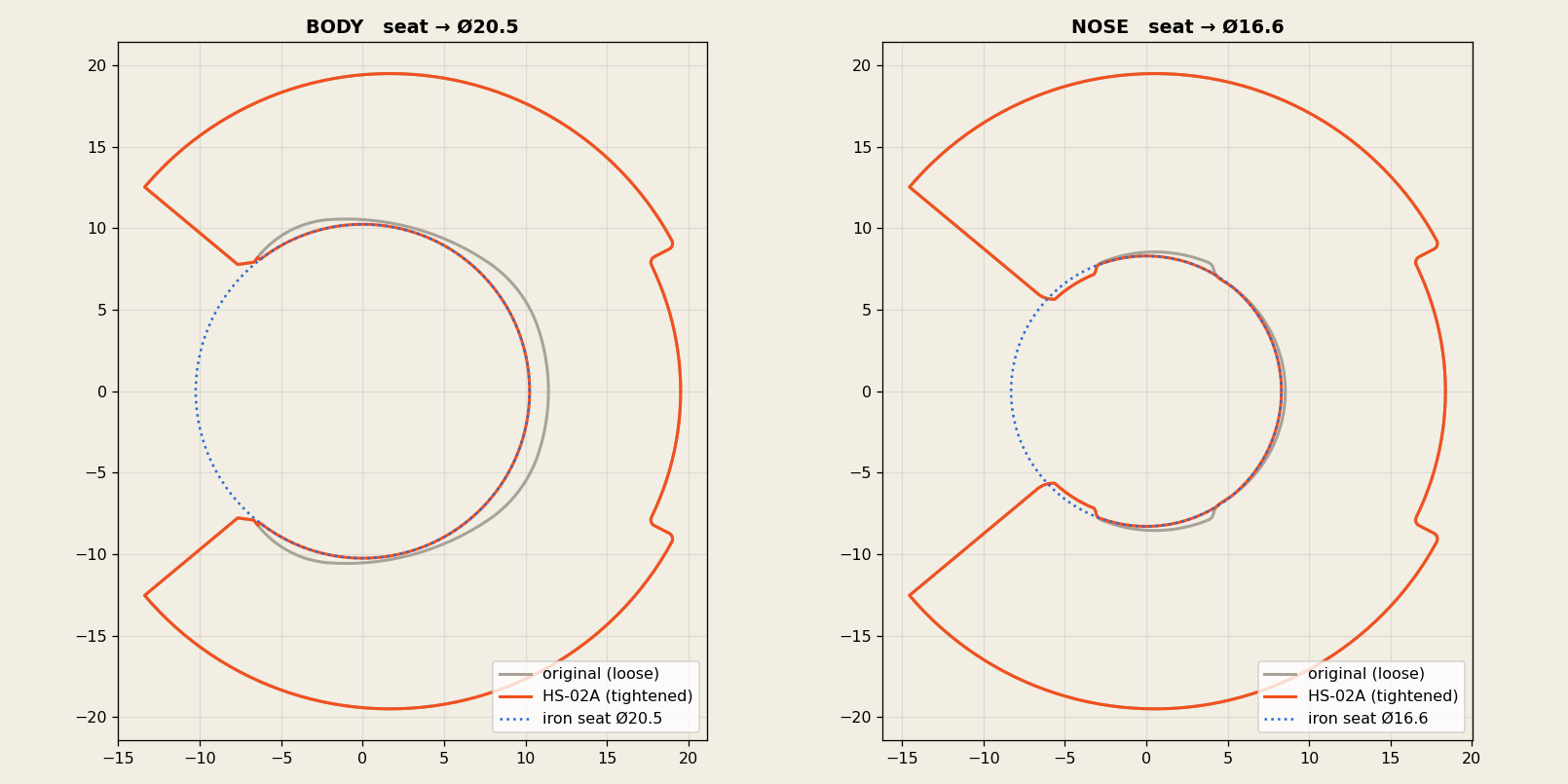

v4 reshapes both seats into clean tapers that parallel the stock profile (deep grip kept: body ~Ø20.9, nose follows stock); simplifies the geometry off v3's imposed cylinders; awaiting a print + fit-test of v4

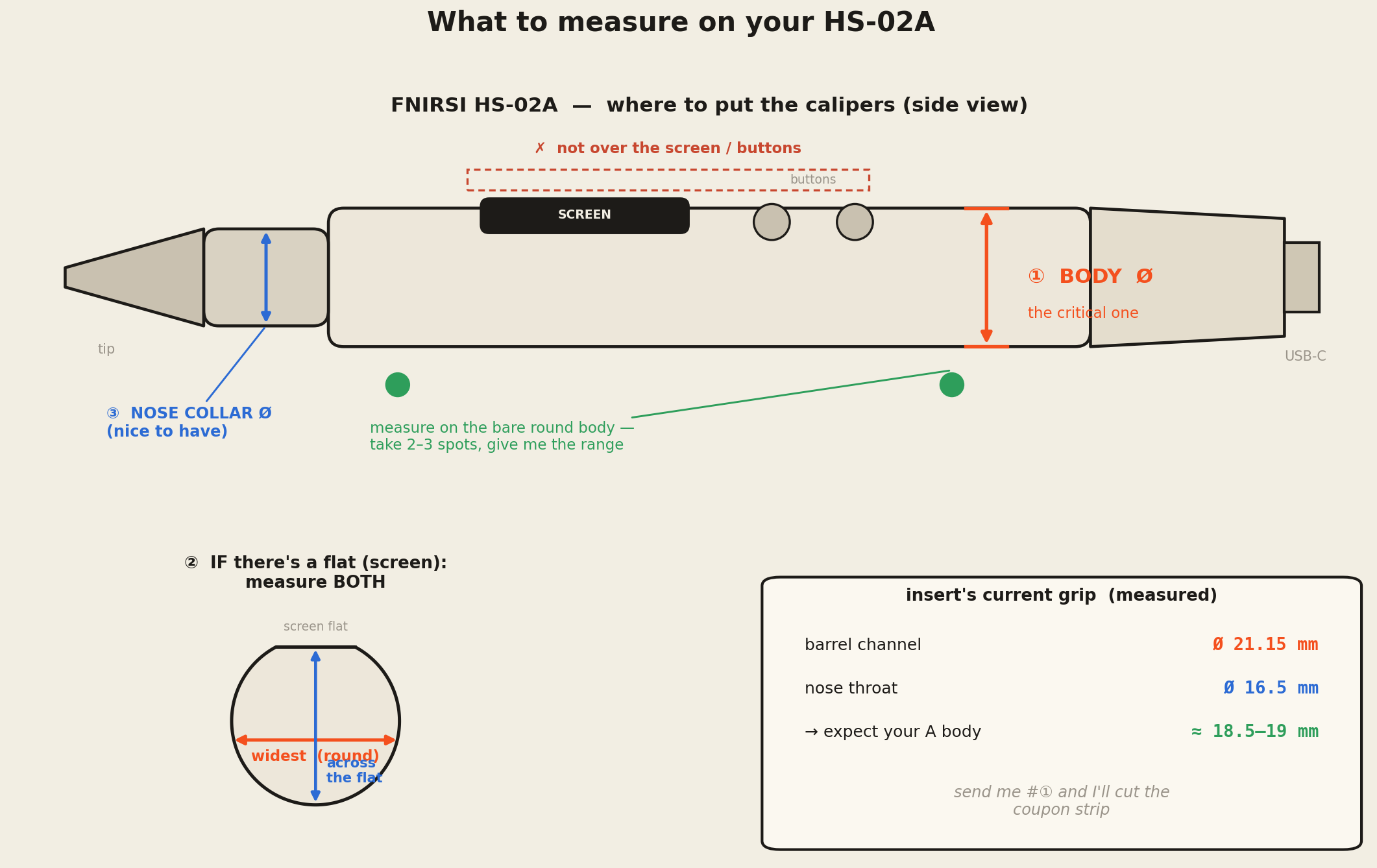

Field note Refitting a downloaded insert to my actual iron →

HS-02A insert4.2 MB

drag to orbit · scroll or pinch to zoom

Specs & BOM

ParameterValueUnit
Envelope40.8 × 40.1 × 39.0 mm (v4 insert, from insert_hs02a_v4.stl)

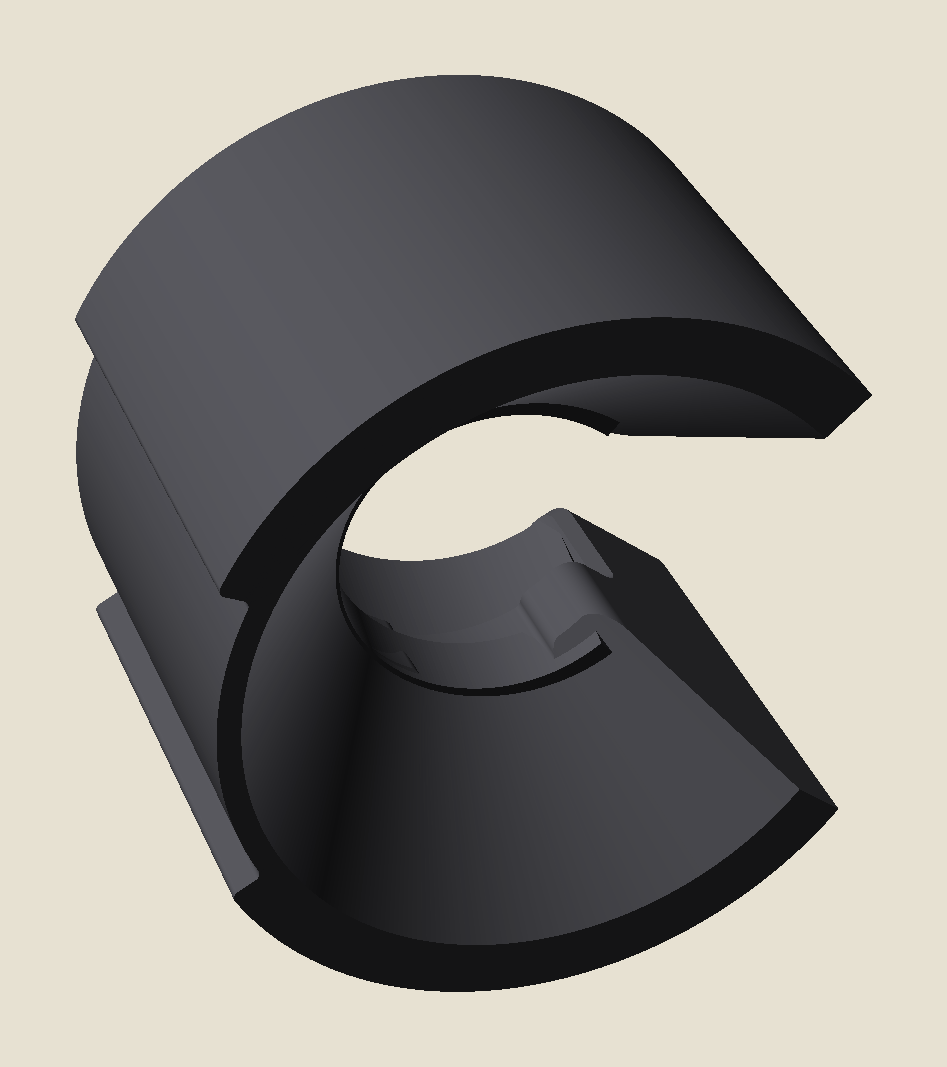

CAD-based product images

AI-finished images of rendered CAD geometry; not a physical print or fit test.

Evidence
