Outward: a two-contact lever
The short toe rests on top at x = 12 mm. The underside toe bears beyond the chamfer at x = 46 mm. Together they balance the bag at the outside horn, nominally x = −24 mm.
DBH-01 / DBH-01-IN 09 SEPT 2026
KIL, turned inward.
Same faceted language. A different place for the bag.
The locked outward hook and an unprinted inward sibling, side by side.
Outwardv0.6locked form
98 × 70 × 16 mm
Inwardv0.1unprinted candidate
118 × 98 × 16 mm
Actual STL geometry · 115 KB total
Upright · front ¾
Open the models to orbit, zoom and inspect the contact arrangement.
Display colors identify versionsTHE CHANGE
The top arm follows
the bag inward.
Outward balances the bag through two desk contacts. Inward puts a longer top bearing above the saddle, leaving the under-desk opening clear.
| Recorded quantity | Outward v0.6 | Inward v0.1 |
|---|---|---|
| Envelope mm | 98 × 70 × 16 | 118 × 98 × 16 |
| PLA estimate | 25.32 g | 45.36 g |
| Time estimate | 55m 48s | 1h 32m 57s |
| Slice basis | Native project | Diagnostic slice |
Same stated process: A1 mini · PLA Pure · 0.20 mm · 6 walls · 30% gyroid. Estimates are not measured print consumption.
USE / NOMINAL CONTACTS
Two ways to hold a bag.

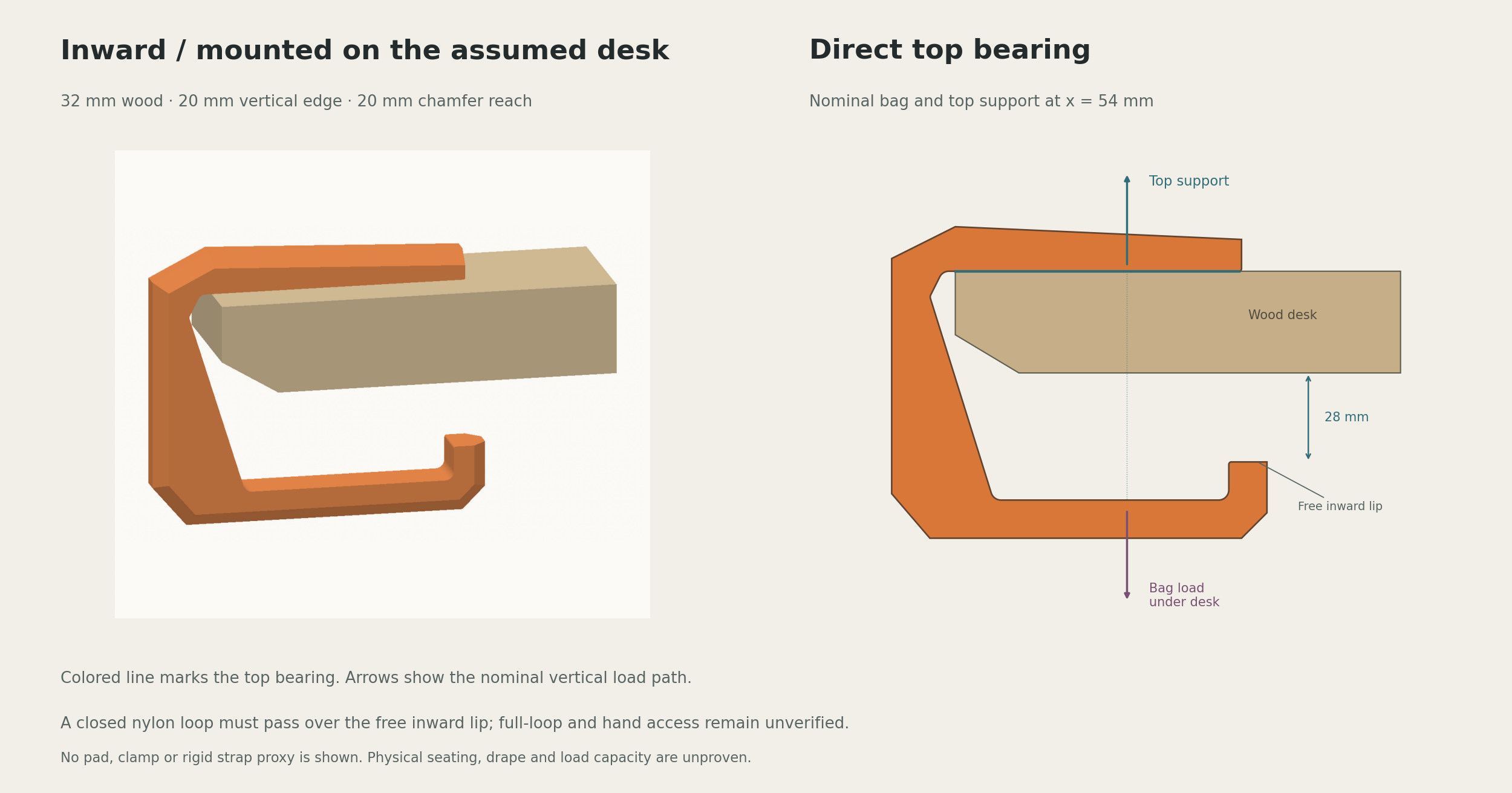

Inward: support over the saddle
The long top bearing spans x = 0–89.2 mm, beyond the broad saddle at 14.35–82.8 mm. The nominal bag position is x = 54 mm. There is no underside toe or inner brace.
Getting the loop on
The closed nylon loop passes over the free lip about 98 mm under the edge. Its 12 mm rise leaves a nominal 28 mm gap below the desk. Side or oblique threading may help.
The remaining question is physical
An 8 mm local strand clears the modeled route. That does not prove the complete loop, a hand, or one-handed use. Desk seating, wobble, lateral knocks, creep and load behavior still need a trial.
Desk proxy: 32 mm wood, 20 mm vertical edge, 20 mm chamfer reach. Authorized estimates from a photo, not caliper measurements.
DESIGN RECORD
Less object. Then a new direction.
The inward model branches from the locked compact KIL, carrying its thickness, facets and print process forward.
- superseded
Oversized v0.3
The earlier architecture made room for a large hand-access envelope. Its diagnostic slice showed the cost of that approach.
- PETG estimate
- 521.2 g
- Time estimate
- 17h 19m
H2C / PETG, 6 walls / 40% infill. Mixed diagnostic settings: historical context only, not a controlled reduction percentage.
- locked form
Outward v0.6
The compact 98 × 70 × 16 mm form was approved by Daniel. v0.5 print feedback led to matching facets on the build-plate side in v0.6.
- Both sides
- 4.8 mm / 45°
- Middle band
- 6.4 mm
v0.5 “turned out nice”; v0.6 form approved and locked. Fit and load rating were not established by that approval.
- parallel proposal
Inward v0.1
A longer top bearing puts the load beneath the desktop. The first reversed-contact trial had an internal toe; it is archived. The current open C/J removes that obstruction.
- PLA estimate
- 45.36 g
- Time estimate
- 1h 32m 57s
Unprinted. The original outward v0.6 remains the locked baseline.
DOWNLOAD / EVIDENCE
The files behind the view.
STL and STEP are geometry. The outward 3MF is an editable native project. Inward currently has a diagnostic slice, with no native 3MF package.
KIL Outward v0.6
approved form · lockedOpen outward designKIL Inward v0.1
unprinted candidateOpen inward designWhat the evidence supports
- Form
- Daniel approved and locked outward v0.6. Inward v0.1 is a separate proposal.
- Modeled
- Mesh, nominal clearance, print geometry and vertical contact checks passed for the recorded models. These checks use provisional desk and strap dimensions.
- Printed
- Positive v0.5 print feedback; v0.6 print dispatch verified. No measured desk-fit or sustained-load result accompanies the form lock. Inward is unprinted.
- Still open
- Actual seating, complete-loop access, lateral stability, long-term sag and useful capacity. No load rating is claimed.
Geometry identity and source record
This study is pinned to the following STL hashes. The posters are derived from those meshes, and the interactive view loads these frozen, versioned files.
- Outward v0.6
- e76b982c8a641517a8991a147e6ef468b9a58f64c3ccf0360c7d0527af1772aa
- Inward v0.1
- 81ea588a483cca743aae693216a4175f17de9cc7827184019a040503811447e1
Sources: design briefs, source contracts, outward form-lock record, actual exported meshes, and the final slice summaries. Geometry manifest ↗
- Outward v0.6 form-lock record ↗
- Outward v0.6 native slice check ↗
- Inward v0.1 final diagnostic slice summary ↗
The native slice check records preparation before the later dispatch recorded in the form lock.
