S3 Zero OLED Enclosure

s3zero_oled_enc_v3-v3

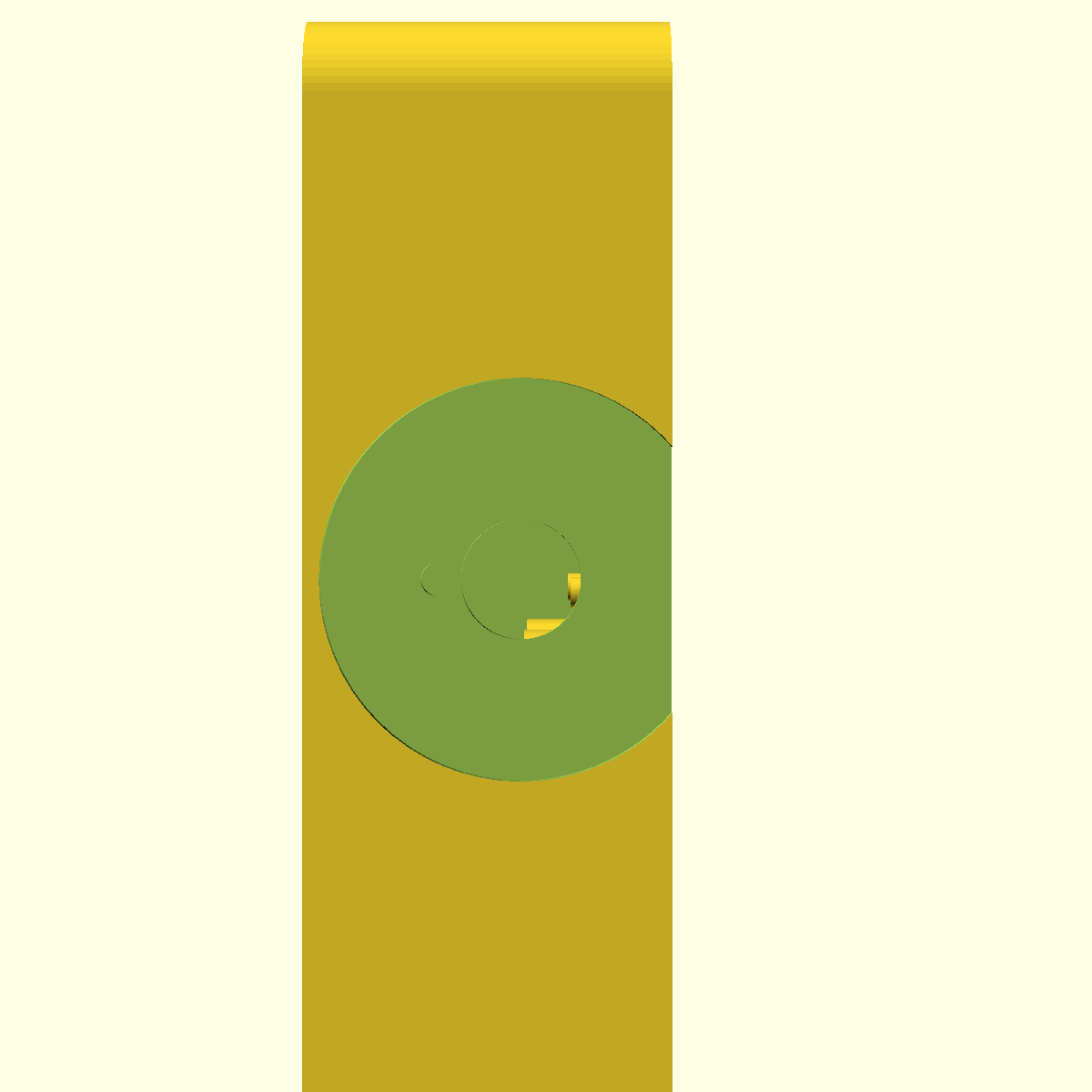

v3 refines v2 with debug/UX features that survived a print-fit pass: BOOT and RESET paperclip-access holes through the rear lid, an encoder anti-rotation locating hole on the right wall, a Ø2.5 light-pipe over the onboard WS2812 LED, six…

supersededv3
current line is v6

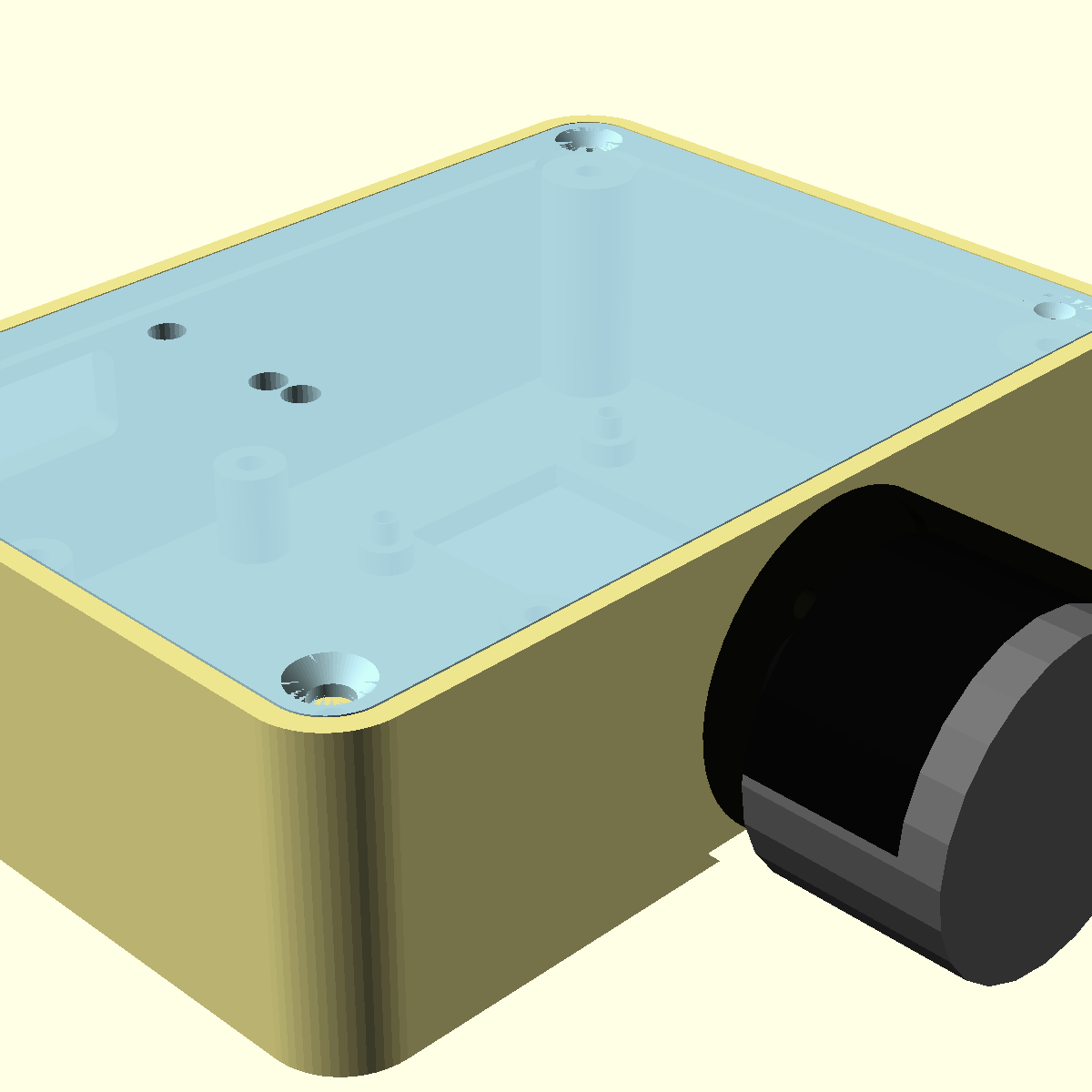

Full assembly753 KB

drag to orbit · scroll or pinch to zoom

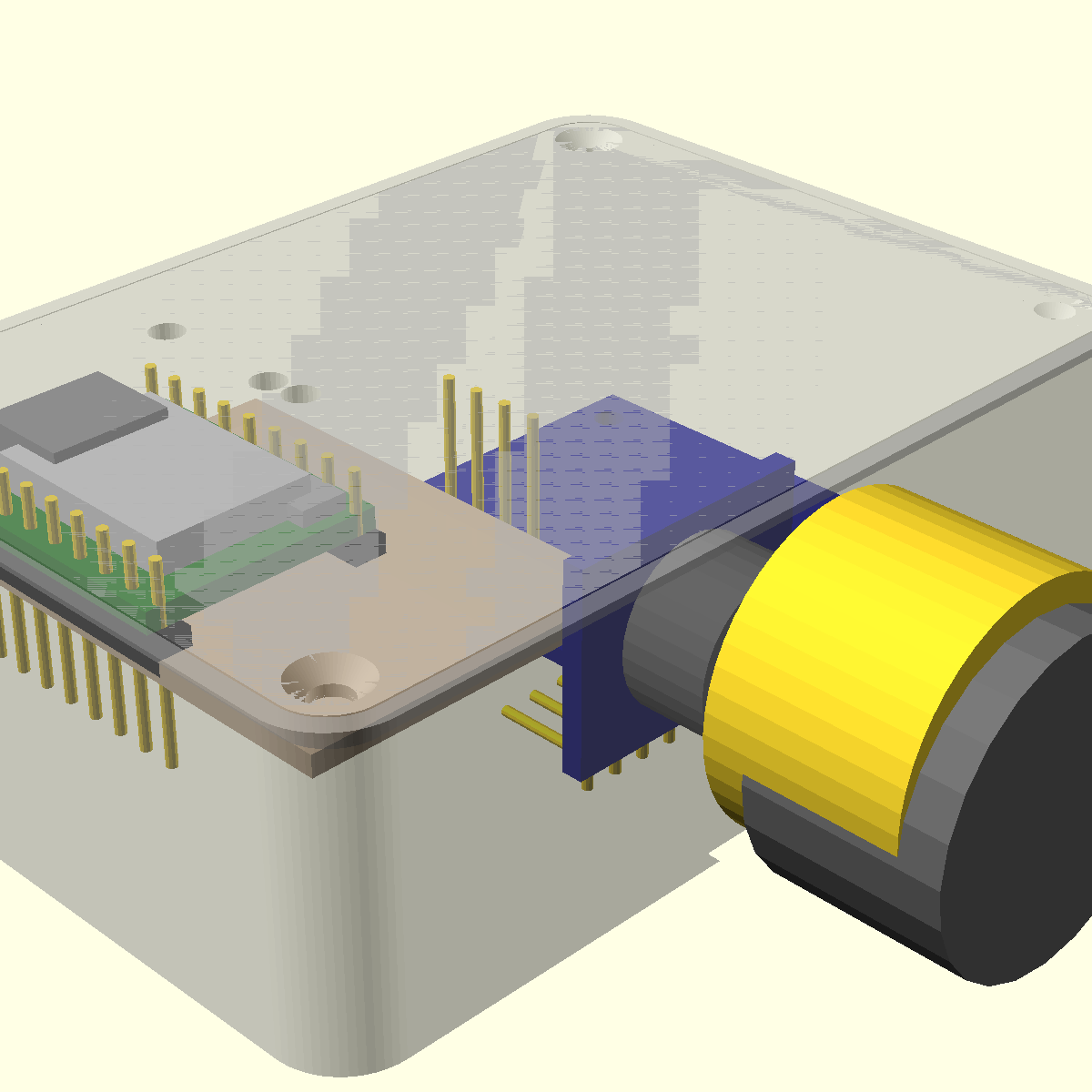

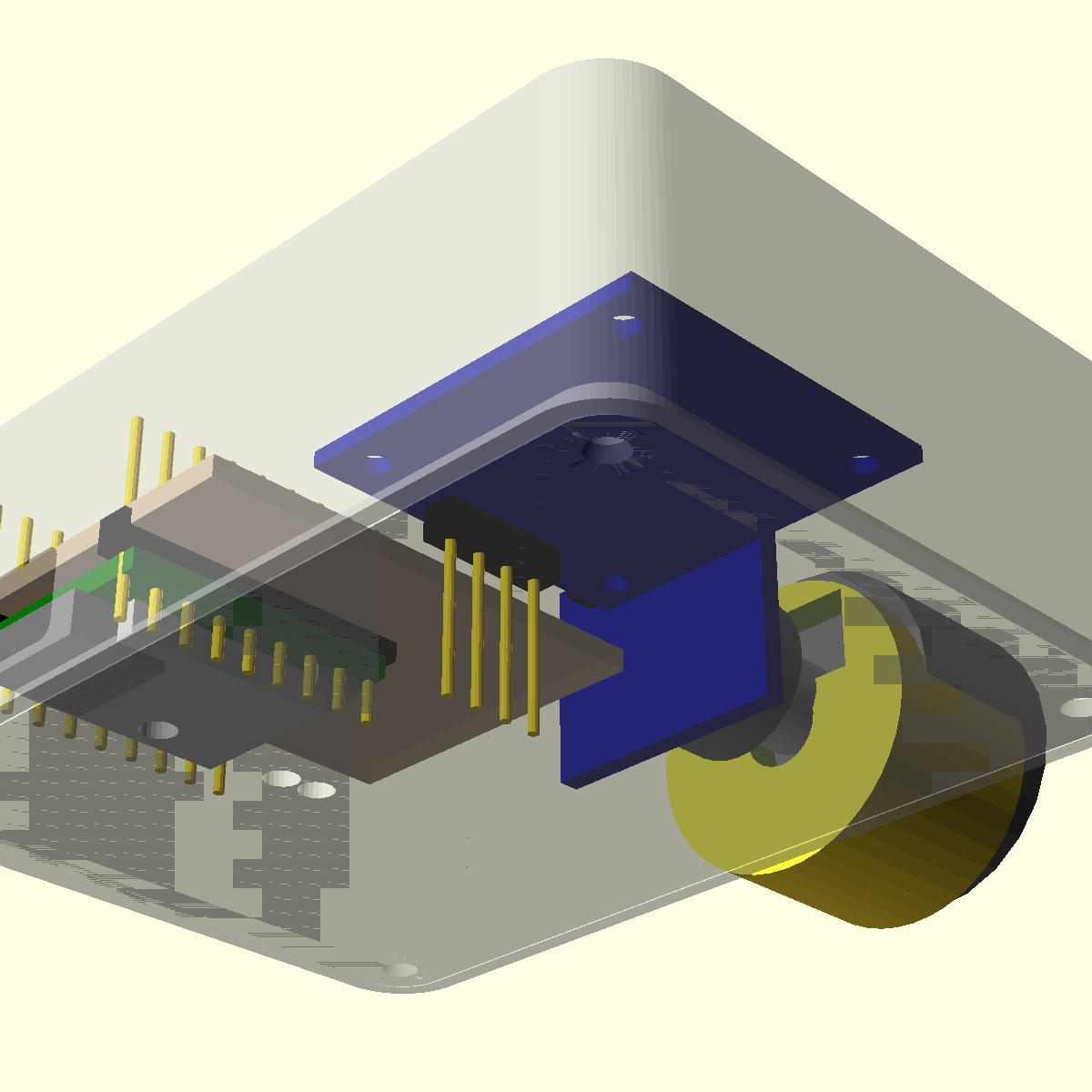

composed of: front shell, rear lid, protoboard, OLED, ESP32-S3-Zero, encoder, knob — all at v3

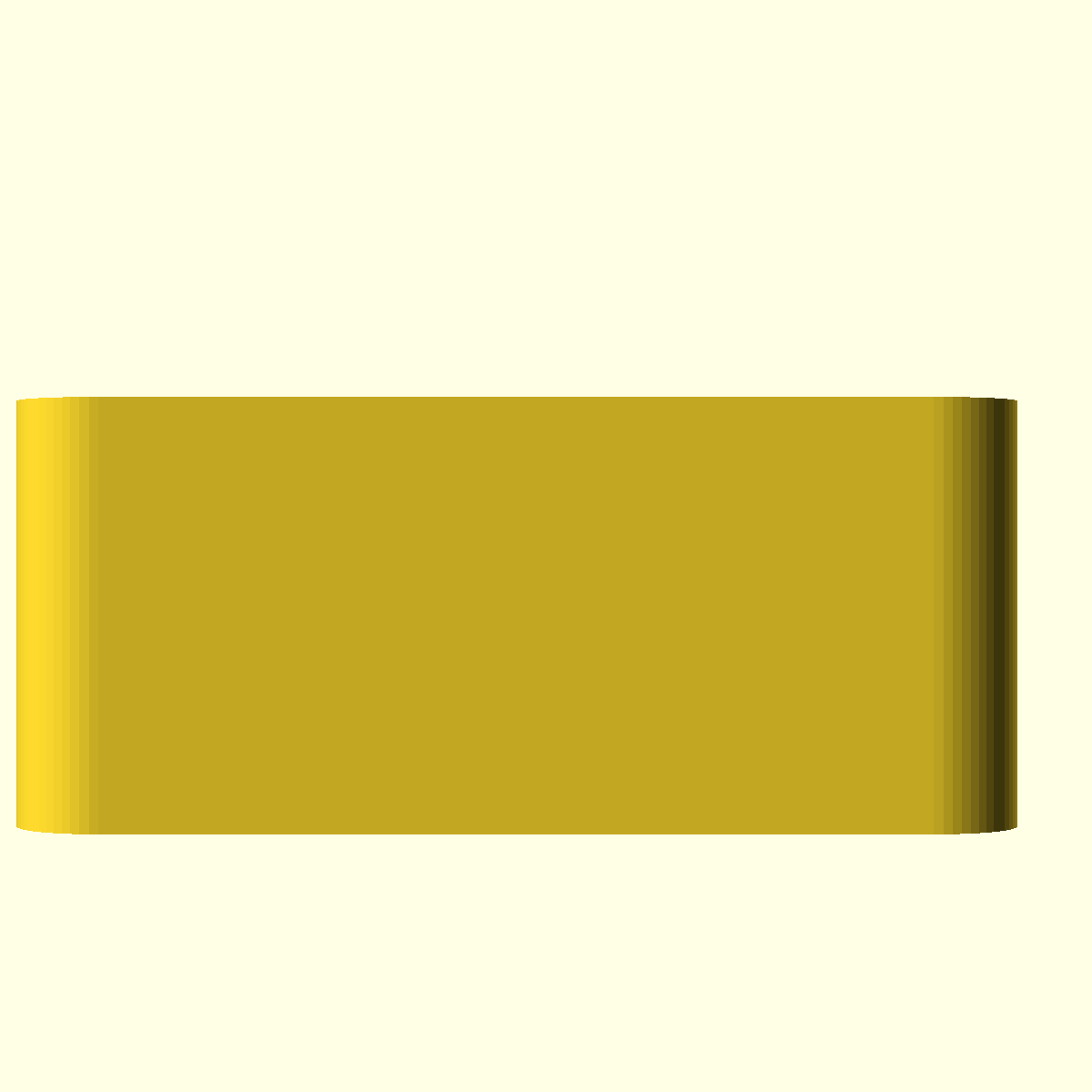

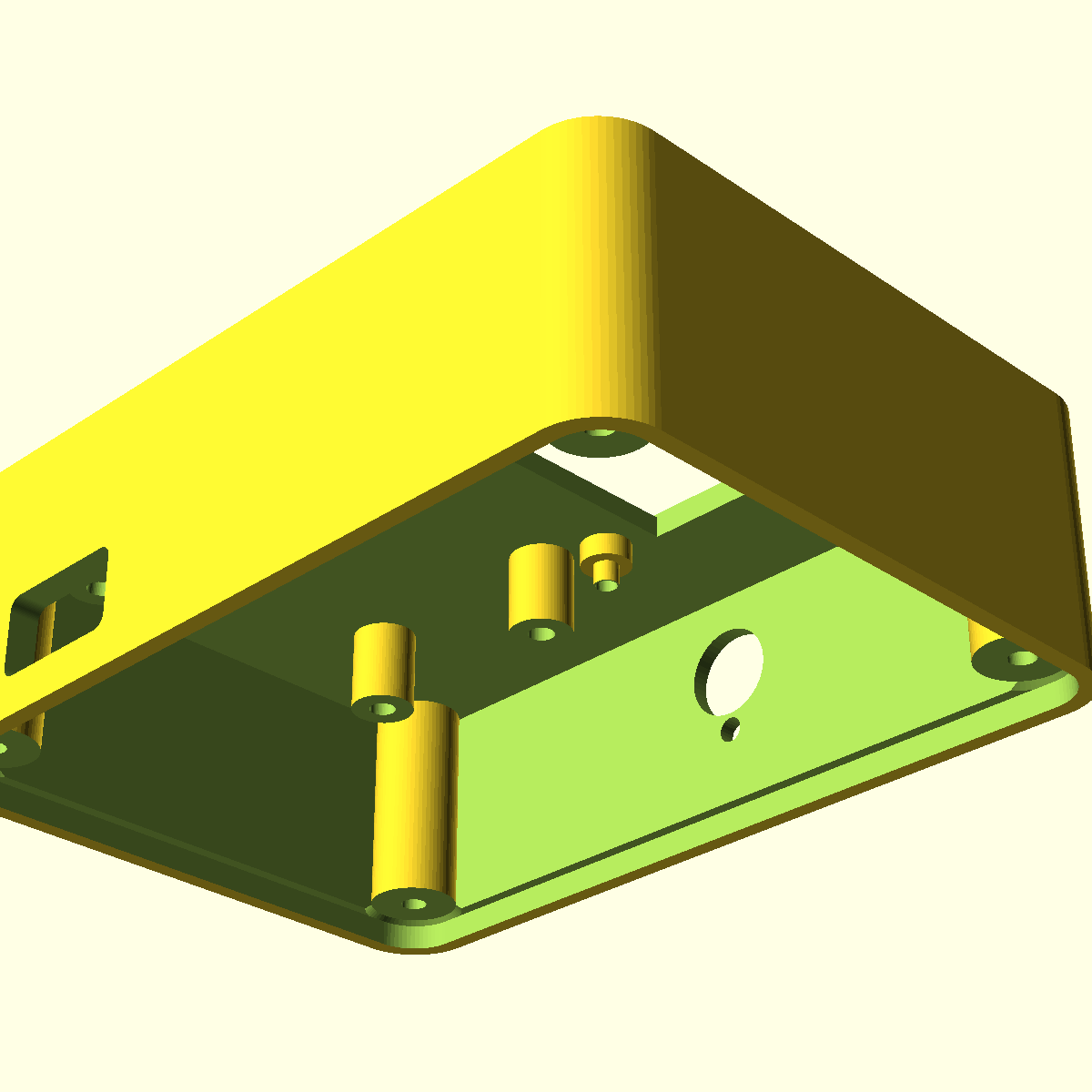

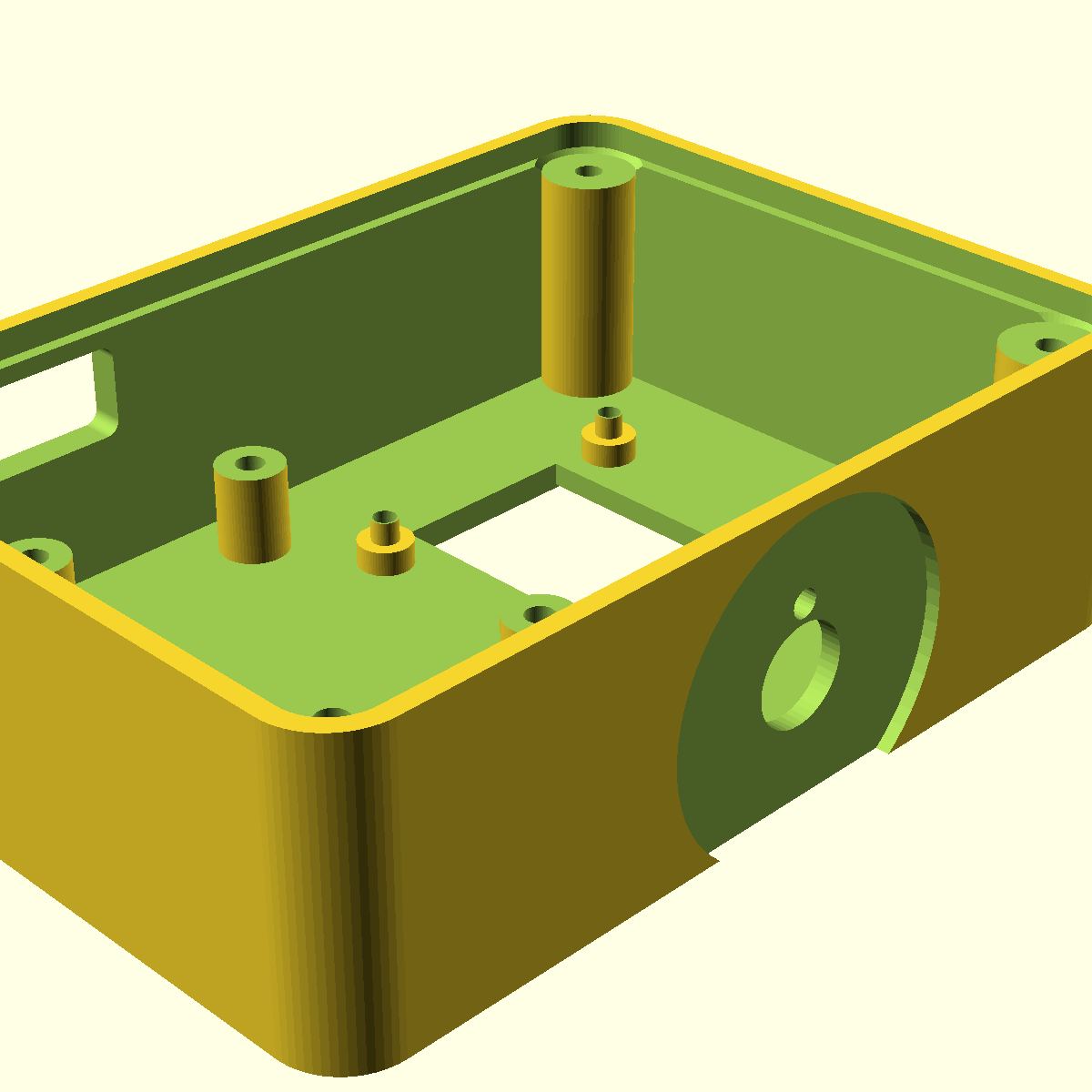

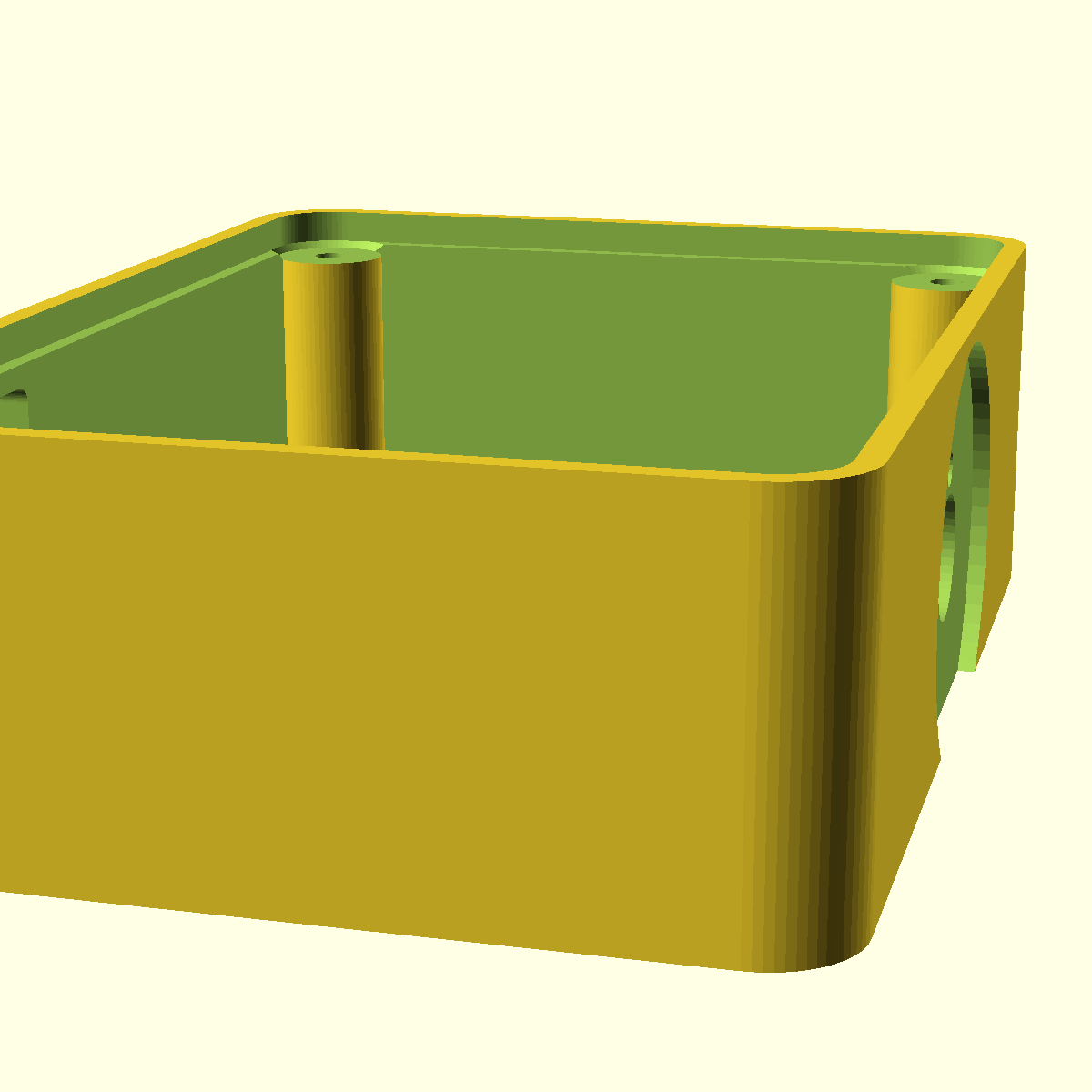

Front shell424 KB

drag to orbit · scroll or pinch to zoom

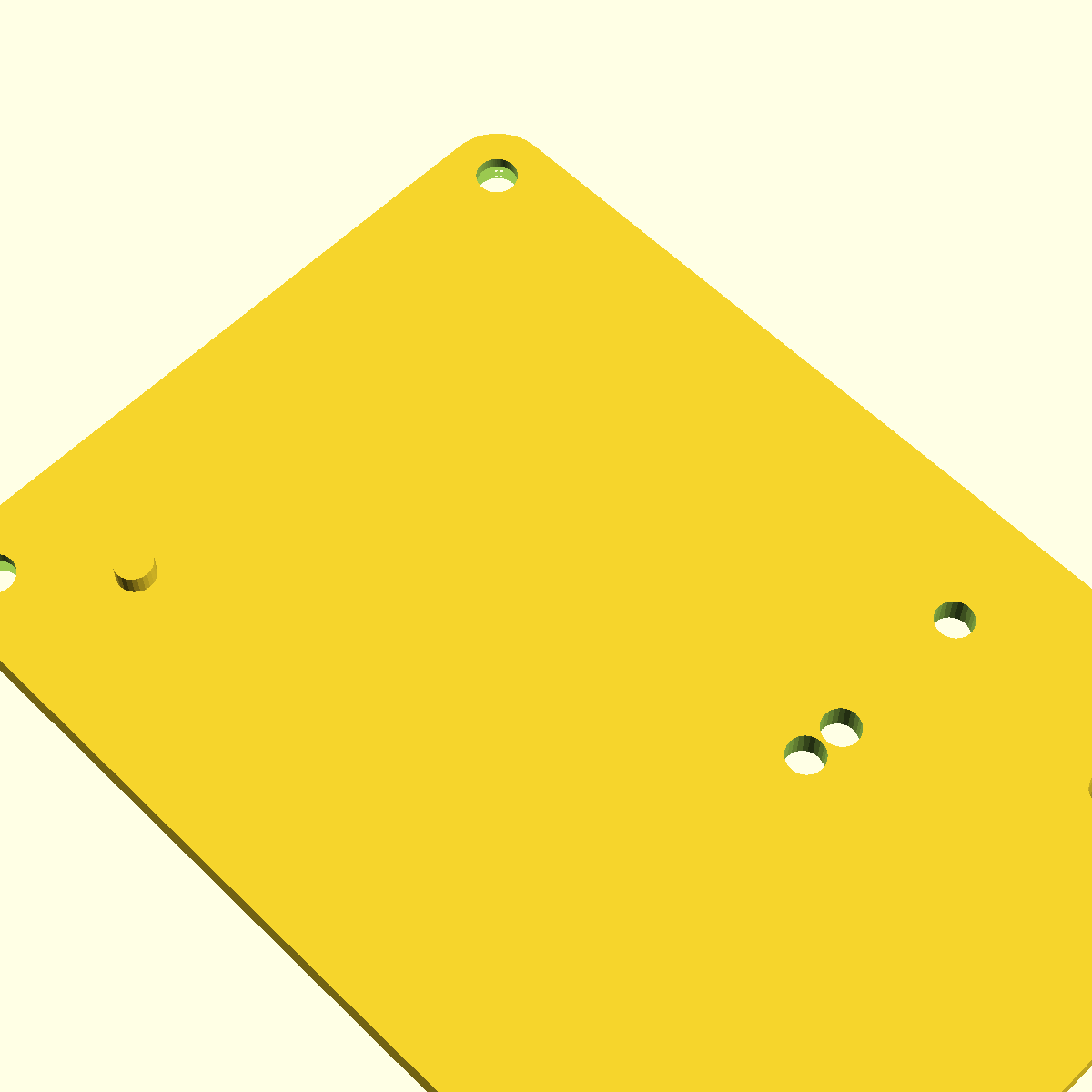

Rear lid137 KB

drag to orbit · scroll or pinch to zoom

Optional knob13 KB

drag to orbit · scroll or pinch to zoom

Specs & BOM

ParameterValueUnit
Envelope52 × 72 × 22 mm — 2.4 mm walls, 5 mm corner radius, 2 mm rear lid,
↓ Print plate (.3mf) · all parts

Evidence

All evidence (10)
