Brief

Flat-and-tall desktop controller (52 × 72 × 22 mm).
v4superseded
current line is v6

Specs & BOM

Envelope
52 × 72 × 22 mm — 2.4 mm walls, 5 mm corner radius, 2 mm rear lid,
↓ Print plate (.3mf) — all parts

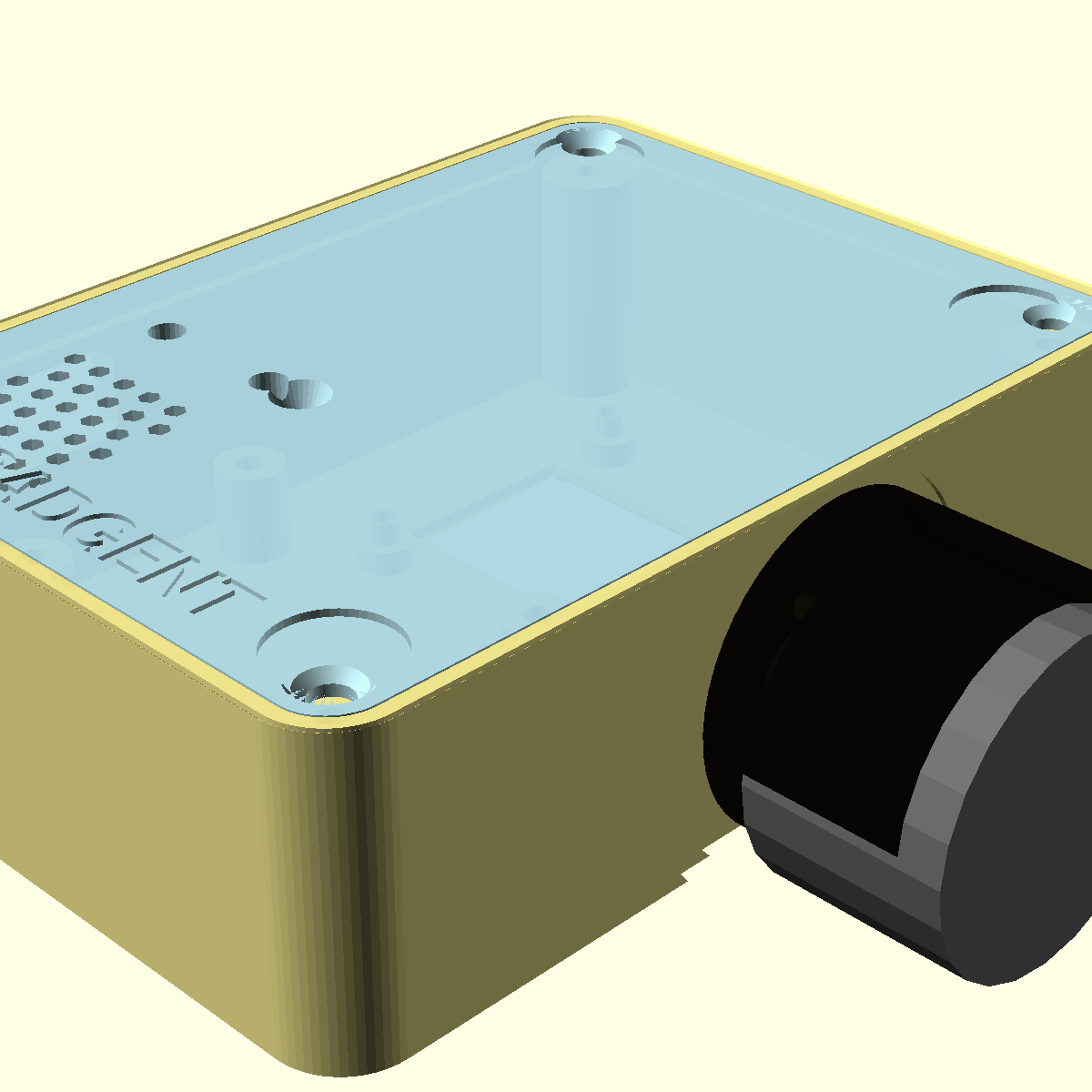

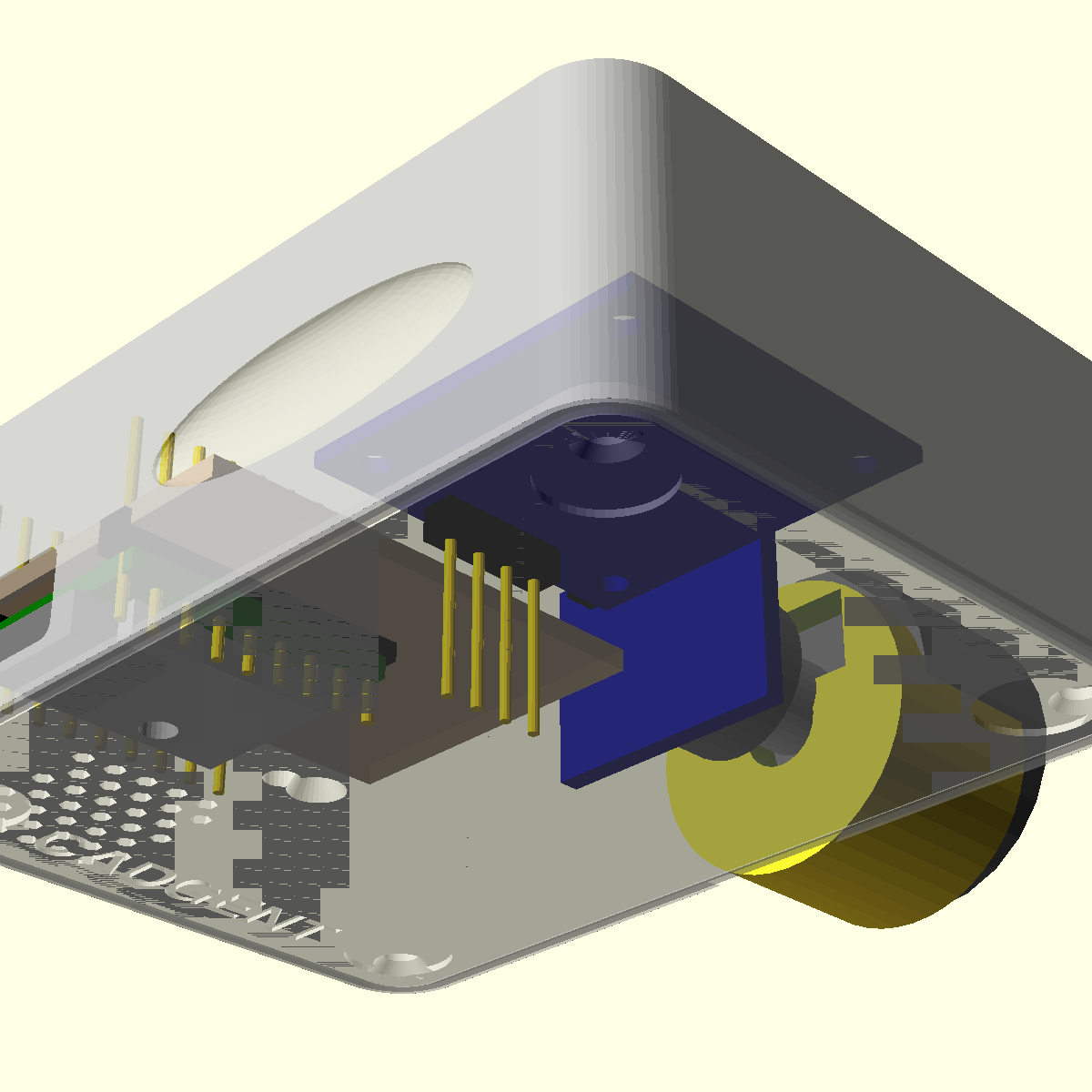

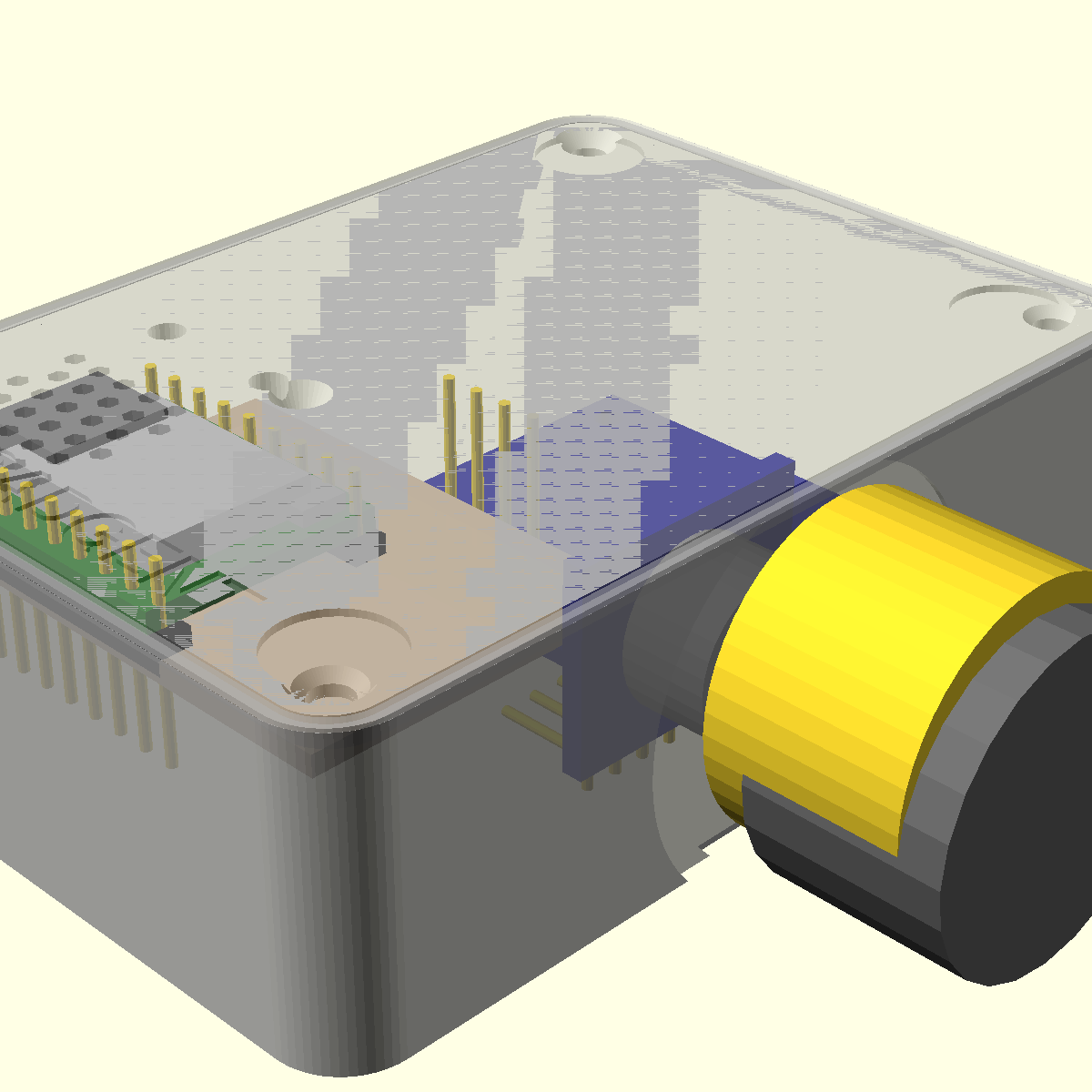

Full assembly3.4 MB

drag to orbit · scroll or pinch to zoom
composed of: front shell, rear lid, protoboard, OLED, ESP32-S3-Zero, encoder, knob — all at v4

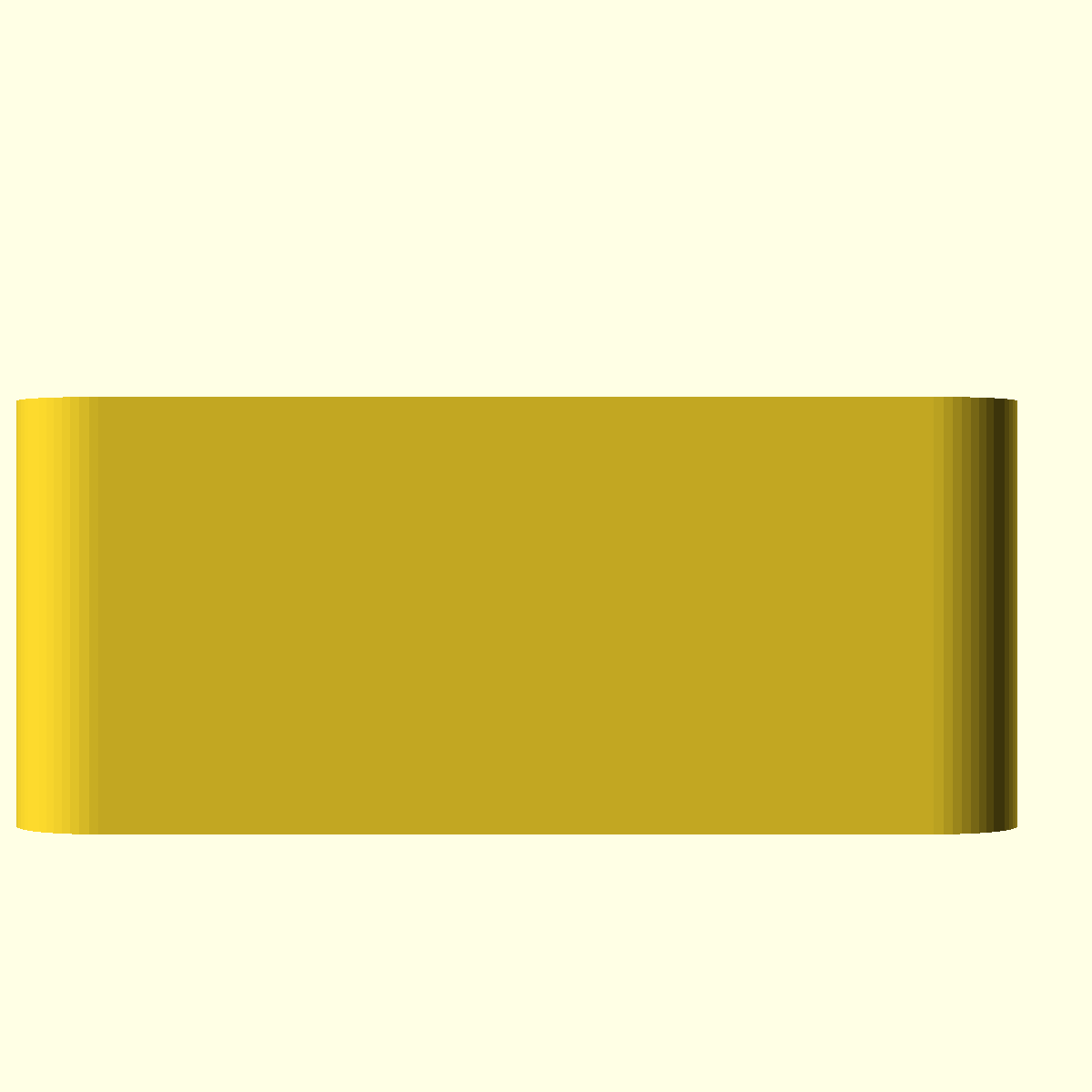

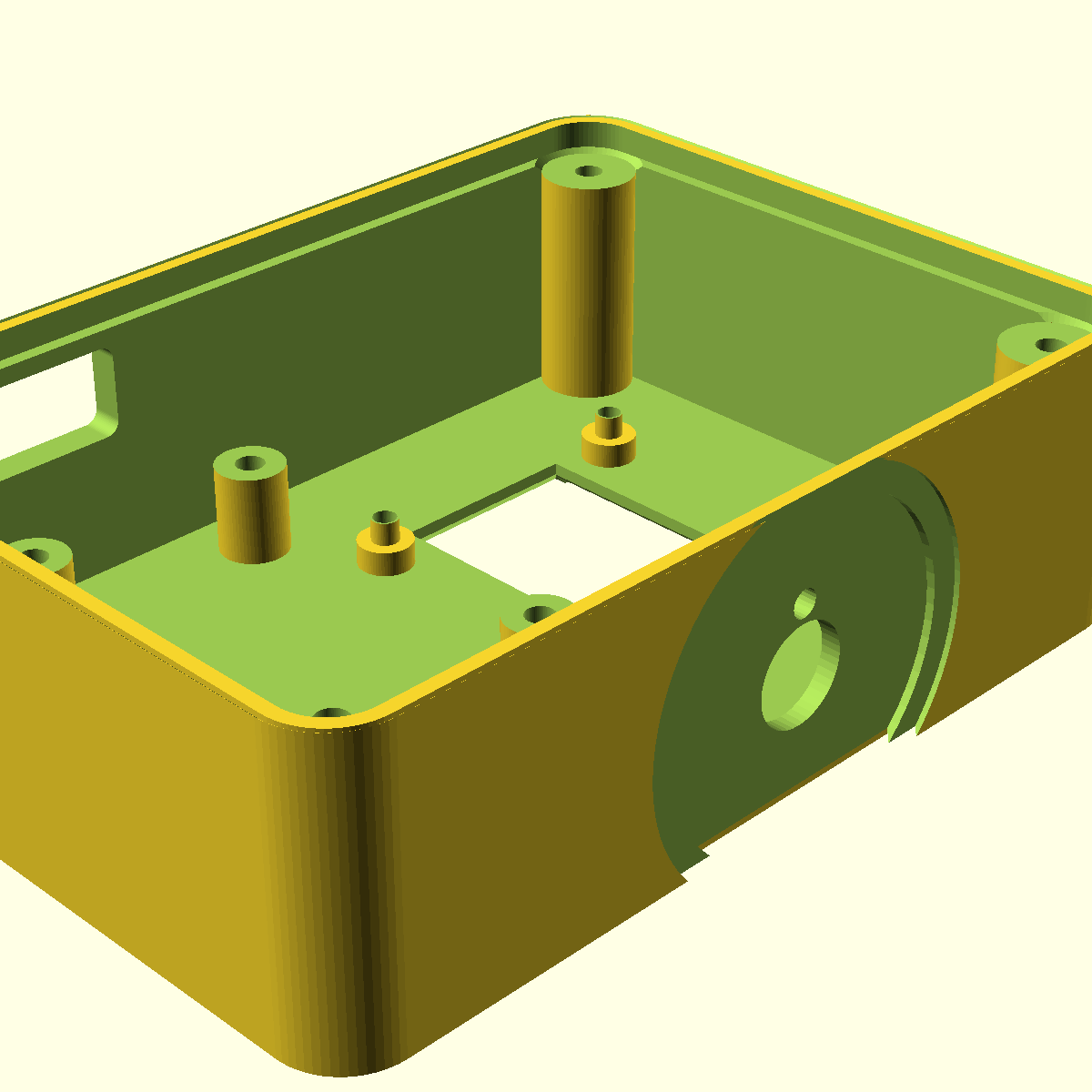

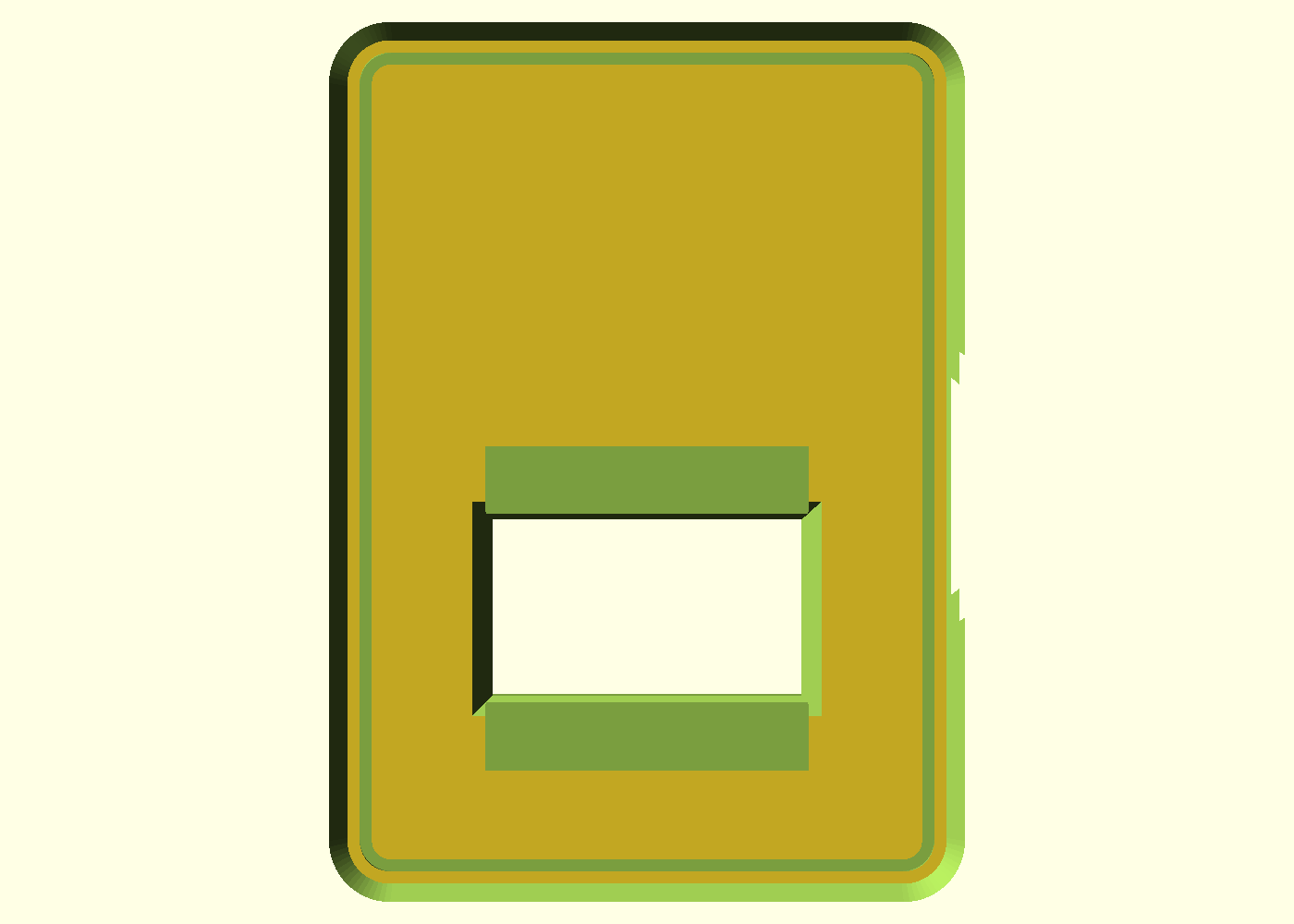

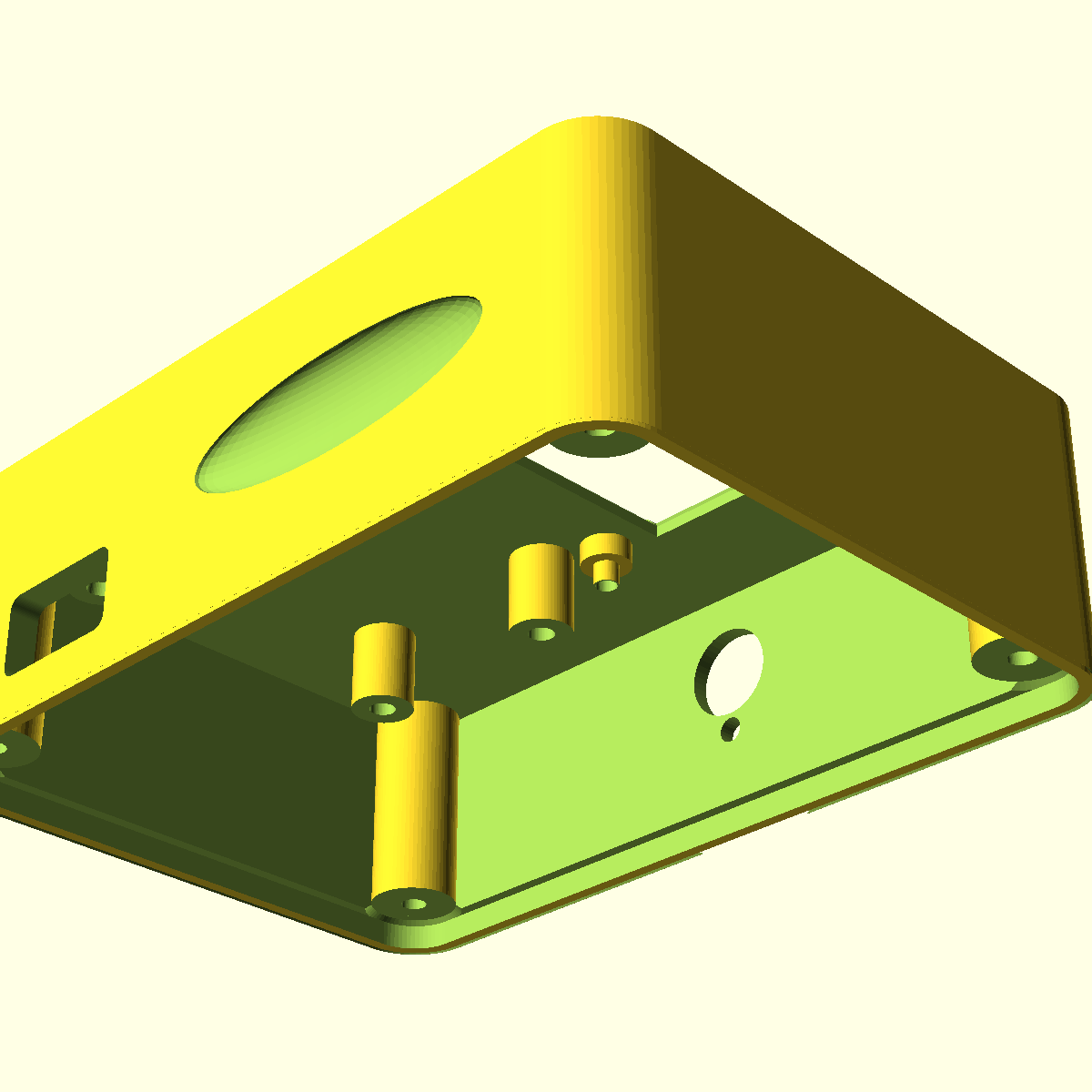

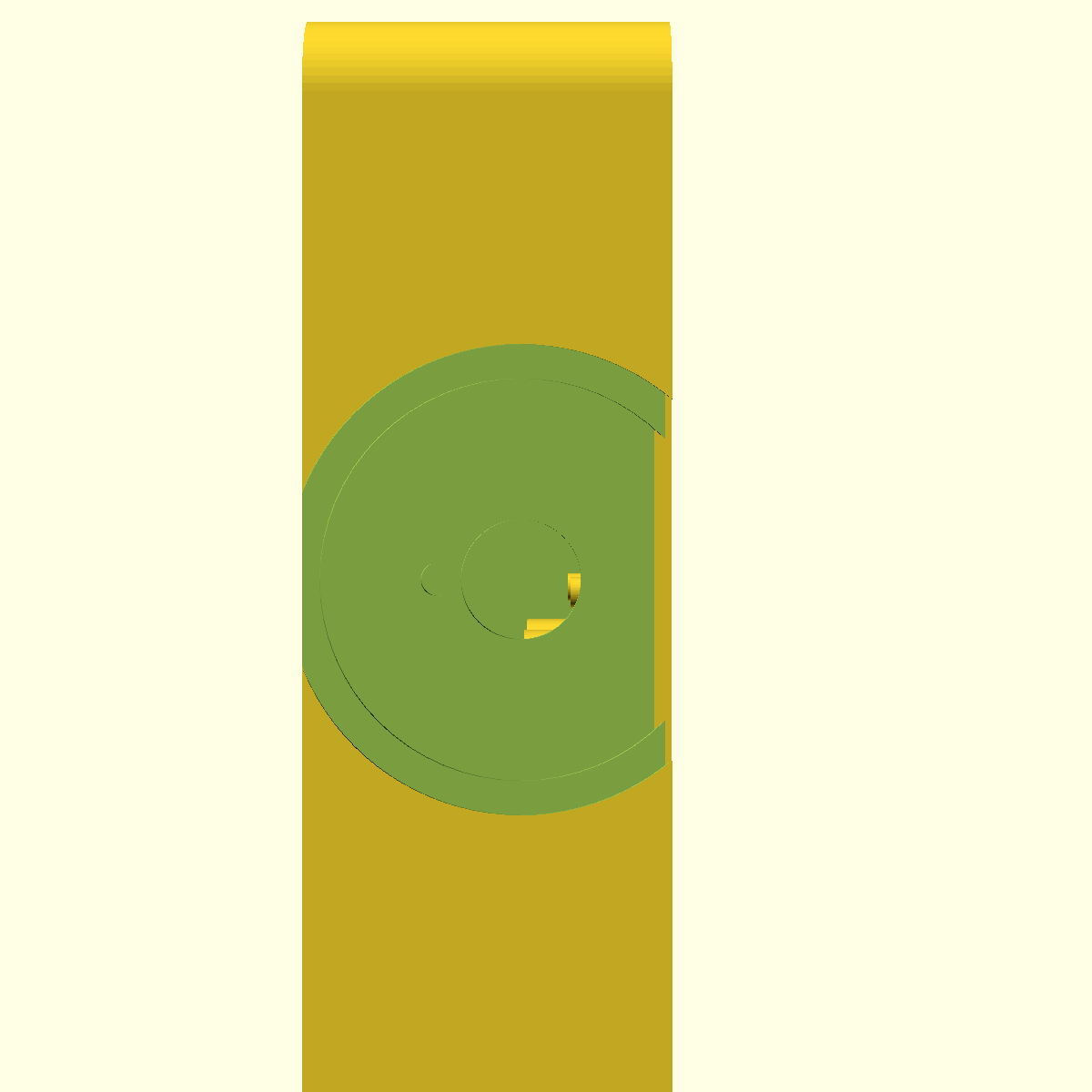

Front shell1.8 MB

drag to orbit · scroll or pinch to zoom

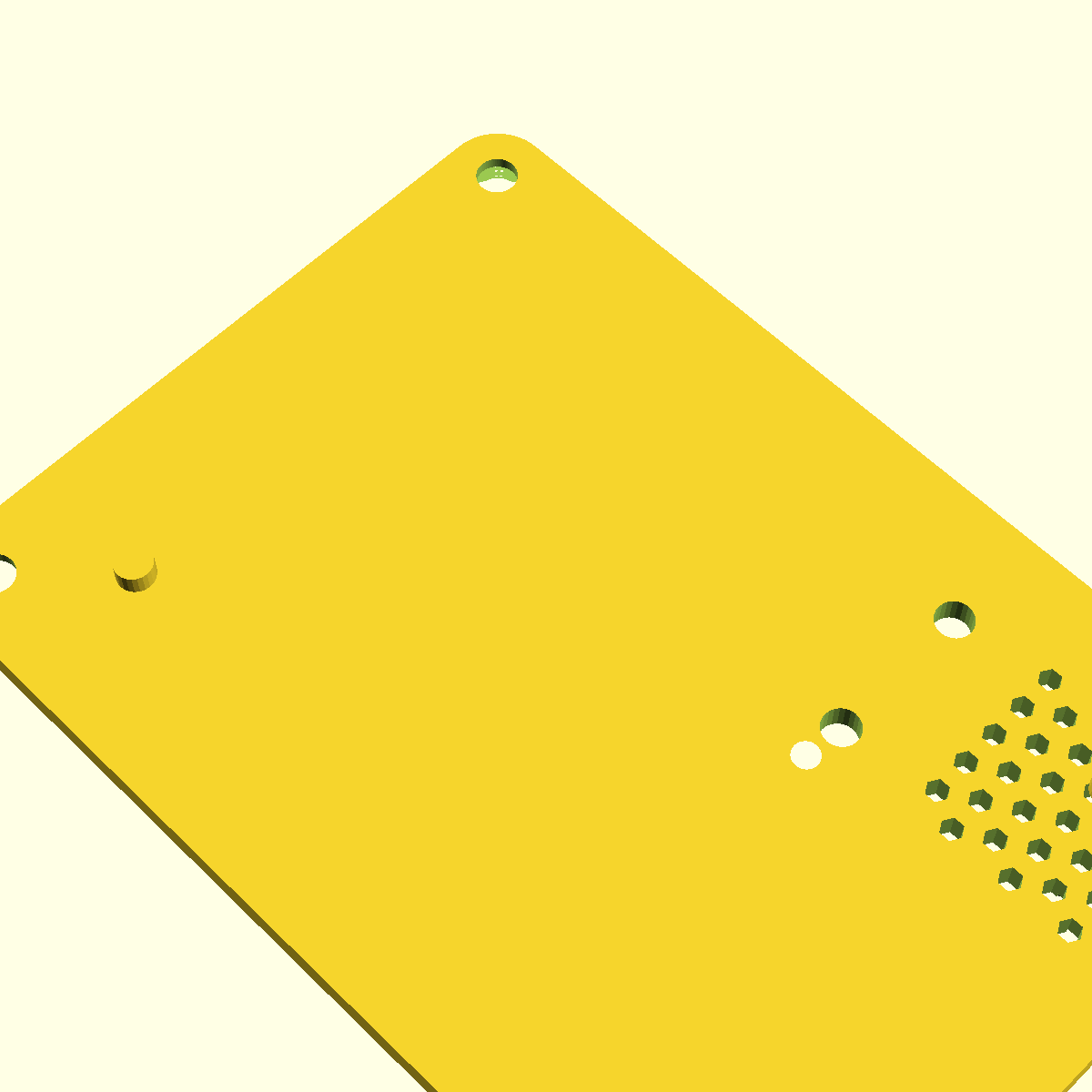

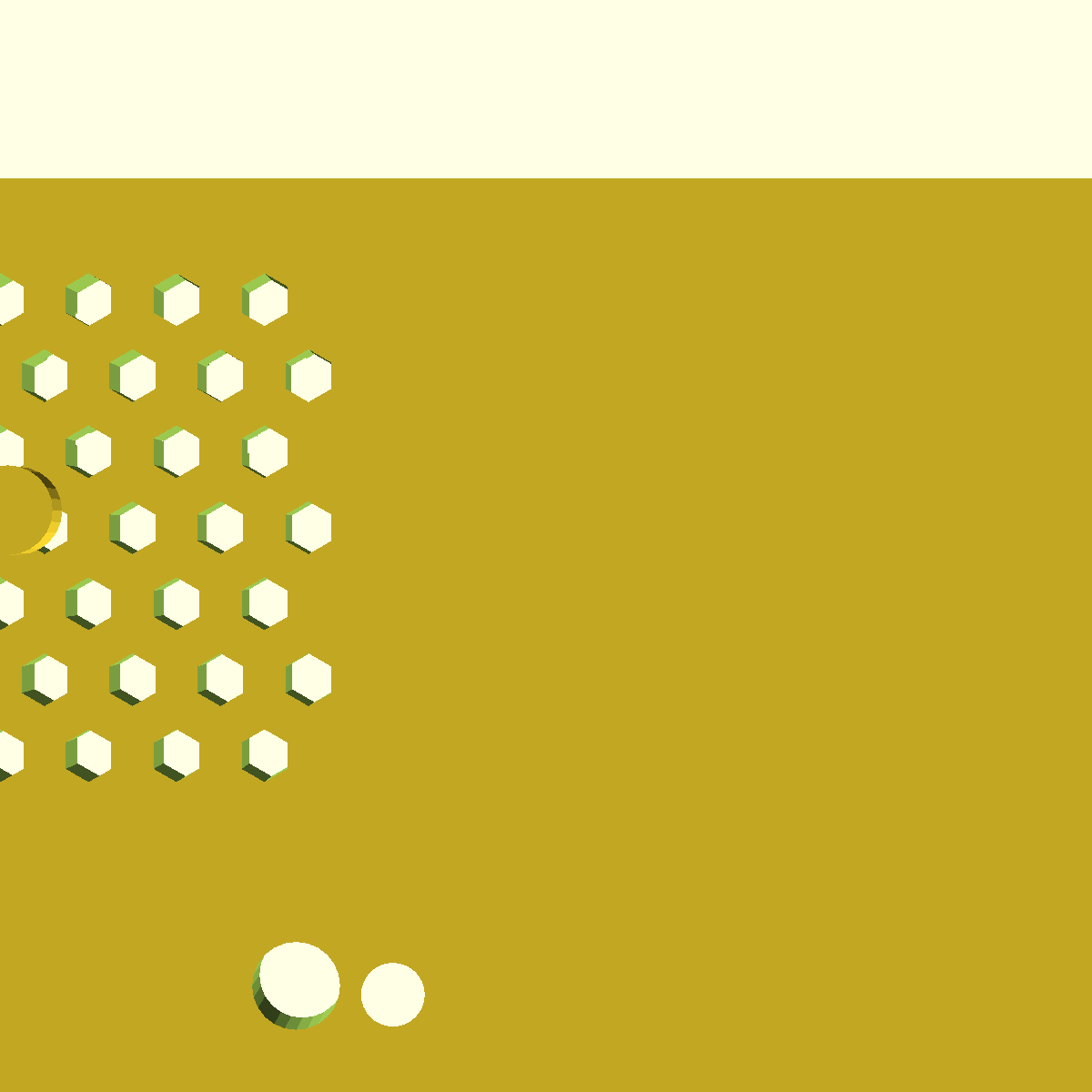

Rear lid1019 KB

drag to orbit · scroll or pinch to zoom

Optional knob42 KB

drag to orbit · scroll or pinch to zoom

Screenshots
