S3 Zero OLED Enclosure

s3zero_oled_enc_v5-v5

With MCU centered behind the OLED, 5 of 9 MCU pin X positions land inside the OLED PCB's XY footprint and both pin rows are within the OLED PCB's Y range.

supersededv5
current line is v6

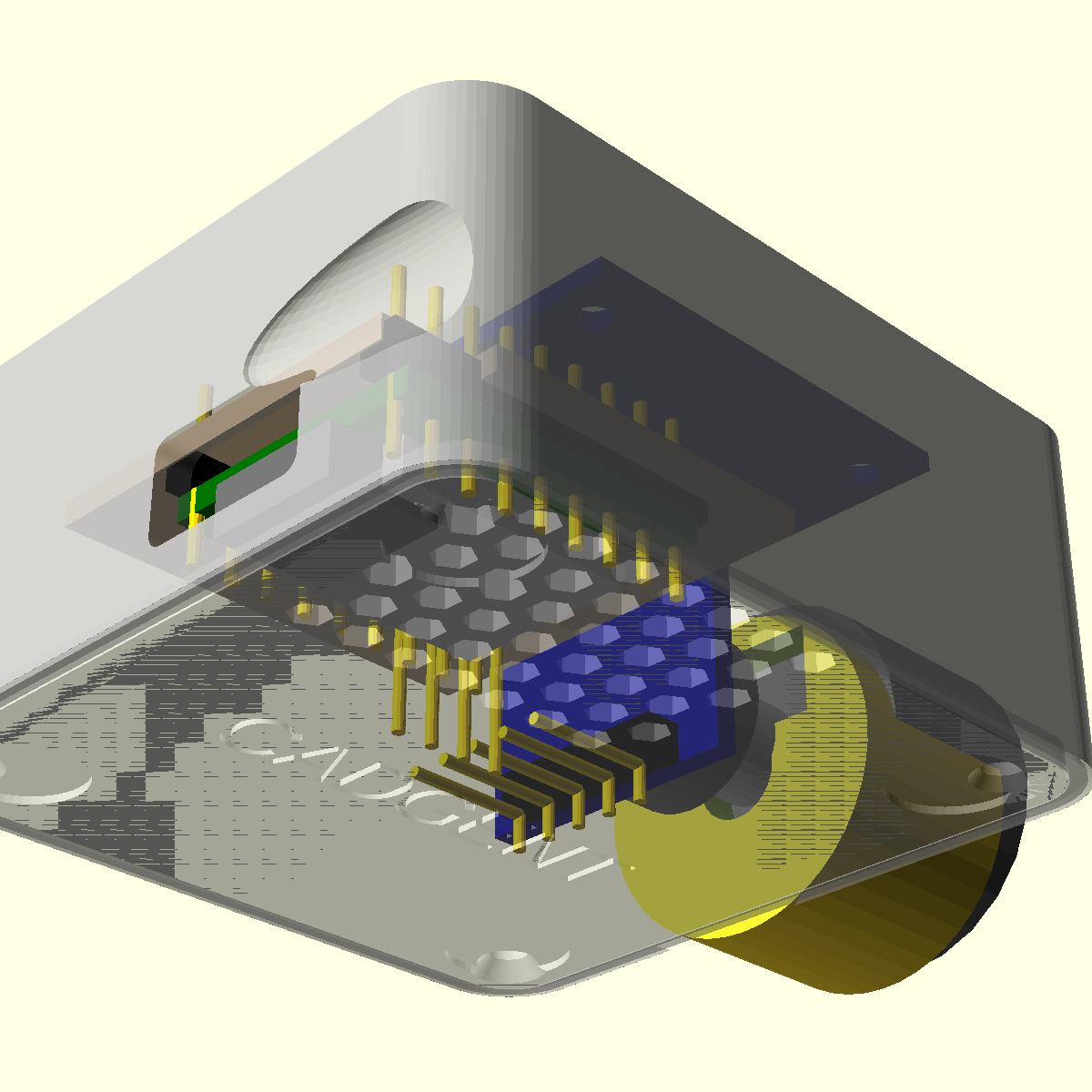

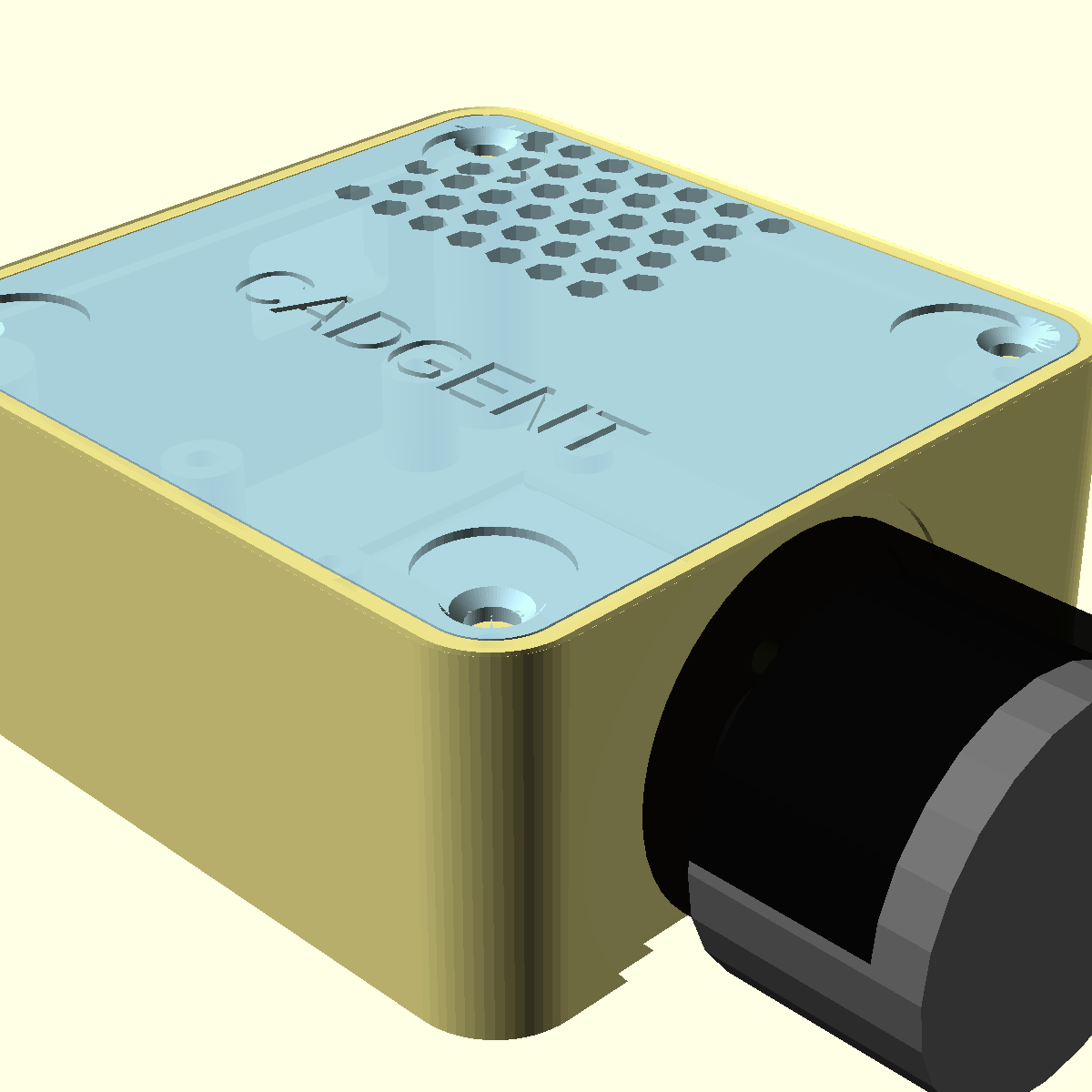

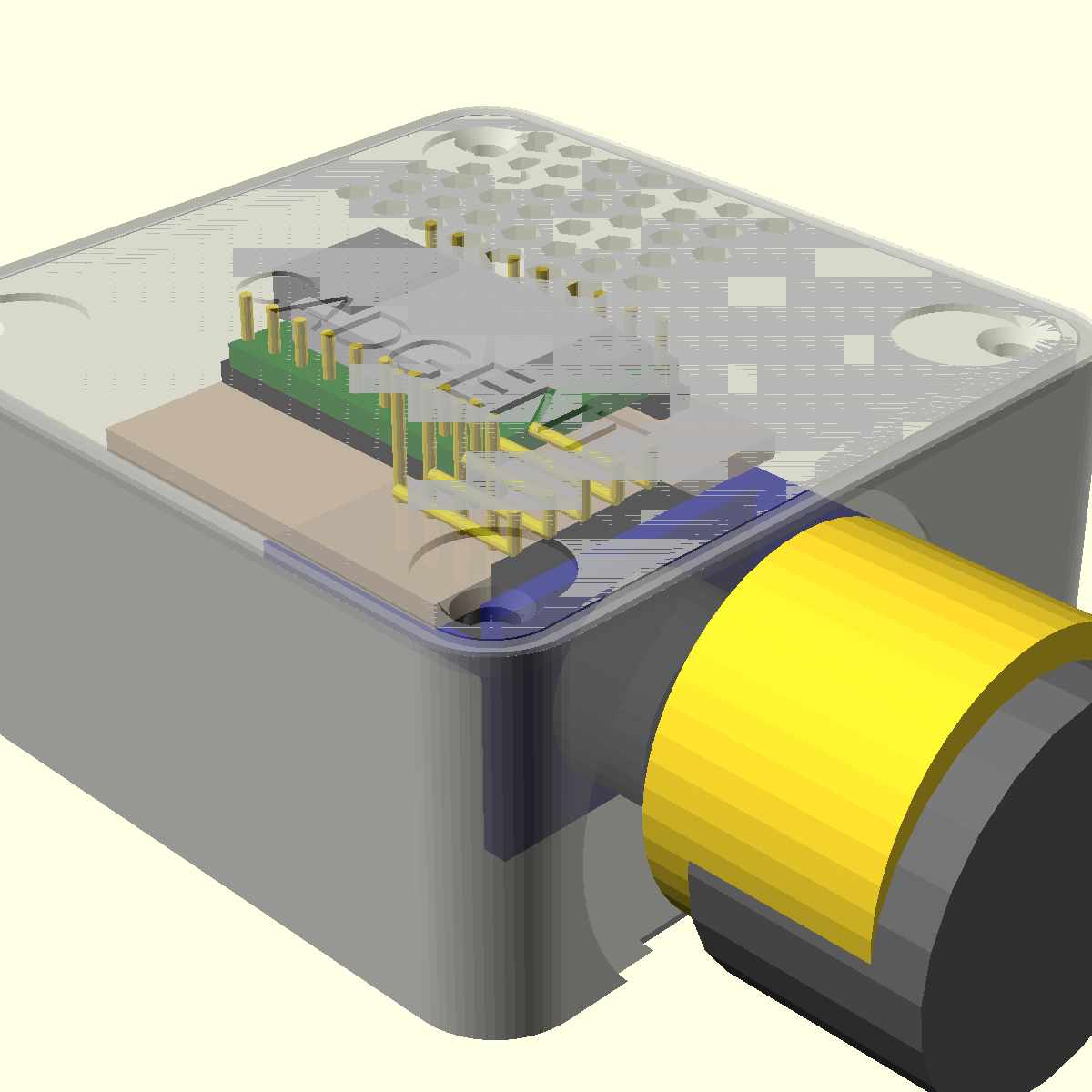

Full assembly933 KB

drag to orbit · scroll or pinch to zoom
composed of: front shell, rear lid, protoboard, OLED, ESP32-S3-Zero, encoder, knob — all at v5

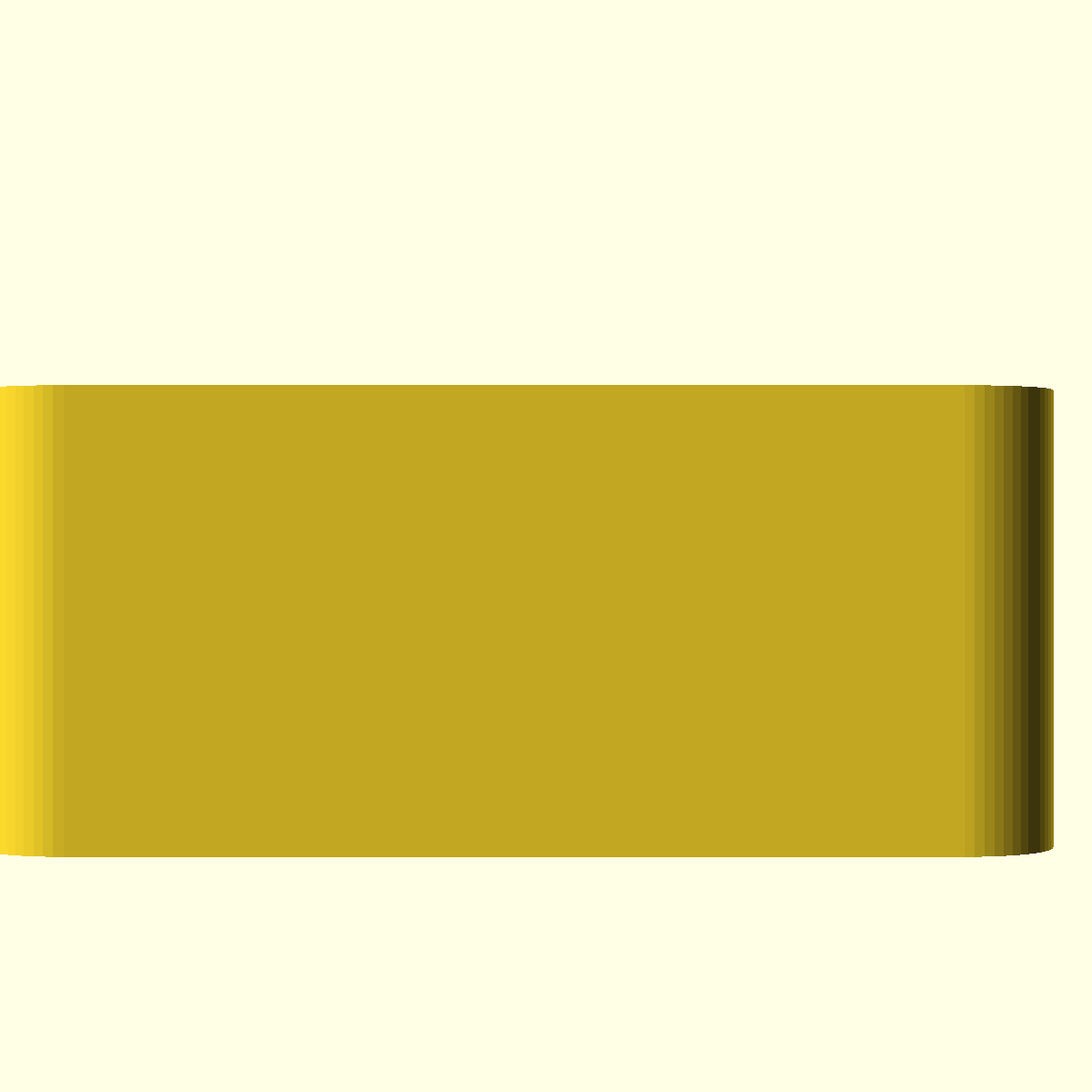

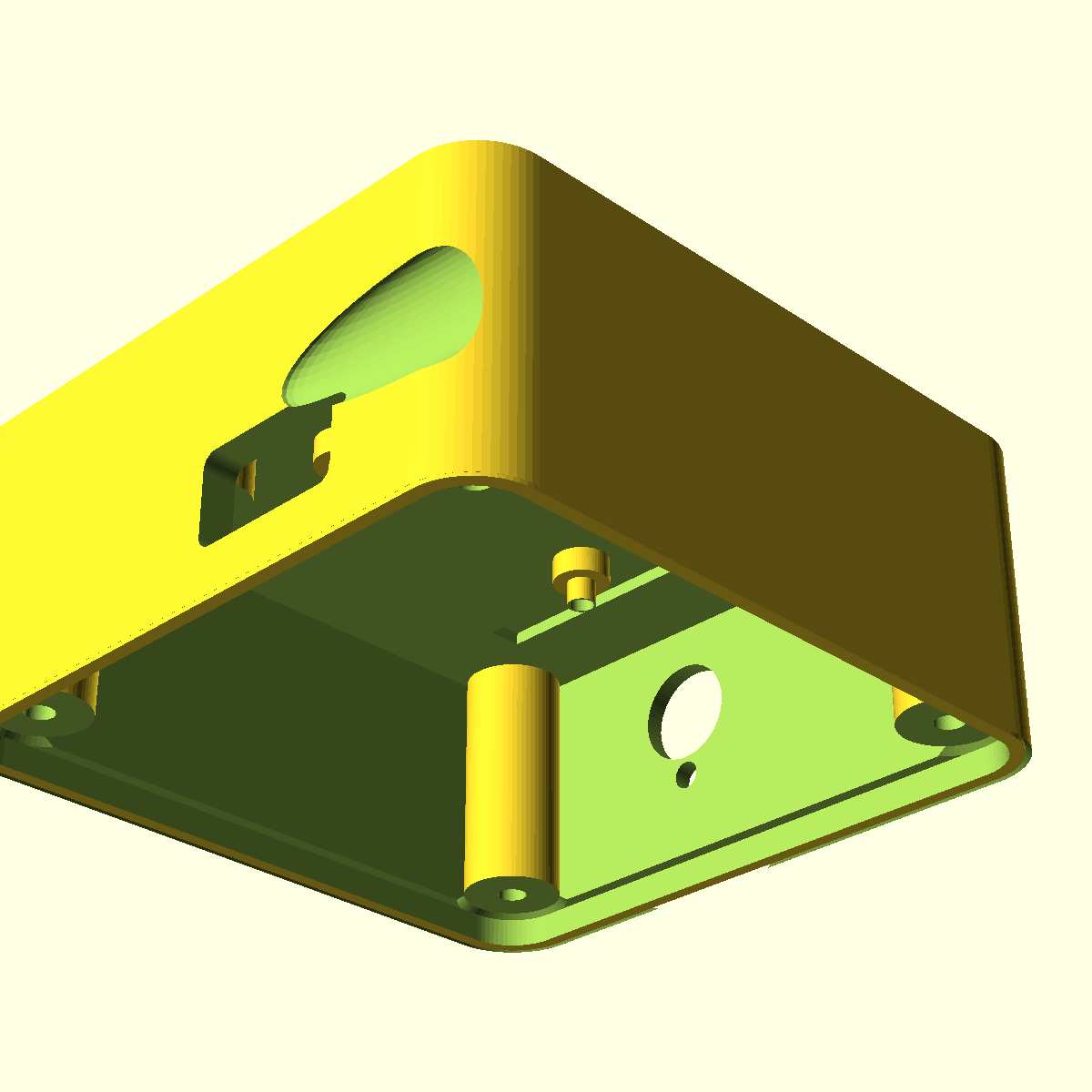

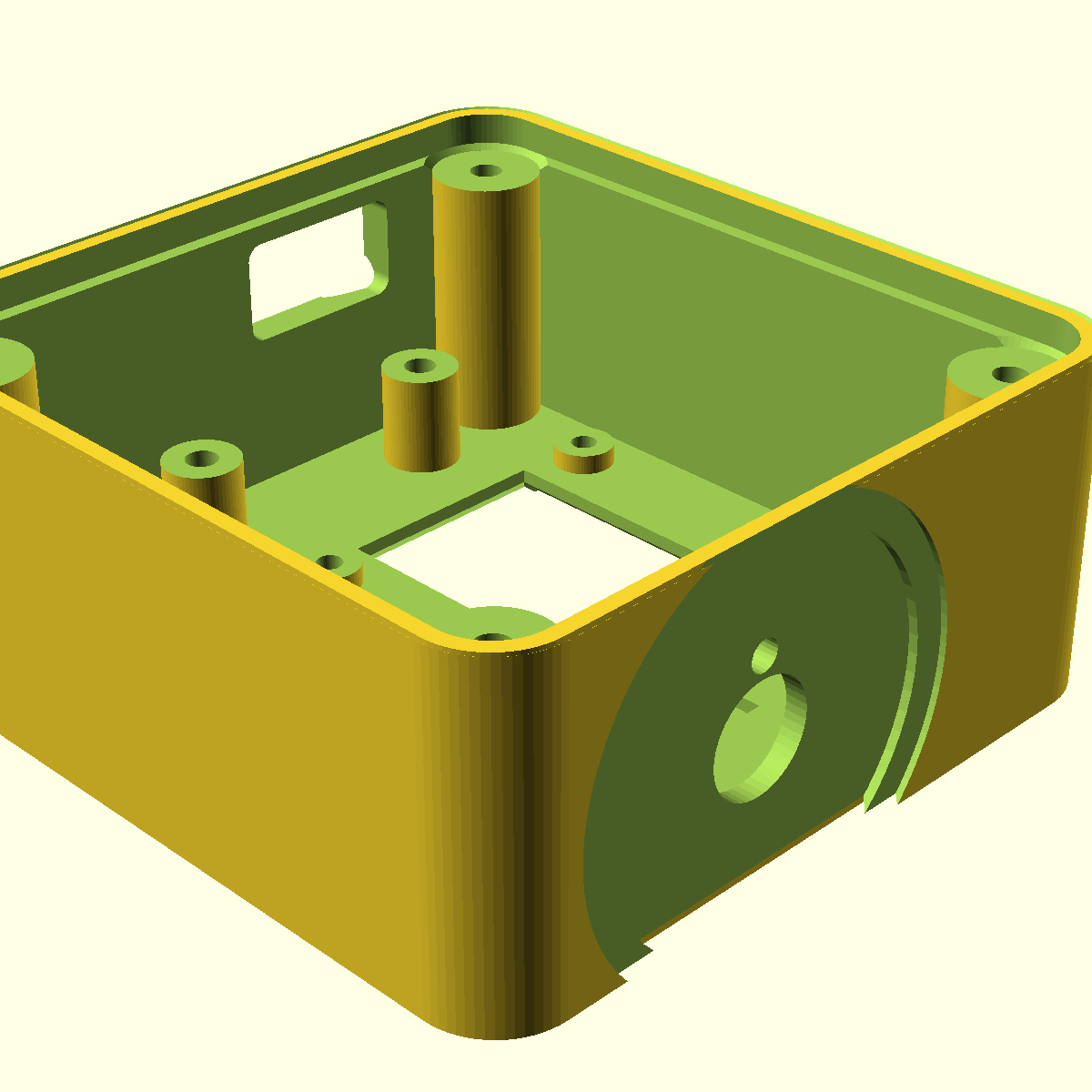

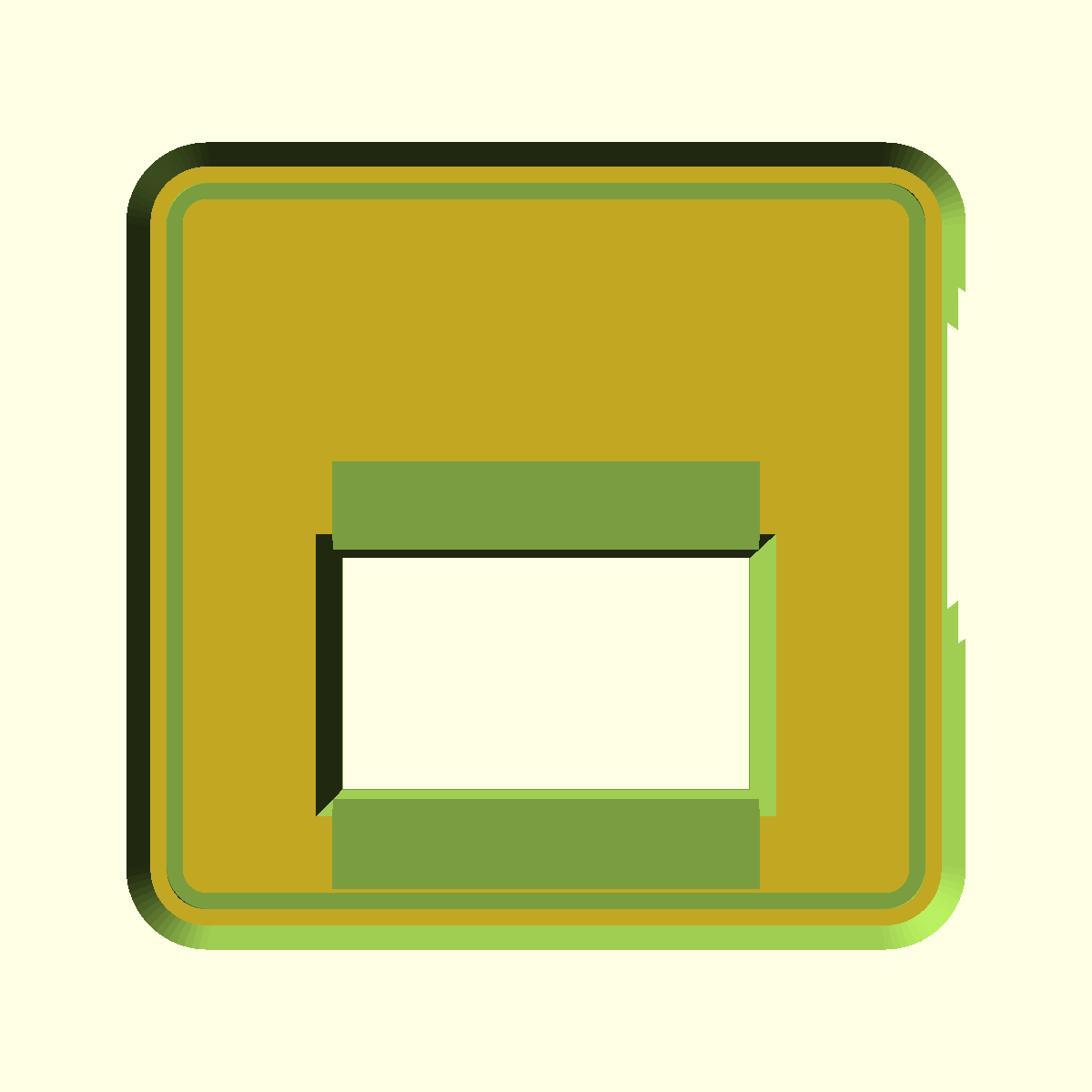

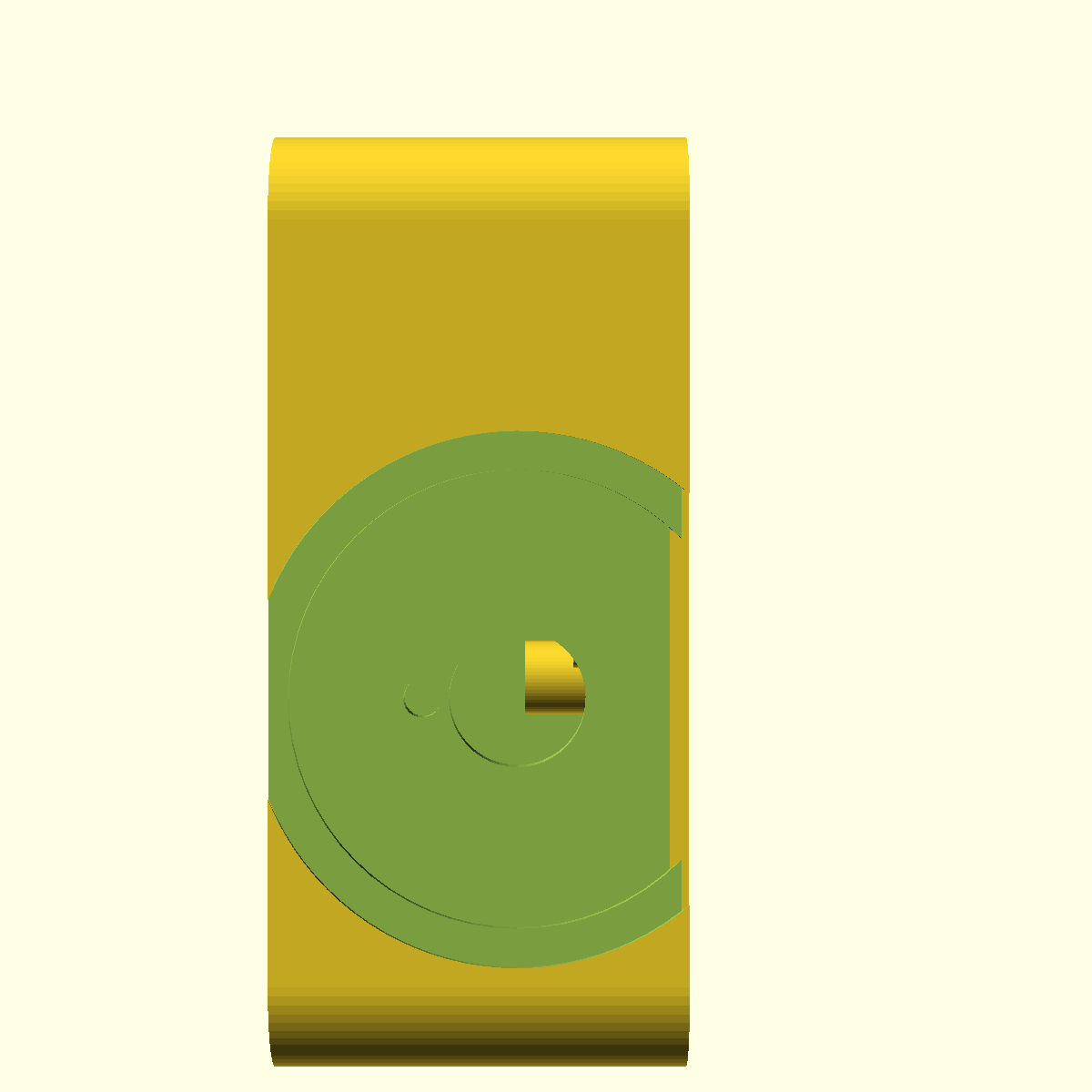

Front shell445 KB

drag to orbit · scroll or pinch to zoom

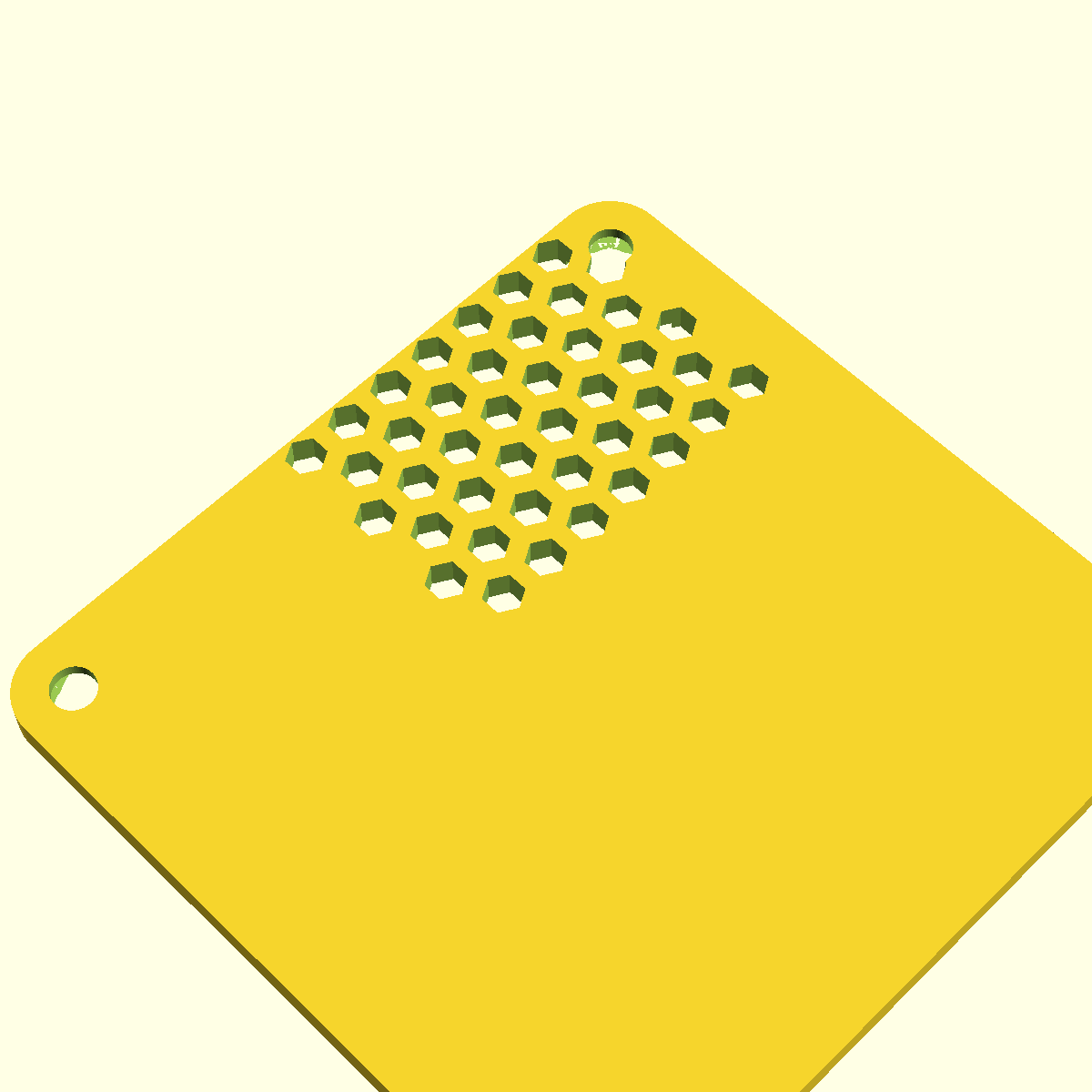

Rear lid297 KB

drag to orbit · scroll or pinch to zoom

Optional knob13 KB

drag to orbit · scroll or pinch to zoom

Specs & BOM

ParameterValueUnit
Envelope52 × 50 × 24 mm — 2.4 mm walls, 5 mm corner
↓ Print plate (.3mf) · all parts

CAD-based product images

AI-finished images of rendered CAD geometry; not a physical print or fit test.

Evidence

All evidence (10)
