TP1 Radio

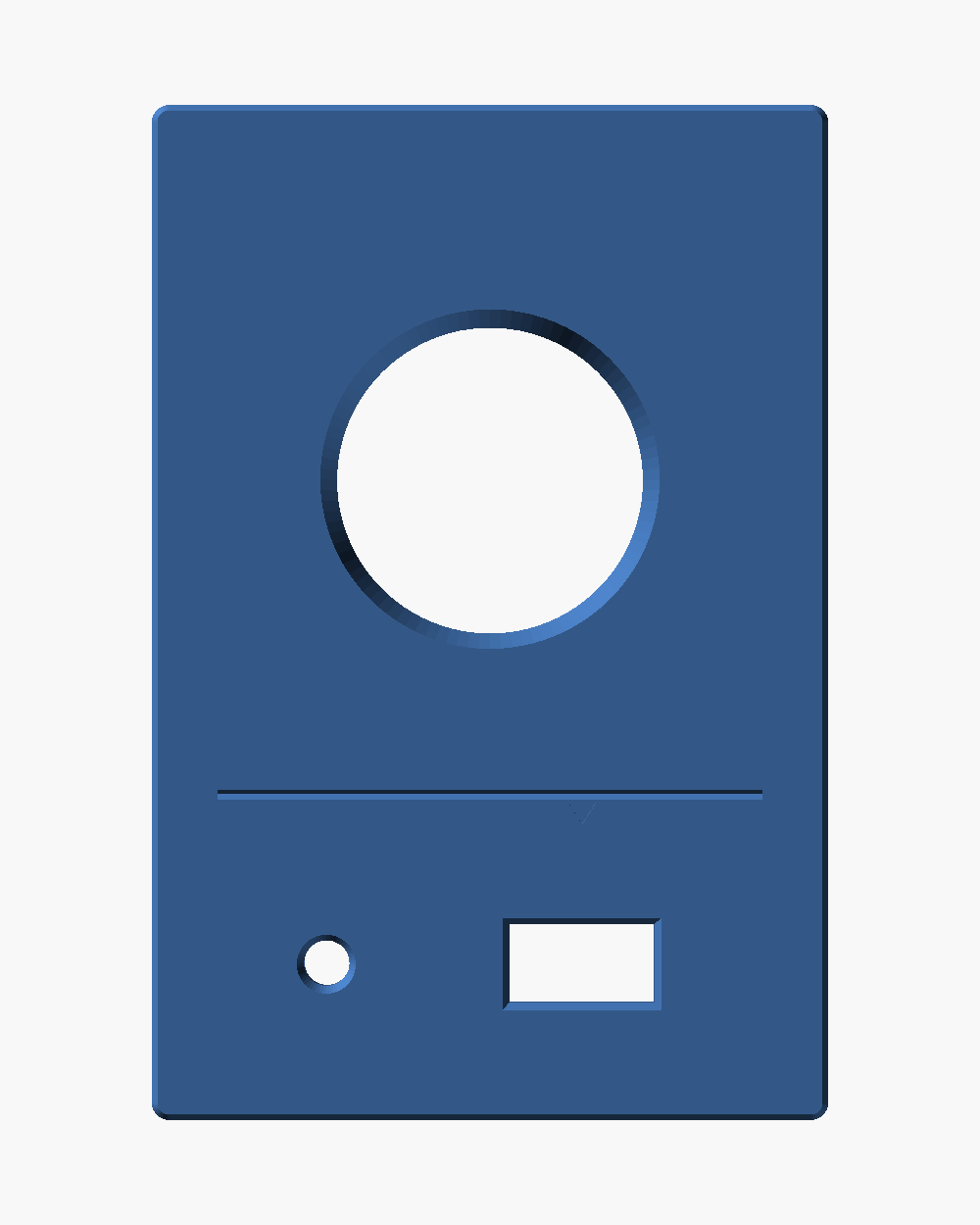

Build a single-front electronics enclosure heavily inspired by the Braun TP1: a tall rounded slab, circular perforated speaker field in the upper-left, a horizontal front split line, a small top-right station-window cue, a lower-left…
v2.4in progress
carrier spun 180° (USB-C exits the top); USB female thin-wall male-reach fix; controls at lower-middle. Reprint usb_lid_coupon + bench-fit next
Field note Five ways to grip a knob →

Specs & BOM

Envelope
112 × 168 × 42 mm
↓ Print plate (.3mf) — all parts

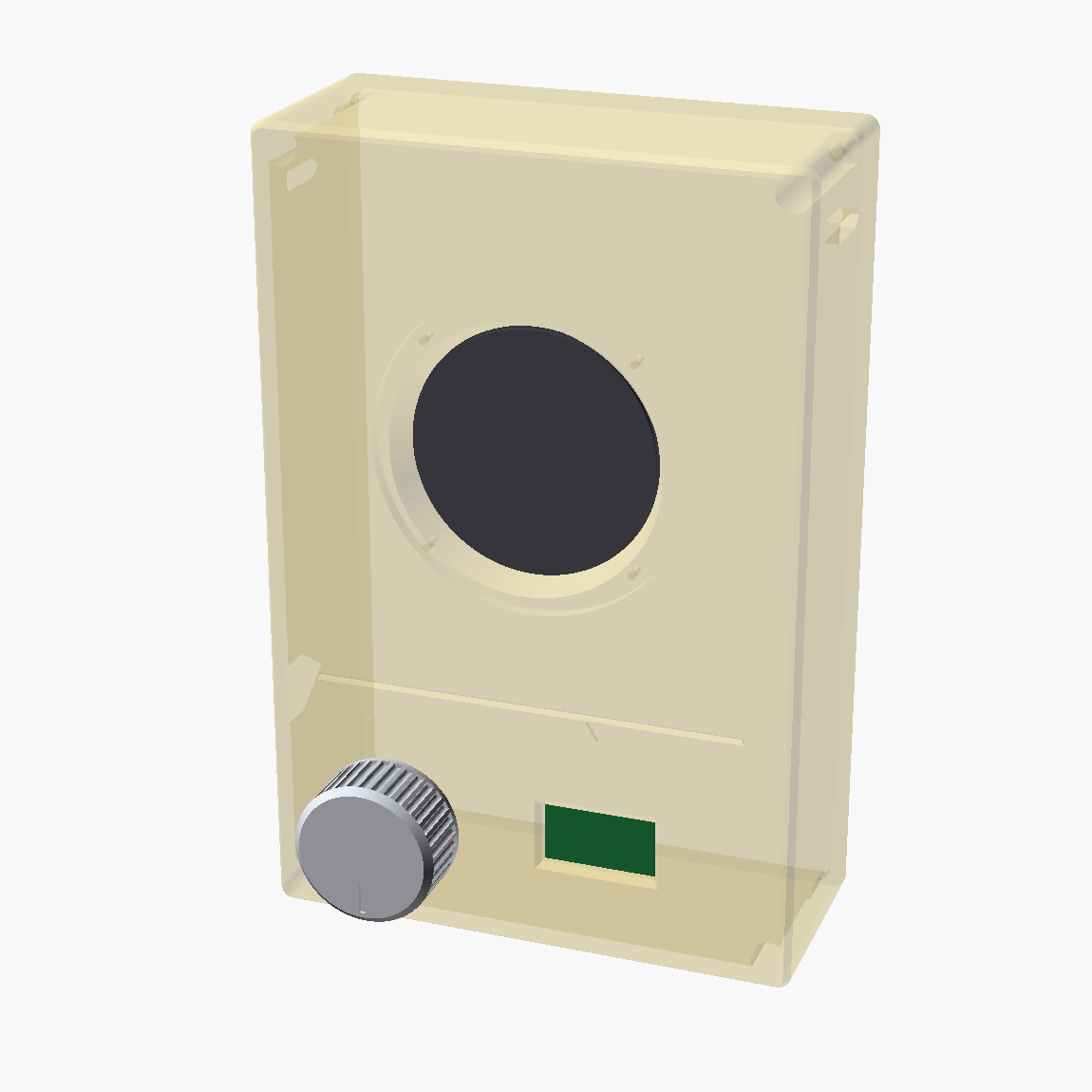

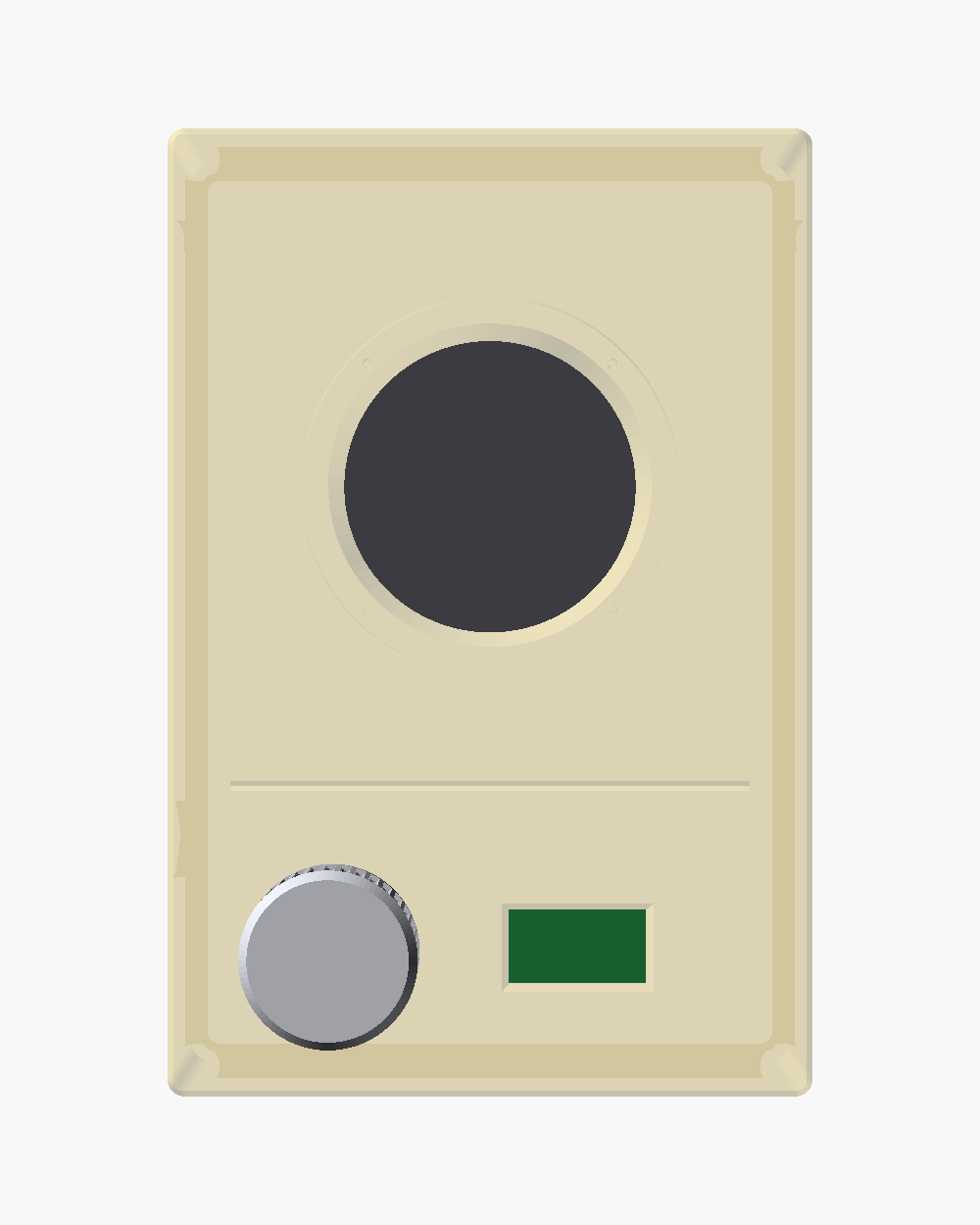

TP1 — full assembly (with hardware)2.2 MB

drag to orbit · scroll or pinch to zoom
composed of: tp1 radio v2 body, hw speaker, hw carrier, hw encoder, hw knob, tp1 radio v2 lid — all at v2.x

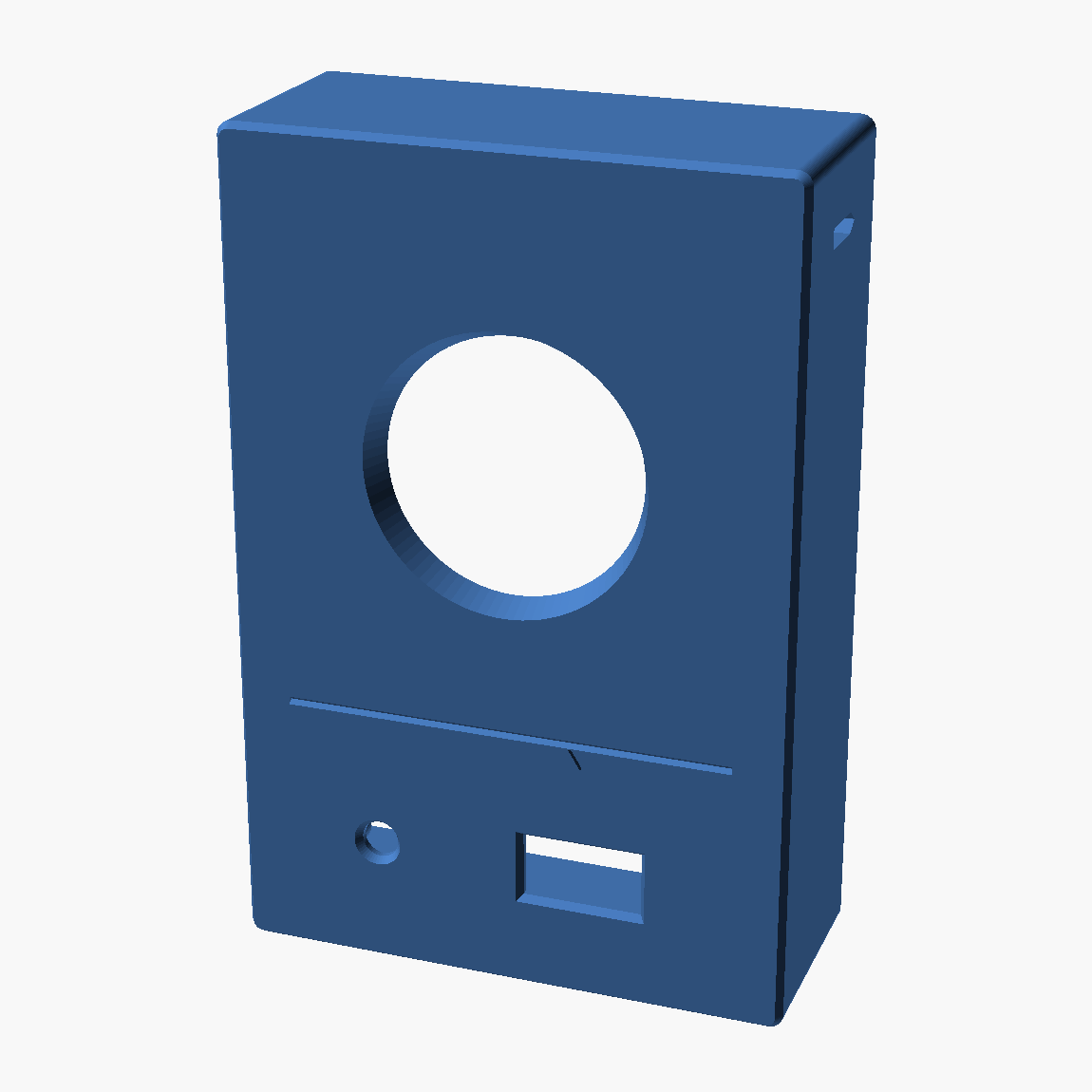

TP1 — assembly (closed)1.1 MB

drag to orbit · scroll or pinch to zoom
composed of: tp1 radio v2 body, tp1 radio v2 lid — all at v2.x

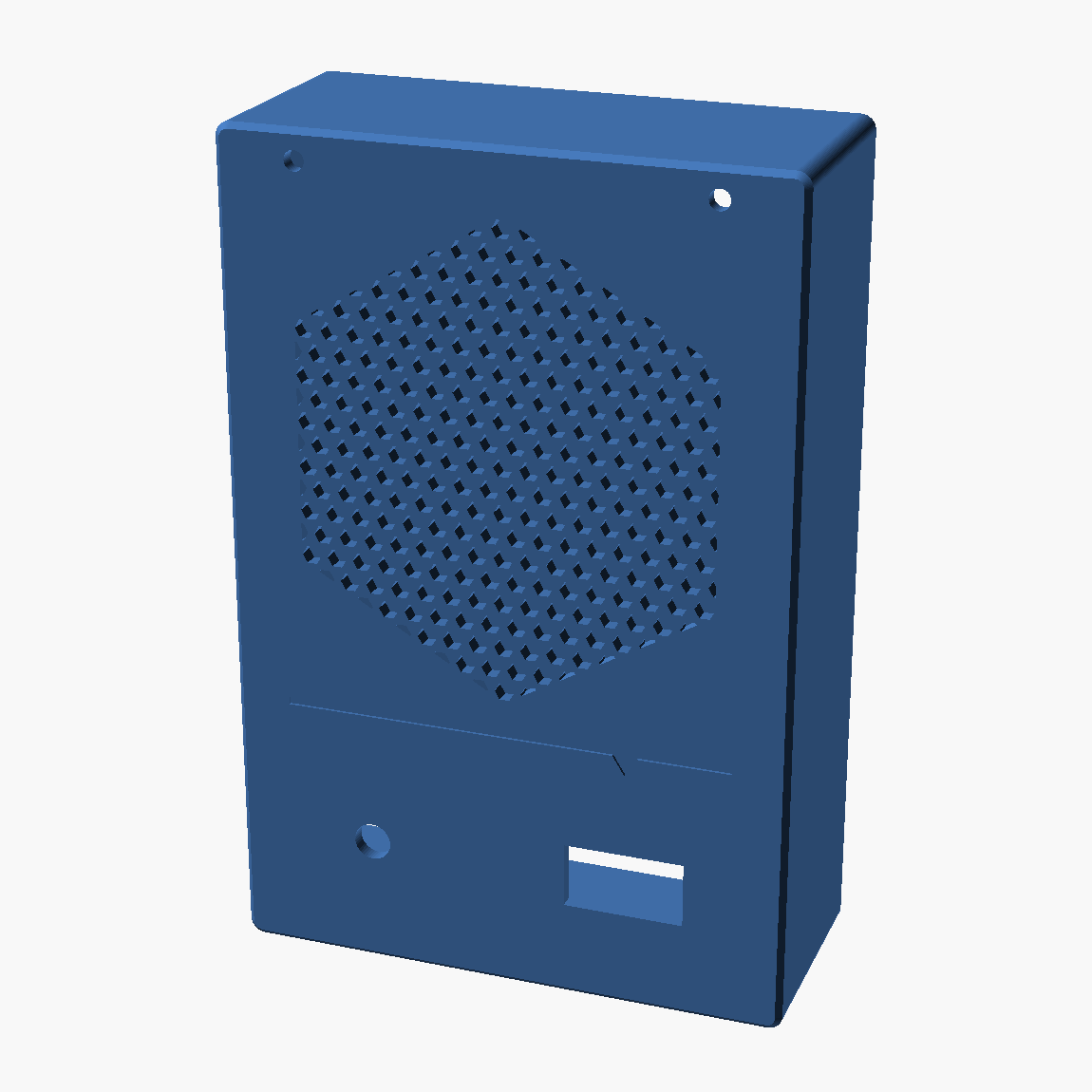

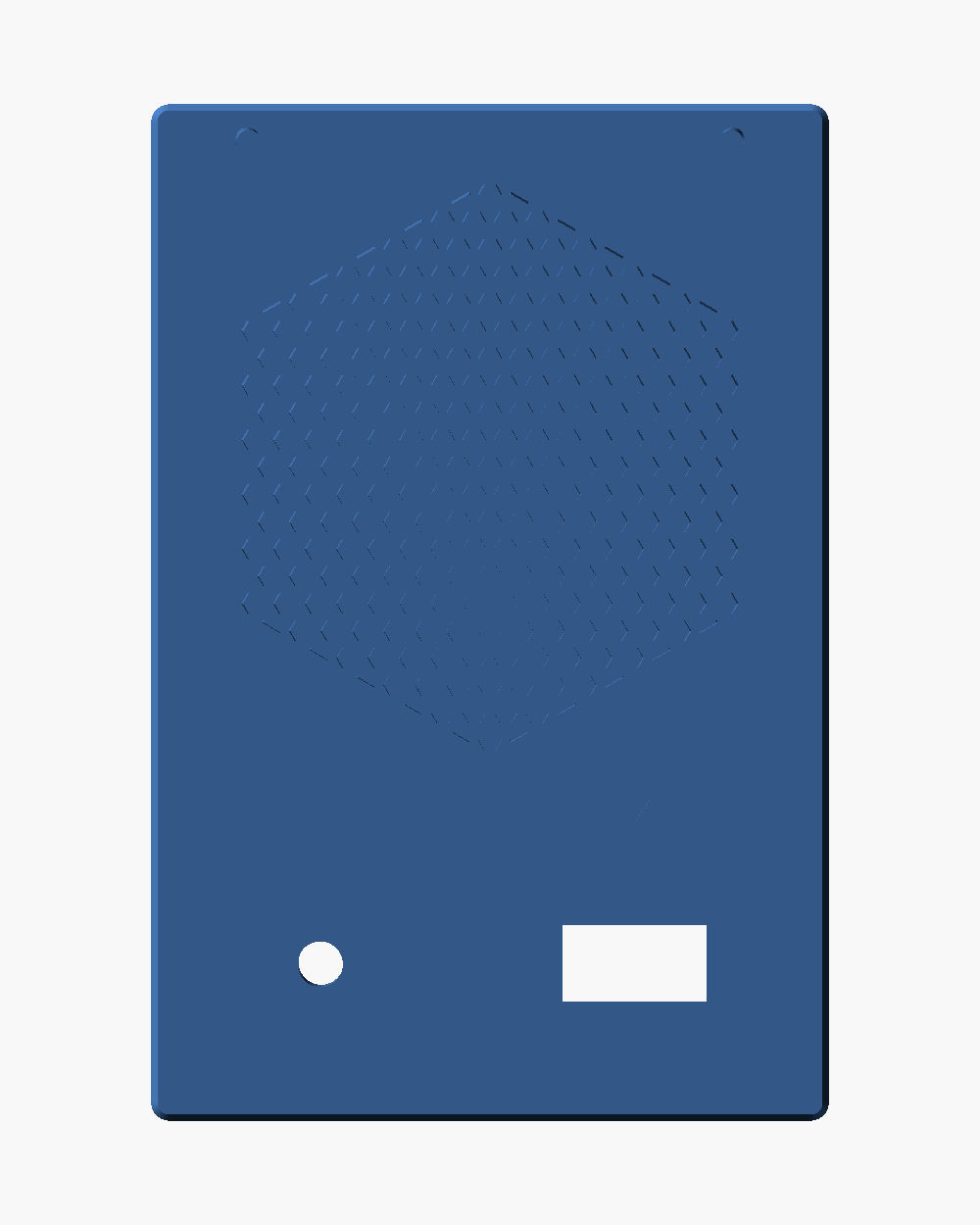

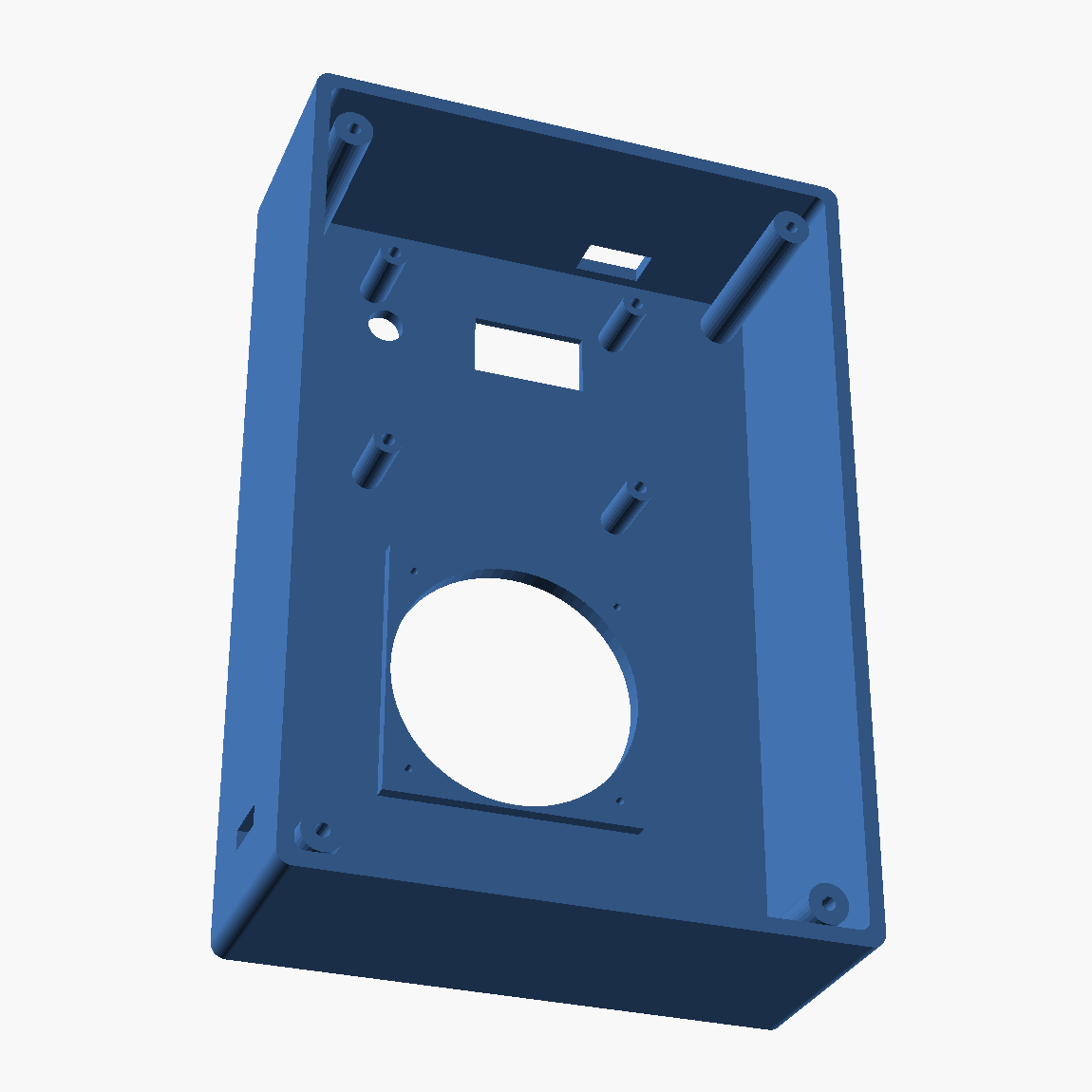

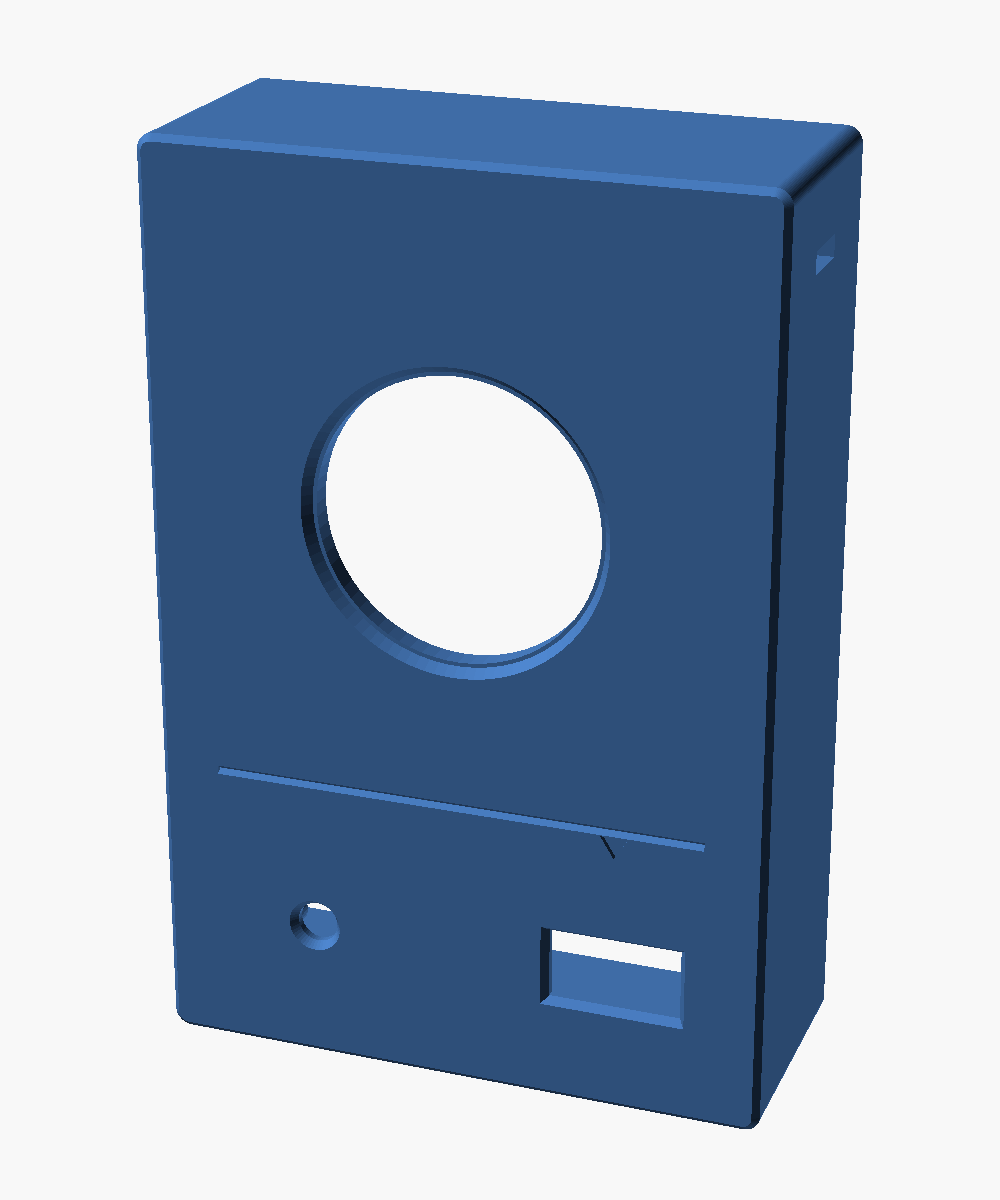

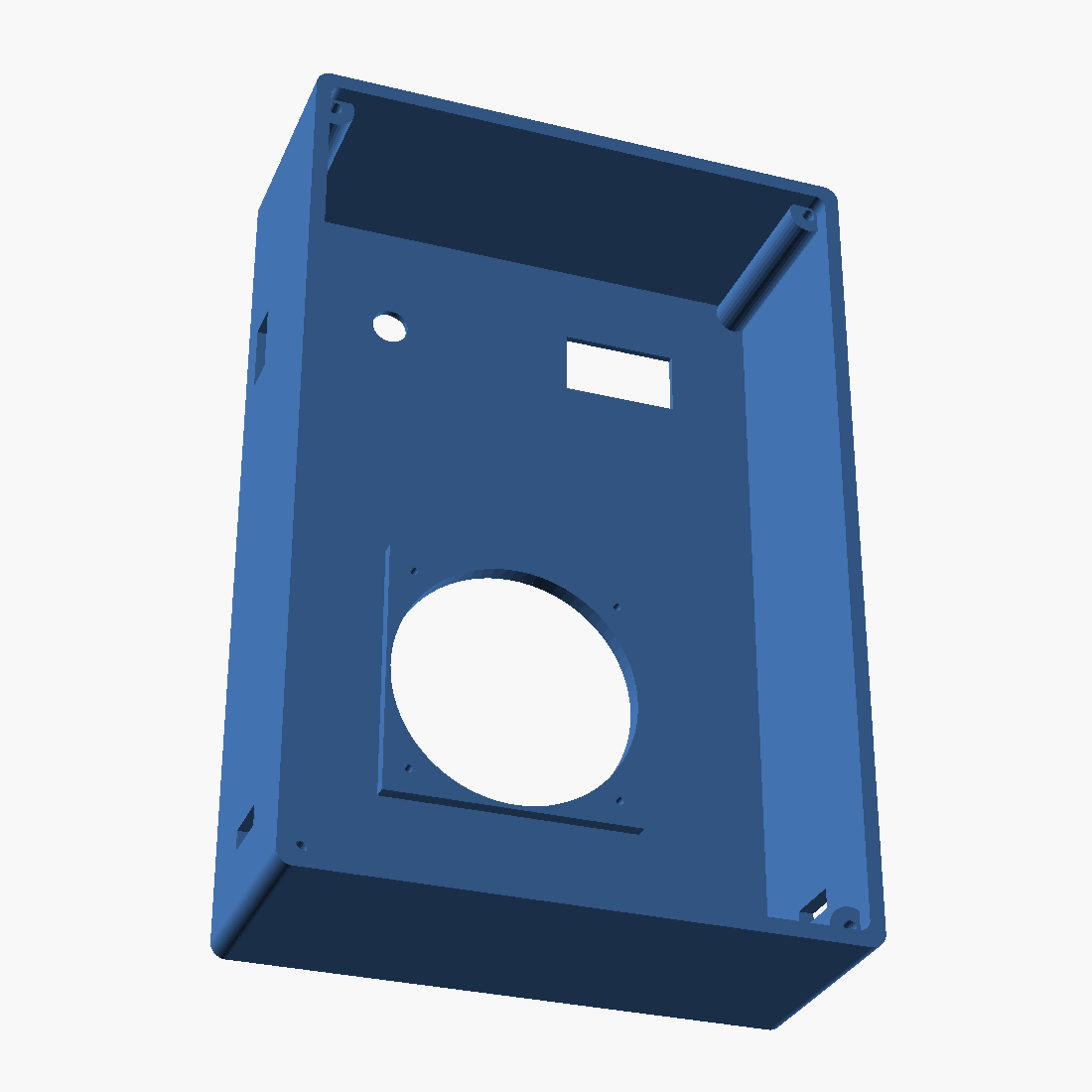

TP1 — body470 KB

drag to orbit · scroll or pinch to zoom

TP1 — rear lid (sealed)612 KB

drag to orbit · scroll or pinch to zoom

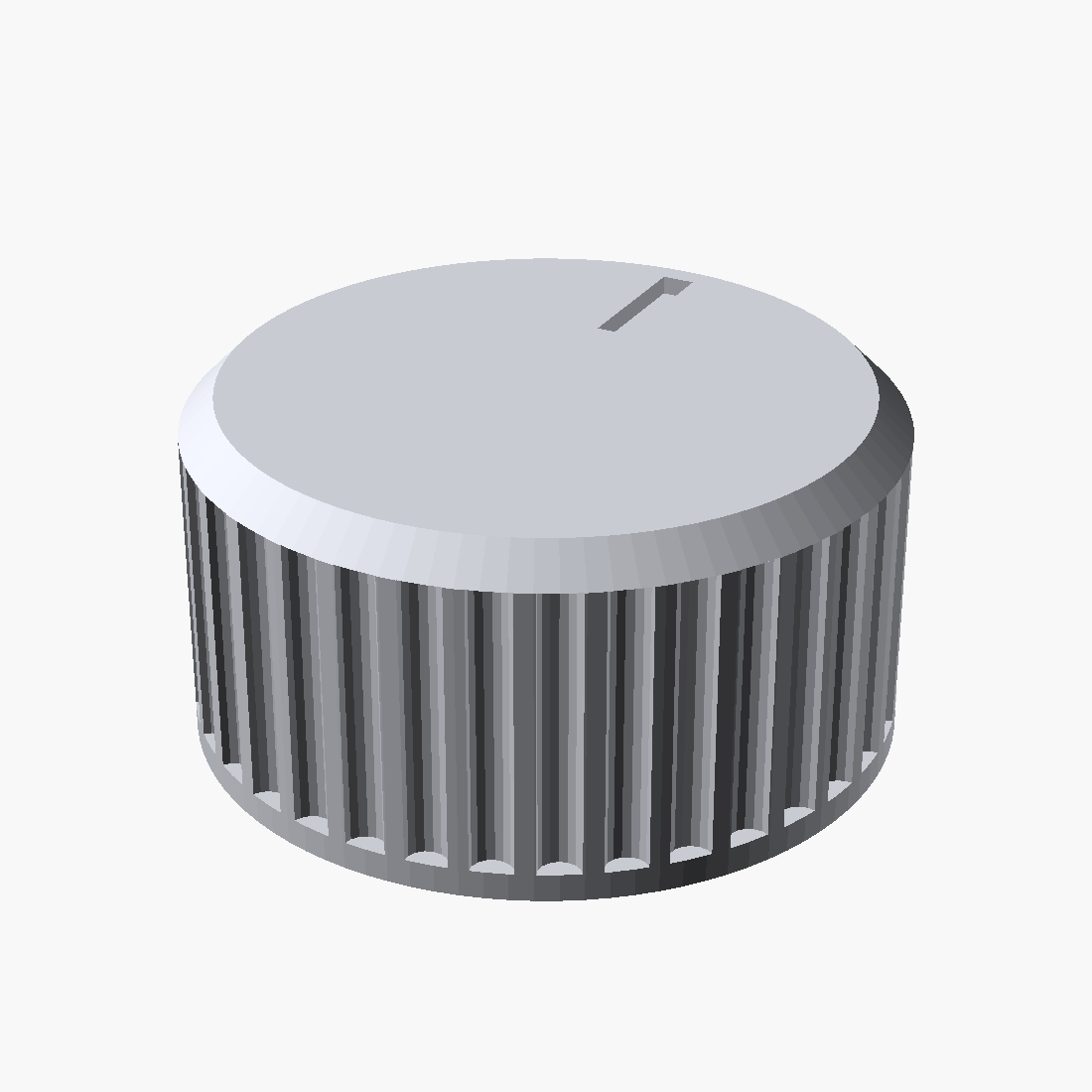

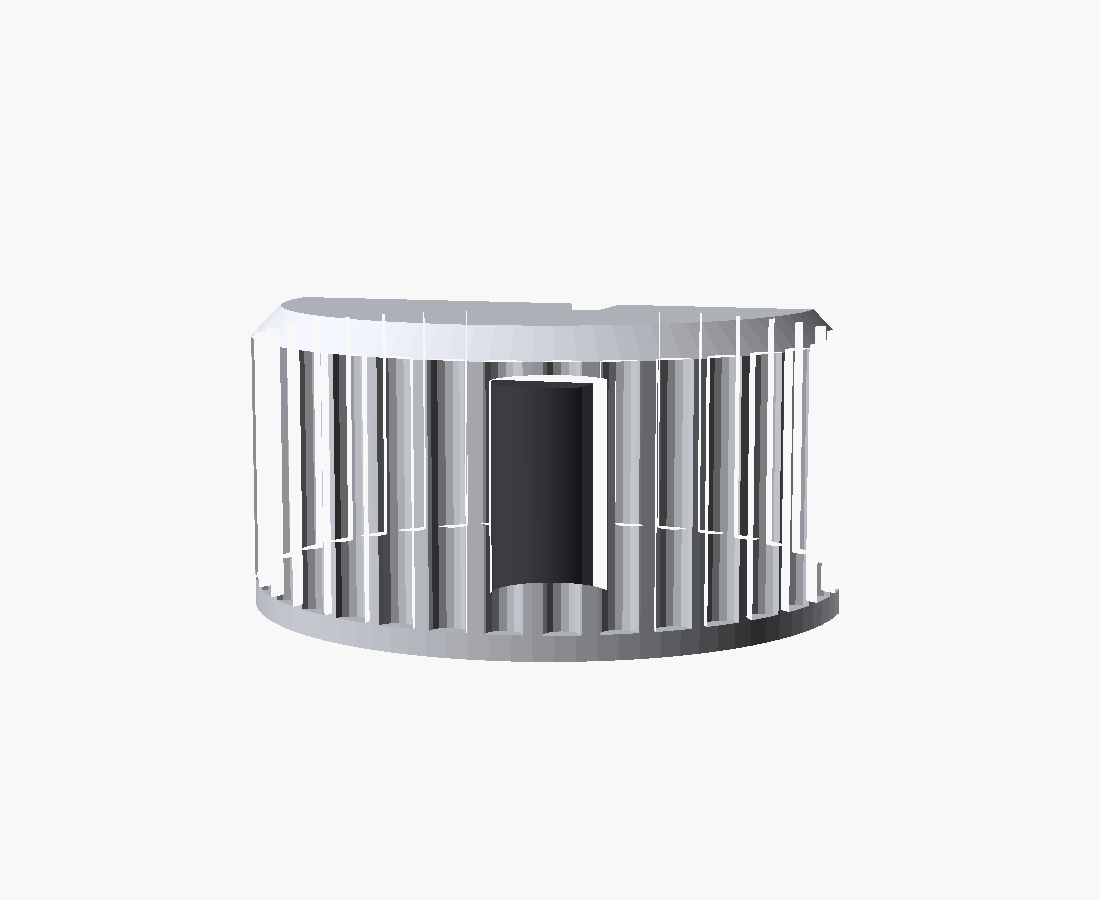

TP1 — knob (printed)431 KB

drag to orbit · scroll or pinch to zoom

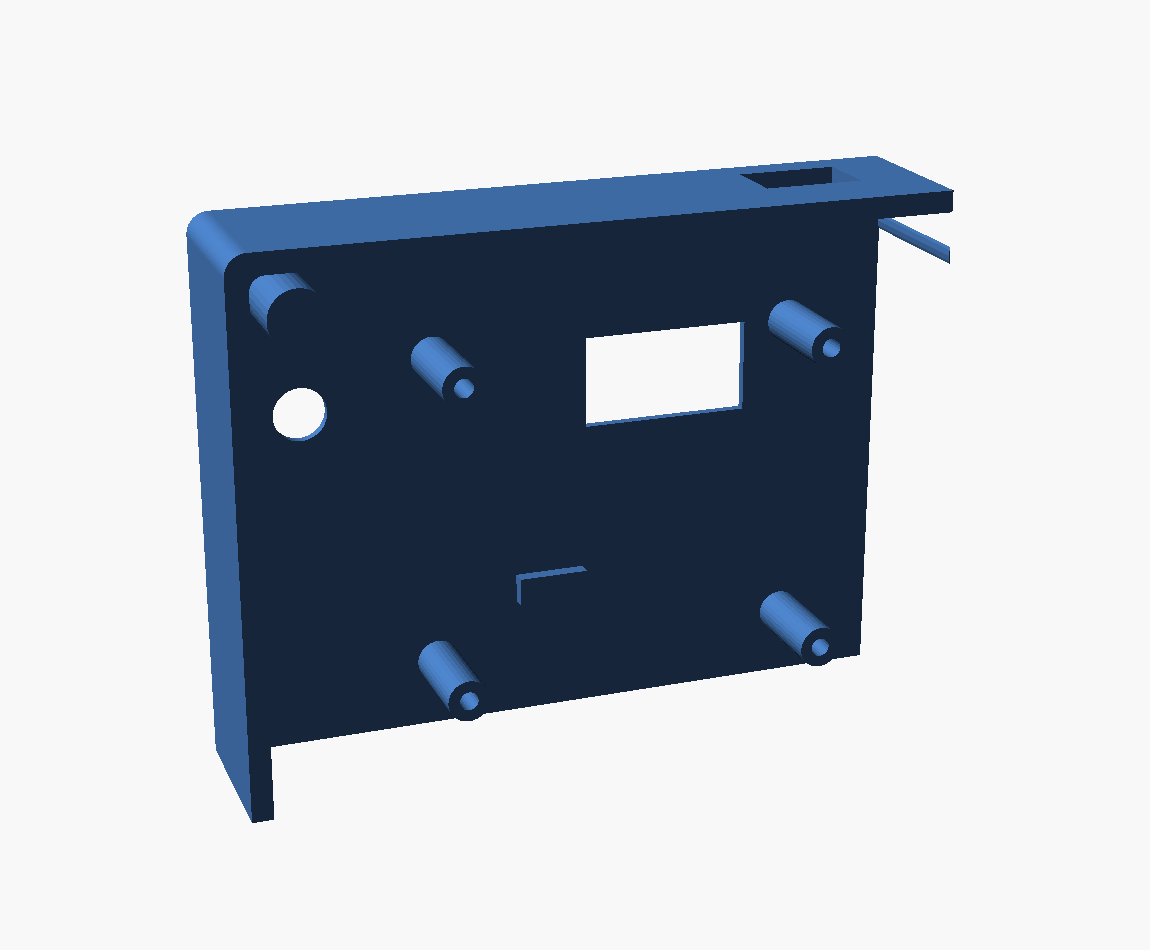

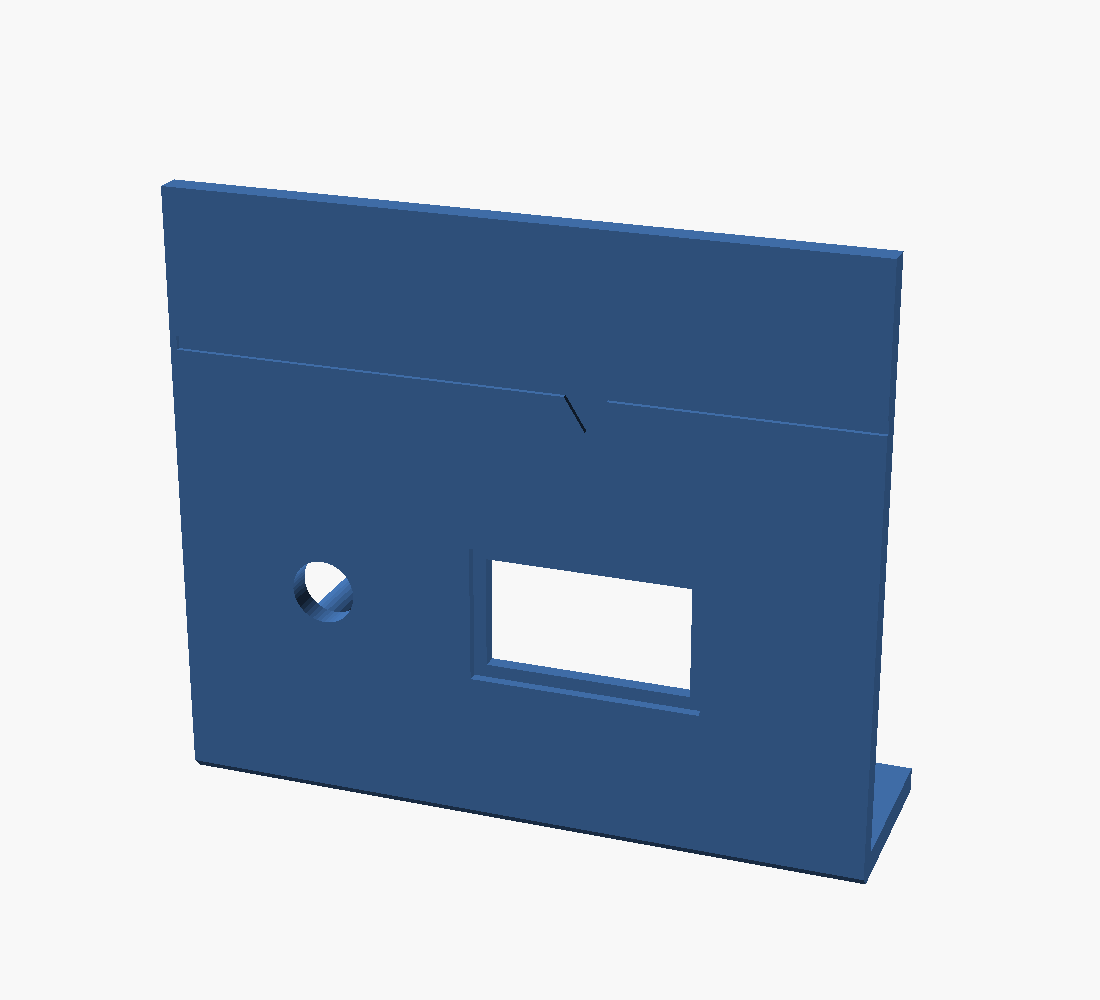

TP1 — mount coupon (fit-test)147 KB

drag to orbit · scroll or pinch to zoom

TP1 — grille coupon (hex)195 KB

drag to orbit · scroll or pinch to zoom

TP1 — grille coupon (round)695 KB

drag to orbit · scroll or pinch to zoom

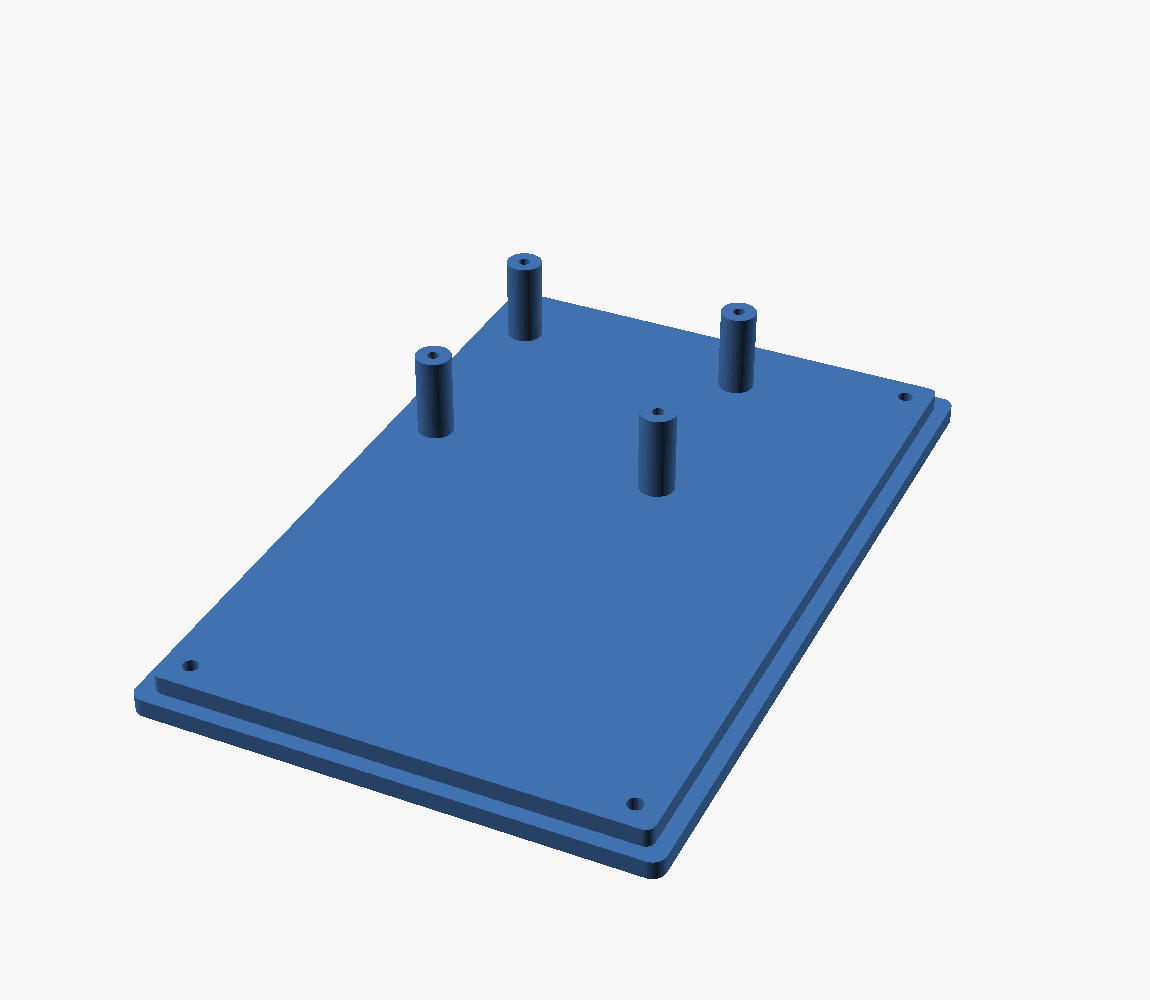

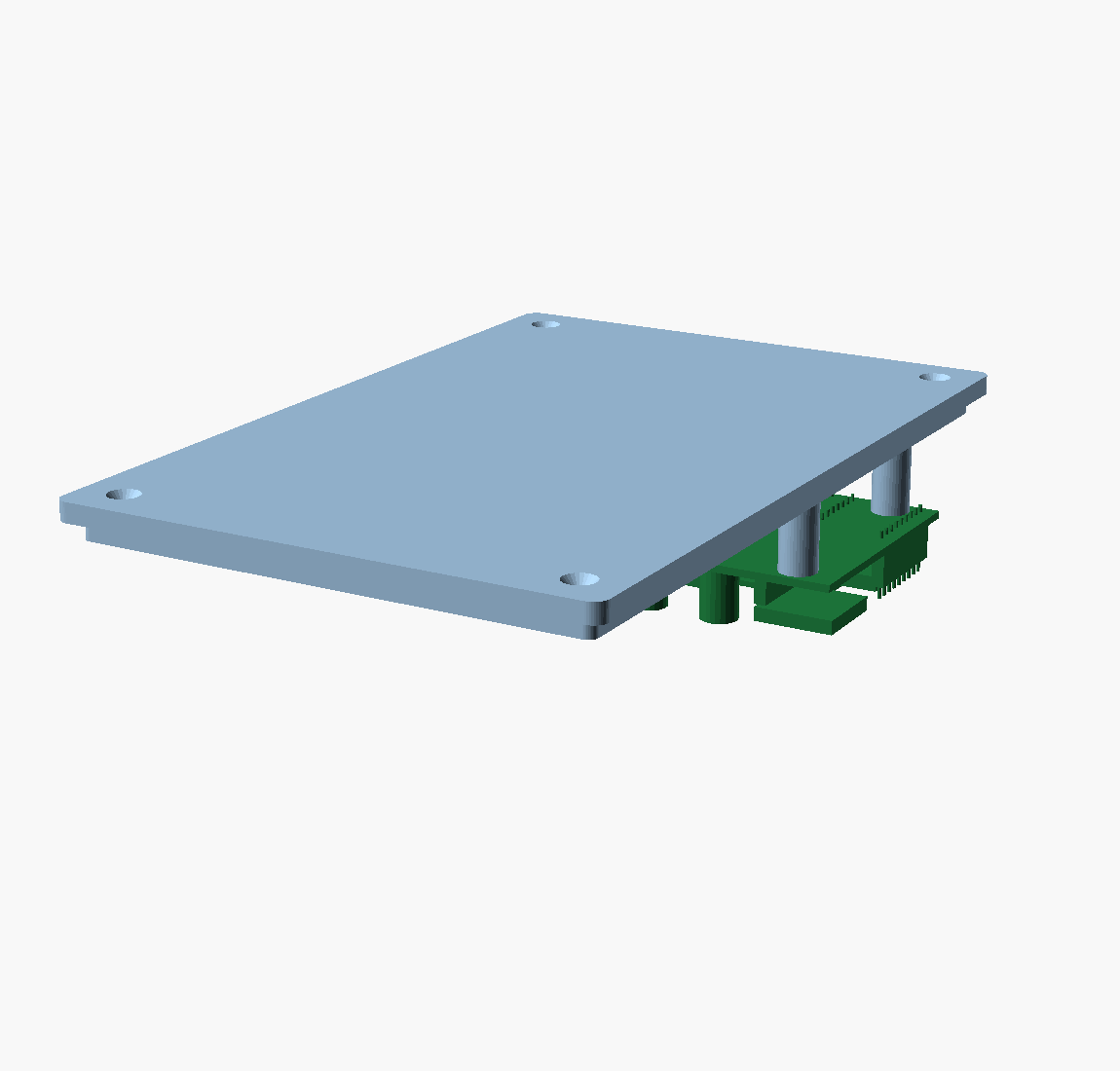

TP1 — lid coupon (carrier standoffs)165 KB

drag to orbit · scroll or pinch to zoom

TP1 — USB lid coupon (panel-mount female fit)174 KB

drag to orbit · scroll or pinch to zoom

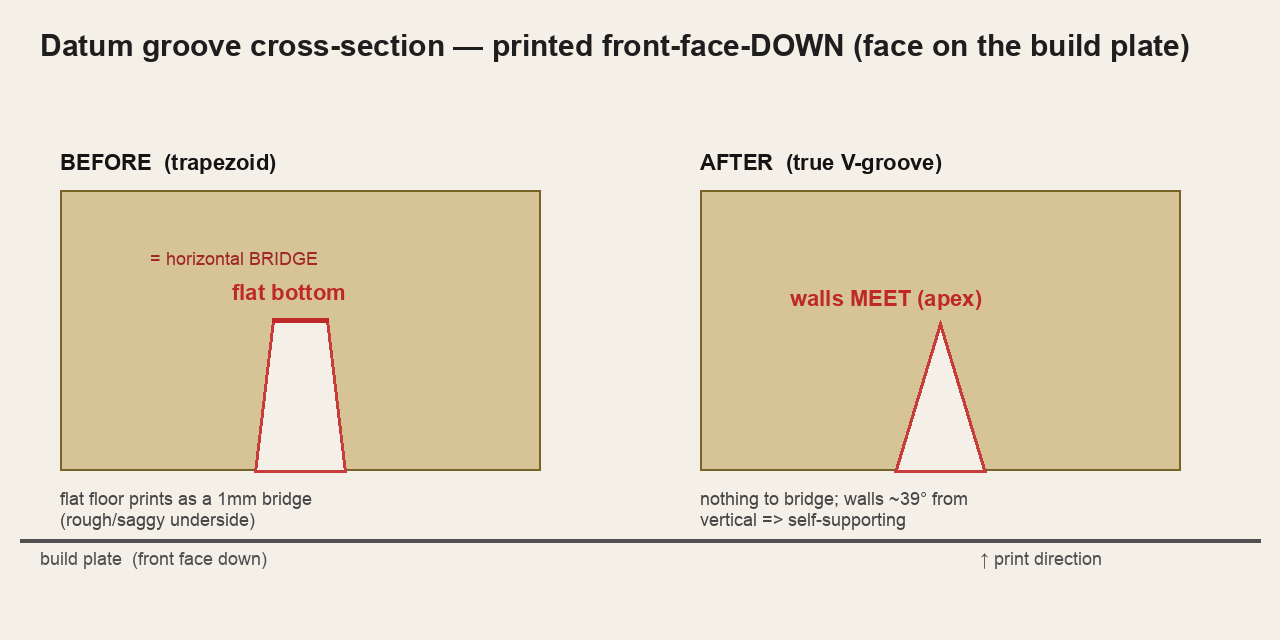

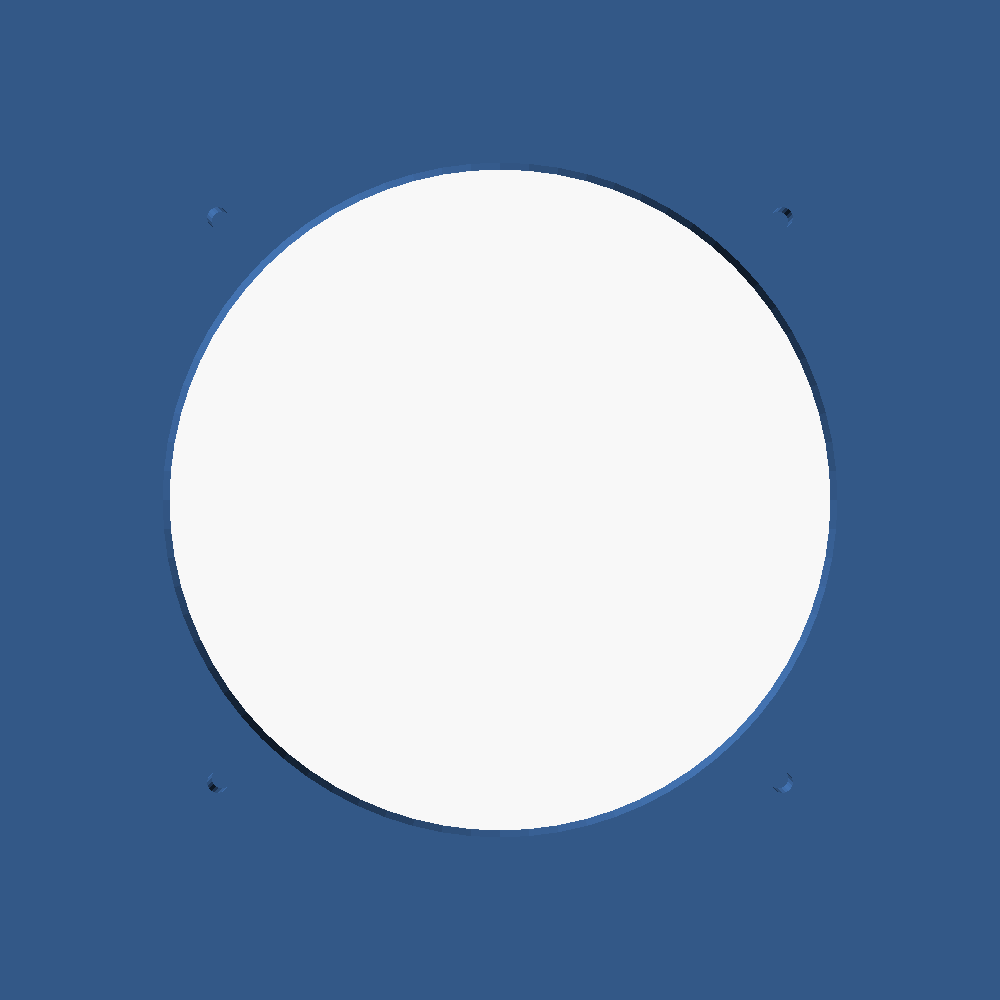

Screenshots
